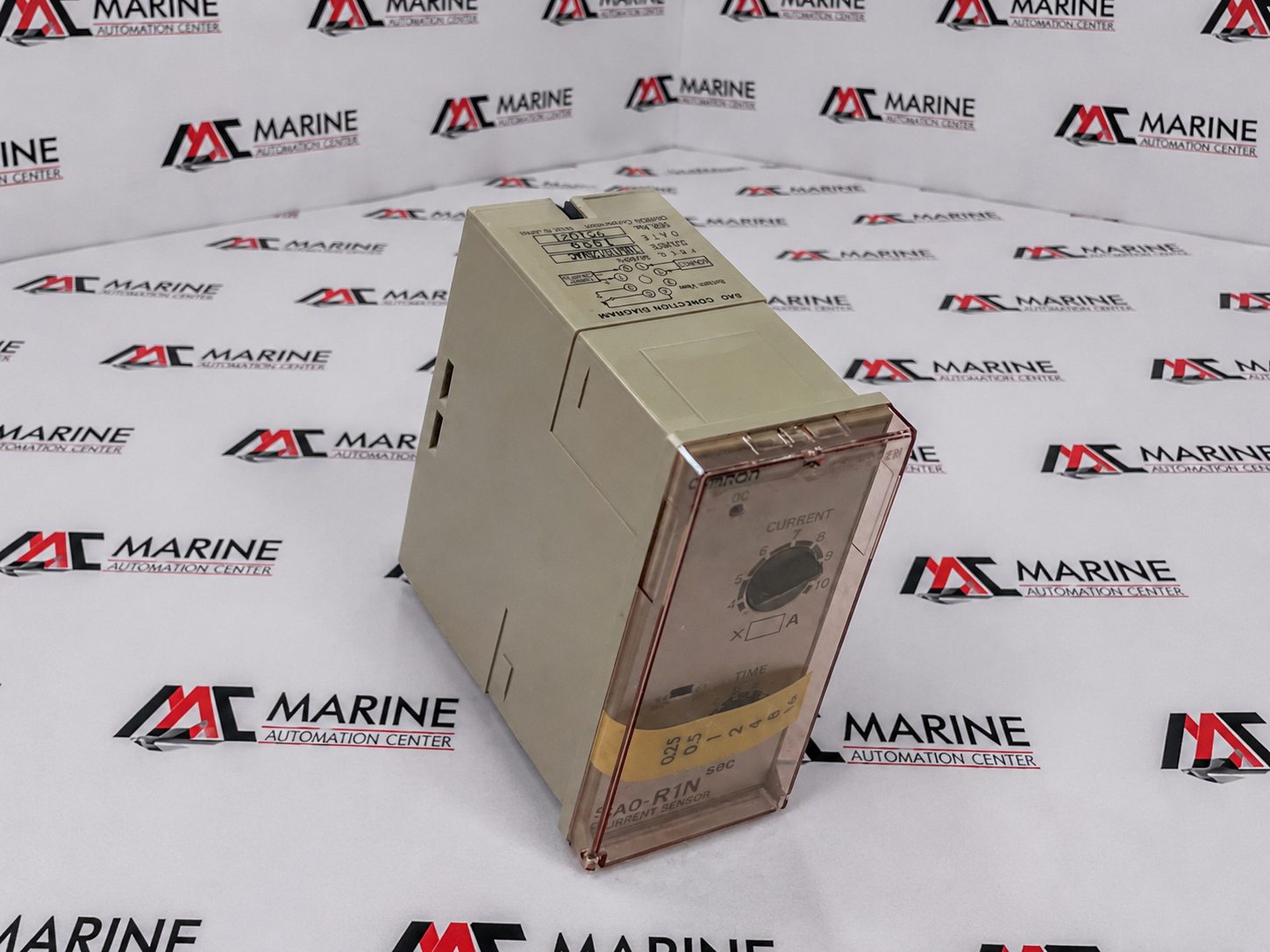

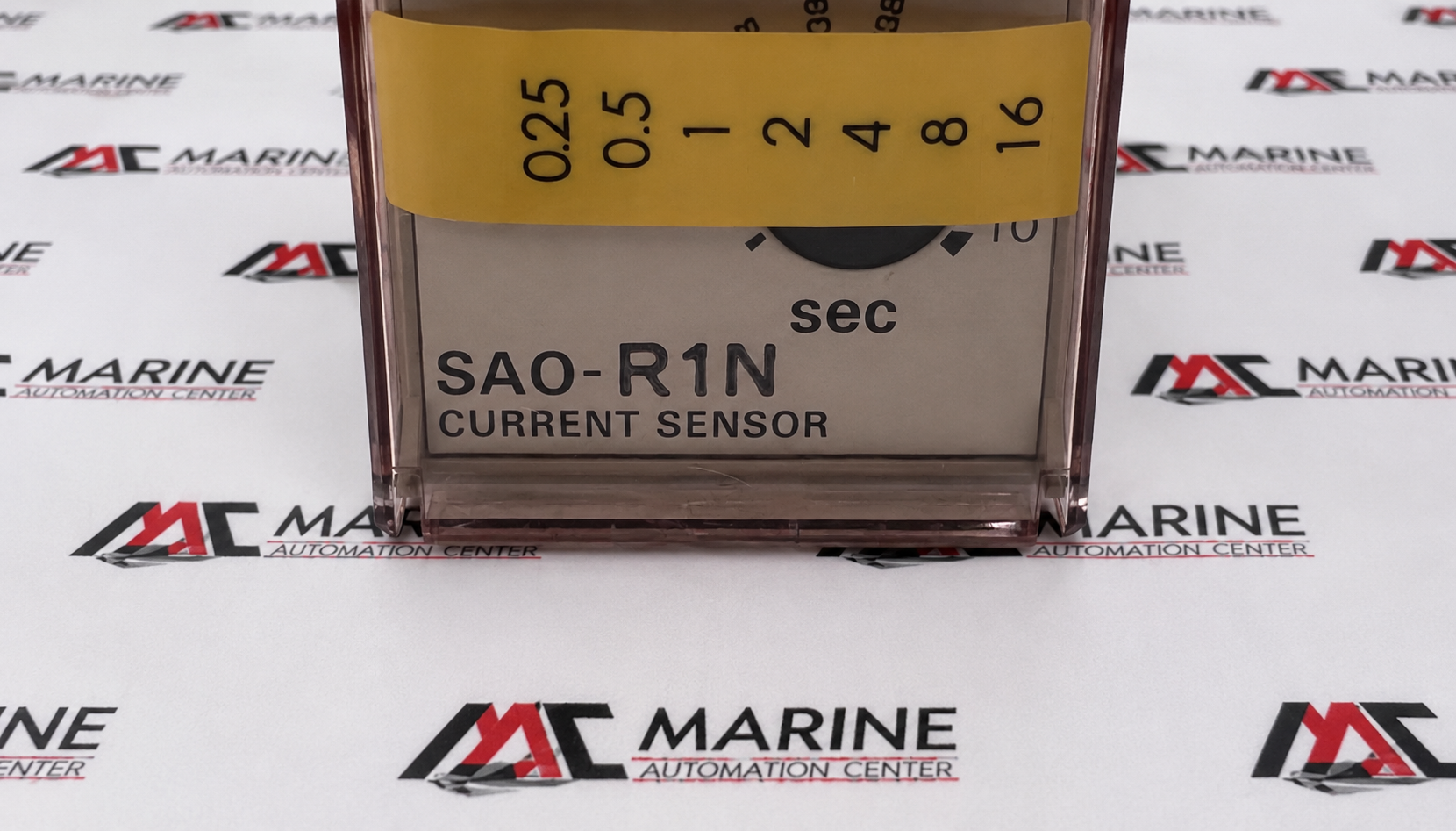

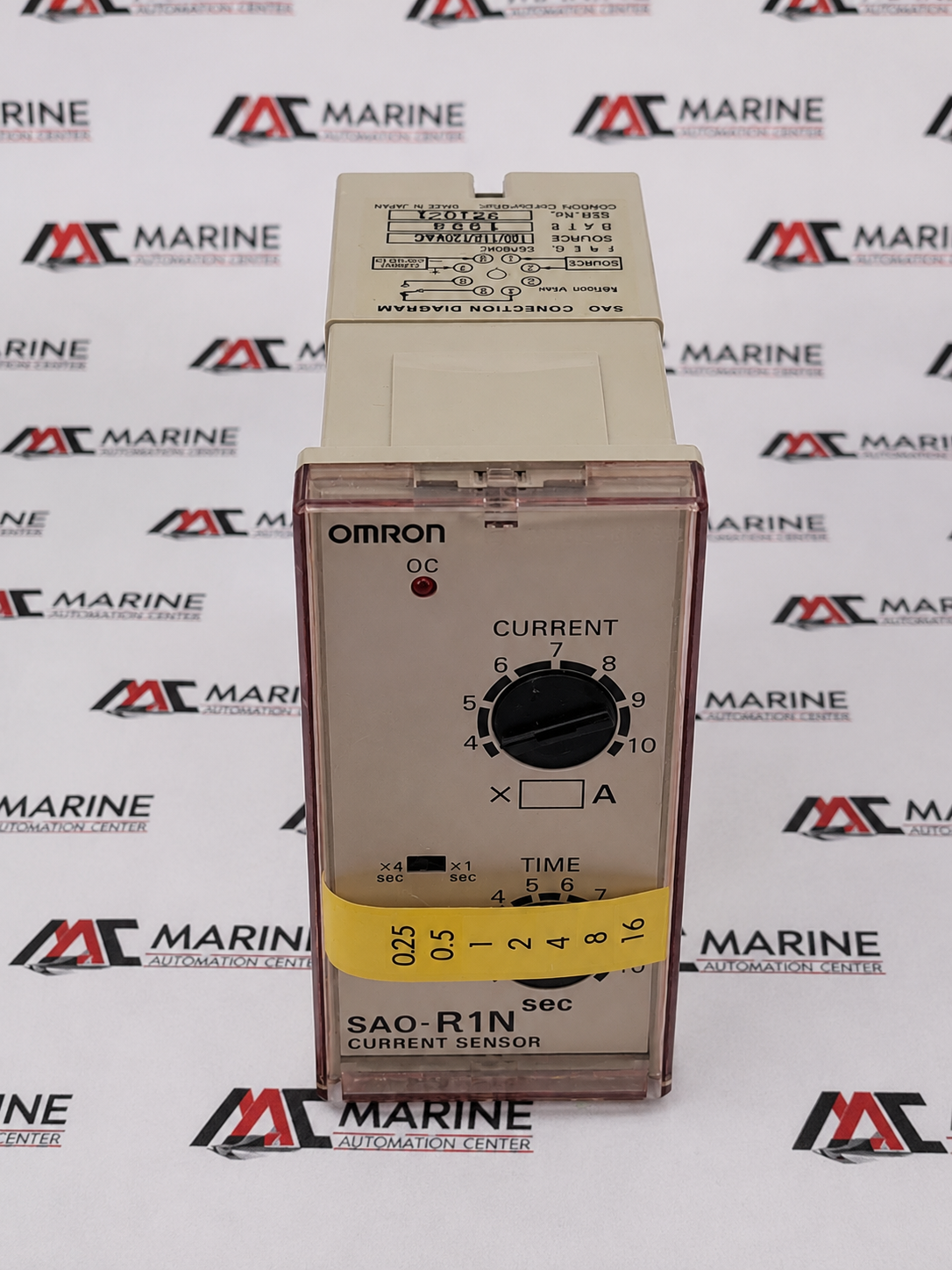

Omron Current Sensor SAO-R1N
Omron SAO-R1N Current Sensor is an electronic current sensing module designed to accurately monitor AC motor current for use with Omron motor protection relays. It provides reliable current detection for overload, underload, and abnormal operating condition monitoring in industrial automation, machinery, pumps, compressors, and marine applications.
BRAND
Omron
TYPE
Current Sensor
PART NO.
Omron Current Sensor SAO-R1N
MODEL
SAO-R1N
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Omron |
| TYPE | Current Sensor |
| PART NO. | Omron Current Sensor SAO-R1N |
| MODEL | SAO-R1N |
| SERIES | SAO Series |
| CONTROL SUPPLY VOLTAGE | AC 100 / 110 / 120 VAC |
| SUPPLY FREQUENCY | 50 / 60 Hz |
| POWER CONSUMPTION | Approx. 3.5 VA |
| STATUS INDICATOR | OC (Overcurrent) LED |
| SOCKET TYPE | 8-Pin Plug-in Socket |
| MOUNTING | Plug-in / DIN Rail via 8PFA1 Socket |
| SOURCE VOLTAGE | 100 / 110 / 120 VAC |
| APPLICATION | Motor overcurrent protection, industrial motor monitoring, three-phase AC current detection, industrial automation, machine protection |
| MADE IN | Japan |
| REF NO | 417 |
