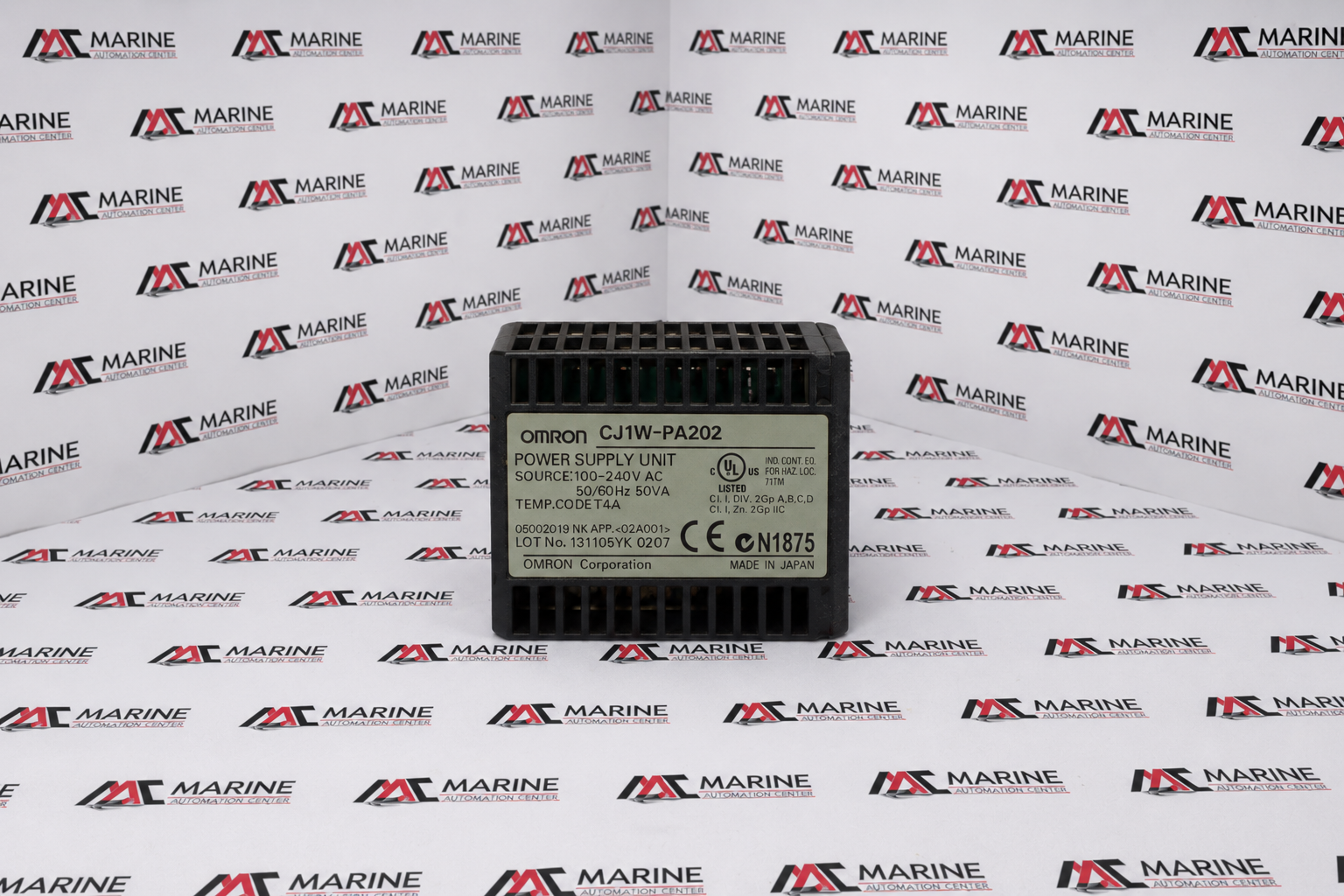

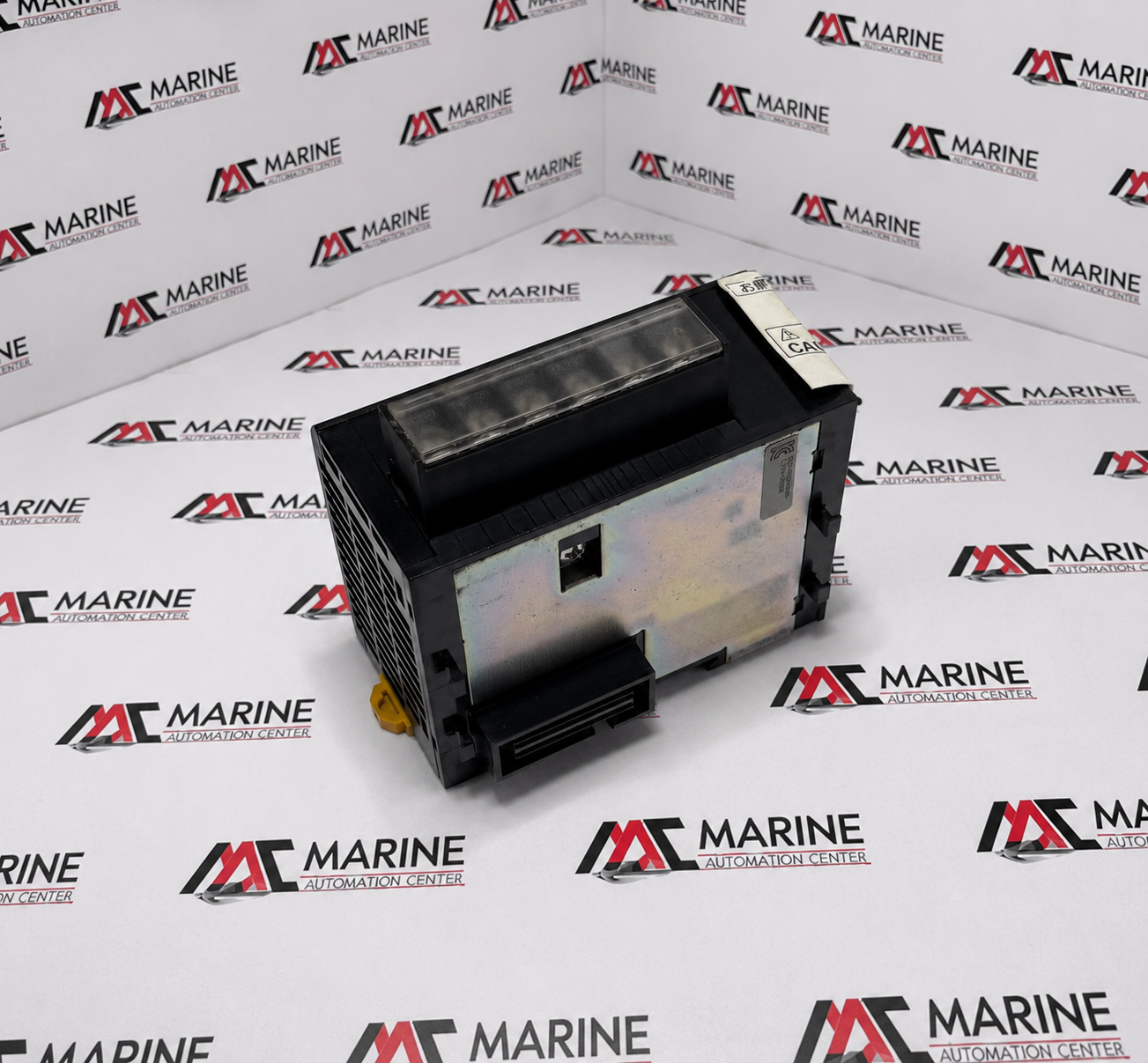

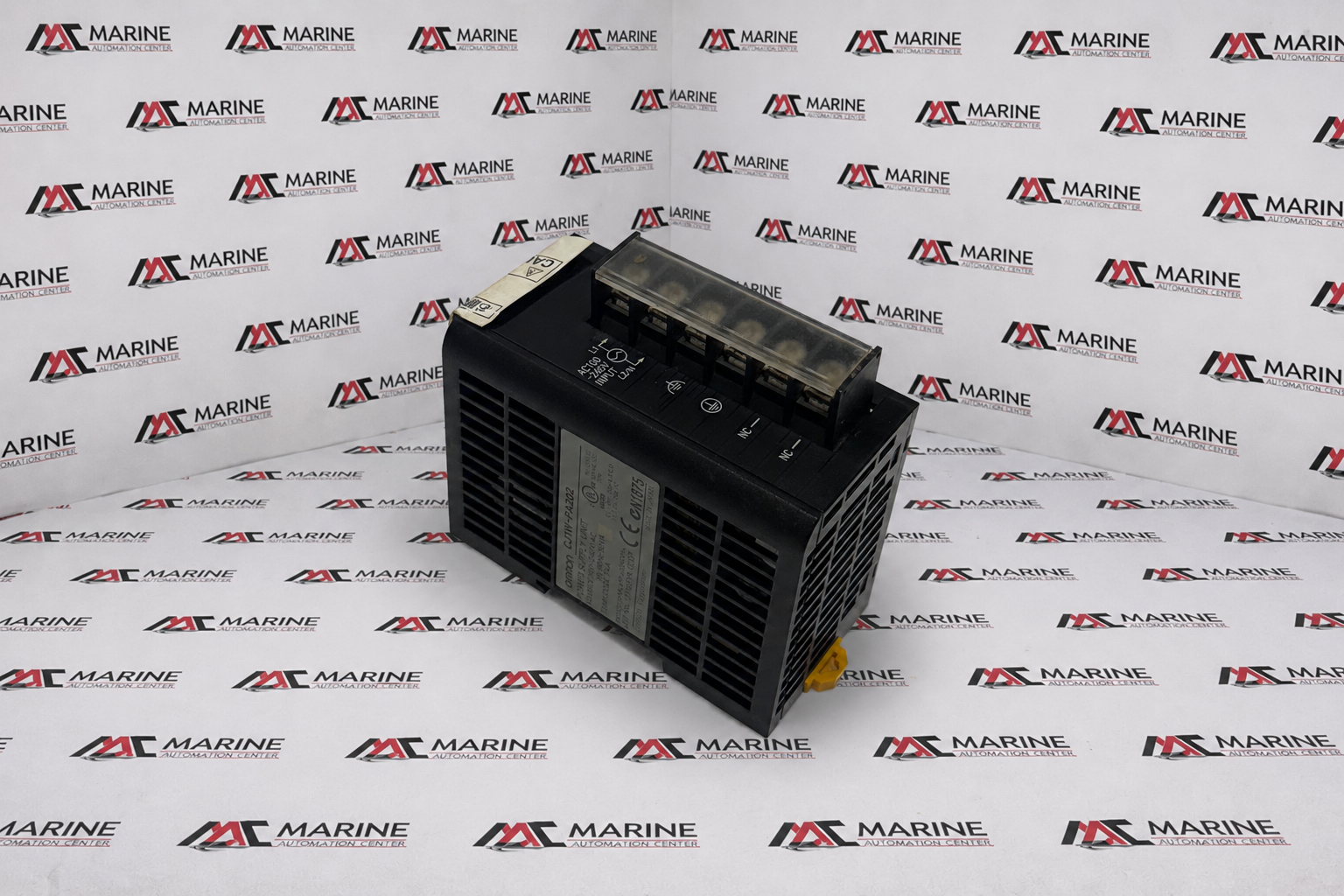

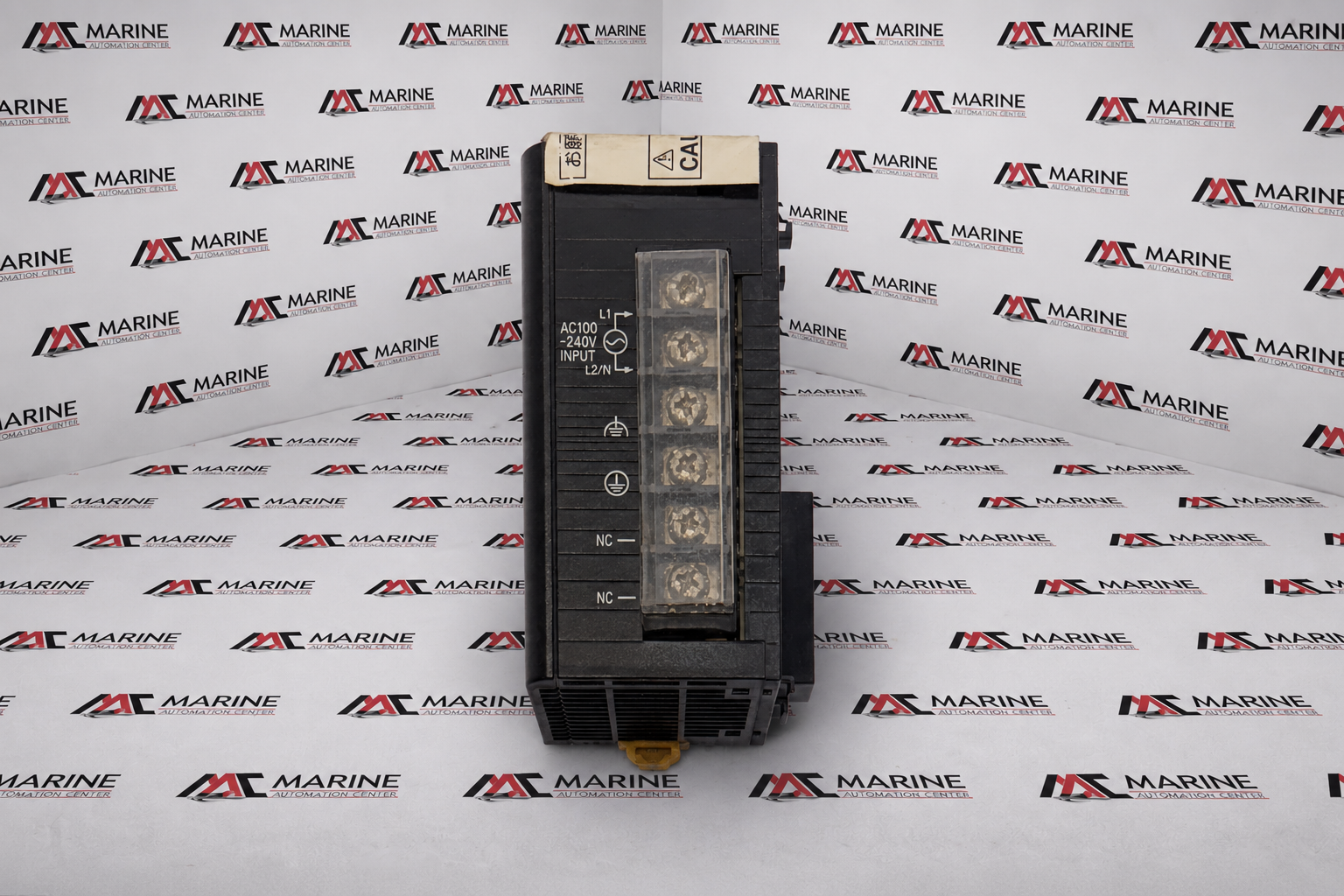

Omron CJ1W-PA202 SYSMAC Power Supply Module
Omron CJ1W-PA202 SYSMAC Power Supply Module is a dependable PLC power supply unit designed to provide stable and efficient power to Omron SYSMAC CJ-series PLC systems. It ensures reliable operation, supports consistent system performance, and is ideal for industrial automation and control applications requiring continuous and dependable power delivery
BRAND
OMRON
TYPE
PLC Power Supply Unit
PART NO.
PLC Power Supply Unit CJ1W-PA202
MODEL
CJ1W-PA202
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | OMRON |
| TYPE | PLC Power Supply Unit |
| PART NO. | PLC Power Supply Unit CJ1W-PA202 |
| MODEL | CJ1W-PA202 |
| Voltage Rating | Input: 100 to 240 V AC (50/60 Hz) | Output: 5 V DC (2.8 A) and 24 V DC (0.4 A) |
| Application | Provides stable system power to CPU units, I/O modules, and special function blocks within Omron CJ1/SYSMAC series programmable logic controllers |
| IEC | Conforms to EN 61131-2, CE marked, and standard electrical equipment safety standards |
| Power Consumption | 50 VA max |
| Hazardous Environment Ratings | cULus Listed for Haz. Loc. Class I, Div. 2, Groups A, B, C, D (Temp Code T4A); Class I, Zone 2, Group IIC |
| Run Output Relay | Features an integrated RUN output contact terminal block to monitor system operating statuses |
| Made In | Japan |
| REF NO | 1441 |
