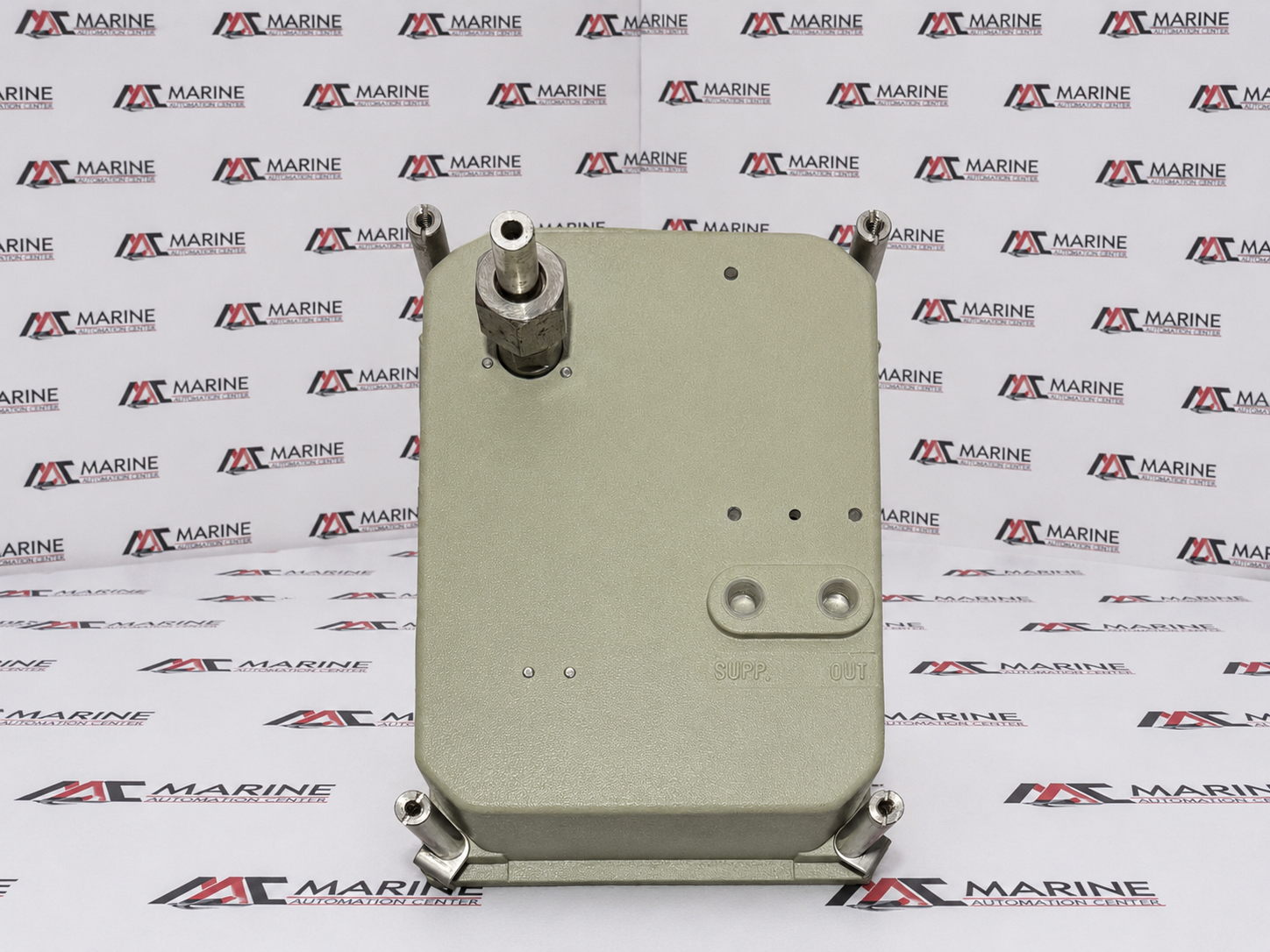

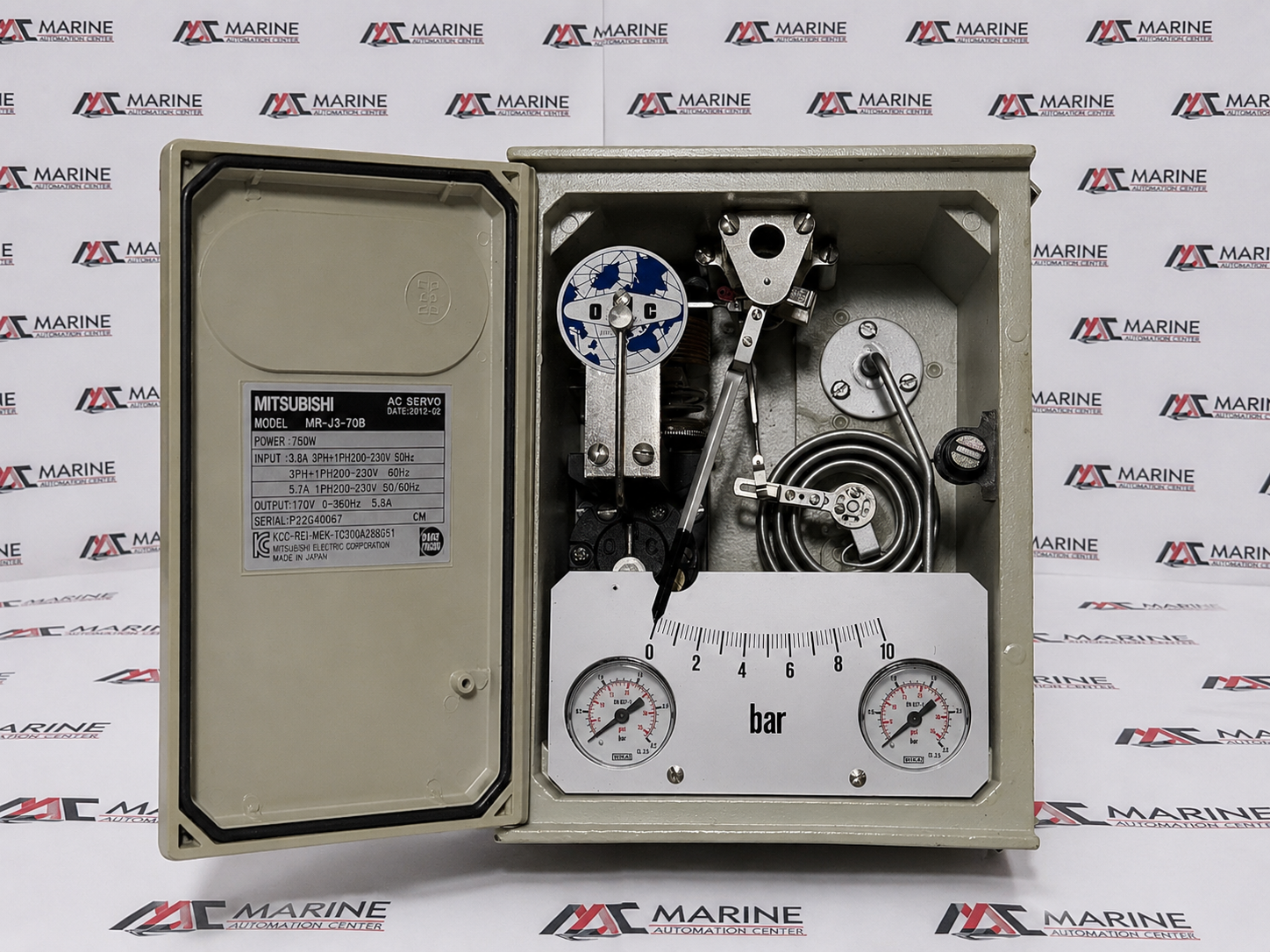

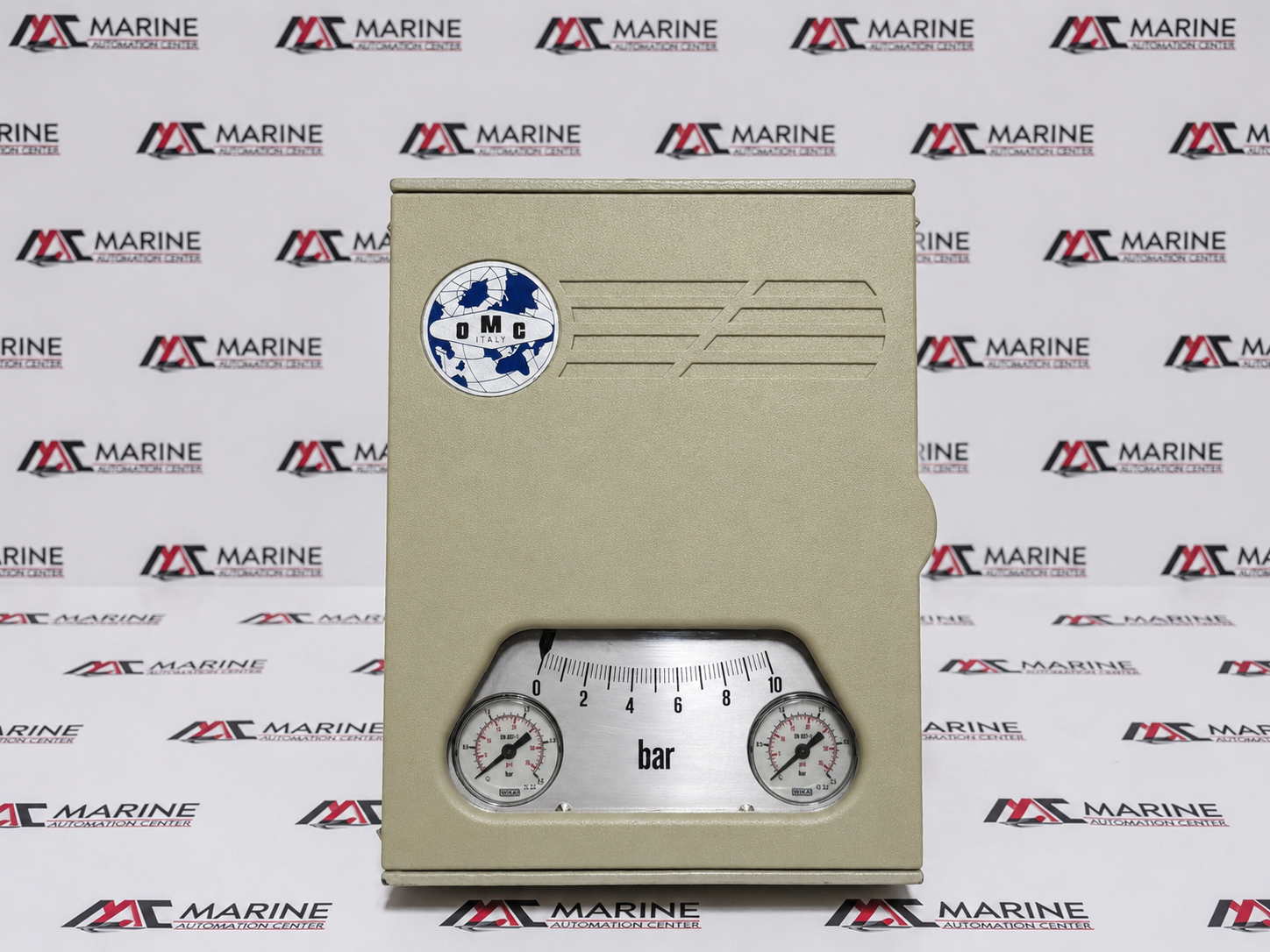

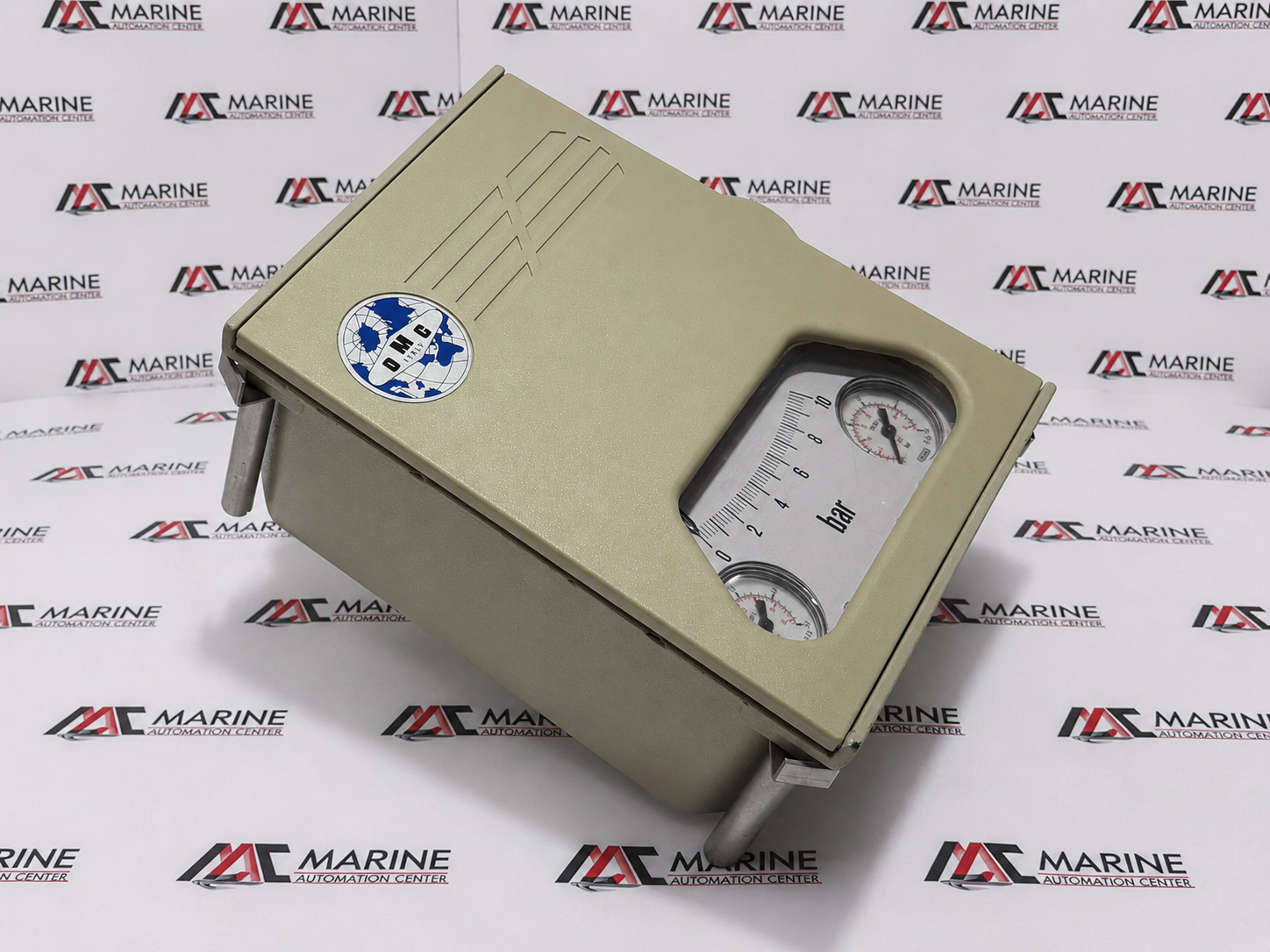

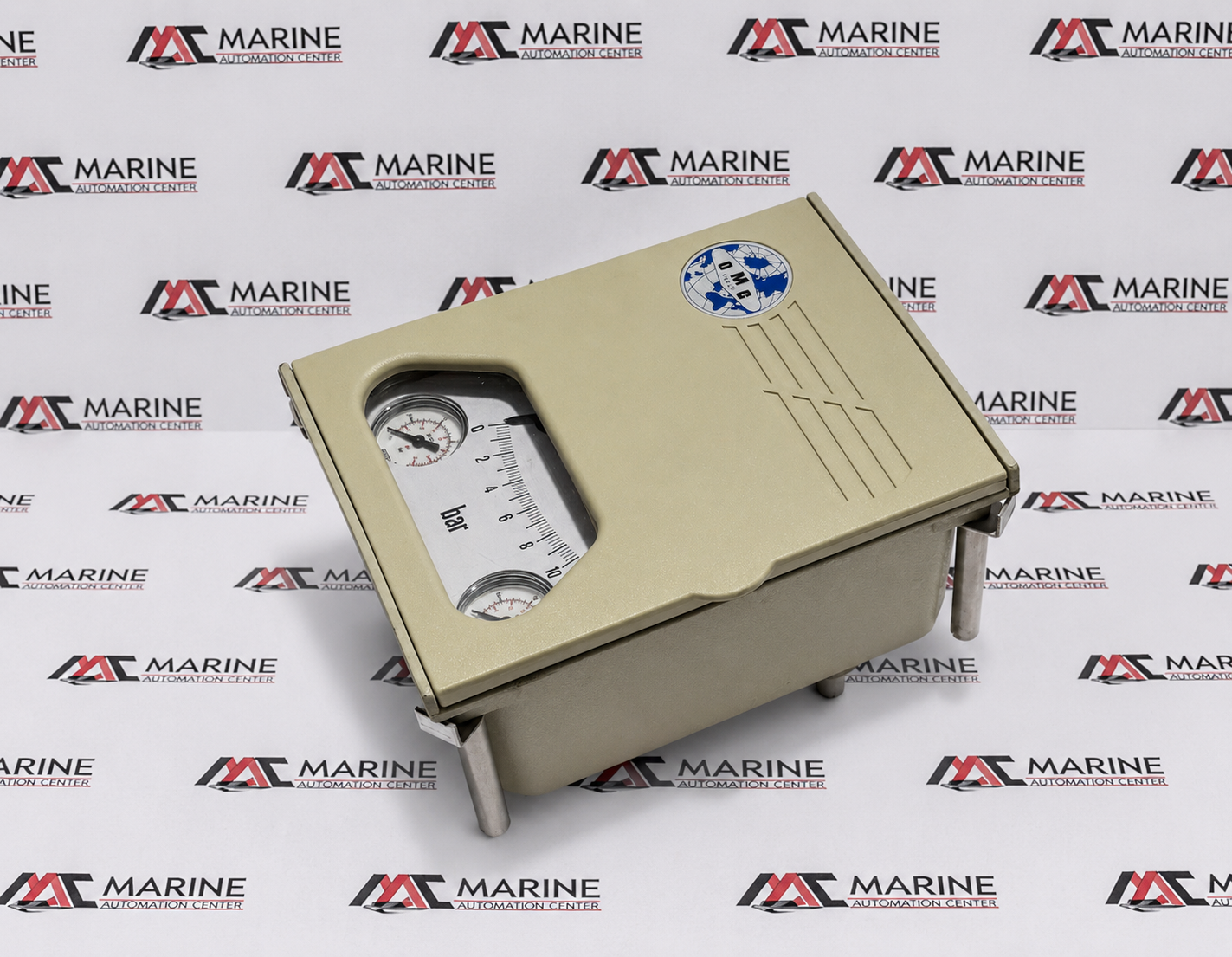

OMC Italy Pneumatic Pressure Indicating Transmitter Series 80
The OMC Italy Series 80 Type 85 P (P/N: 85 P) is a pneumatic pressure indicating transmitter designed for accurate measurement, indication, and transmission of process pressure signals in industrial and marine automation systems. It combines a local analog pressure indication with a pneumatic output signal, making it suitable for control loops, process monitoring, and valve control applications in hazardous and demanding operating environments. Its rugged construction ensures reliable performanc
BRAND
OMC Italy
TYPE
Pneumatic Pressure Indicating Transmitter
PART NO.
85 P
MODEL
Series 80
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | OMC Italy |
| TYPE | Pneumatic Pressure Indicating Transmitter |
| PART NO. | 85 P |
| MODEL | Series 80 |
| MANUFACTURER | OMC S.r.l. (Italy) |
| Instrument Type | Pressure Indicating Transmitter |
| Pressure Range | 0–10 bar |
| Measuring Element | AISI 316L Bourdon Tube |
| Process Connection | 1/2" BSP Male × 1/4" NPT Female |
| Supply Pressure | 20 PSI |
| Output Signal | 3–15 PSI Pneumatic |
| Output Type | Pneumatic Transmitter Output |
| Display | Mechanical Analog Indicating Scale (0–10 bar) with Dual Pressure Gauges |
| Operating Principle | Pneumatic Force-Balance Pressure Transmitter |
| Housing Material | Industrial Die-Cast Metal Enclosure |
| Mounting | Wall / Panel Mount |
| Application | Pneumatic pressure indication and transmission for marine automation systems, engine room instrumentation, process control, pneumatic monitoring, shipboard control systems, and industrial pressure measurement. |
| Made In | Italy |
| REF NO | 1409 |
