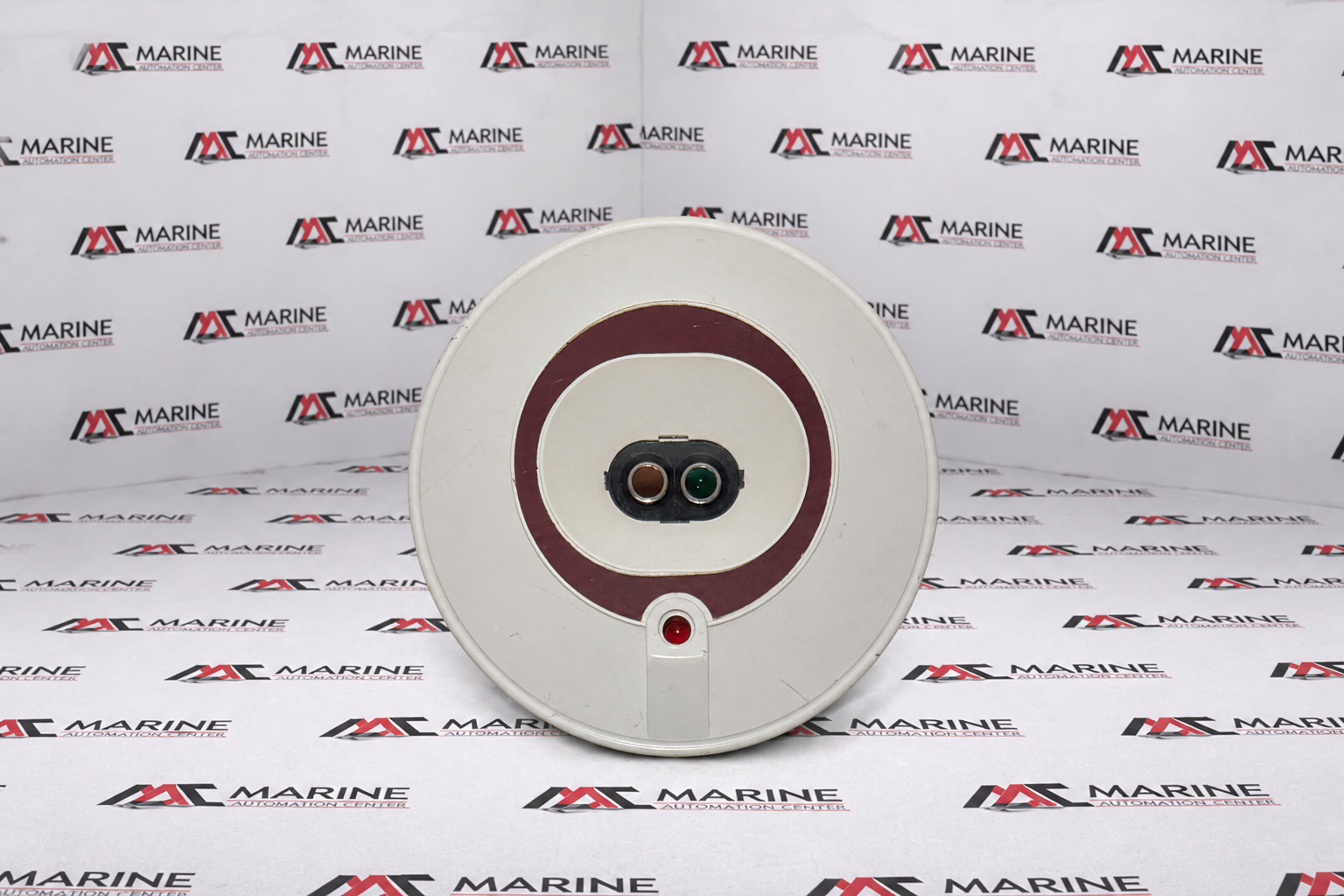

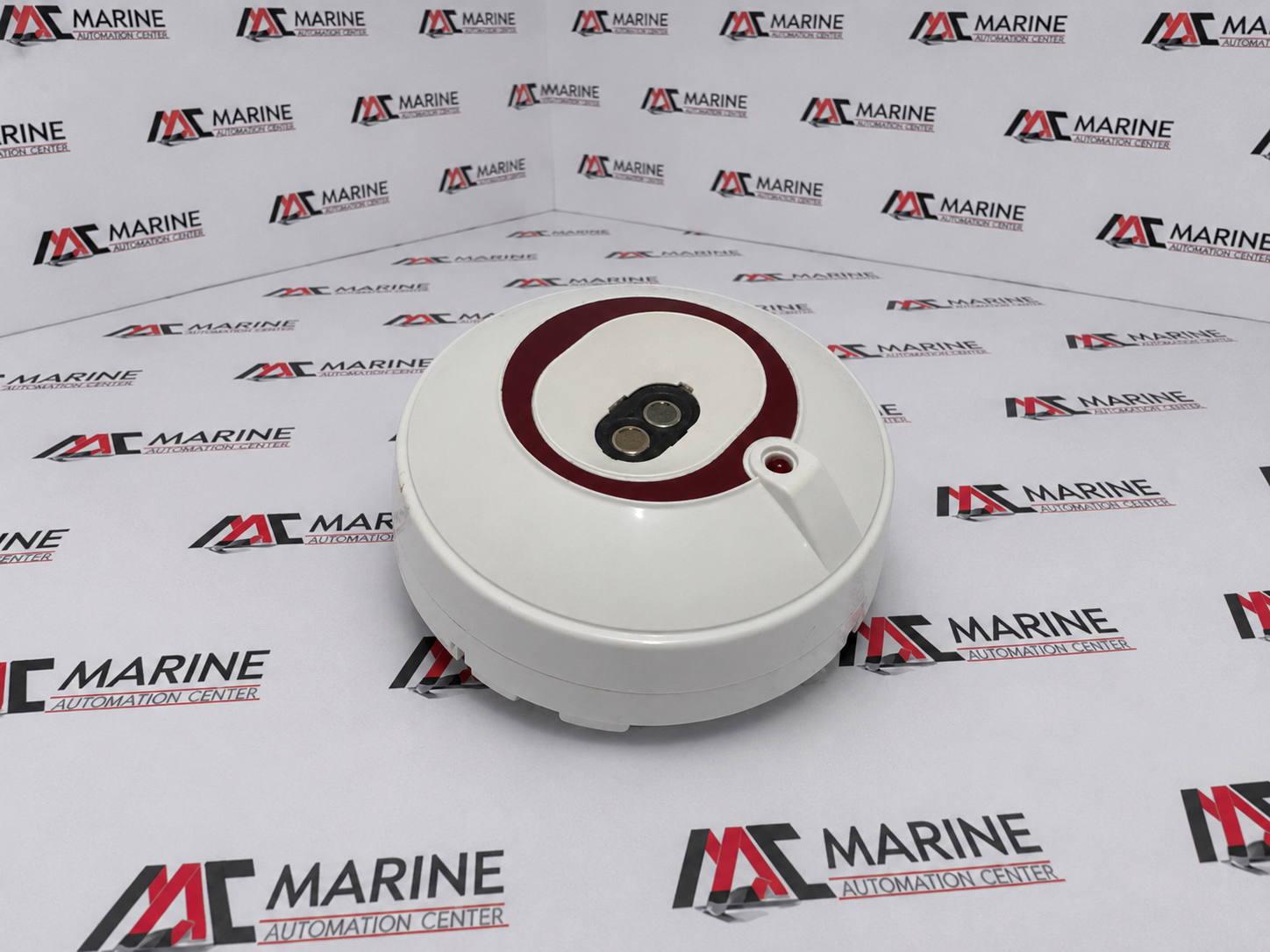

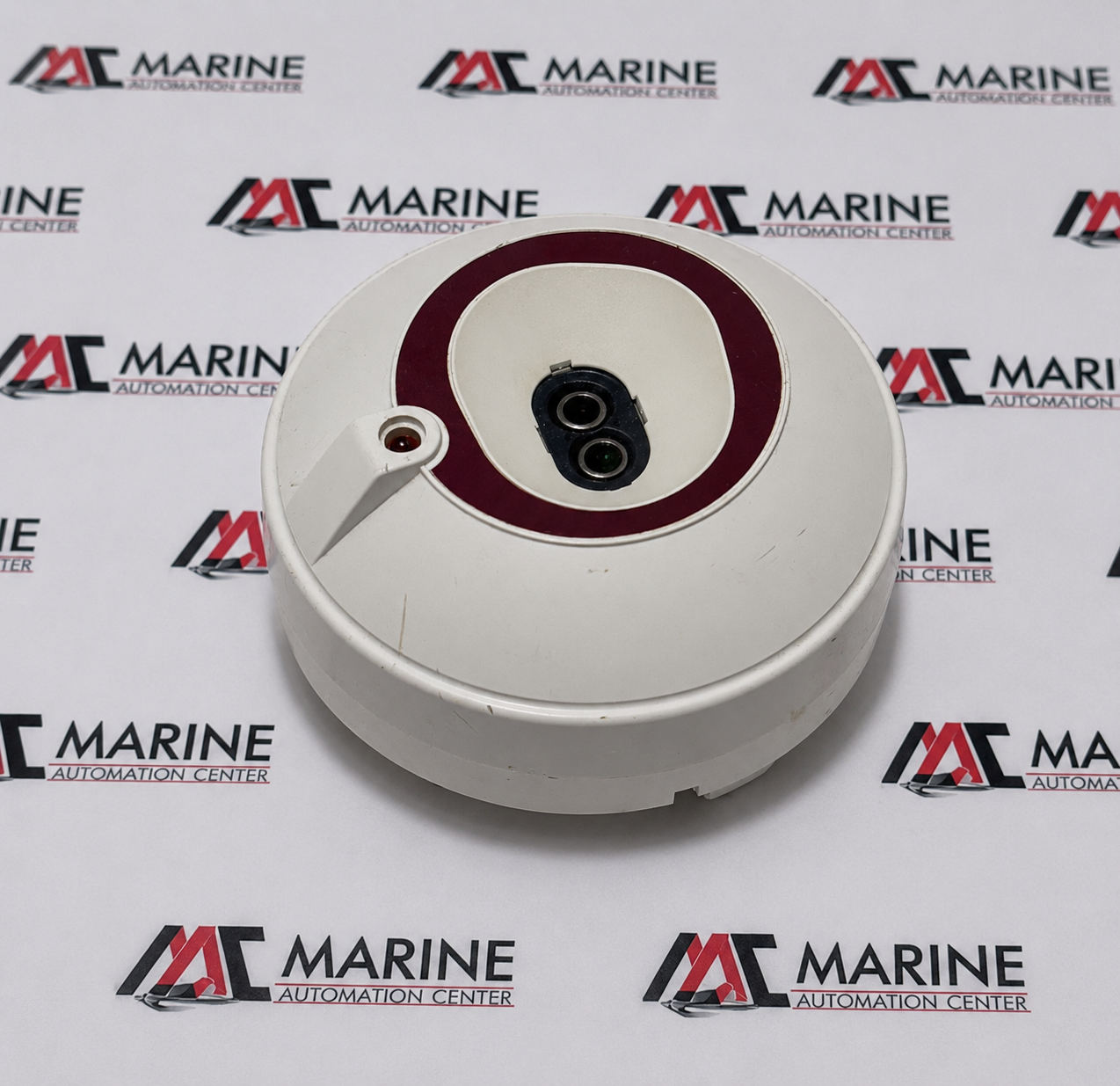

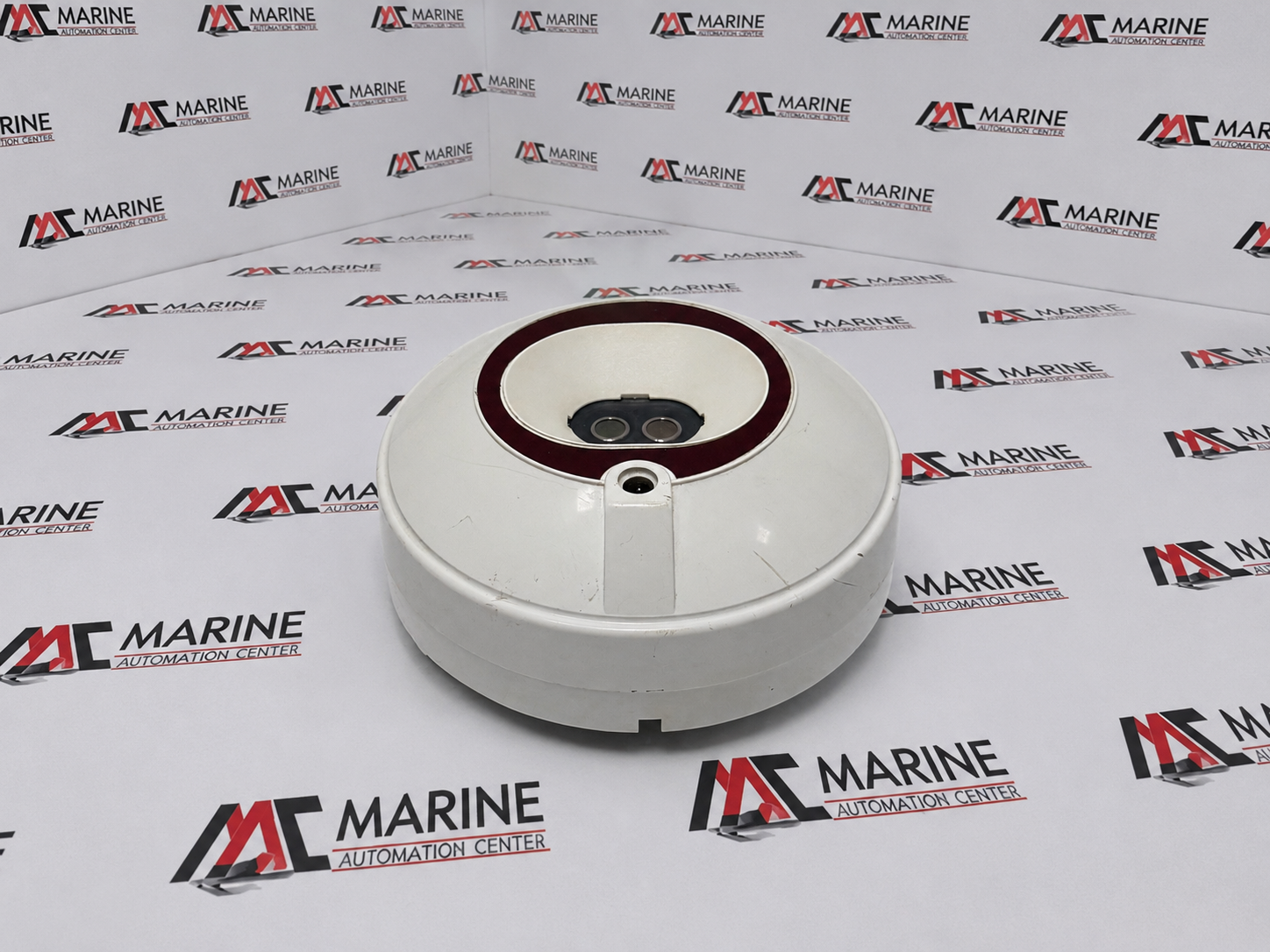

Nittan NS-DIR Infrared Flame Detector
Nittan NS-DIR Infrared Flame Detector is a reliable infrared flame detector designed for rapid detection of flames by sensing infrared radiation emitted during combustion. It provides fast and accurate fire detection while minimizing false alarms, making it suitable for industrial, commercial, and high-risk environments. Compatible with fire alarm systems, the NS-DIR enhances safety through continuous and dependable flame monitoring
BRAND
NITTAN
TYPE
Infrared Flame Detector
PART NO.
Infrared Flame Detector NS-DIR
MODEL
NS-DIR
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | NITTAN |
| TYPE | Infrared Flame Detector |
| PART NO. | Infrared Flame Detector NS-DIR |
| MODEL | NS-DIR |
| Voltage Rating | 24 VDC |
| Application | Indoor fire monitoring and rapid flame detection across marine vessels, cargo areas, and industrial facilities where fast-burning smokeless or liquid-based fires may occur |
| IEC | CE certified product engineering standard |
| Operating Currents | Max. Current (L–C terminals): 65 mA Max. Current (P–C terminals): 100 mA |

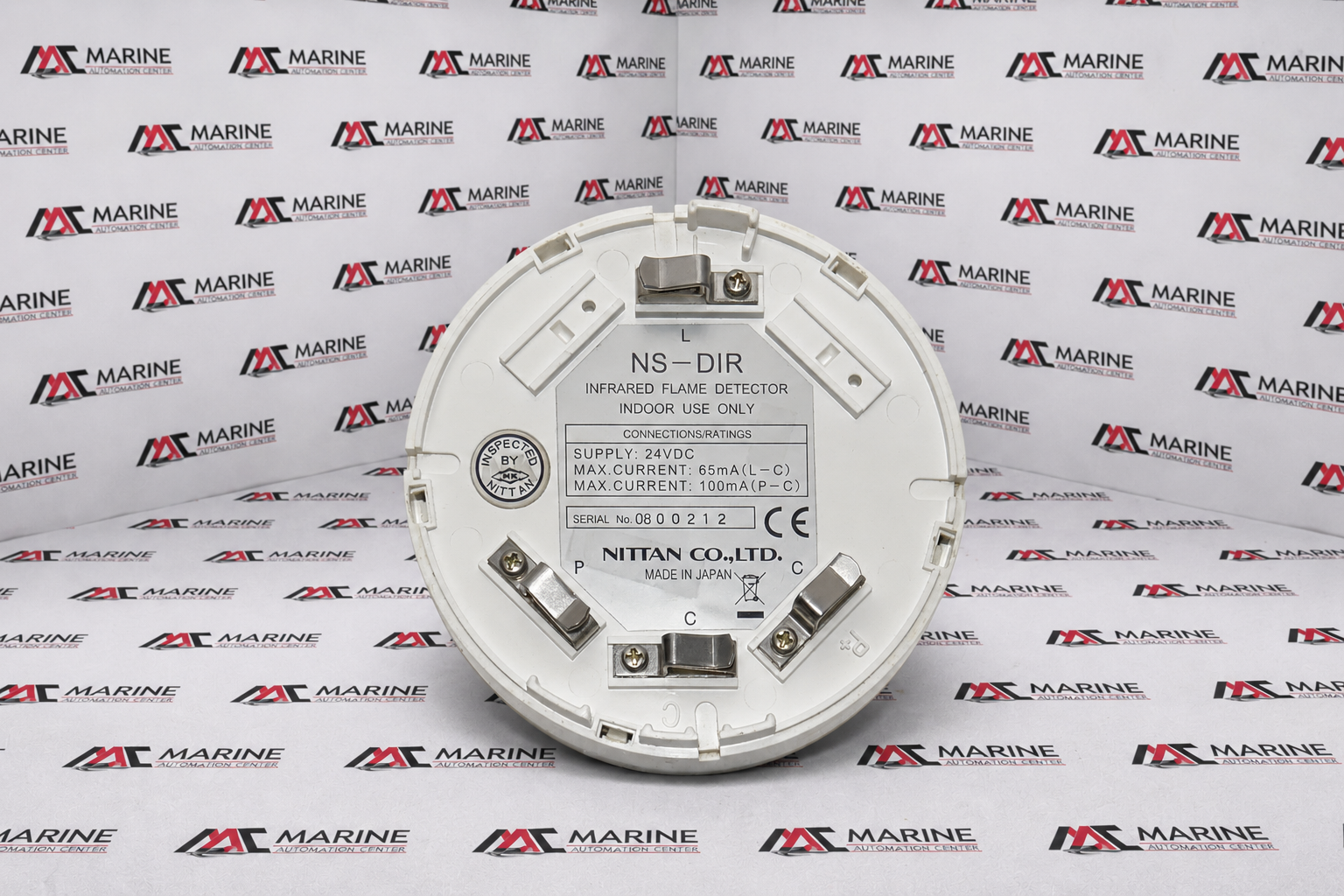

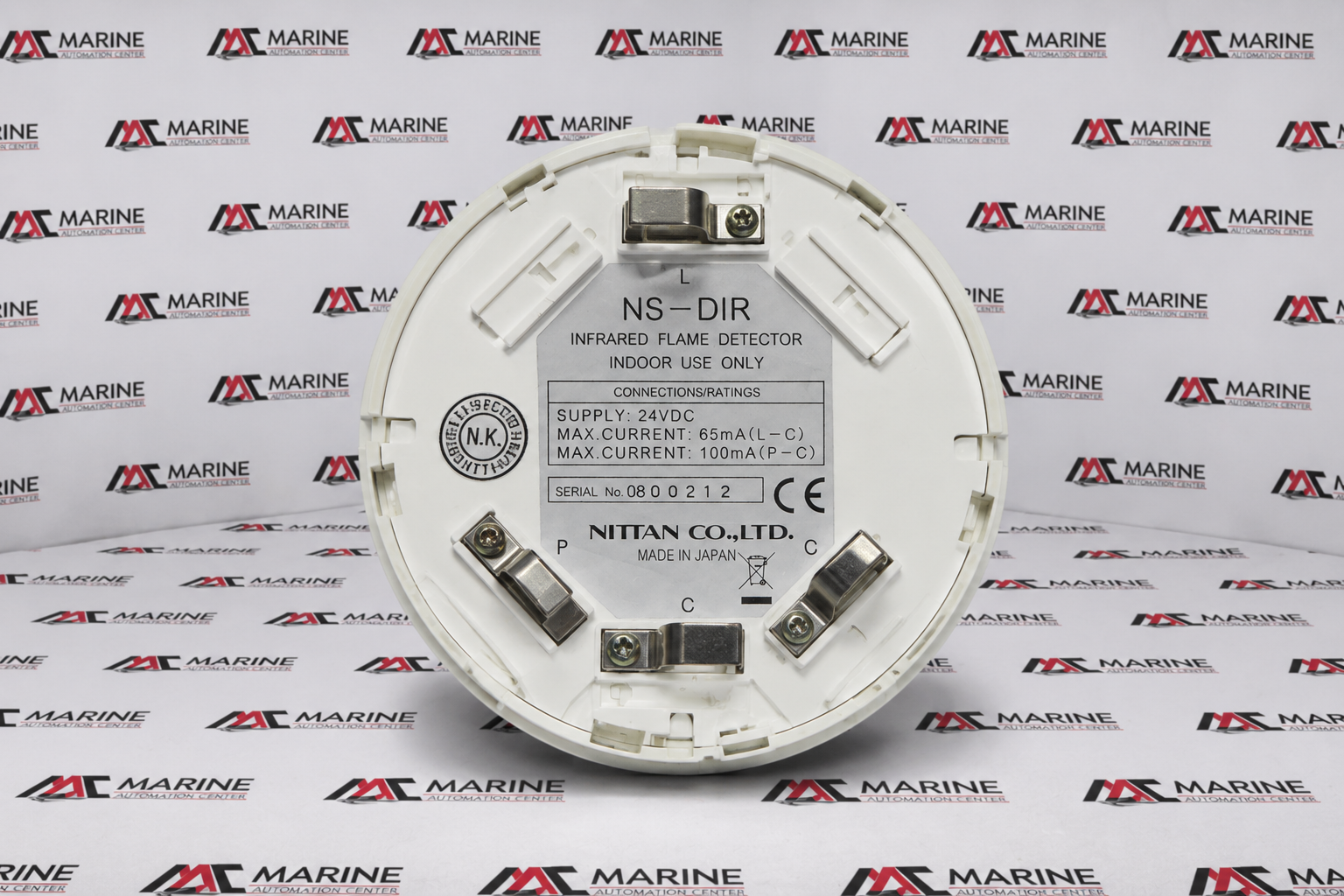

| Terminal Marking Layout | Clearly stamped terminal connection bays marked L (Line), P (Pulse/Auxiliary), and C (Common) for base matching |
| Environmental Restriction | Specifically labeled for INDOOR USE ONLY |
| Made In | Japan |
| REF NO | 1440 |
