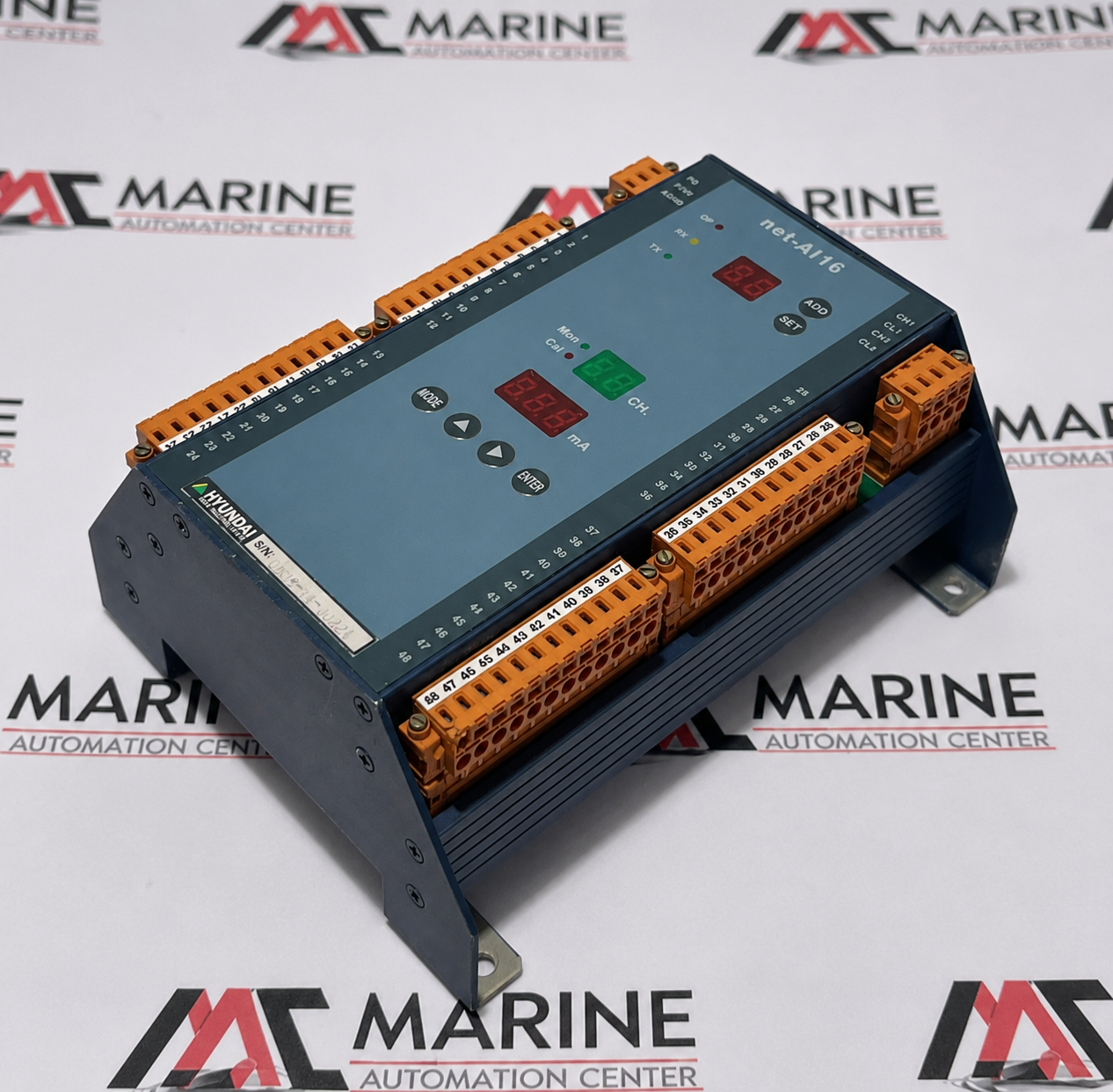

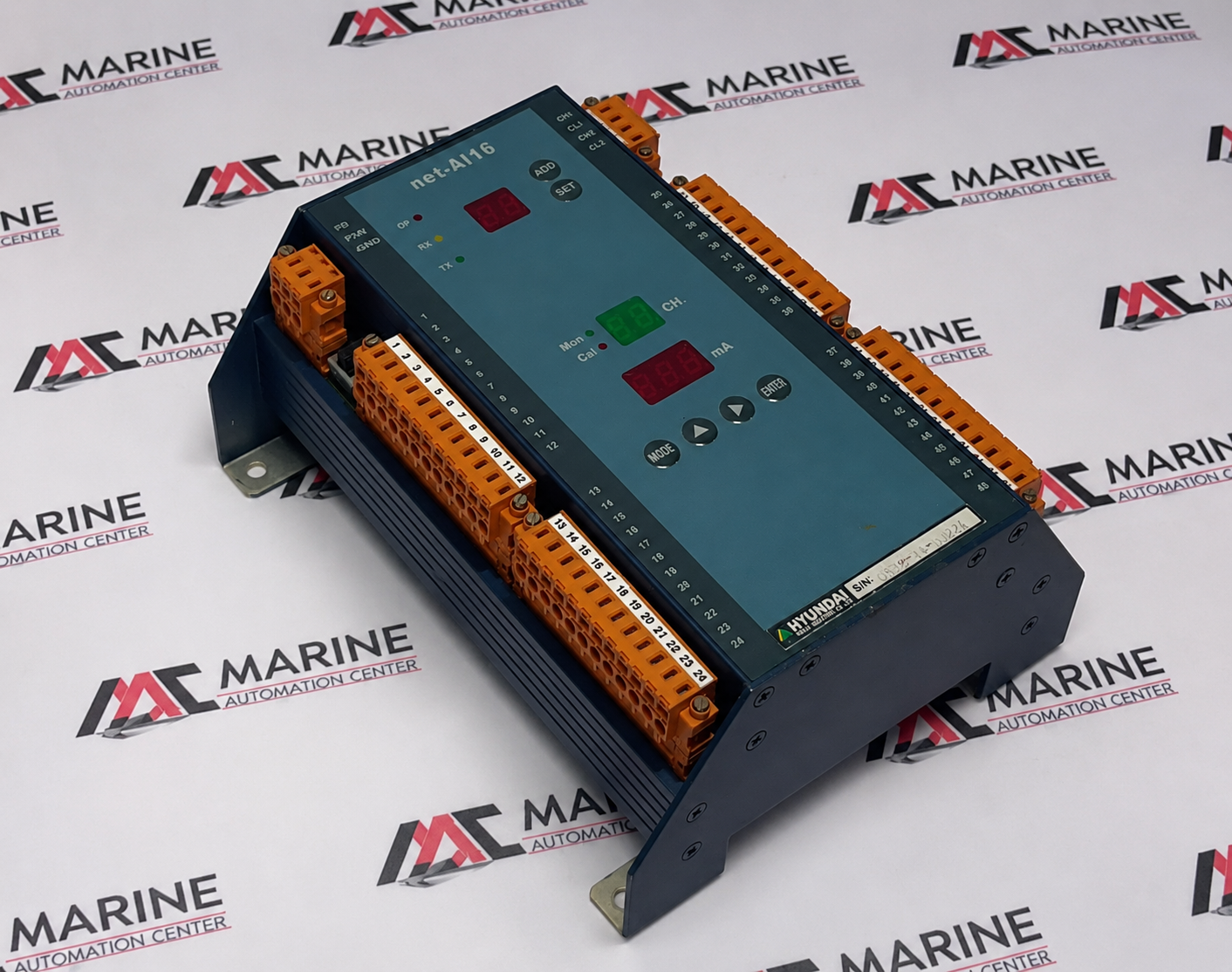

net-AI16 Network Analog Input Module
The Hyundai net-AI16 Network Analog Input Module is an industrial PLC remote I/O module designed to acquire and transmit analog signals from field devices to a control system over a network. It supports reliable, high-precision monitoring of analog inputs such as voltage and current signals, making it ideal for industrial automation, process control, machinery monitoring, and distributed control applications.
BRAND
Hyundai
TYPE
Network Analog Input Module / PLC Remote I/O Module
PART NO.
Hyundai Network Analog Input Module net-AI16
MODEL
net-AI16
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Hyundai |
| TYPE | Network Analog Input Module / PLC Remote I/O Module |
| PART NO. | Hyundai Network Analog Input Module net-AI16 |
| MODEL | net-AI16 |
| Number of Analog Inputs | 16 Channels |
| Input Signal Types | Selectable DC 4–20 mA, 0–20 mA, 1–5 VDC, 0–10 VDC, ±10 VDC |
| Resolution | 14-bit (1/16000) |
| Conversion Speed | 2 ms per Channel |
| Power Supply | 24 VDC |
| Isolation | Photocoupler Isolation between Analog Input and PLC Power |
| Communication | Hyundai Network Remote I/O |
| Display | Dual 7-Segment LED Display |
| LED Indicators | OP, RX, TX, MON, CAL |
| Configuration Buttons | ADD, SET, MODE, ENTER |
| Input Terminal Blocks | Removable Screw Terminal Connectors |
| No. of Terminals | 48 Terminal Connections |
| Mounting Type | Panel / Cabinet Mount |
| Application | Marine Automation, Ship Automation, Engine Monitoring, PLC Analog Signal Acquisition, Industrial Process Automation |
| Interface | Hyundai PLC / Distributed I/O Network |
| Protection | Industrial Metal Housing |
| MADE IN | South Korea |
| REF NO. | 1181 |
