NAGANO KEIKI Pressure Switch

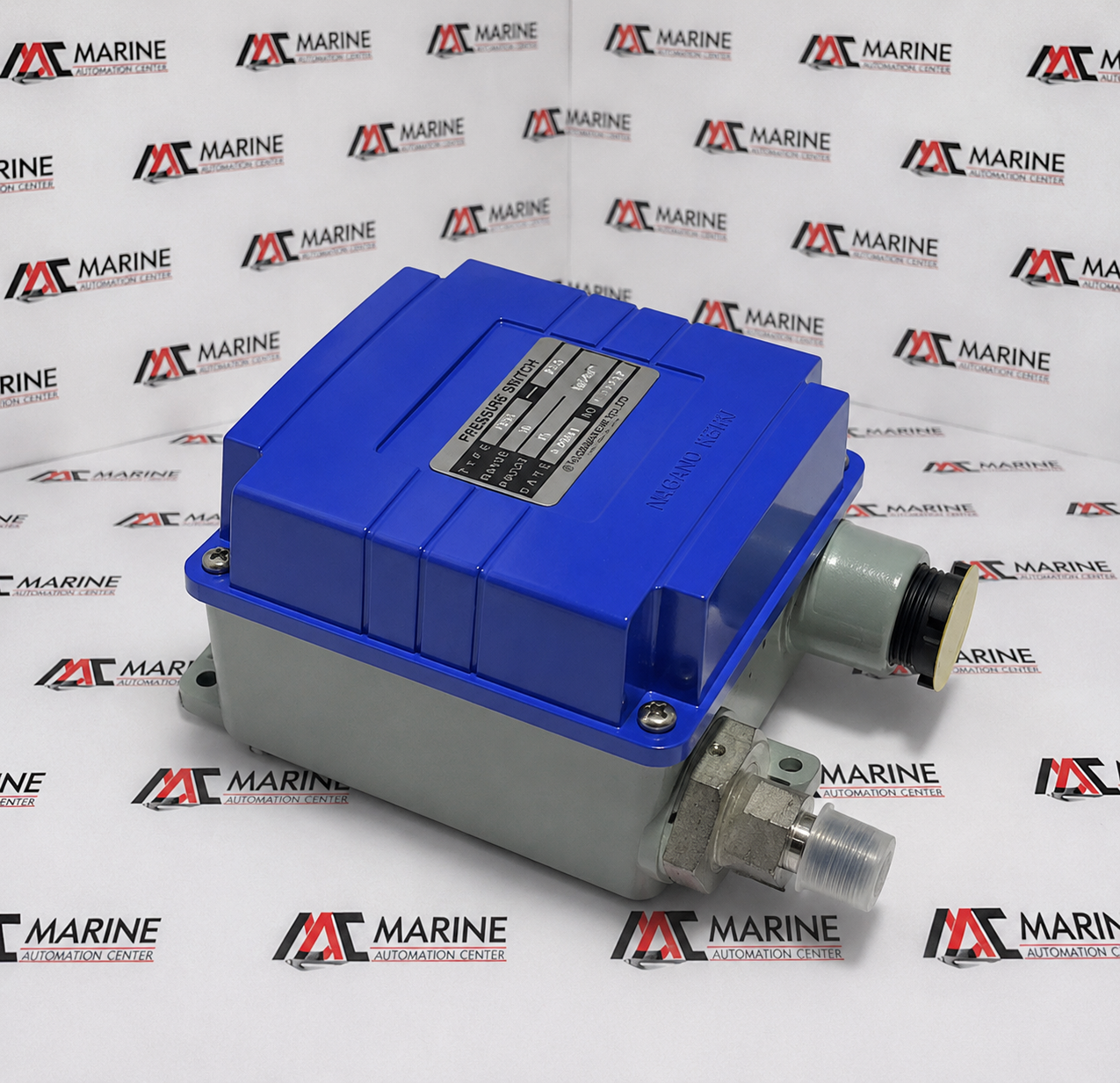

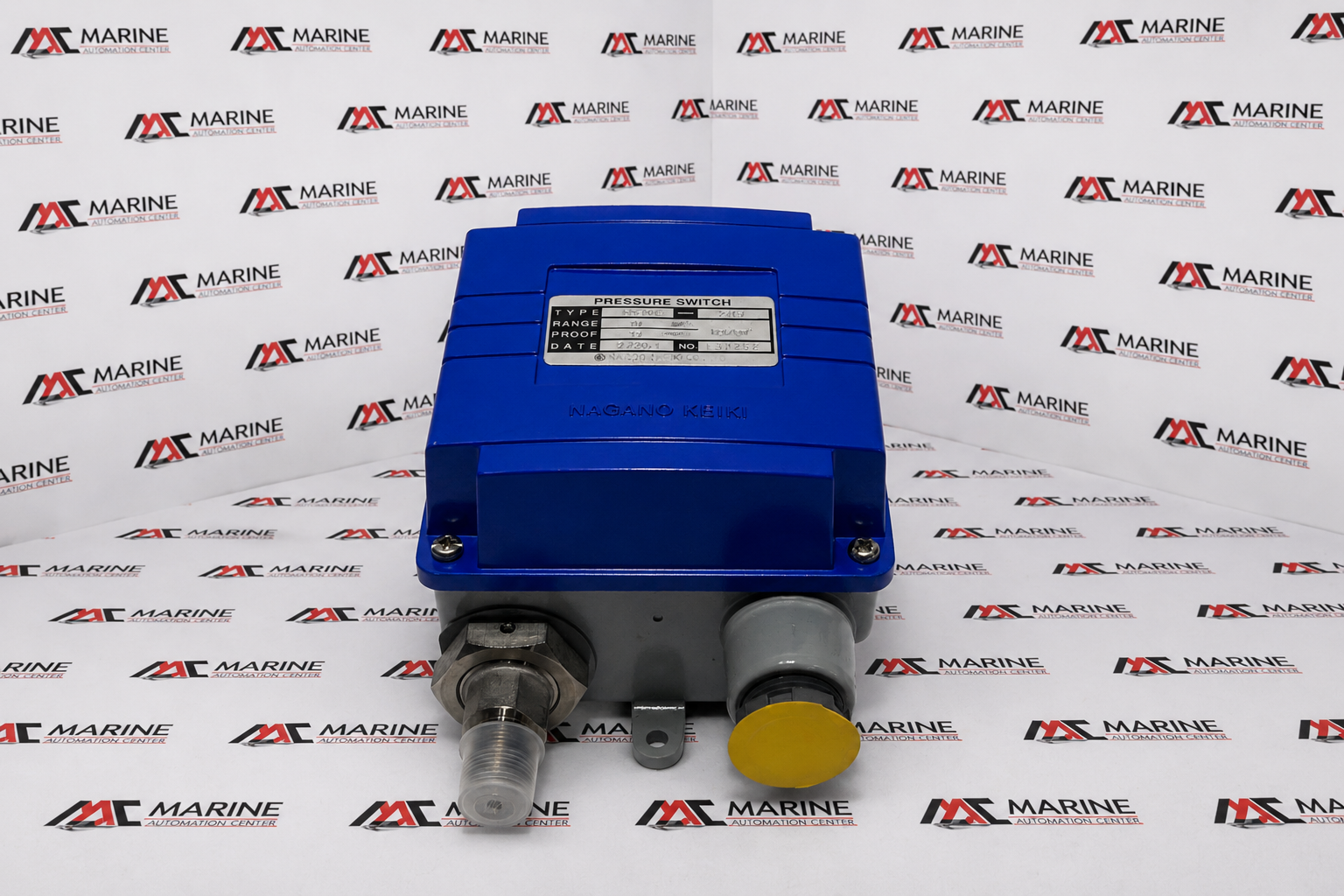

The Nagano Keiki CQ30-233 is an industrial pressure switch designed to accurately monitor and control pressure in pneumatic and hydraulic systems. Part of the CQ30 series, it provides reliable pressure switching, durable construction, and stable performance for use in industrial automation, process control, and machinery protection applications.
BRAND
NAGANO KEIKI
TYPE
Pressure Switch
PART NO.
CQ30-233
MODEL
CQ30
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | NAGANO KEIKI |
| TYPE | Pressure Switch |
| PART NO. | CQ30-233 |
| MODEL | CQ30 |

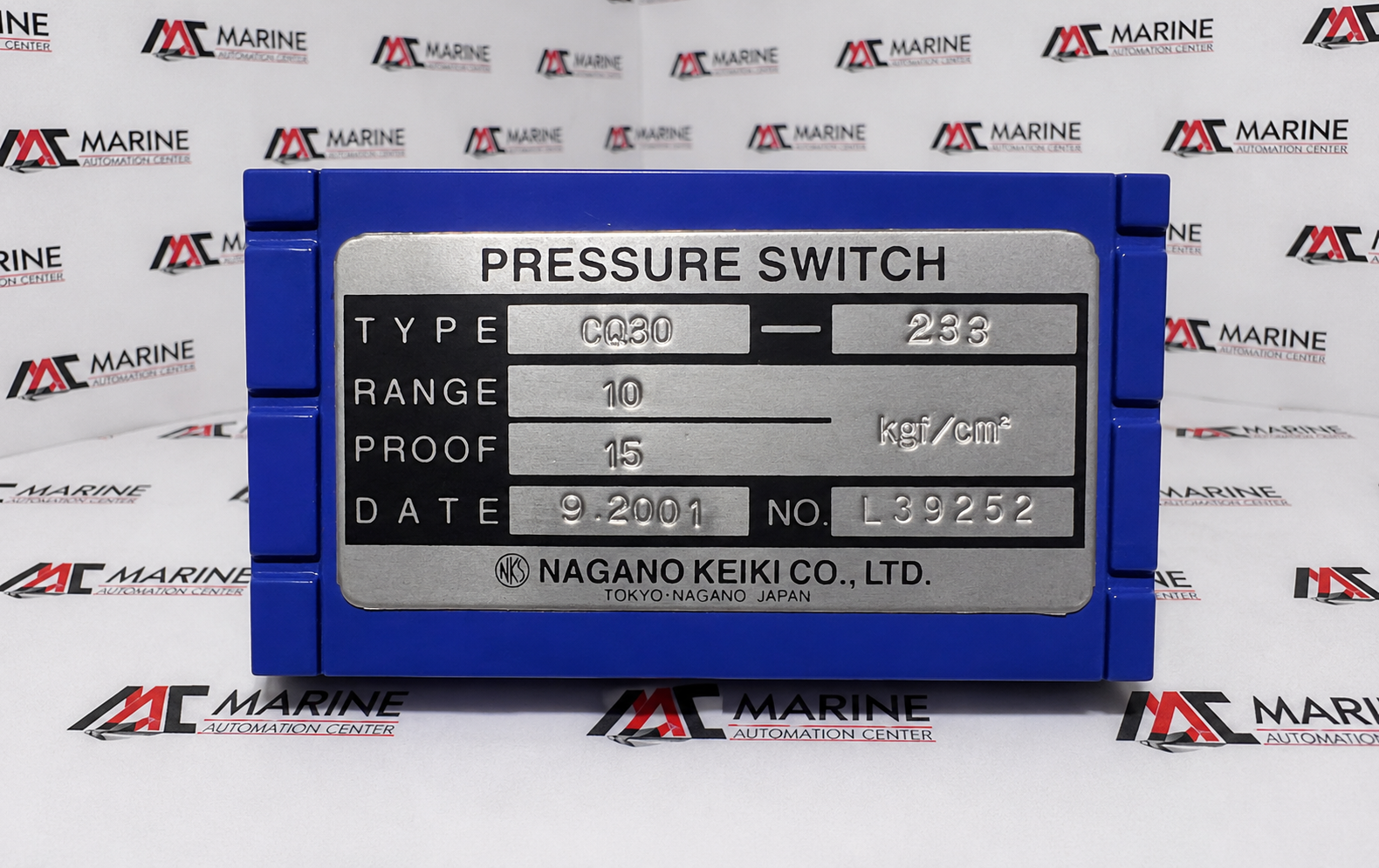

| Pressure Range | 0–10 kgf/cm² (Label Marking: Range 10) |
| Proof Pressure | 15 kgf/cm² |
| Pressure Unit | kgf/cm² |
| Contact Mechanism | Microswitch |
| Switch Type | Mechanical Bourdon Tube Pressure Switch |
| Switching Function | Adjustable Pressure Switching |
| Case Material | Epoxy-Coated Aluminium Die-Cast Housing |
| Process Connection | Threaded Pressure Connection |
| Electrical Entry | Cable Gland / Conduit Entry |
| Protection Class | Industrial Weatherproof Enclosure (CQ30 Series available in IP43/IP65 depending on configuration) |
| Application | Pressure monitoring and control for hydraulic systems, pneumatic systems, pumps, compressors, marine machinery, process equipment, liquid level control and industrial automation |
| Serial Number | L39252 |
| Made In | Japan |
| REF NO | 1291 |
