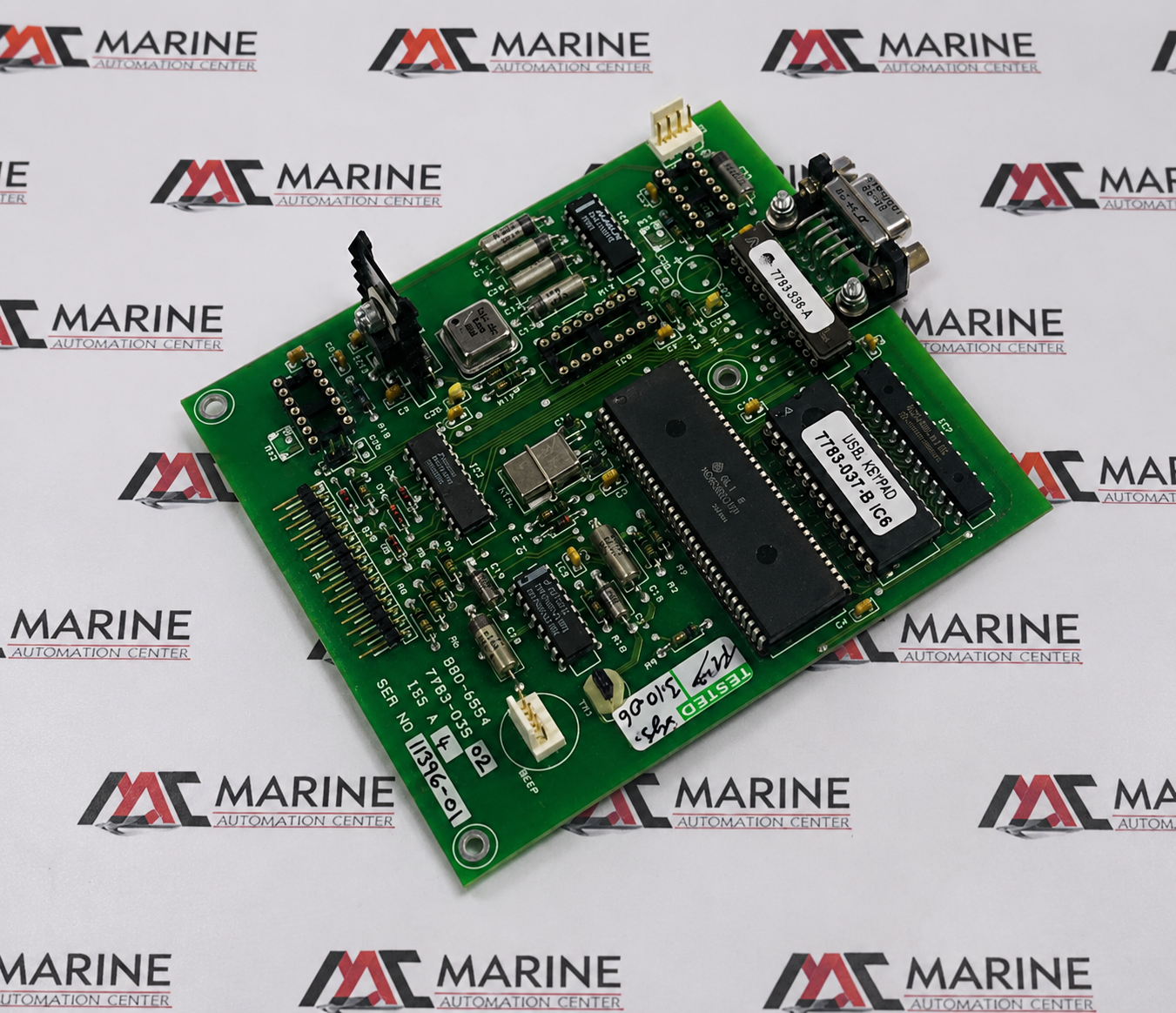

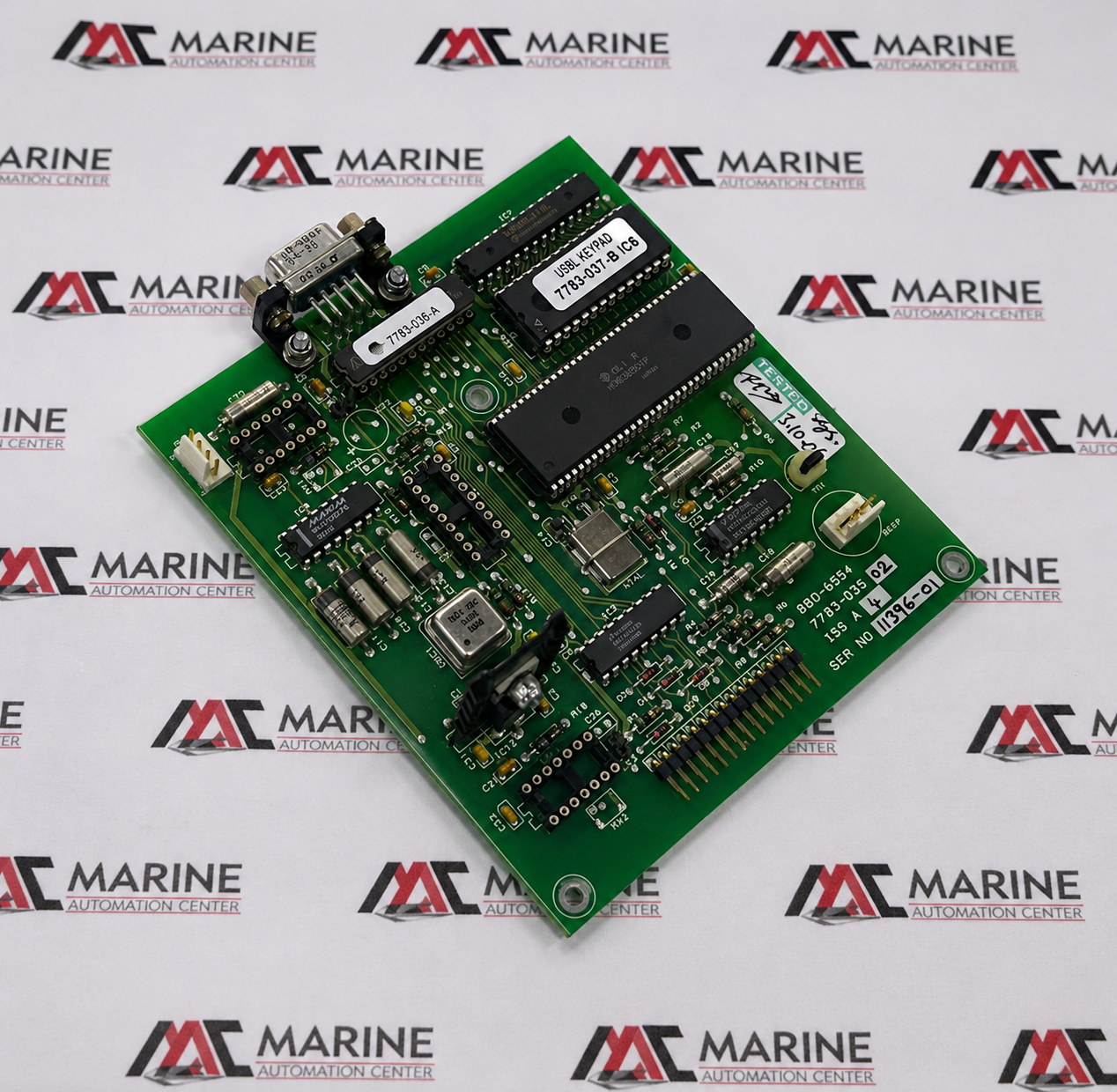

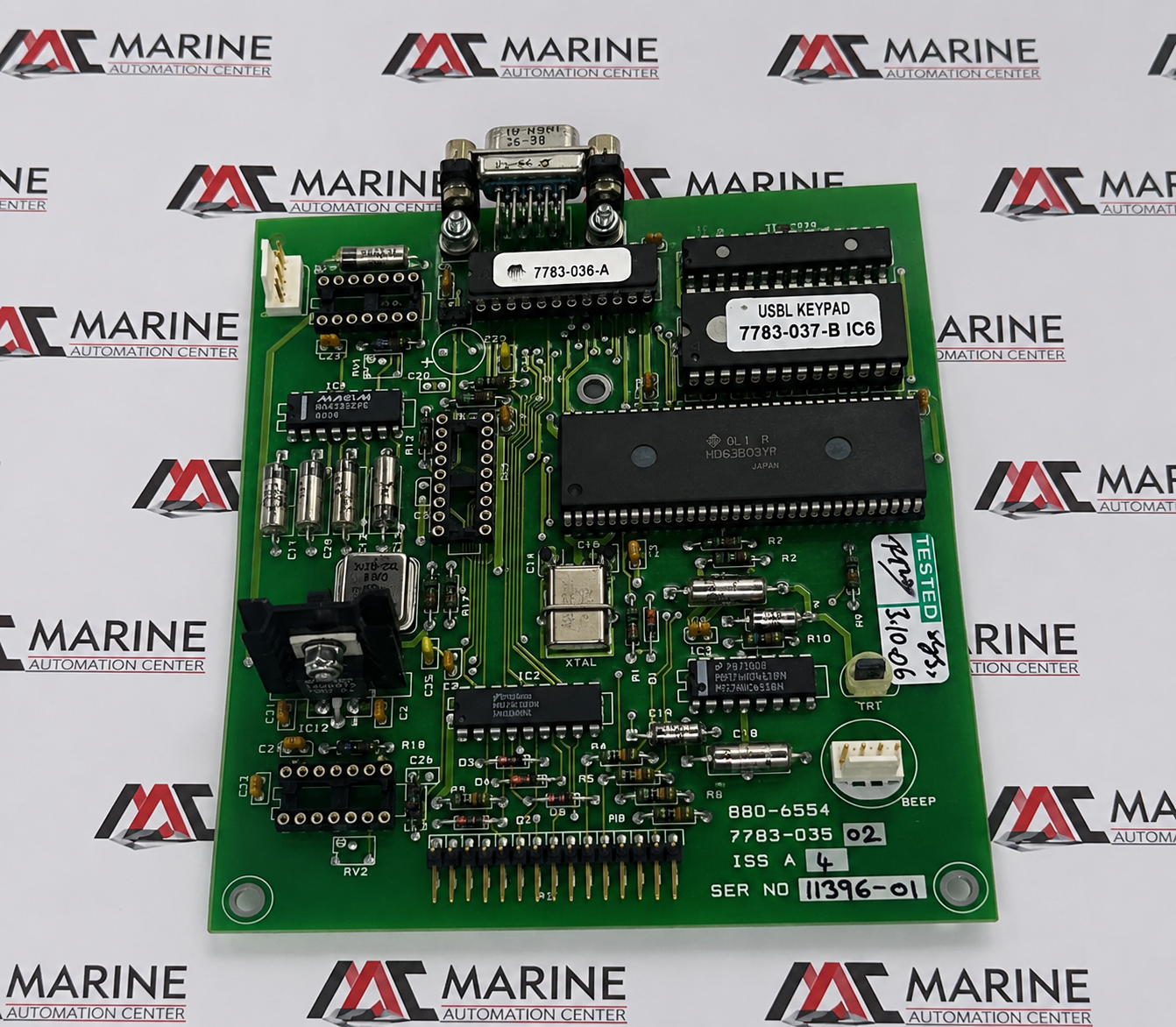

Musasino USBL Keypad Interface Board
Musasino USBL Keypad Interface Board (Part No. 880-6554) is a specialized interface board designed for USBL keypad operation and tank level gauge system integration. It provides reliable communication between the keypad, control electronics, and tank monitoring equipment, ensuring stable signal processing and dependable operation in marine automation, cargo monitoring, and industrial level measurement applications.
BRAND
Musasino
TYPE
Gauge Interface Board
PART NO.
880-6554
MODEL
USBL Keypad Interface Board
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Musasino |
| TYPE | Gauge Interface Board |
| PART NO. | 880-6554 |
| MODEL | USBL Keypad Interface Board |
| MANUFACTURER | Musasino Co., Ltd. |
| Voltage Rating | +5 V DC internal logic rail |
| Application | Tank level gauging systems, marine radar tank monitoring, keypad operator panels, and serial communication interfaces |

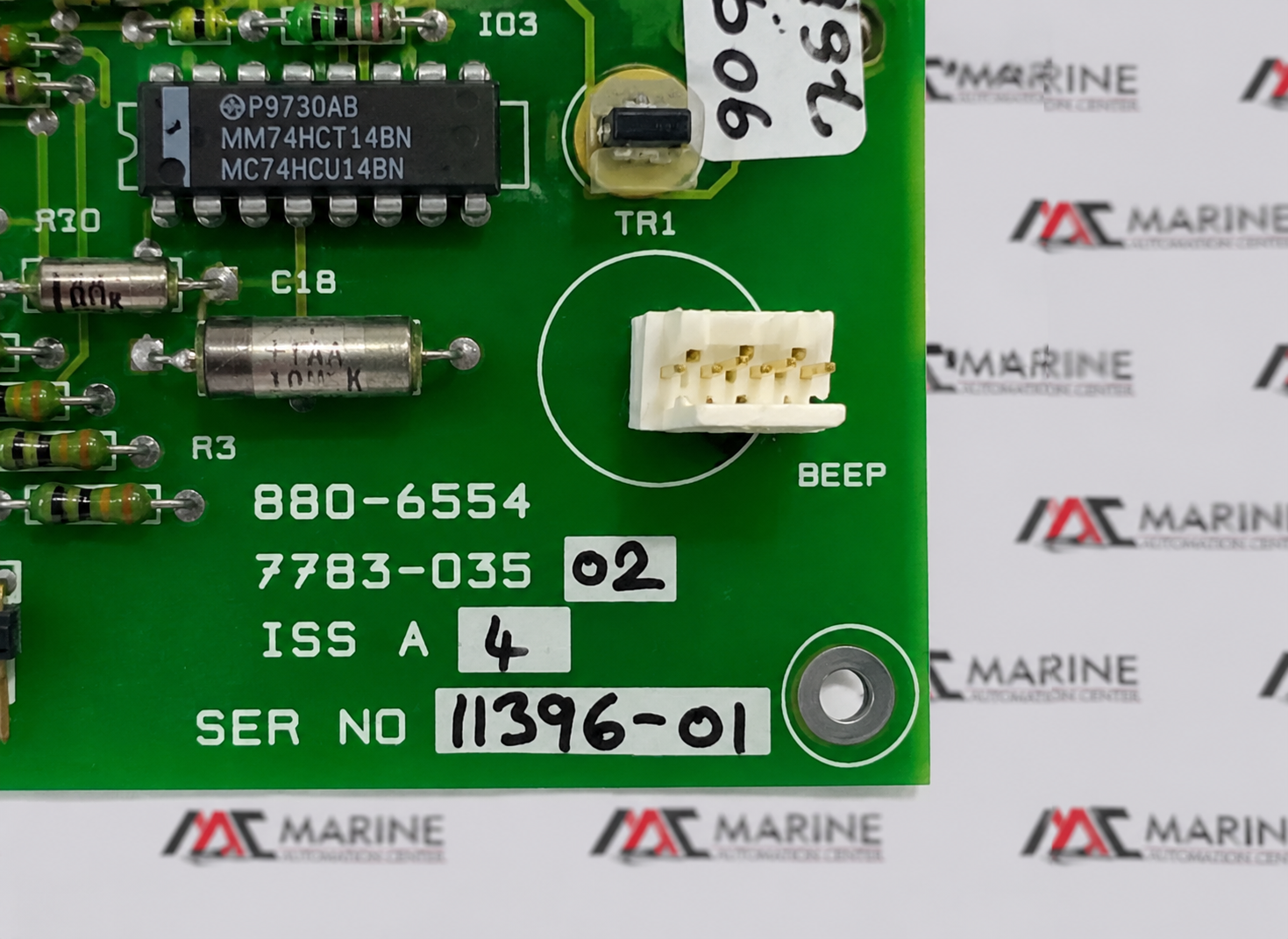

| Hardware Revision | ISS A |
| Quality Test Mark | TESTED Sys 3-10-06 |
| Primary Interface Connector | 15-pin D-Sub (P1) |
| Buzzer Connector | 5-pin header labeled BEEP |
| Clock Oscillator | Quartz crystal resonator (TR1) |
| Power Conditioning | C18 / R30 filtering network |
| Keypad Function | Debounce filtering and command conditioning |
| Communication Function | RS-232 serial data transmission |
| Fault Diagnostic | Supports keypad, buzzer, clock, and serial line troubleshooting |
| Mounting Type | Control console PCB sub-assembly |
| Made In | Japan |
| REF NO | 386 |
