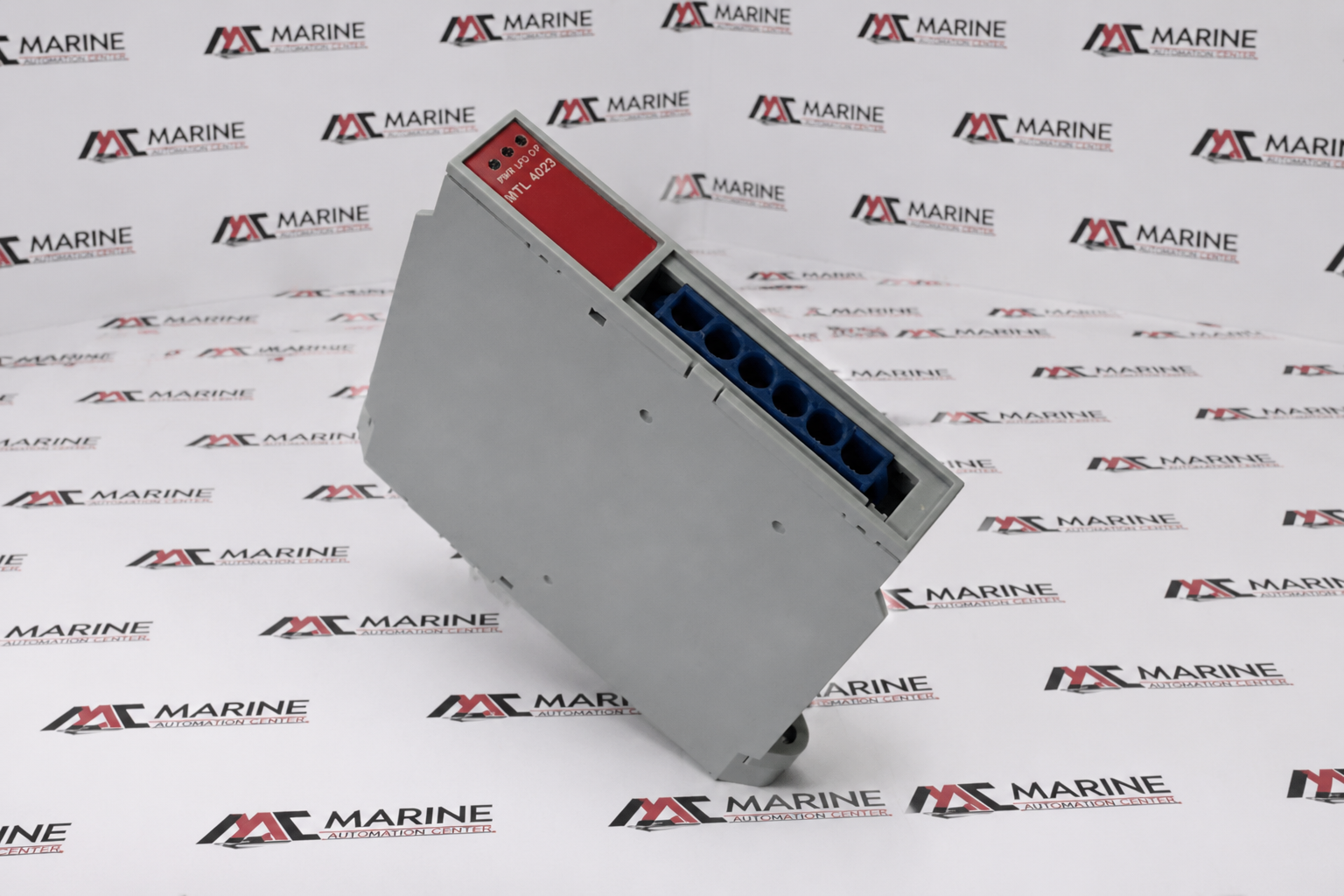

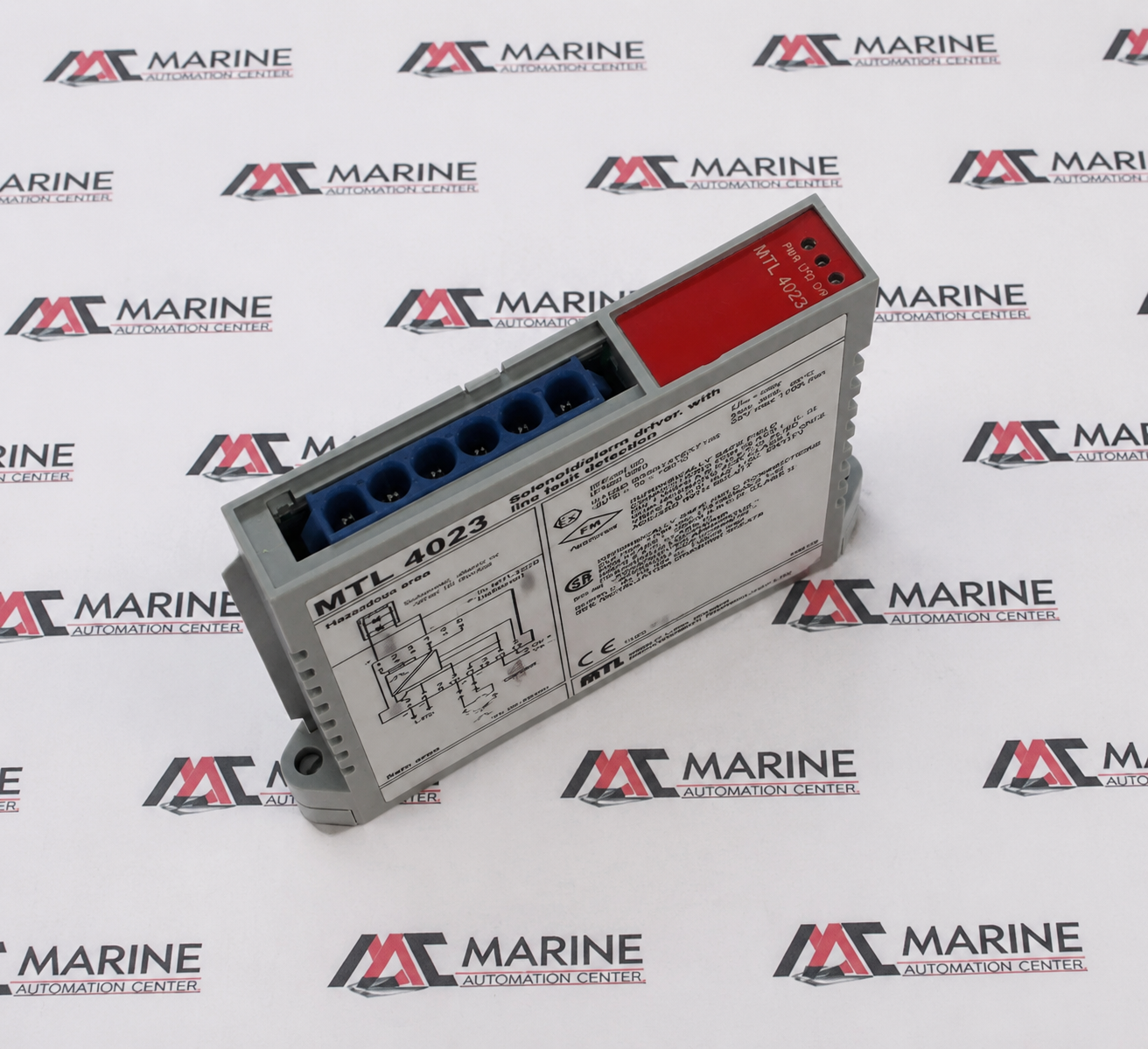

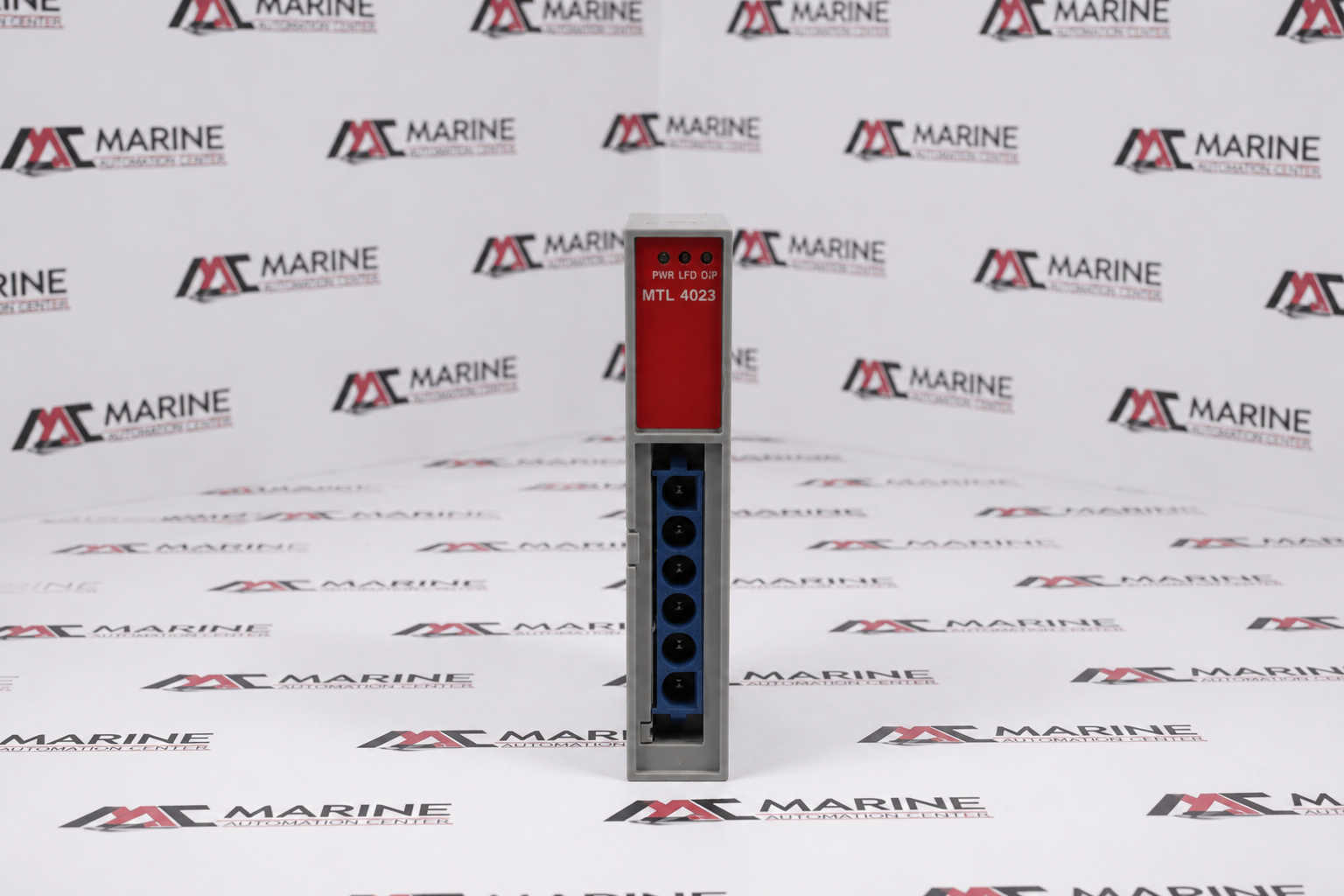

MTL 4023 Solenoid/Alarm Driver with Line Fault Detection
MTL MTL4023 Solenoid/Alarm Driver with Line Fault Detection is an isolated safety barrier designed to drive solenoids, alarms, and other field devices in hazardous areas. It provides galvanic isolation, line fault detection for open- and short-circuit monitoring, and ensures safe, reliable signal transmission and output control in industrial process automation applications
BRAND
MTL (Measurement Technology Ltd.)
TYPE
Solenoid / Alarm Driver with Line Fault Detection (Isolated Safety Barrier)
PART NO.
MTL4023
MODEL
MTL4023
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | MTL (Measurement Technology Ltd.) |
| TYPE | Solenoid / Alarm Driver with Line Fault Detection (Isolated Safety Barrier) |
| PART NO. | MTL4023 |
| MODEL | MTL4023 |
| Voltage Rating | Supply Voltage (\(V_{s}\)): 20–35V DC | Max Safety Voltage (\(U_{m}\)): 250V | Max Ambient Temp: 60°C |
| Application | Controlling intrinsically safe solenoids, acoustic alarms, or LEDs located in hazardous process fields |
| IEC / Explosion Cert. | IIC ATEX BASEEFA No. Ex95C2028 |
| Batch Tracking No | 1811/0 |

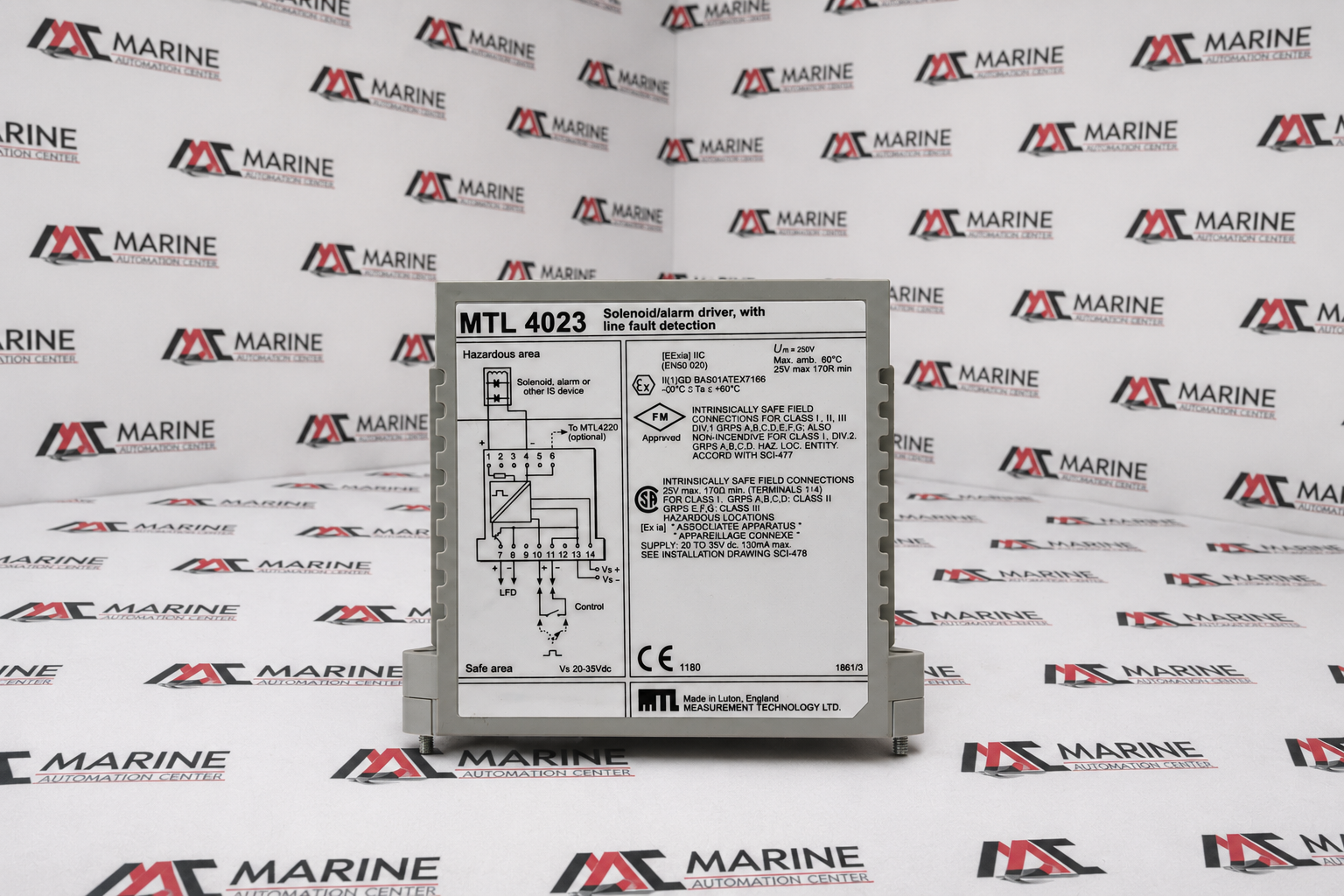

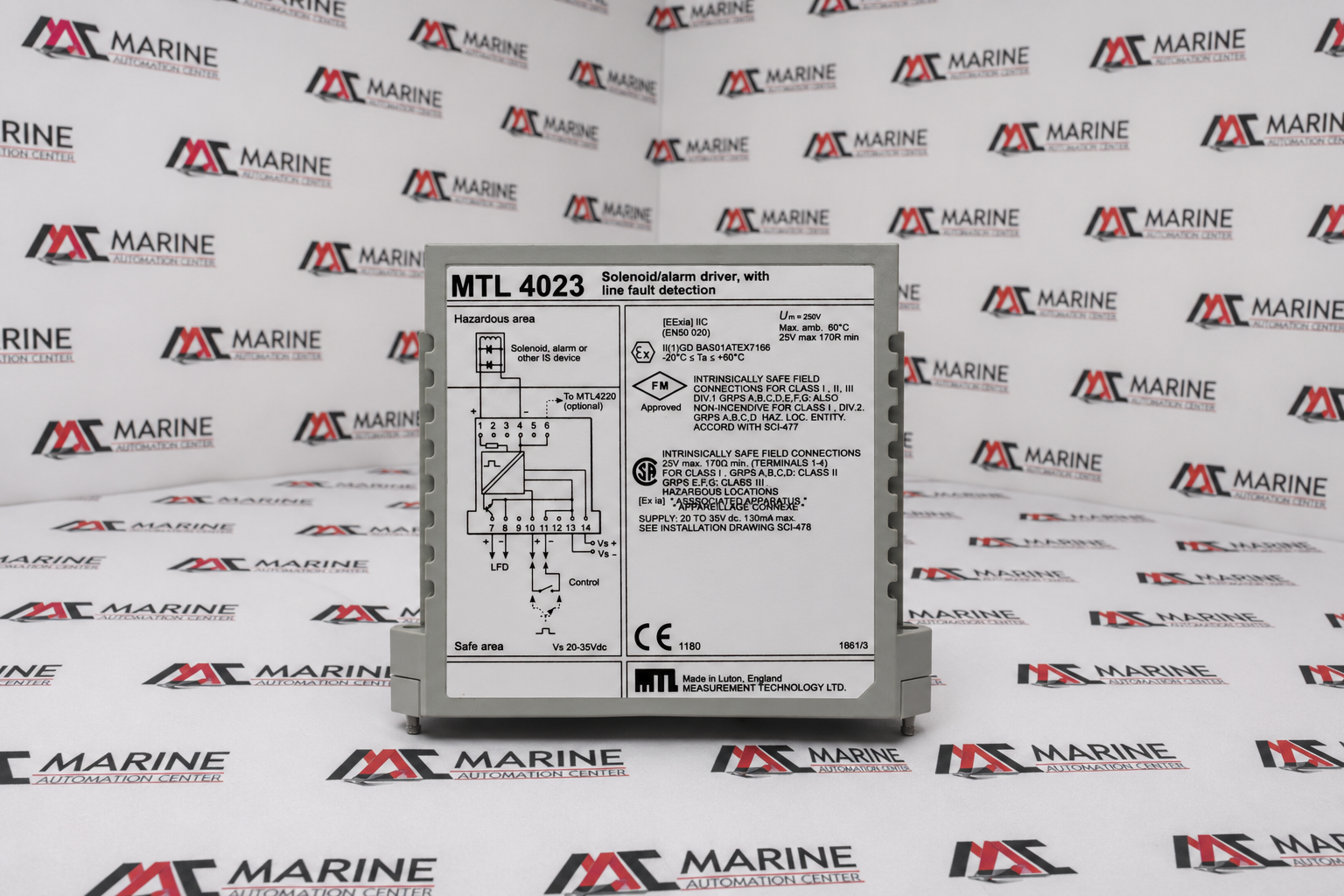

| Line Fault Detection (LFD) | The status diagram on the front face illustrates the distinct LFD and Control signal routing pathways |
| Intrinsically Safe Connections | Certified by BASEEFA, FM, CSA, and ATEX for safe-field connections in hazardous locations |
| CE Compliance | Fully evaluated and stamped under European safety standard tracking mark CE 1158 |
| Made In | England (UK) |
| REF NO | 455 |
