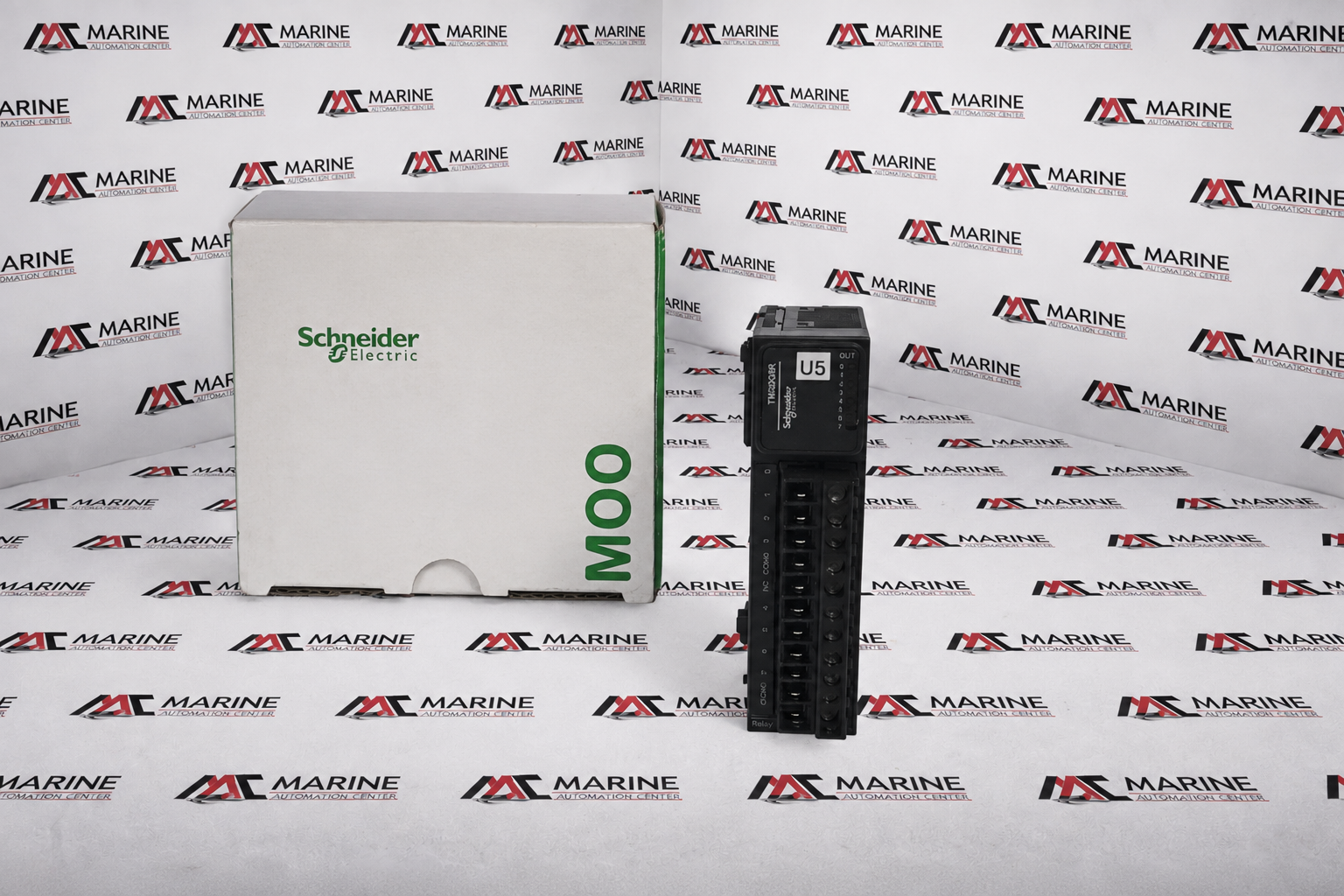

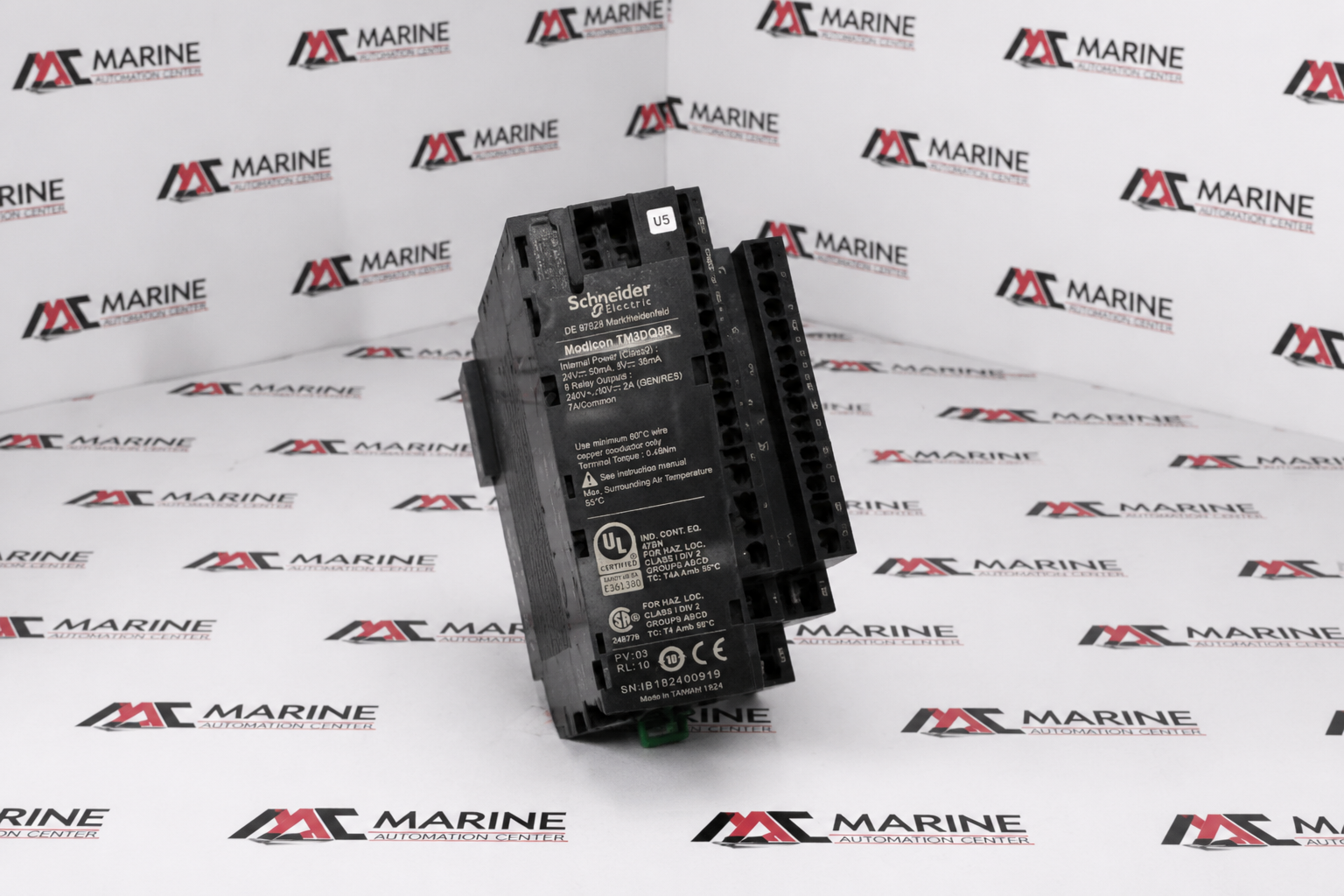

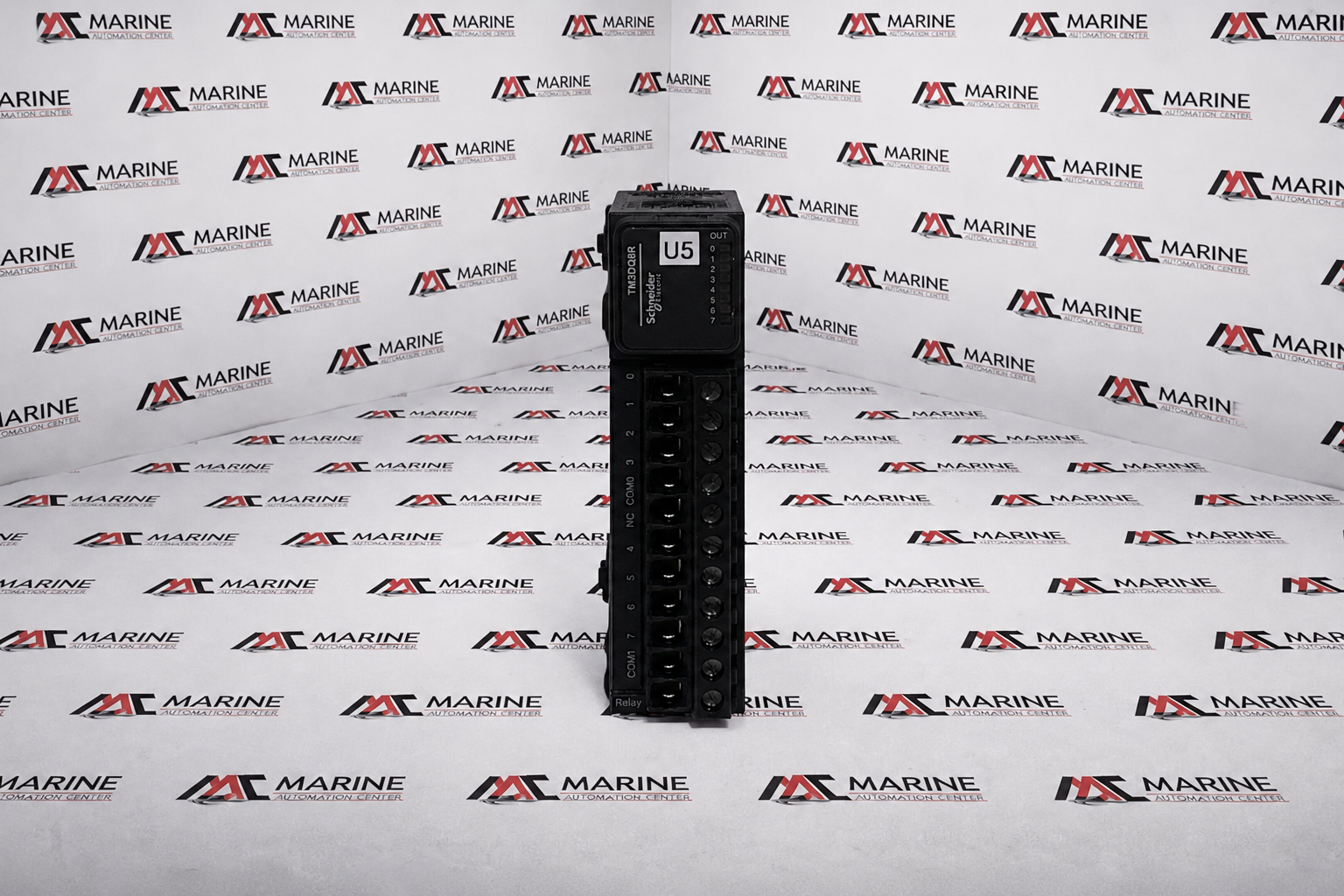

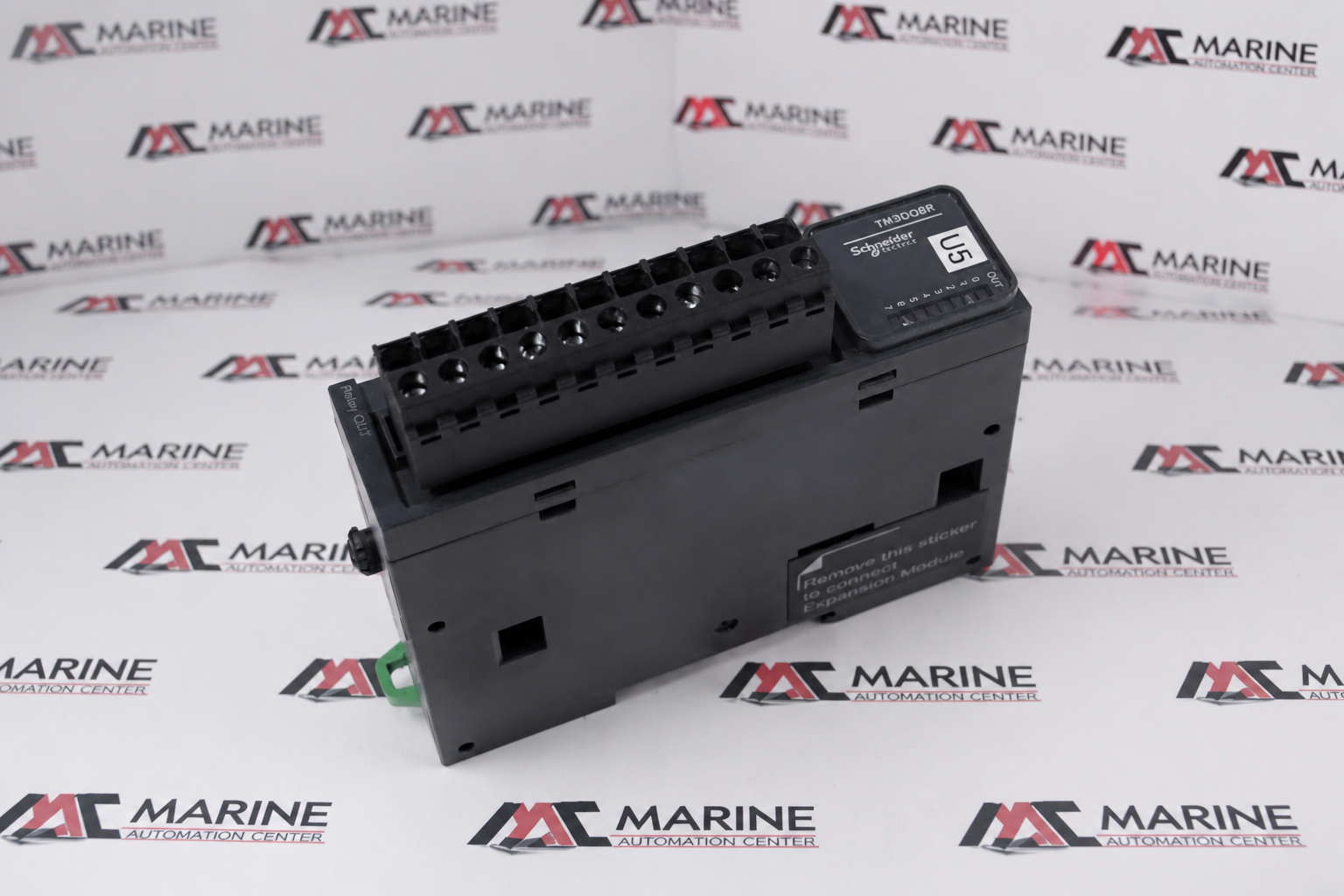

Modicon TM3 Discrete Output Module — 8 Relay Outputs
Schneider Electric Modicon TM3DQ8R (Part No. TM3DQ8R) is a Modicon TM3 discrete output expansion module featuring 8 relay outputs for use with Modicon M221 and M241 PLCs. It expands controller output capacity and provides reliable switching of industrial loads in machine automation and control applications
BRAND
Schneider Electric
TYPE
Expansion Module (Discrete Output)
PART NO.
TM3DQ8R
MODEL
Modicon TM3DQ8R
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Schneider Electric |
| TYPE | Expansion Module (Discrete Output) |
| PART NO. | TM3DQ8R |
| MODEL | Modicon TM3DQ8R |
| Voltage Rating | 240 V AC / 30 V DC (Output circuit operating thresholds) |
| Application | Industrial automation, machinery control, and I/O extension for Modicon M221, M241, M251 PLCs |
| IEC Standards | Compliant with EN/IEC 61131-2 and EN/IEC 61010-2-201 safety regulations |
| Output Specifications | Features 8 independent normally open (NO) relay outputs divided into standard terminal clusters |
| Current Handling | Supports a maximum switching current of 2 A per output loop for both alternating (AC) and direct (DC) current networks |

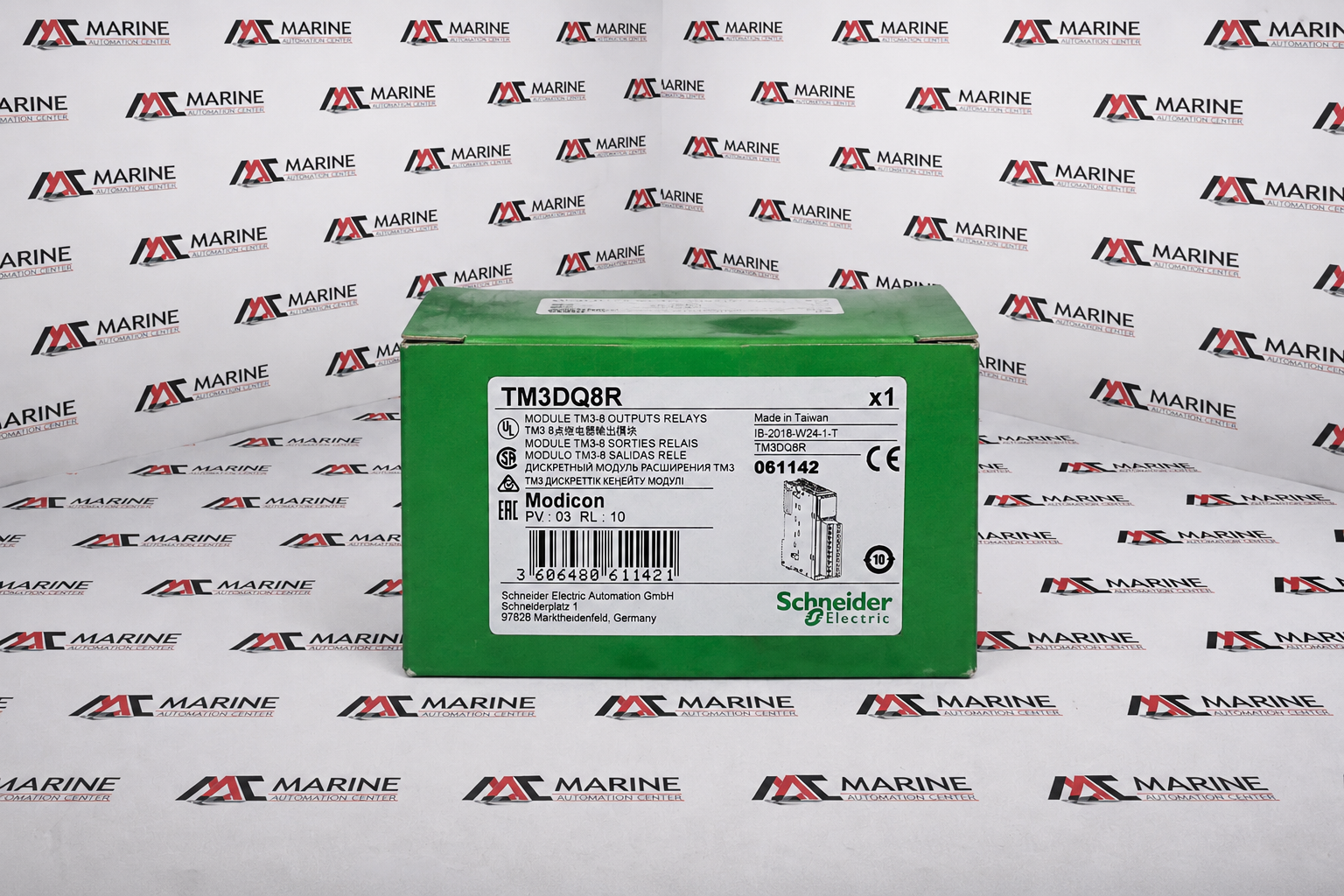

| Firmware Tracking | Labeled with hardware profile version PV:03 and logic release classification RL:10 |
| System Layout Placement | Mounts directly alongside a parent PLC chassis on standard 35mm symmetrical DIN rails via integrated interlocking hardware bus clips |
| Electrical Safety Ratings | approvals including UL Listing mark, CE declaration, CSA certification, and EAC Eurasian conformity stamps |
| Made In | Taiwan |
| REF NO | 516 |
