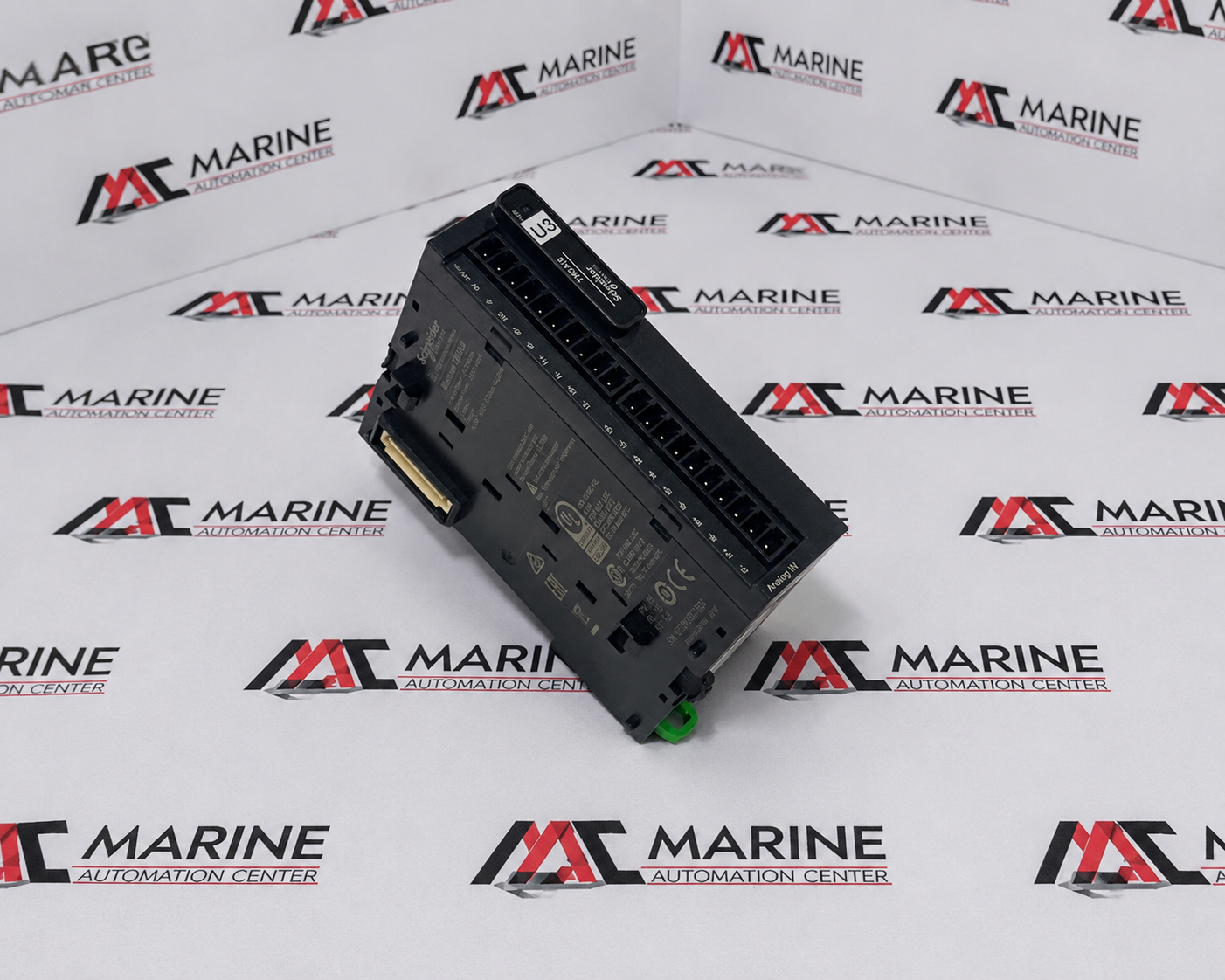

Modicon TM3 Analog Input Module — 8 Temperature Inputs
Schneider Electric Modicon TM3TI8T (Part No. TM3TI8T) is a Modicon TM3 temperature input expansion module featuring 8 analog temperature input channels for thermocouple and RTD sensors. Designed for use with Modicon PLCs, it enables accurate temperature monitoring and control in industrial automation, machine control, and process applications
BRAND
Schneider Electric
TYPE
Temperature Input Module
PART NO.
TM3TI8T
MODEL
Modicon TM3TI8T
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Schneider Electric |
| TYPE | Temperature Input Module |
| PART NO. | TM3TI8T |
| MODEL | Modicon TM3TI8T |
| Voltage Rating | Internal Power: 5V DC (45mA) | External Power: 24V DC (30mA) Class 2 |
| Application | Precise thermal monitoring, industrial ovens, HVAC, and machinery automation architectures |
| IEC Standards | Conforms to EN/IEC 61131-2, EN/IEC 61010-1, and EN/IEC 61010-2-201 |
| Input Channels | 8 discrete analog inputs designed explicitly for thermal sensors |
| Supported Sensor Types | Thermocouples and NTC/PTC thermistor probes |
| Hardware Profile Tracking | Marked with hardware version PV:04, logic release level RL:08, and software baseline SV:1.5 |
| Wiring Requirements | Requires copper conductors rated for a minimum of 60°C with a strict terminal torque limit of 0.28 Nm |
| Environmental Limit | maximum surrounding air temperature of 55°C |
| Certifications | UL and CSA listed for North American UL Temperature Code is T5, and CSA Temperature Code is T4 |
| Made In | Japan |
| REF NO | 518 |
