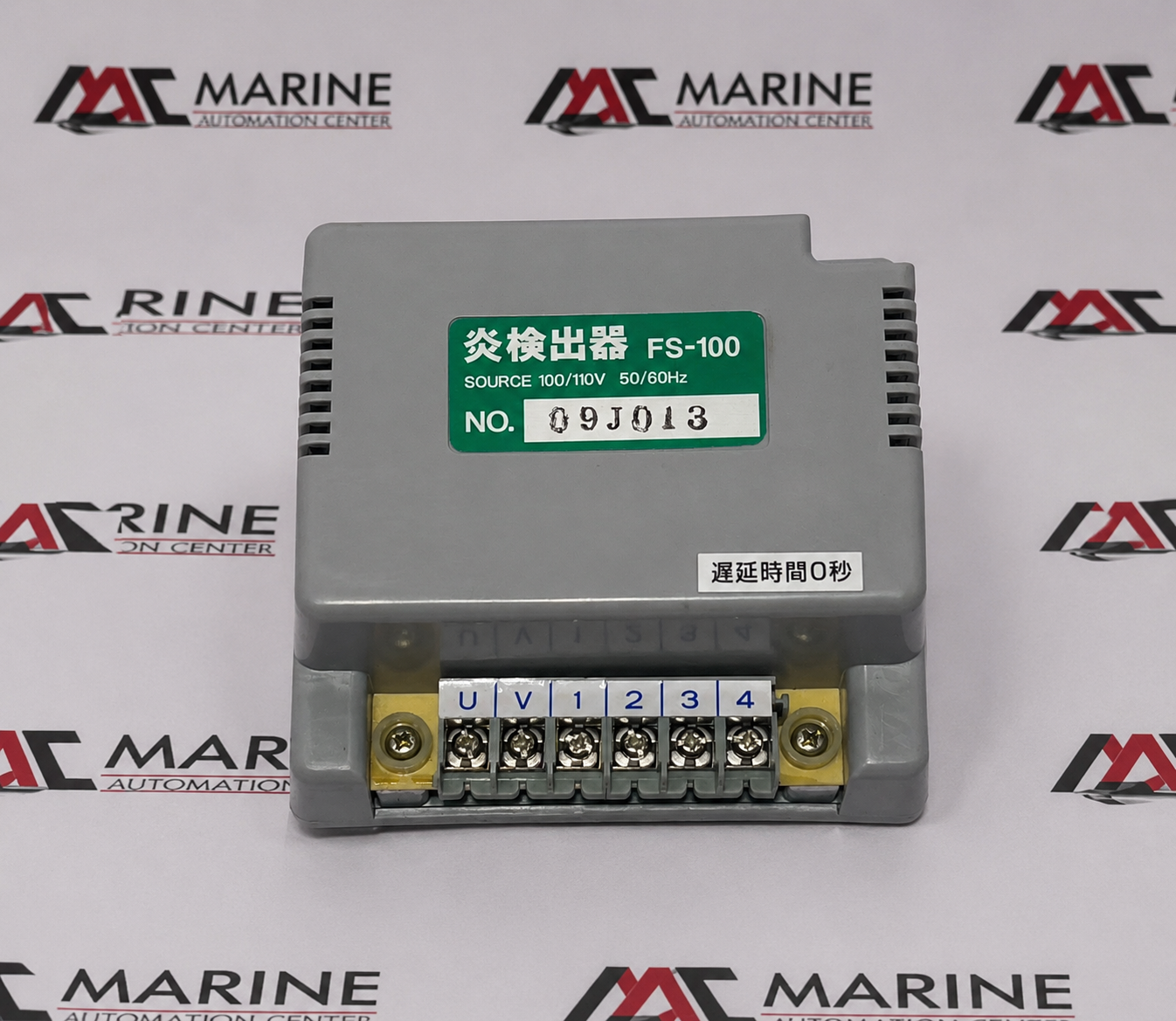

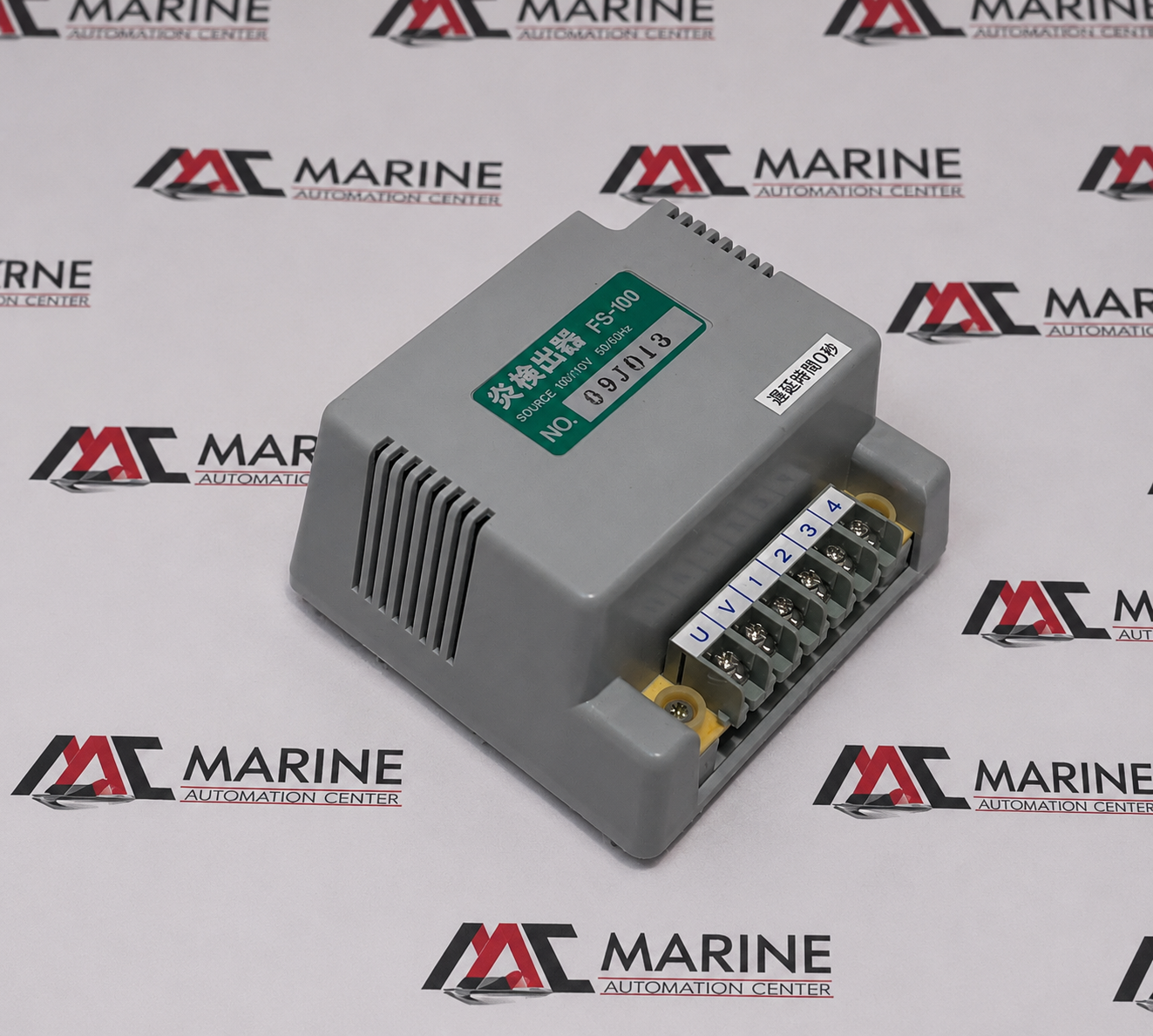

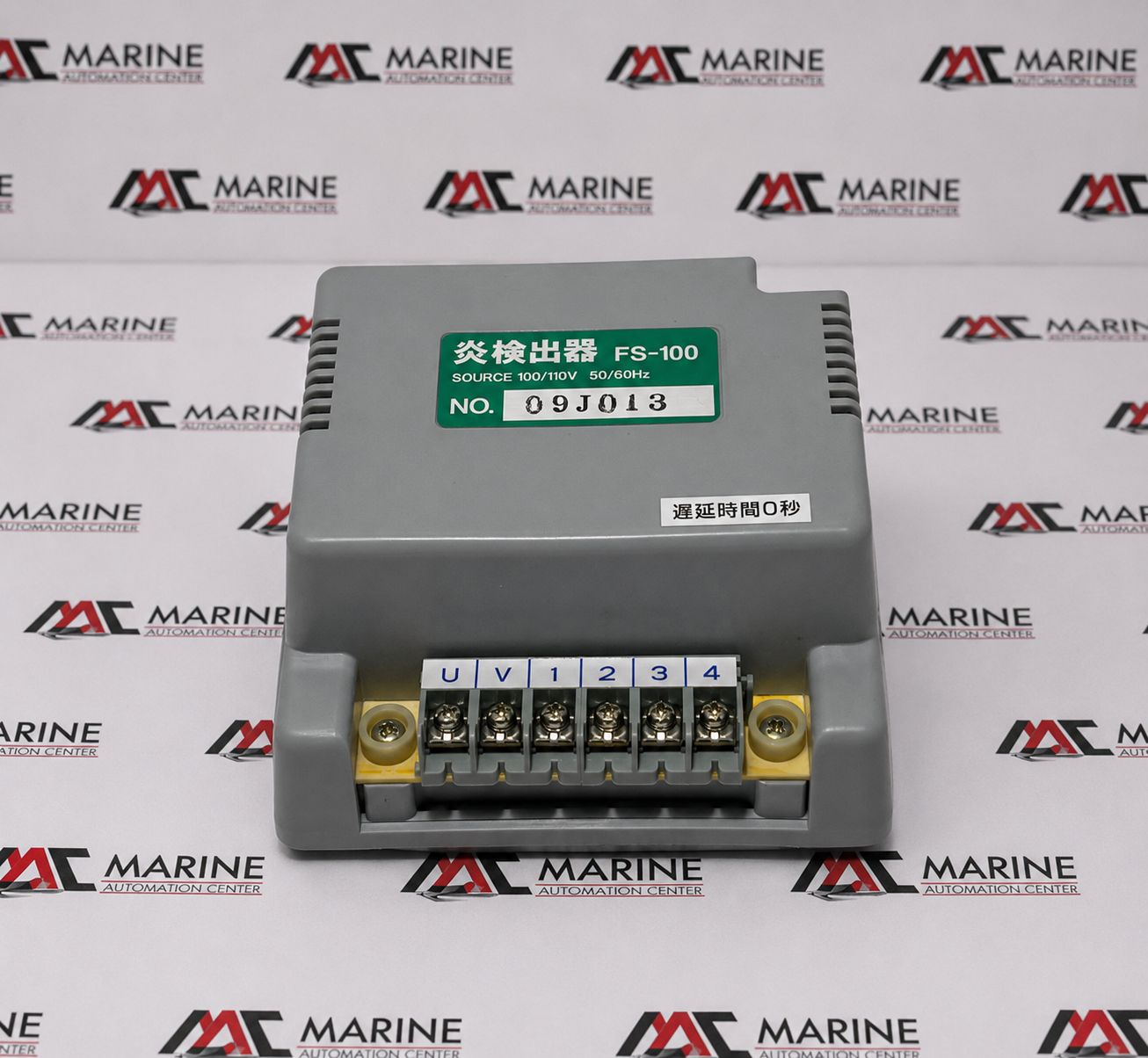

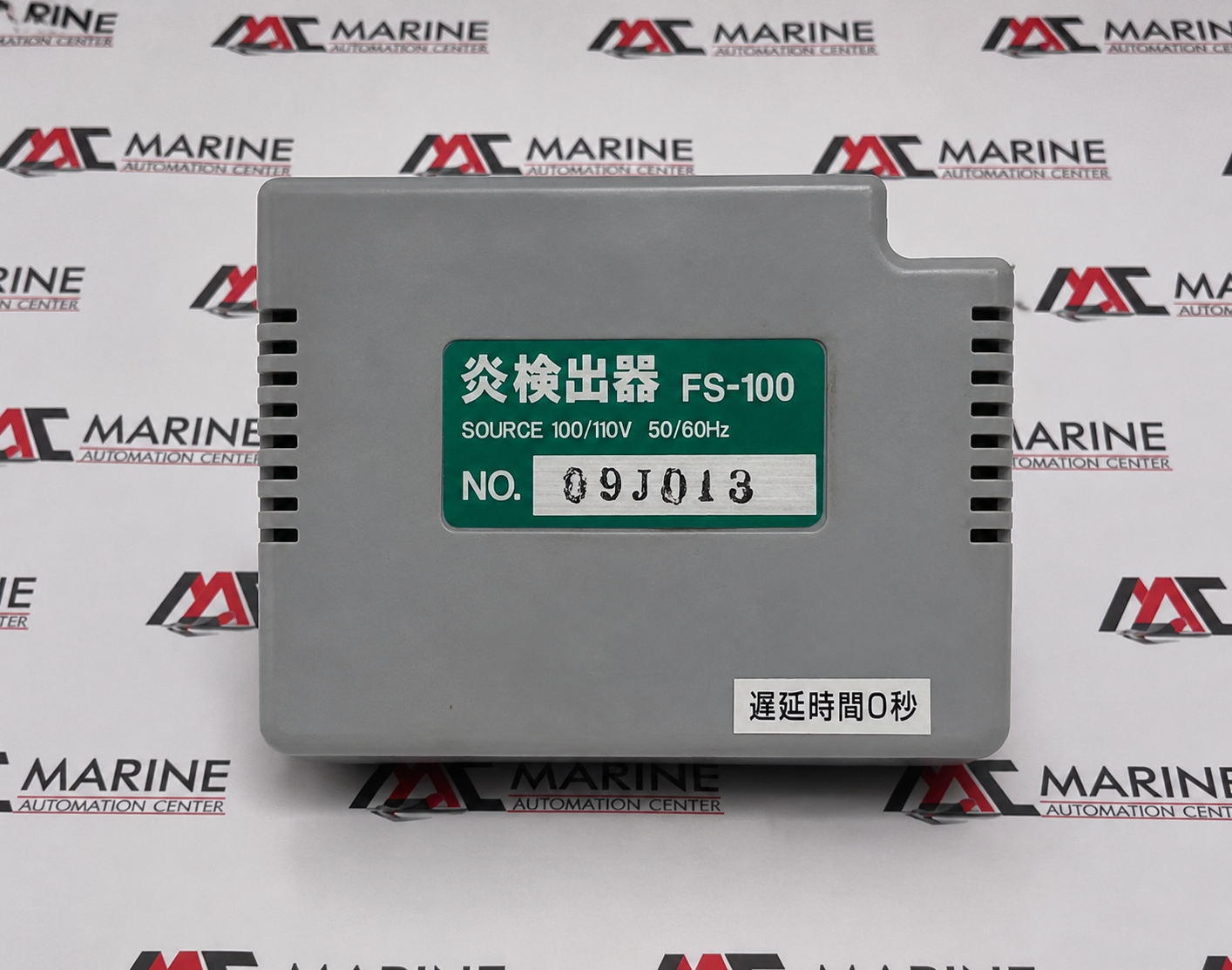

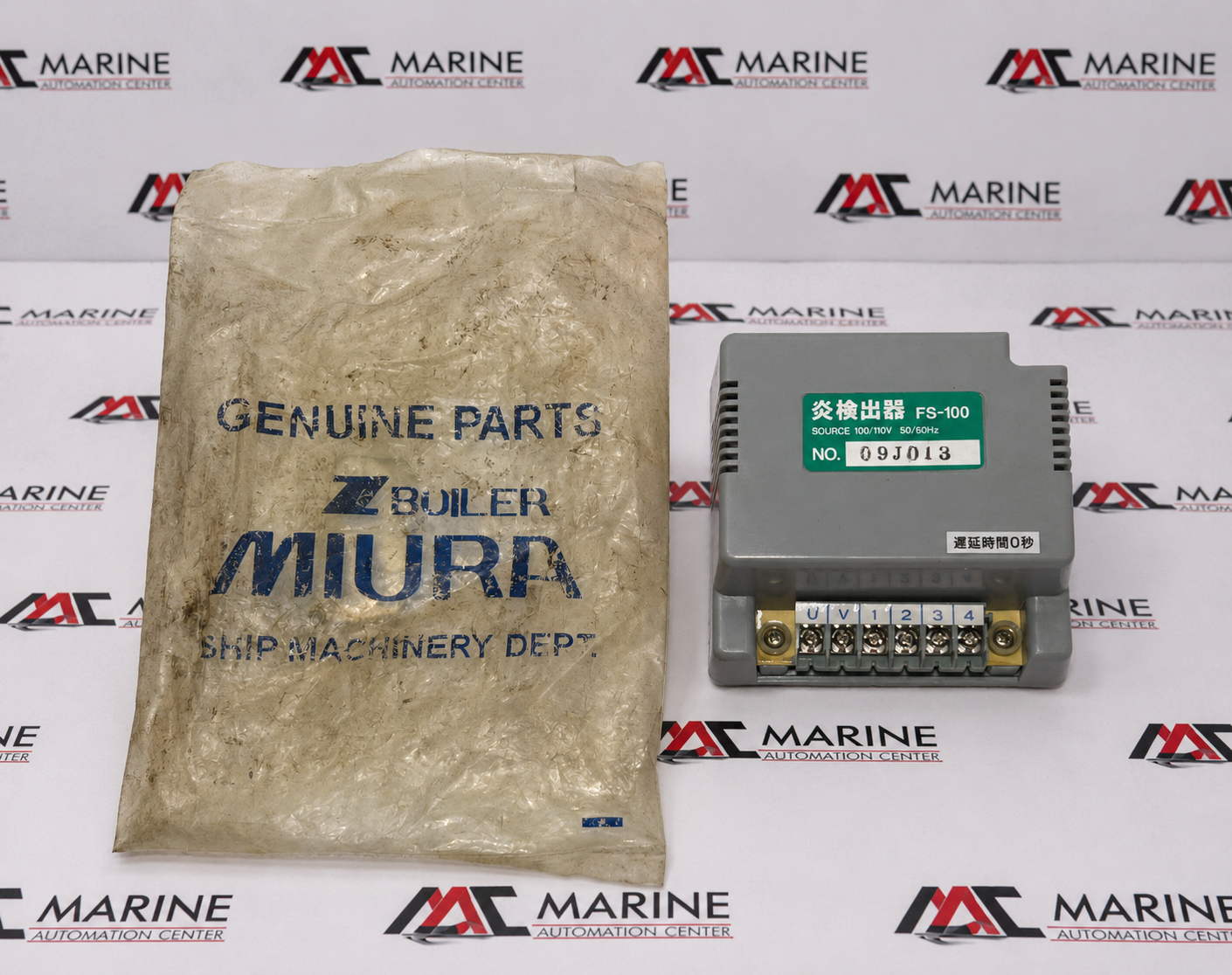

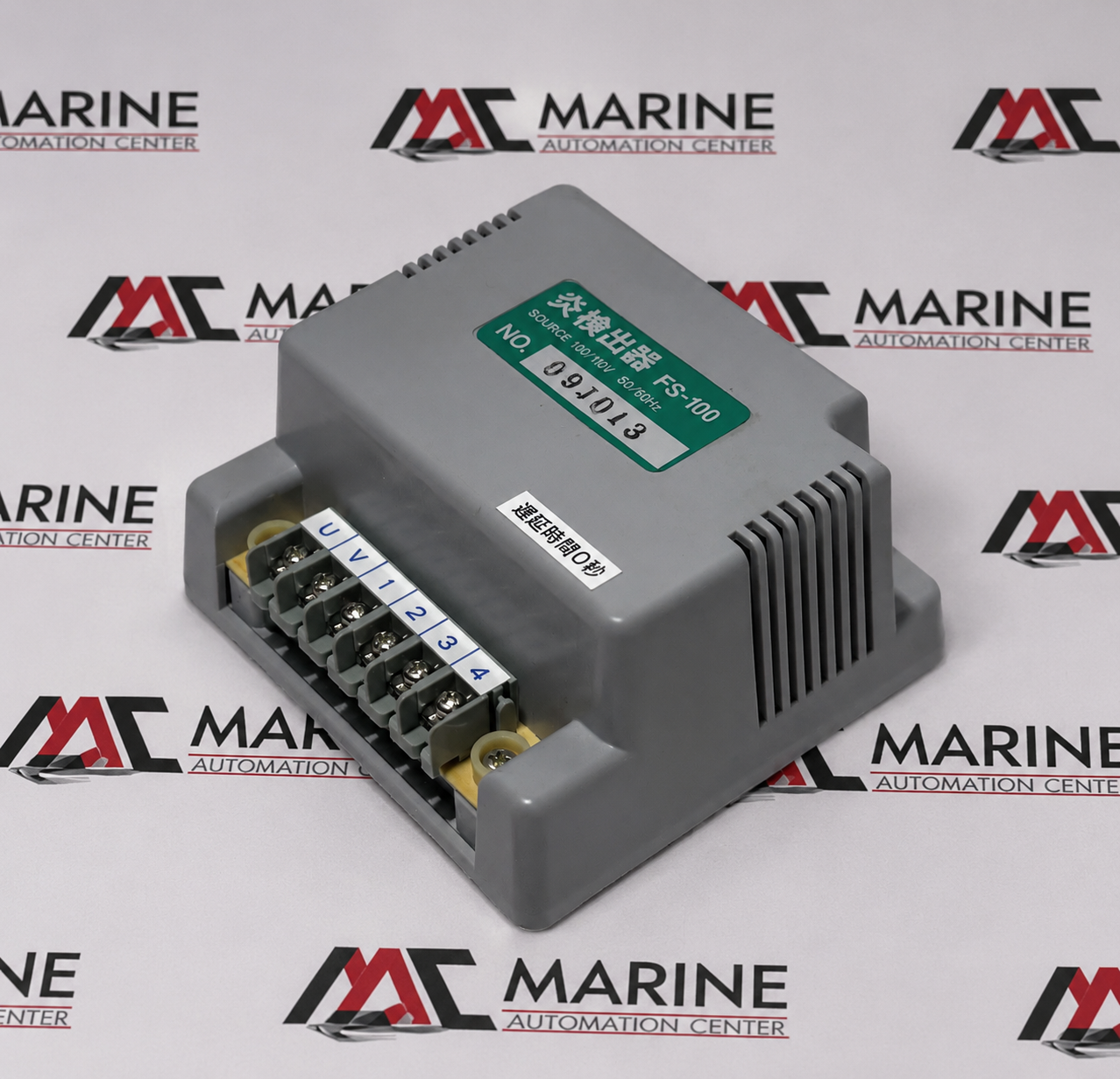

MIURA Flame Detection Unit FS-100
The MIURA FS-100 Flame Detector Controller (P/N: 0100-560-00E0-7) is a flame detection control unit designed to monitor burner flame signals and ensure safe combustion in marine and industrial boiler systems. It continuously supervises flame presence, providing reliable burner management by initiating safety shutdowns in the event of flame failure. Commonly used in MIURA boiler installations, the FS-100 enhances operational safety, combustion efficiency, and reliable boiler performance.
BRAND
MIURA
TYPE
Flame Detector Controller
PART NO.
0100-560-00E0-7
MODEL
FS-100
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | MIURA |
| TYPE | Flame Detector Controller |
| PART NO. | 0100-560-00E0-7 |
| MODEL | FS-100 |
| MANUFACTURER | Miura Co., Ltd. |
| Voltage Rating | AC 100/110 V, 50/60 Hz |
| Power Supply | Source: AC 100/110 V, 50/60 Hz |
| Application | Boiler flame monitoring and burner flame supervision for Miura marine and industrial boilers. Detects flame presence and transmits flame status to the burner safety control system for safe ignition, combustion monitoring and automatic burner shutdown in c |
| Detection Method | Flame Detection Controller for burner flame sensor input |
| Input Voltage | AC 100/110 V, 50/60 Hz |
| Terminal Configuration | U, V, 1, 2, 3, 4 Terminal Connections |
| Delay Time | 0 Seconds |
| Product Identification | Flame Detector FS-100 |
| Frequency | 50/60 Hz |
| Made In | Japan |
| Reference NO | 1335 |
