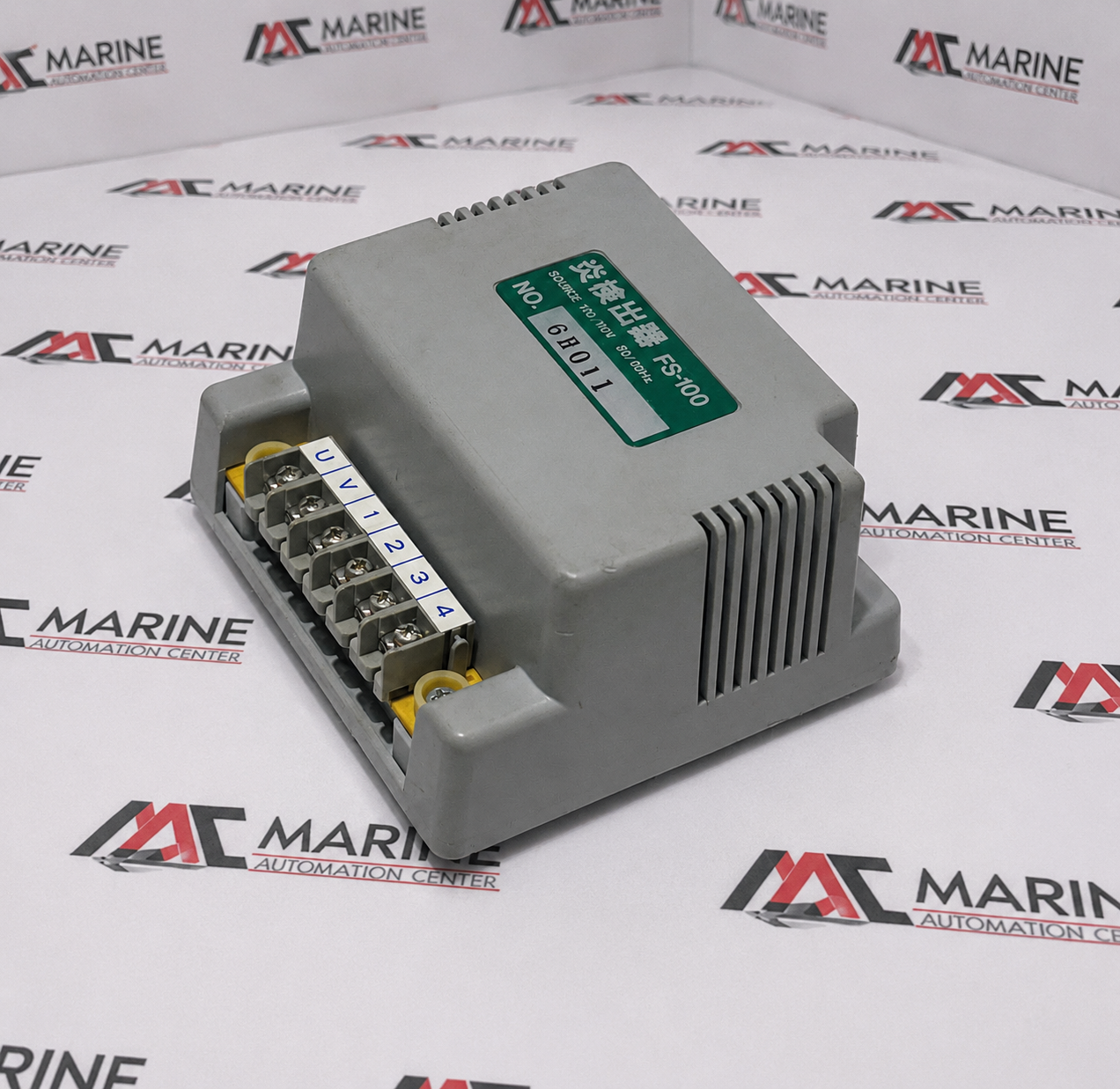

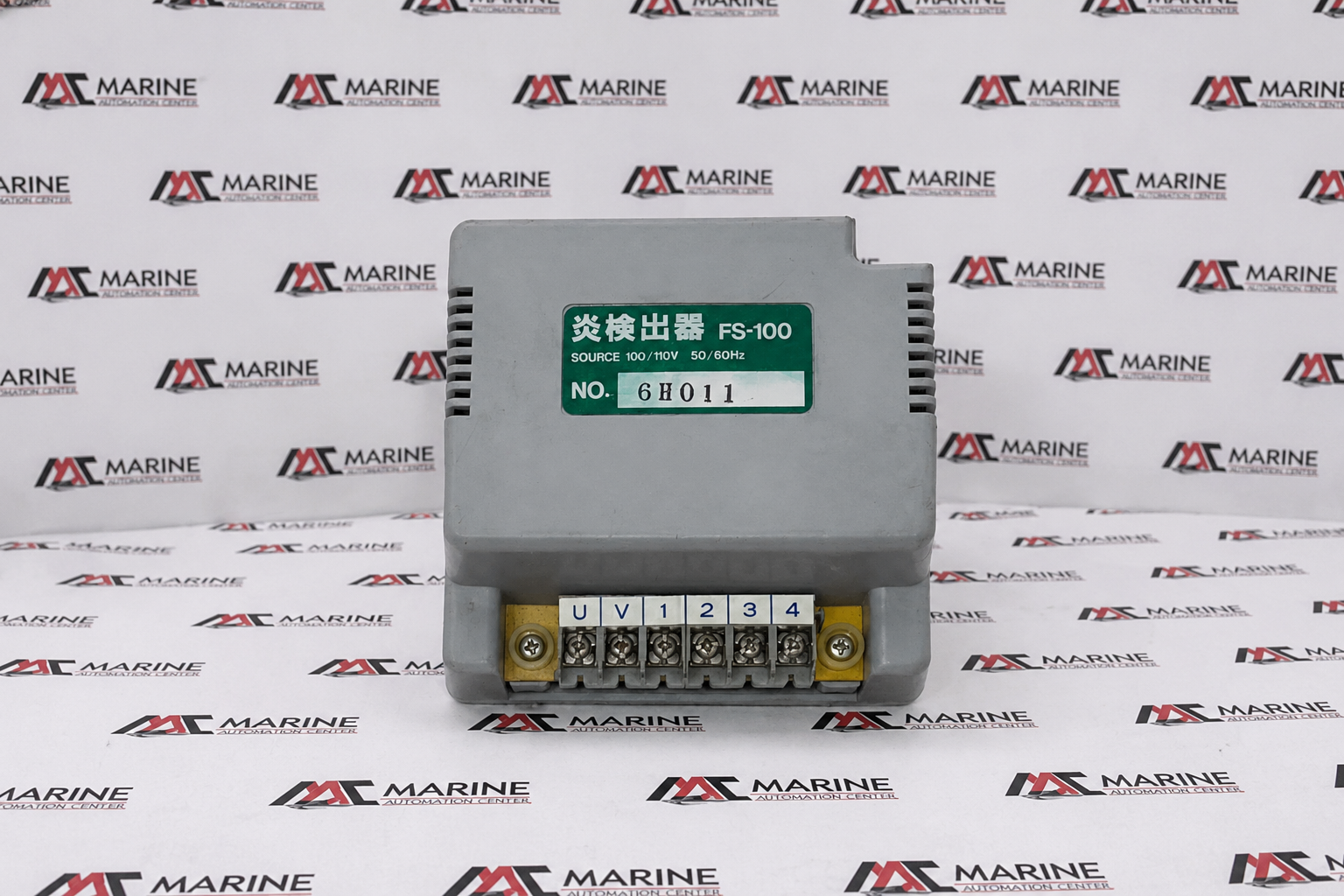

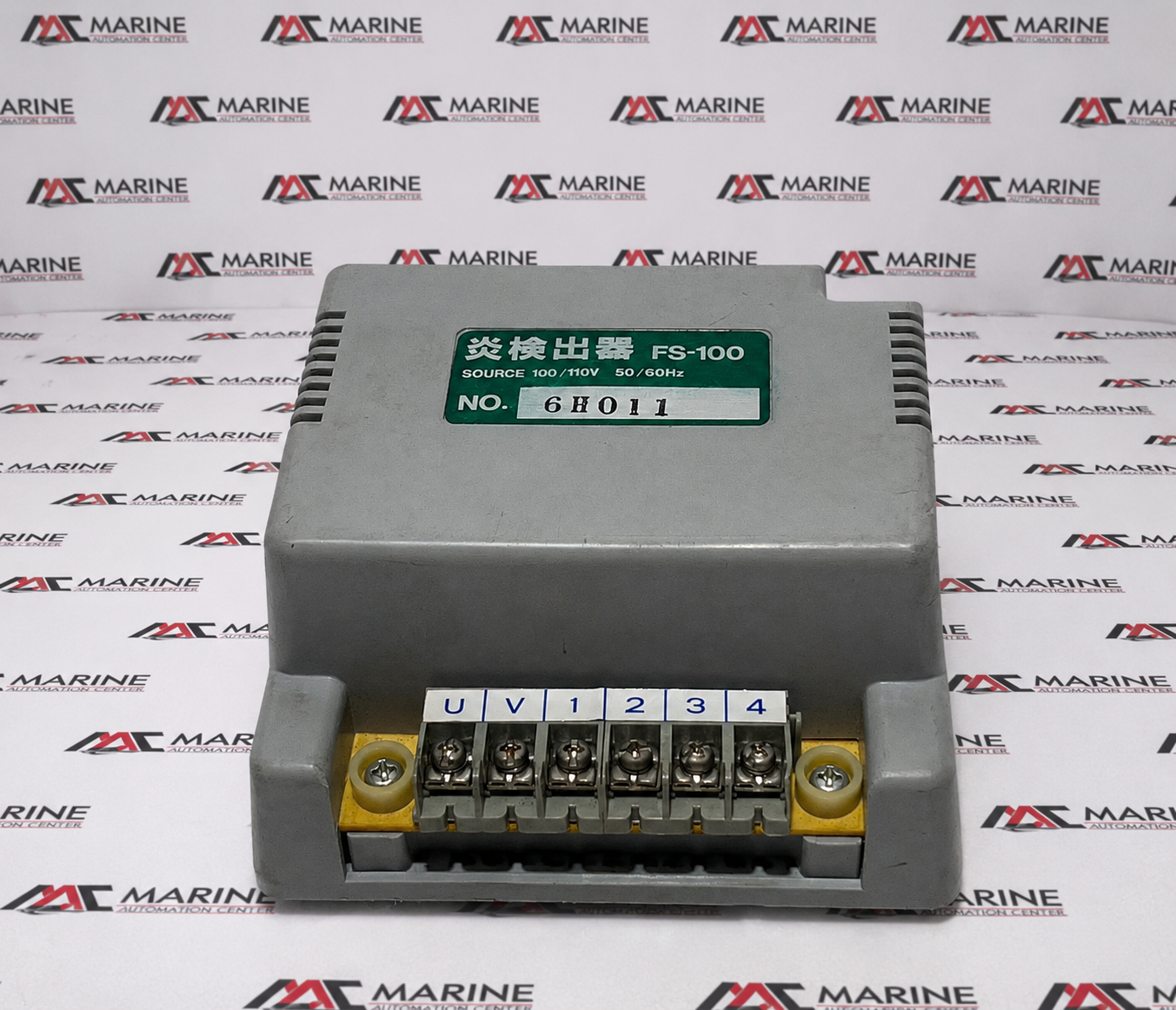

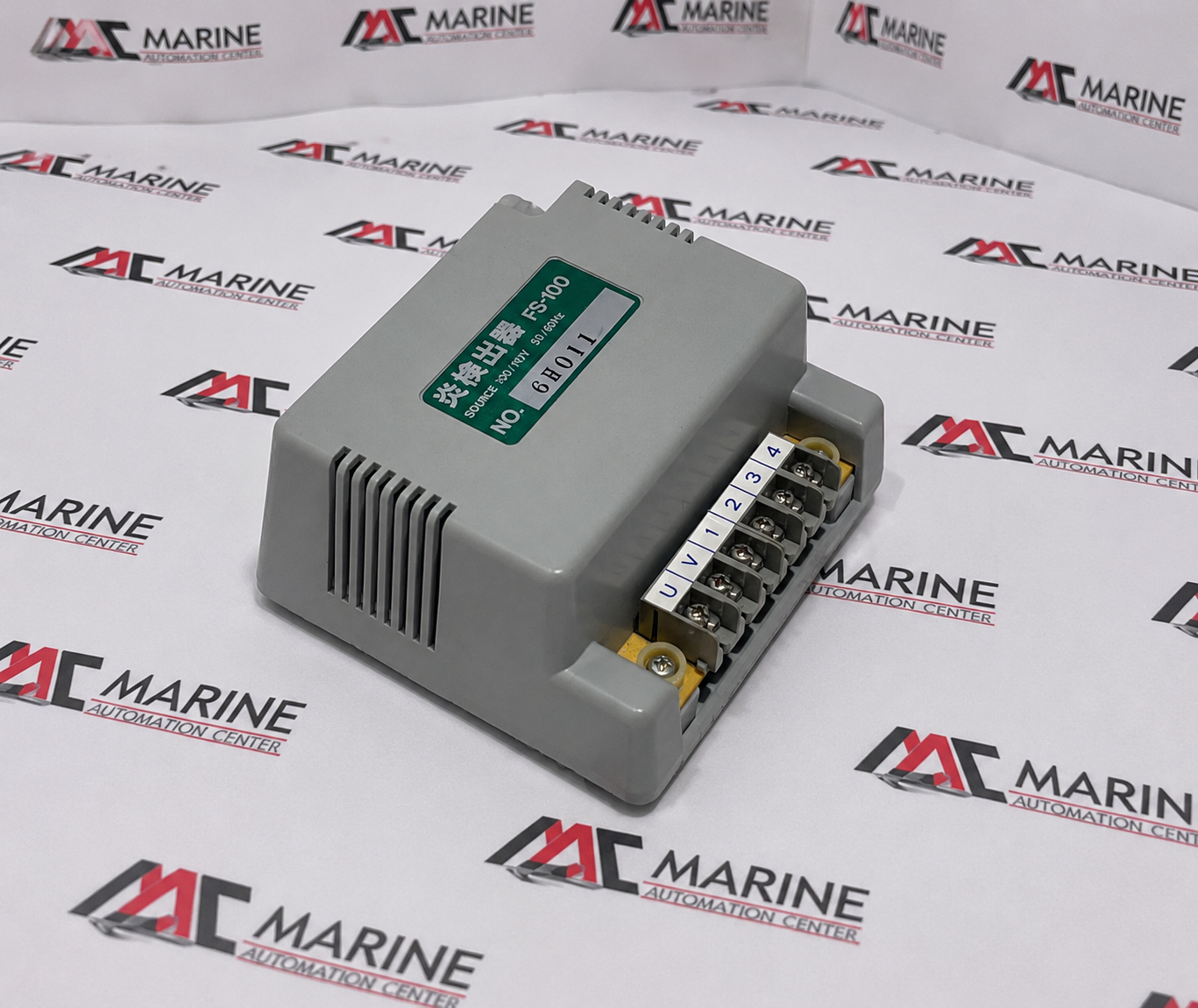

MIURA Flame Detection Controller (Marine Boiler Flame Monitoring Unit)
The MIURA FS-100 Flame Detector / Flame Detection Controller (P/N: 0100-560-00E0-7) is a marine boiler flame monitoring unit designed to detect and supervise burner flame conditions for safe and reliable combustion. It continuously monitors flame presence and initiates protective shutdowns if a flame failure is detected, ensuring efficient boiler operation and enhanced safety in marine and industrial steam generation systems.
BRAND
MIURA
TYPE
Flame Detector Controller
PART NO.
0100-560-00E0-7
MODEL
FS-100
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | MIURA |
| TYPE | Flame Detector Controller |
| PART NO. | 0100-560-00E0-7 |
| MODEL | FS-100 |
| Voltage Rating | AC 100/110 V |
| Power Supply | Source: AC 100/110 V, 50/60 Hz |
| Frequency | 50/60 Hz |
| Application | Marine and industrial boiler flame monitoring system. Detects burner flame and provides flame status for burner safety control, ignition supervision, combustion monitoring and flame failure protection |
| Product Description | Electronic Flame Detector Controlle |
| Detection Function | Burner Flame Detection / Flame Supervision |
| Terminal Configuration | U, V, 1, 2, 3, 4 Terminal Connections |
| Input Voltage | AC 100/110 V |
| Operating Frequency | 50/60 Hz |
| Housing Material | Industrial Engineering Plastic Enclosure |
| Mounting Type | Panel / Equipment Mount |
| Made In | Japan |
| REF NO. | 1336 |
