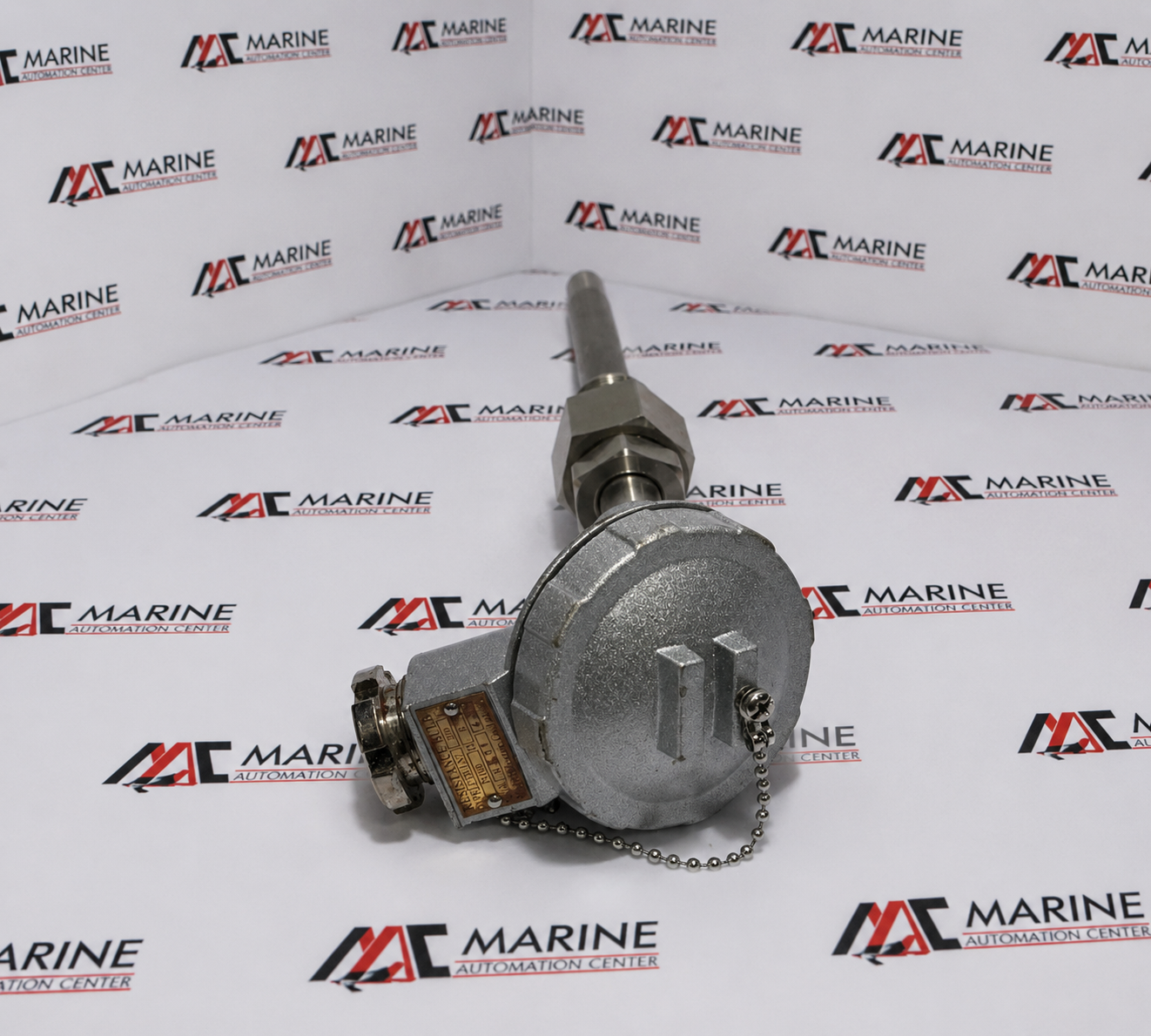

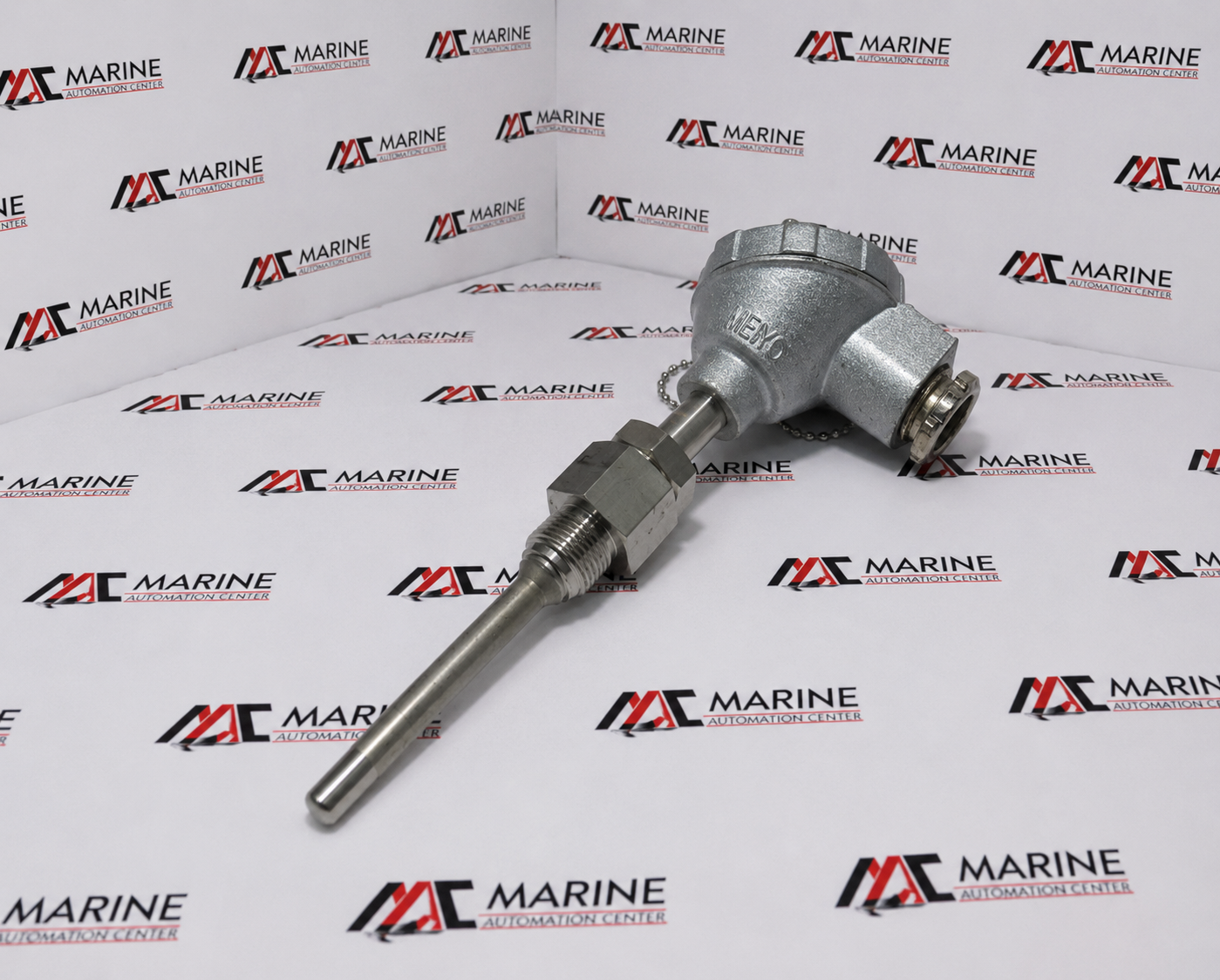

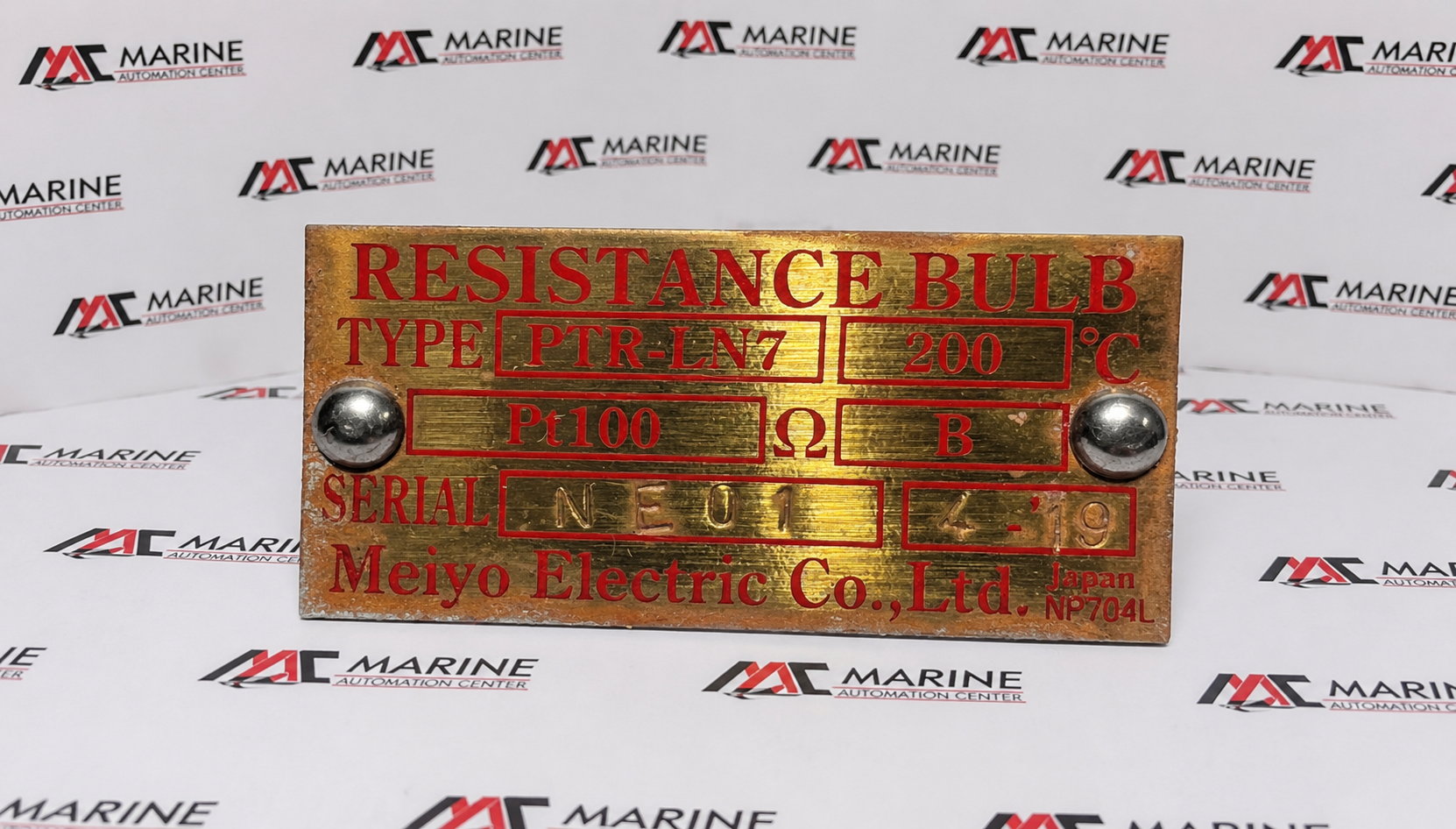

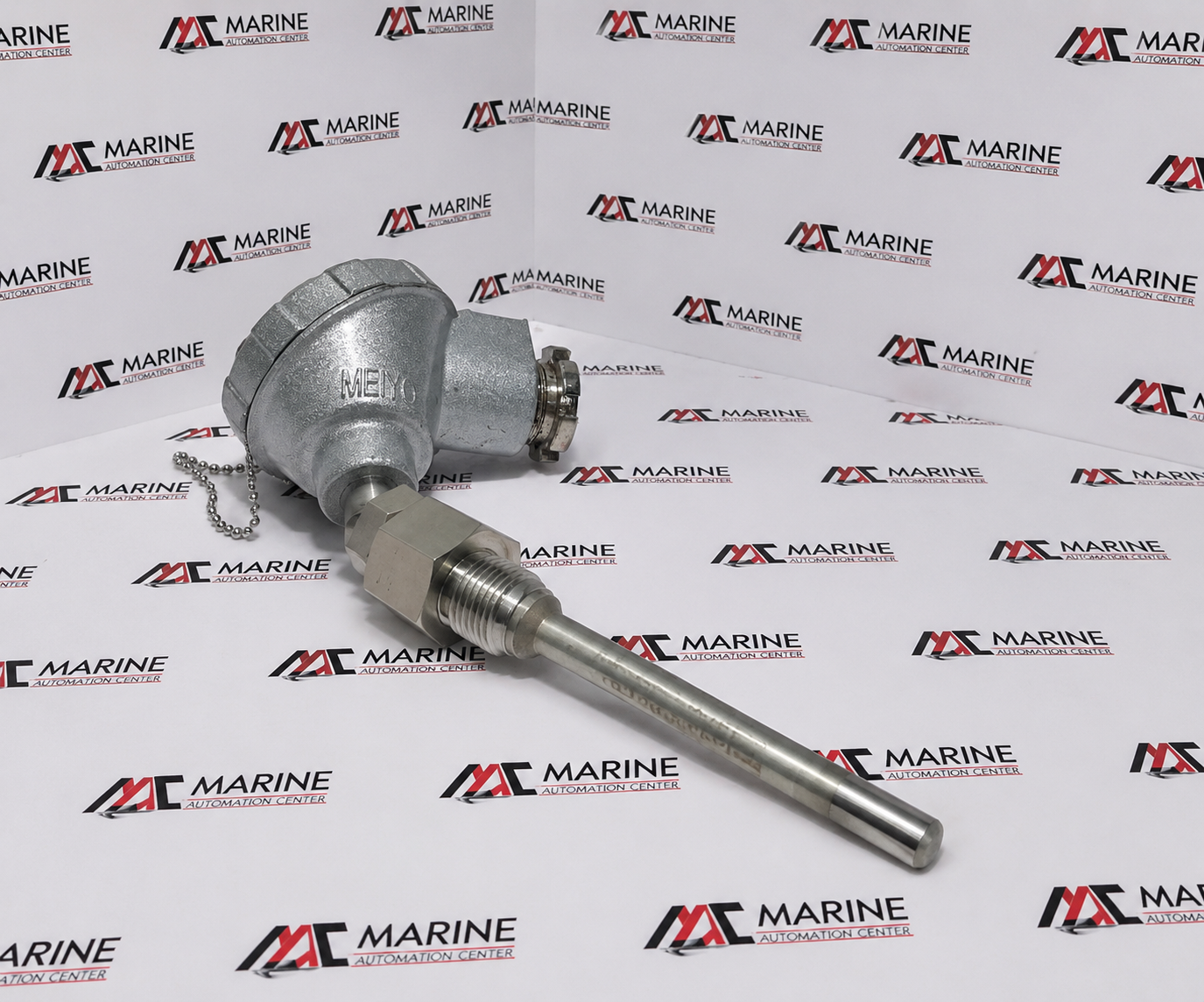

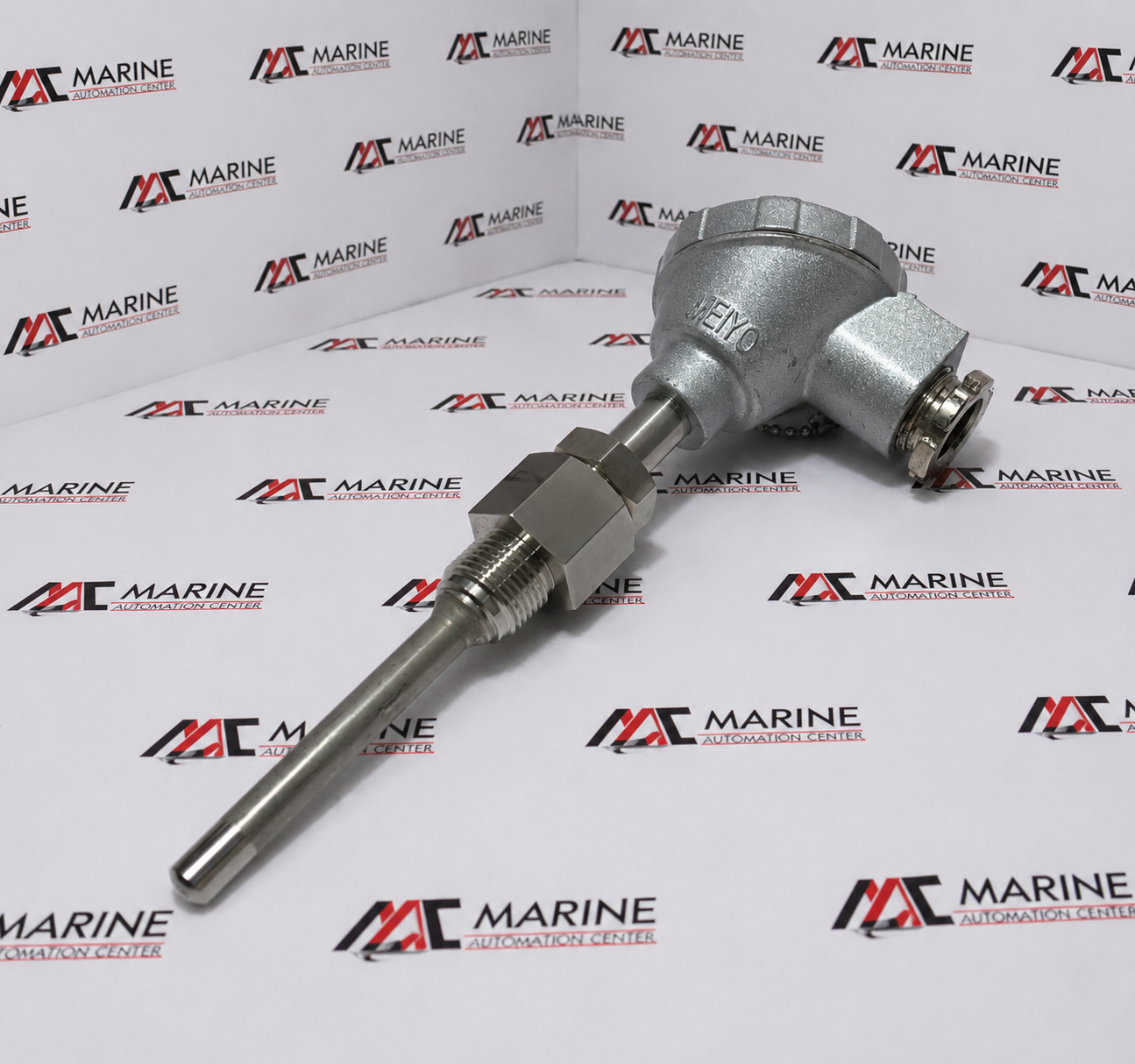

Meiyo Electric Platinum Resistance Temperature Sensor (RTD) PTR-LN7
The Meiyo Electric PTR-LN7 Platinum Resistance Temperature Sensor (RTD) is a precision temperature sensing device designed for accurate and stable temperature measurement in industrial process control applications. Manufactured by Meiyo Electric, this resistance bulb utilizes platinum RTD technology to deliver excellent accuracy, long-term stability, and reliable performance in demanding environments. Ideal for use in power plants, marine systems, chemical processing, and industrial automation,
BRAND
Meiyo
TYPE
Temperature Sensor
PART NO.
Platinum Resistance Temperature Sensor (RTD) PTR-LN7
MODEL
PTR-LN7
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Meiyo |
| TYPE | Temperature Sensor |
| PART NO. | Platinum Resistance Temperature Sensor (RTD) PTR-LN7 |
| MODEL | PTR-LN7 |
| MANUFACTURER | Meiyo Electric Co., Ltd. |
| Temperature Range | 0 to 200°C |
| Sensor Element | Pt100 Ω Platinum Resistance Element |
| Nominal Resistance | Pt100 Ω at 0°C |
| Operating Current | 2 mA |
| Protection Tube Material | SUS304 Stainless Steel |
| Protection Tube Type | Double Protection Tube |
| Probe Type | Insert Type Temperature Probe |
| Terminal Connection | 3-Terminal RTD Connection |
| Application | Temperature measurement of lubricating oil (LO), cooling water (CFW), fuel oil (FO), seawater (SW), bearings, diesel engines, marine machinery, industrial process equipment and HVAC systems. |
| IEC | IEC 60751 / Pt100 Class B Compliant |
| Made In | Japan |
| REF NO. | 1284 |
