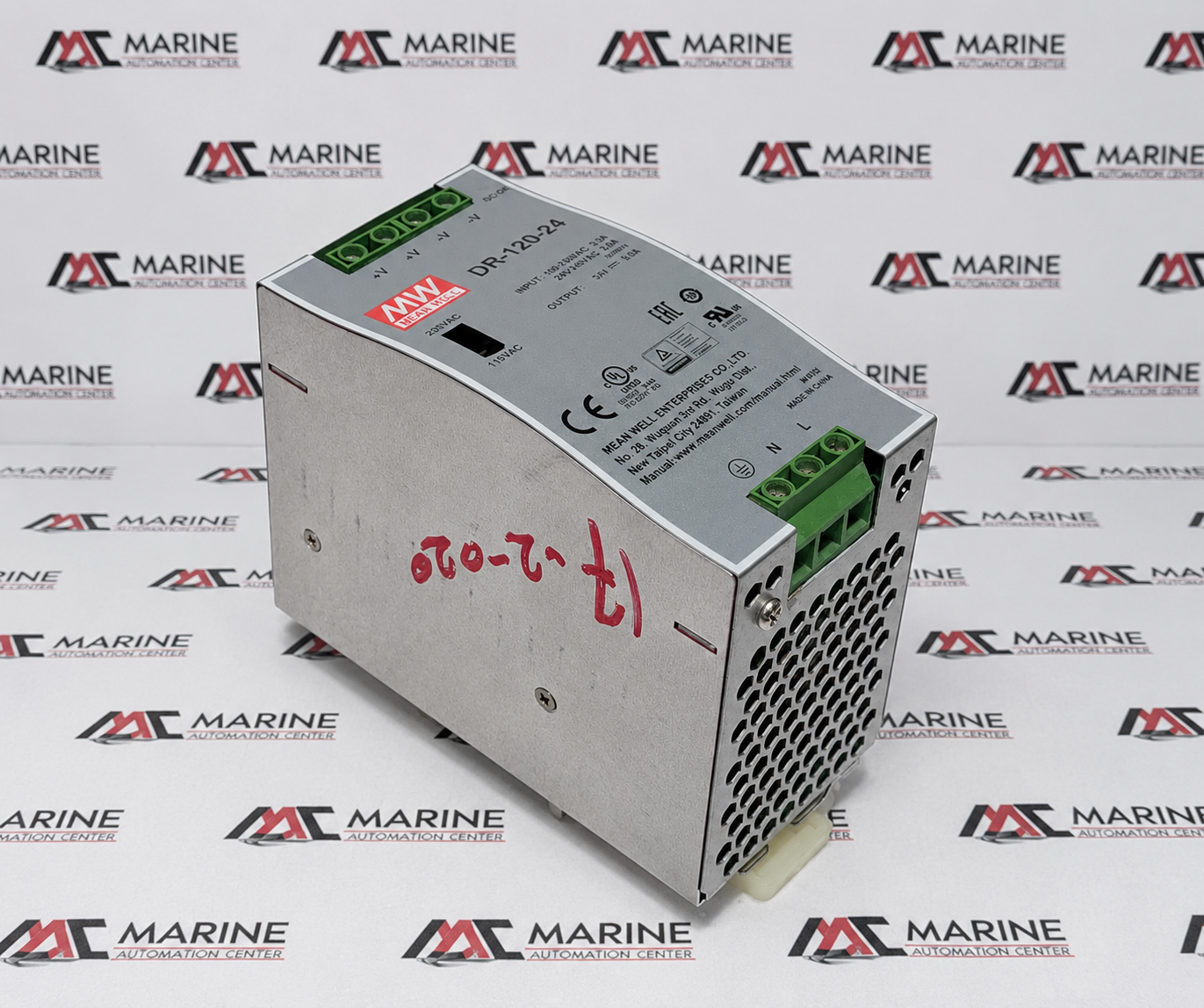

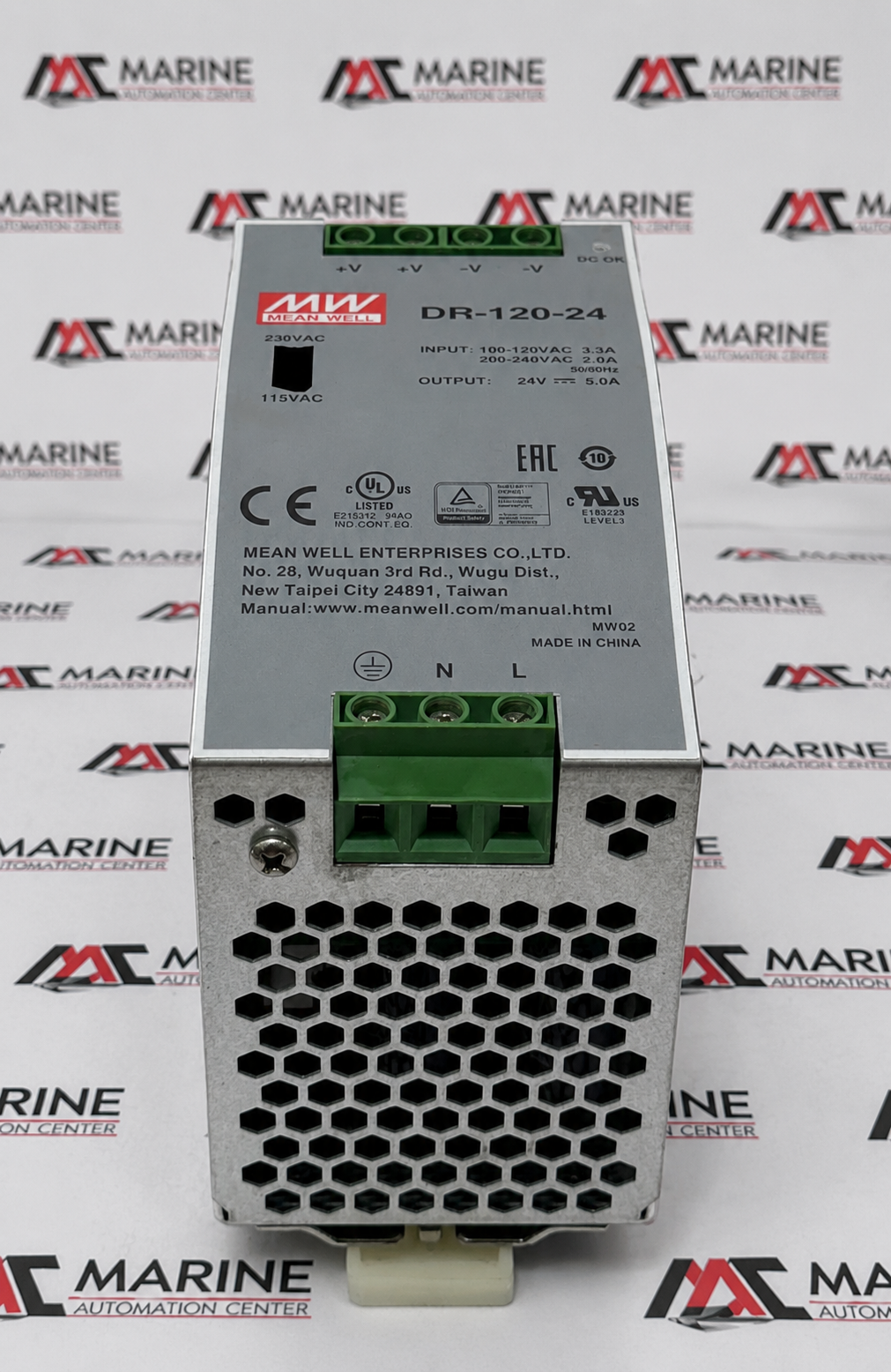

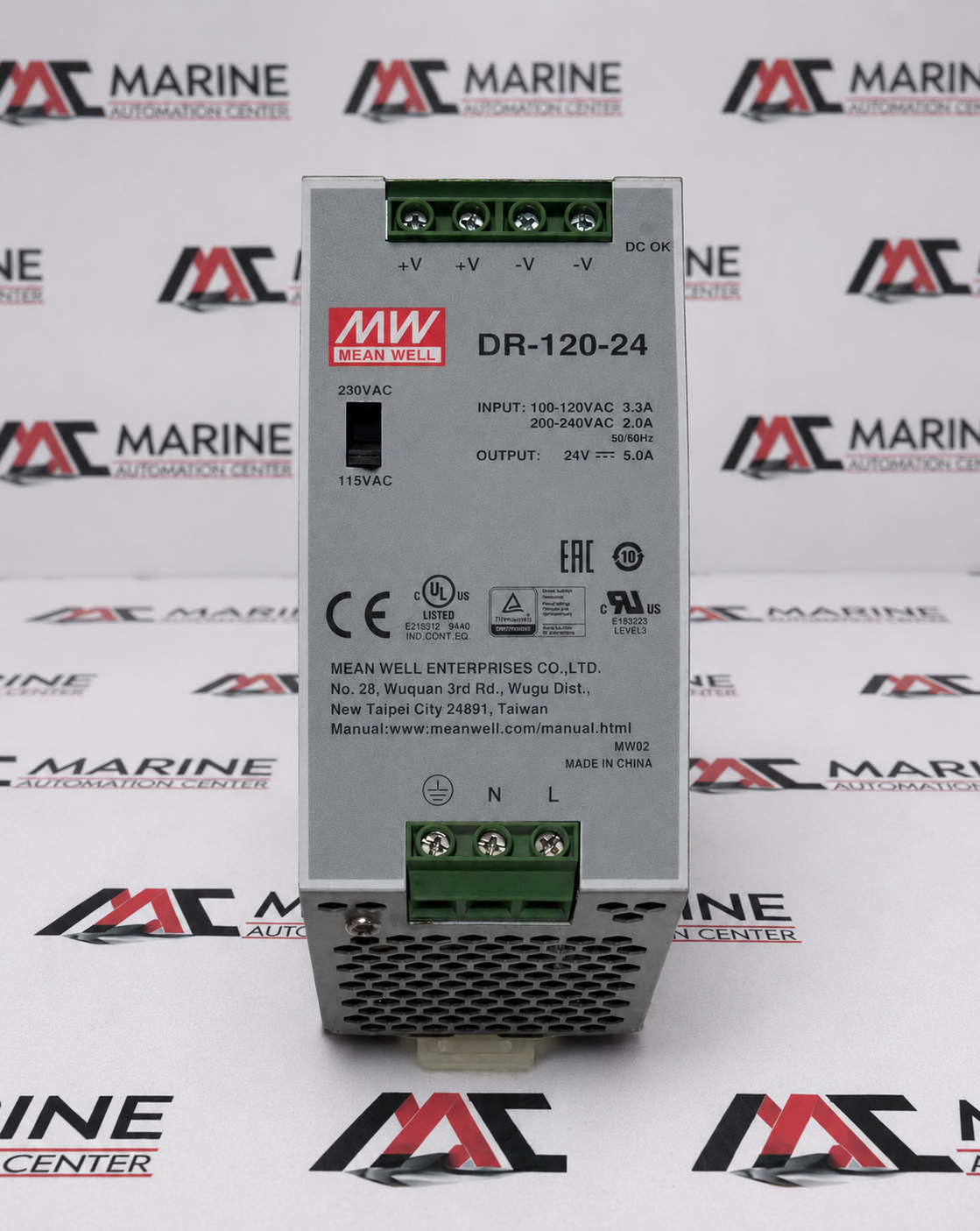

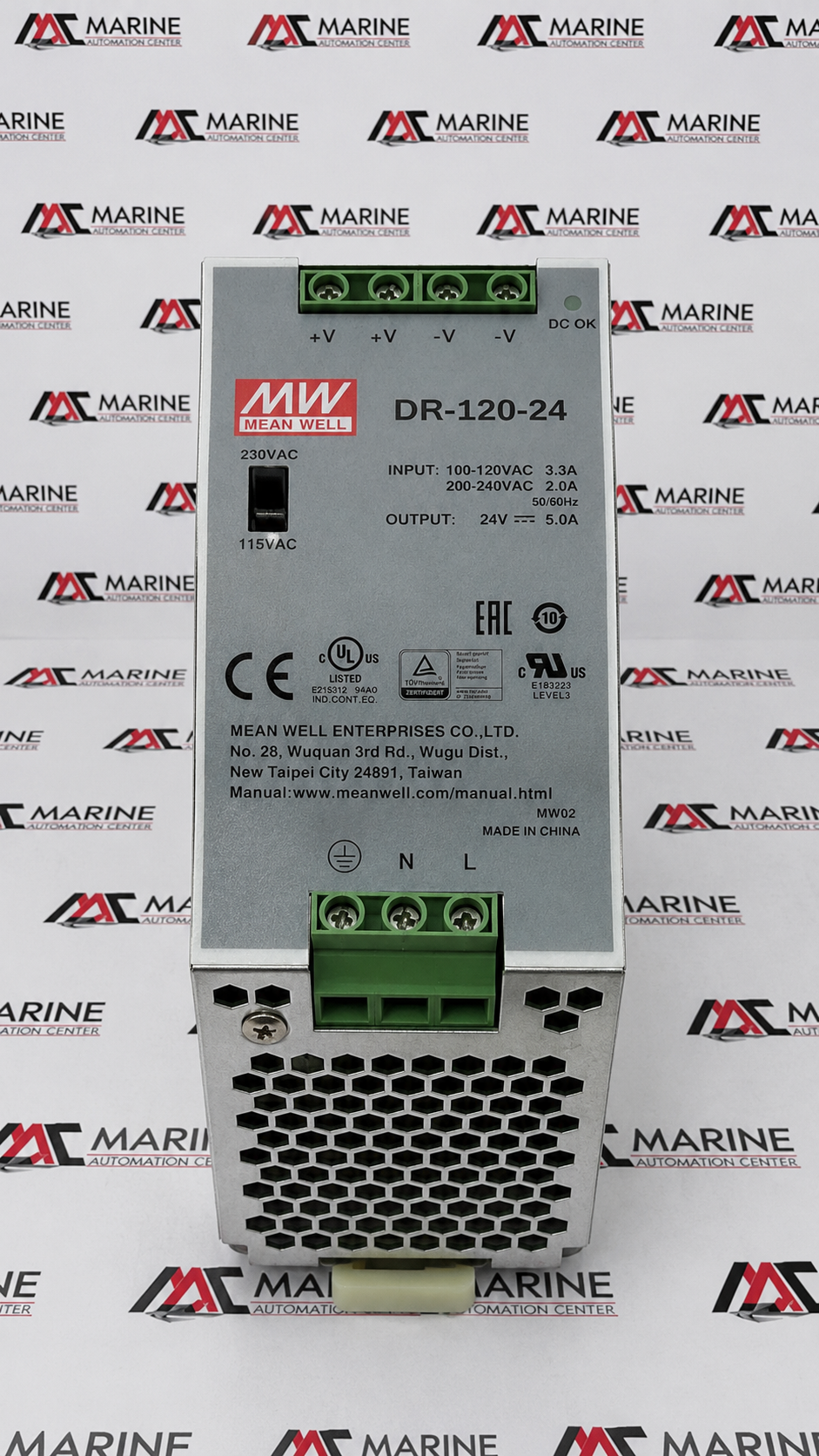

Mean Well Switching Power Supply DR-120-24
The Mean Well DR-120-24 Switching Power Supply is a DIN rail-mounted industrial AC/DC power supply designed to deliver a stable 24 V DC output for control panels, automation systems, and industrial equipment. It features high efficiency, built-in overload, overvoltage, and short-circuit protection, making it ideal for industrial automation, marine applications, PLC systems, and instrumentation.
BRAND
Mean Well
TYPE
Switching Power Supply
PART NO.
Mean Well Switching Power Supply DR-120-24
MODEL
DR-120-24
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Mean Well |
| TYPE | Switching Power Supply |
| PART NO. | Mean Well Switching Power Supply DR-120-24 |
| MODEL | DR-120-24 |
| Series | DR-120 Series |
| Power Supply Type | AC to DC Switching Power Supply |
| Mounting Type | DIN Rail Mount |
| Rated Output Power | 120 W |
| Input Voltage | 100–120 VAC / 200–240 VAC |
| Input Current | 3.3 A (100–120 VAC), 2.0 A (200–240 VAC) |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 5.0 A |
| Output Power | 120 W |
| Input Selector | 115 VAC / 230 VAC Selectable |
| Output Terminals | +V, +V, -V, -V |
| Cooling Method | Natural Air Convection |
| Application | Industrial automation, PLC control panels, DIN rail control cabinets, process control systems, marine automation, instrumentation, and industrial power distribution |
| Made In | China |
| REF NO | 1396 |
