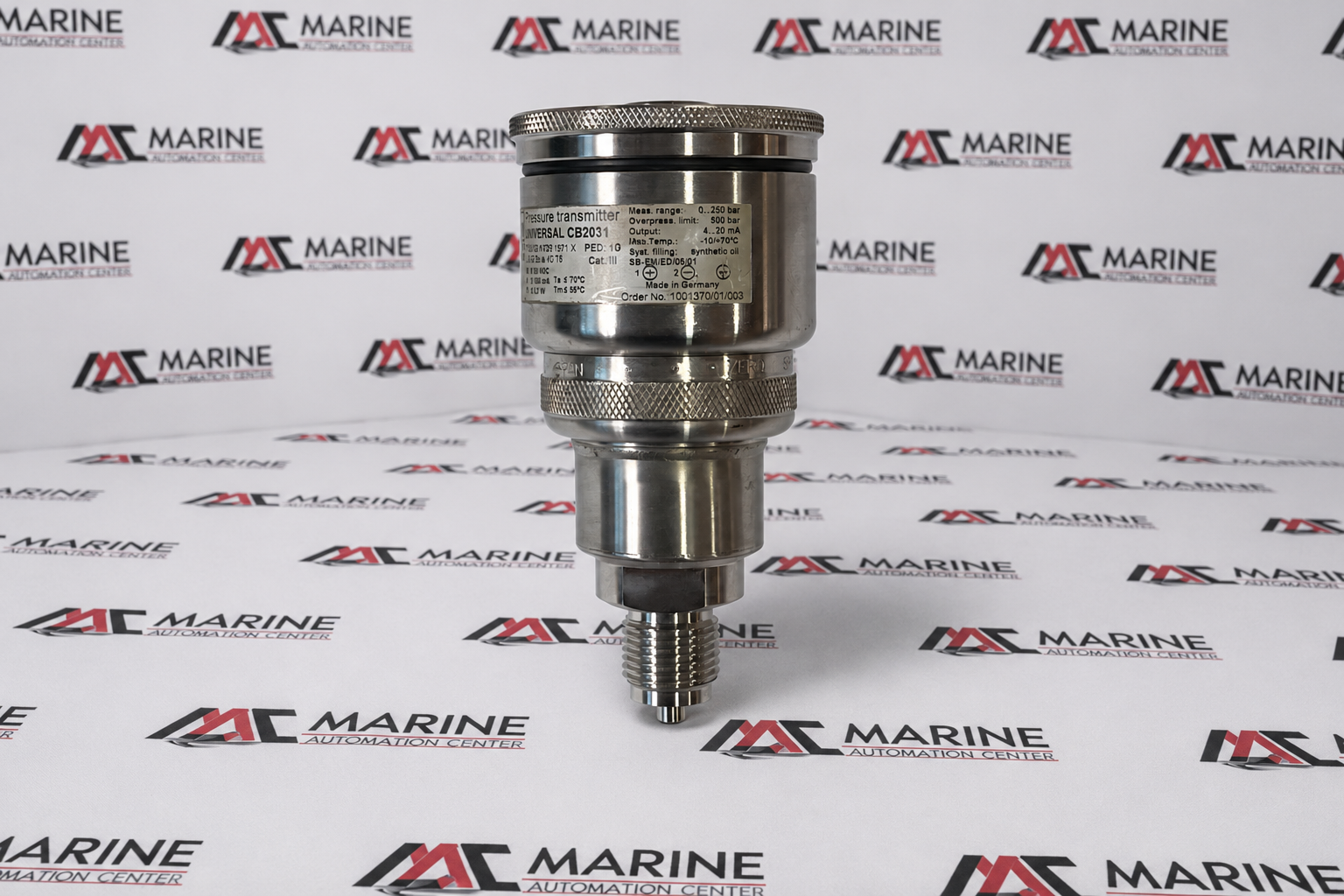

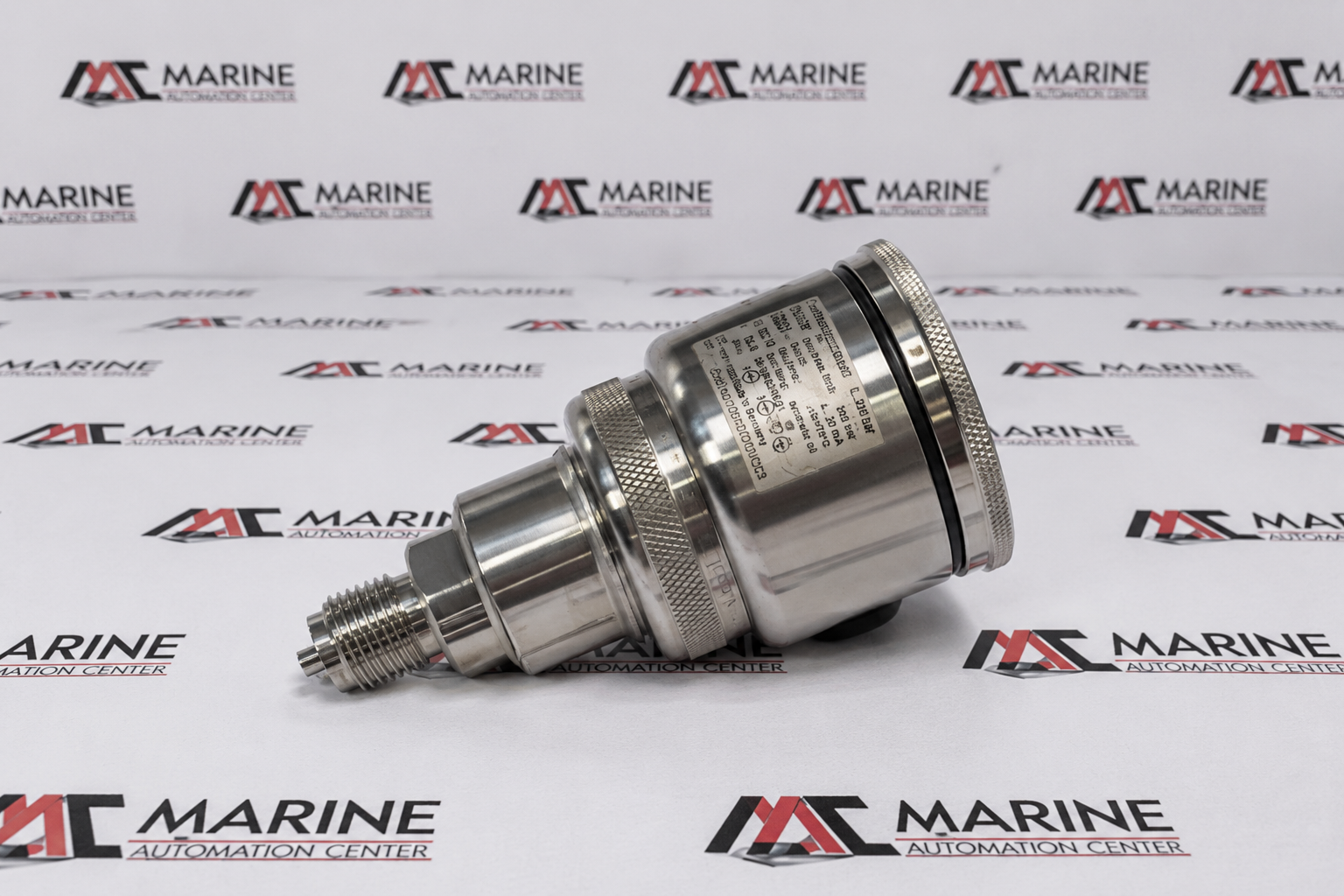

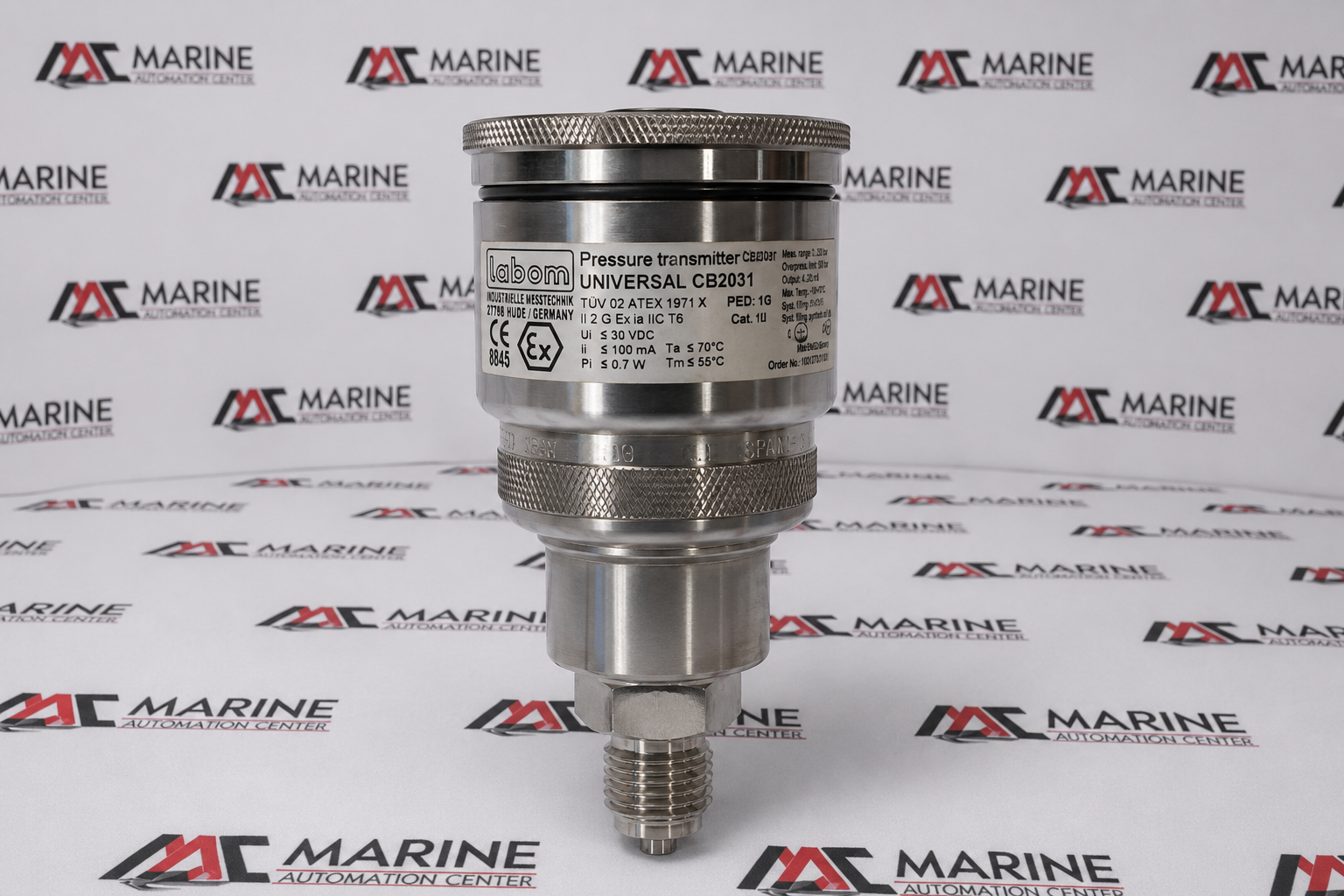

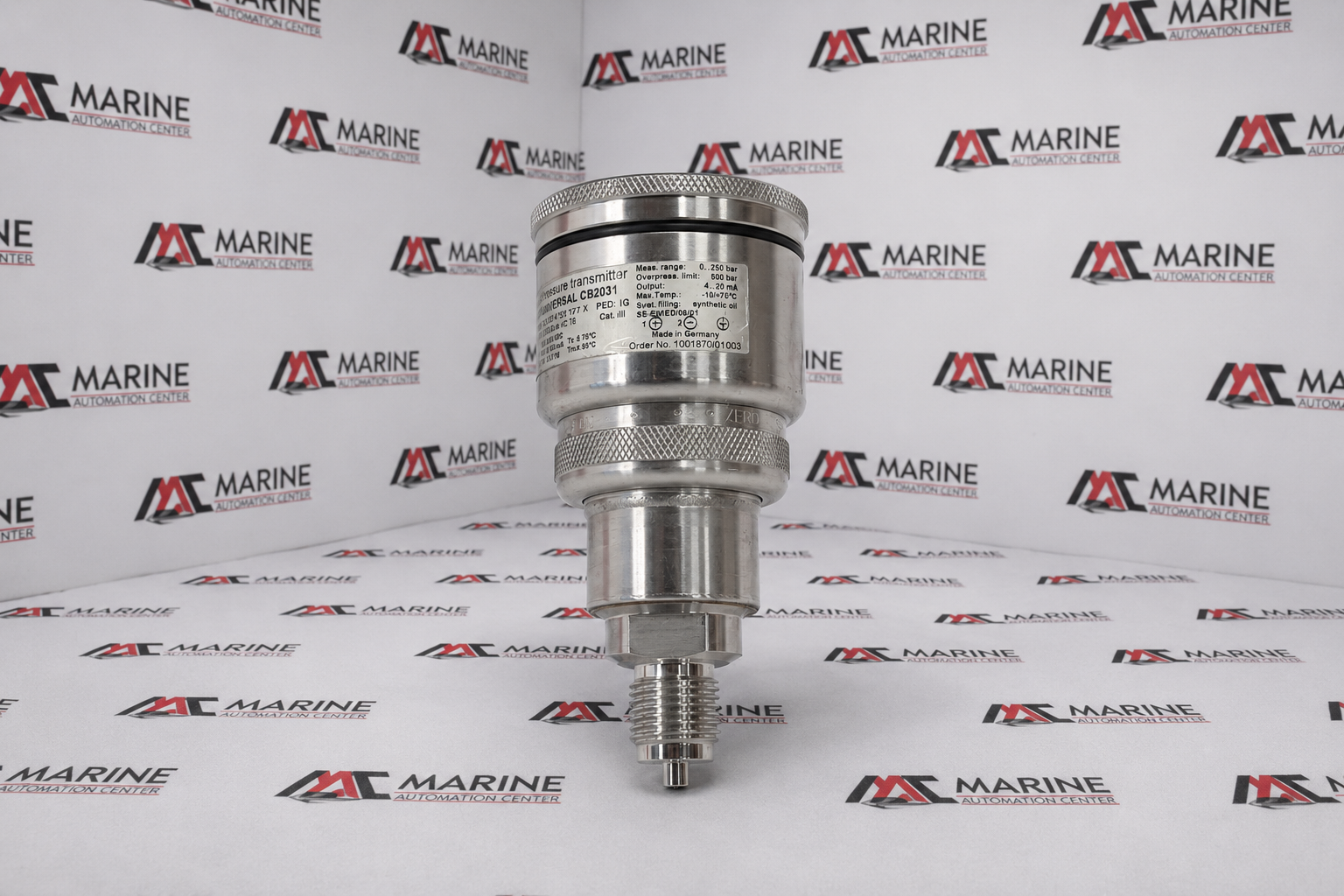

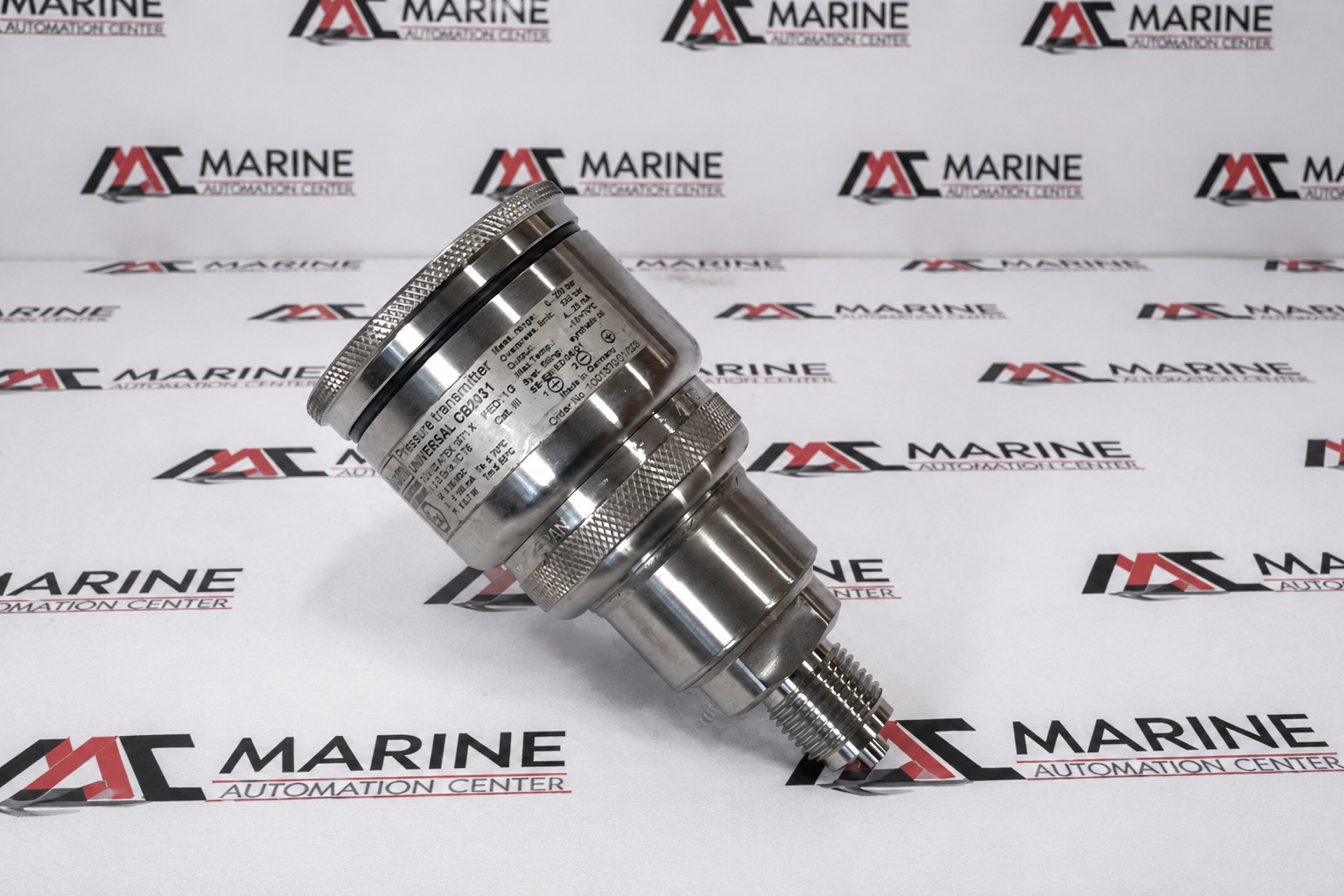

LABOM Pressure Transmitter UNIVERSAL CB2031
The LABOM 1001370/01/003 (UNIVERSAL CB2031) is a pressure transmitter engineered for accurate and reliable pressure measurement in industrial process control systems. It converts process pressure into a standardized electrical output signal for continuous monitoring and automation. With its rugged stainless-steel construction, high measurement accuracy, and durable design, it is ideal for use in the chemical, petrochemical, marine, oil & gas, power generation, and other demanding industrial appl
BRAND
LABOM
TYPE
Pressure Transmitter
PART NO.
1001370/01/003
MODEL
UNIVERSAL CB2031
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | LABOM |
| TYPE | Pressure Transmitter |
| PART NO. | 1001370/01/003 |
| MODEL | UNIVERSAL CB2031 |
| Product Series | UNIVERSAL CB2031 |
| Pressure Range | 0...250 bar |
| Overpressure Limit | 500 bar |
| Output Signal | 4...20 mA (2-wire) |
| Voltage Rating | ≤30 VDC (Ui), Operating Supply 15...30 VDC (Ex Version) |
| Power Supply | 15...30 VDC |
| Current Consumption (Ii) | ≤100 mA |
| Maximum Power (Pi) | ≤0.7 W |
| Process Connection | Threaded Pressure Connection |
| Sensor Filling | Synthetic Oil |
| Application | Industrial pressure measurement for hydraulic systems, marine automation, process control, oil & gas, chemical plants, and general process instrumentation |
| Made In | Germany |
| REF NO. | 353 |
