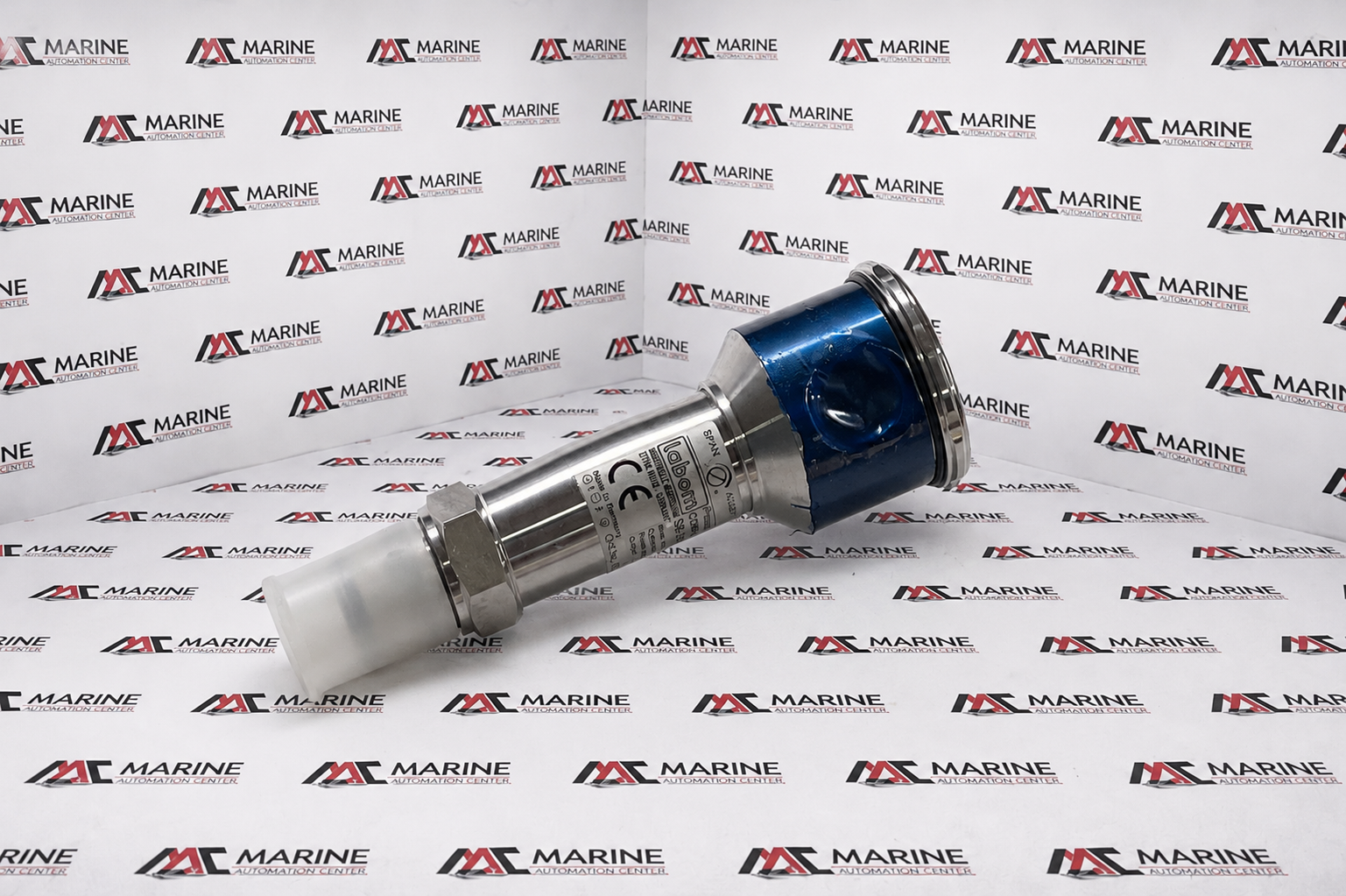

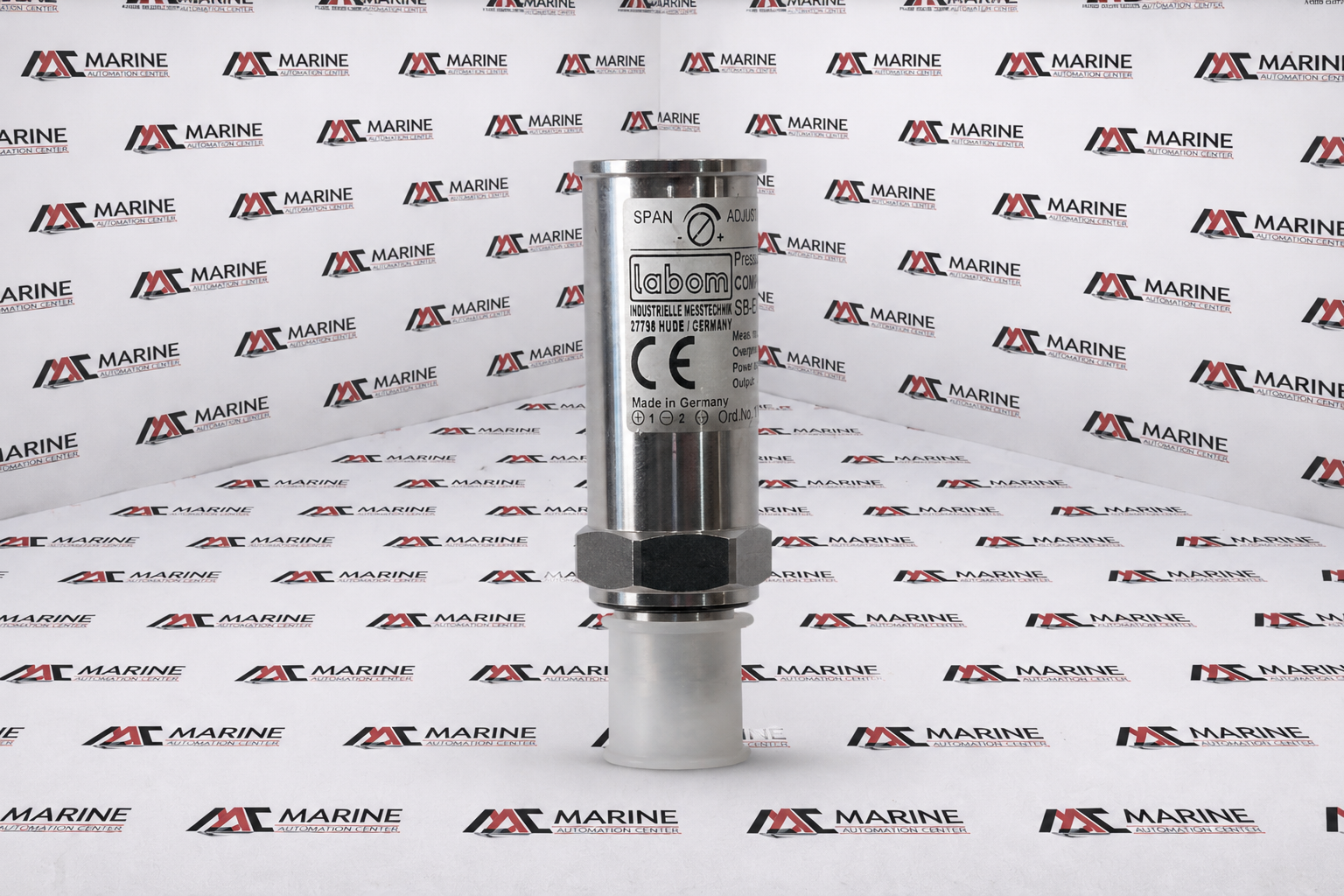

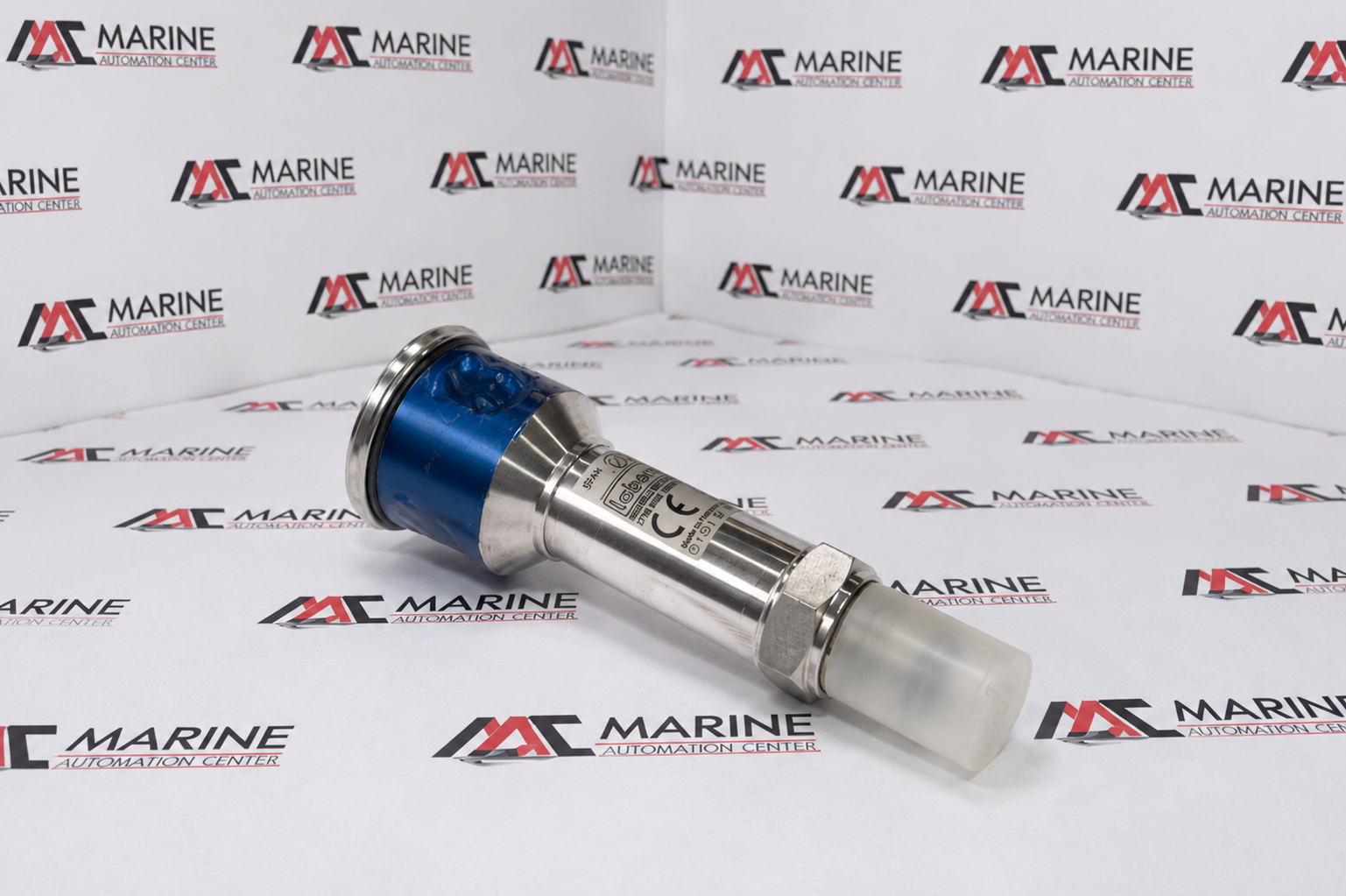

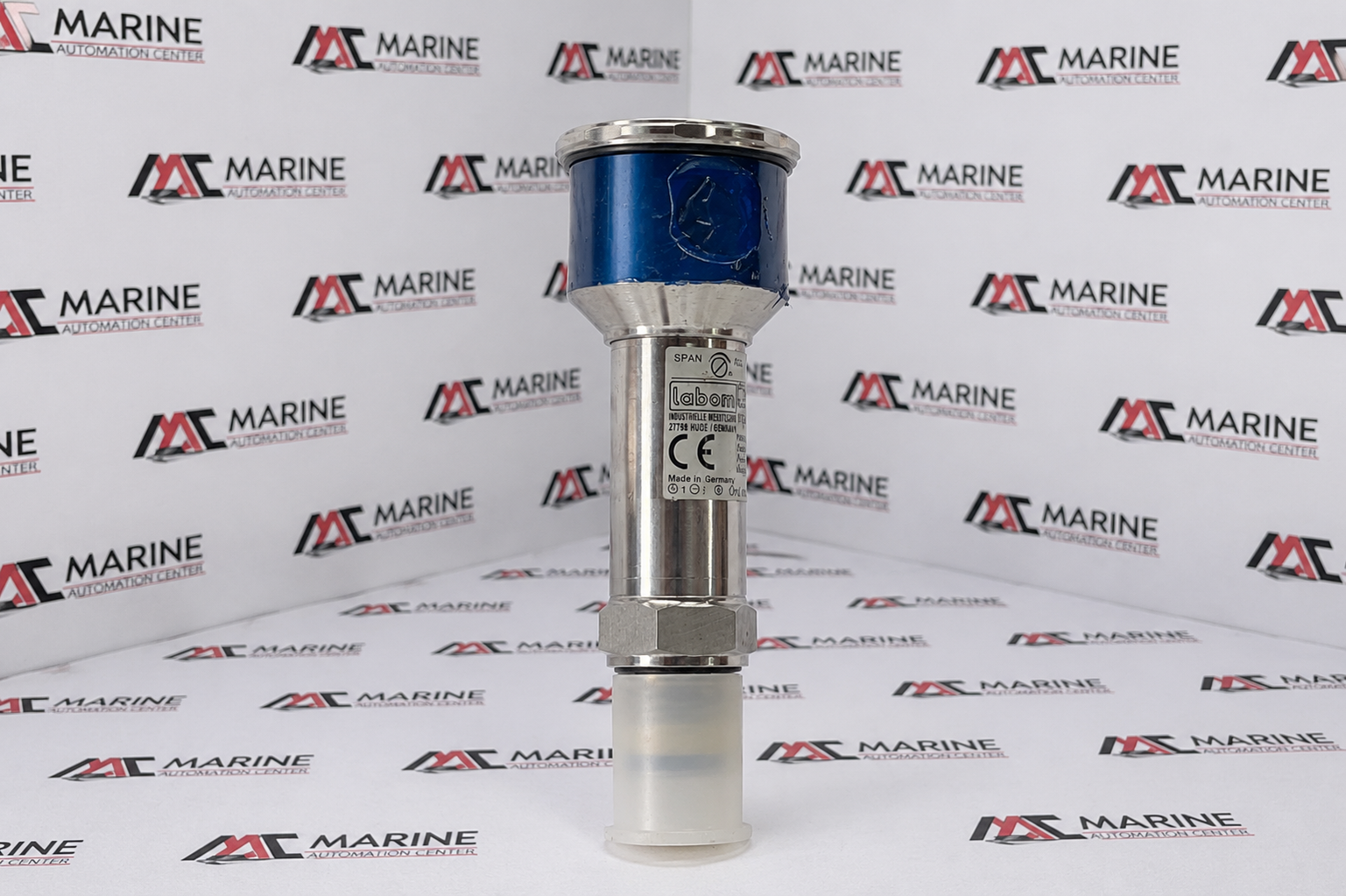

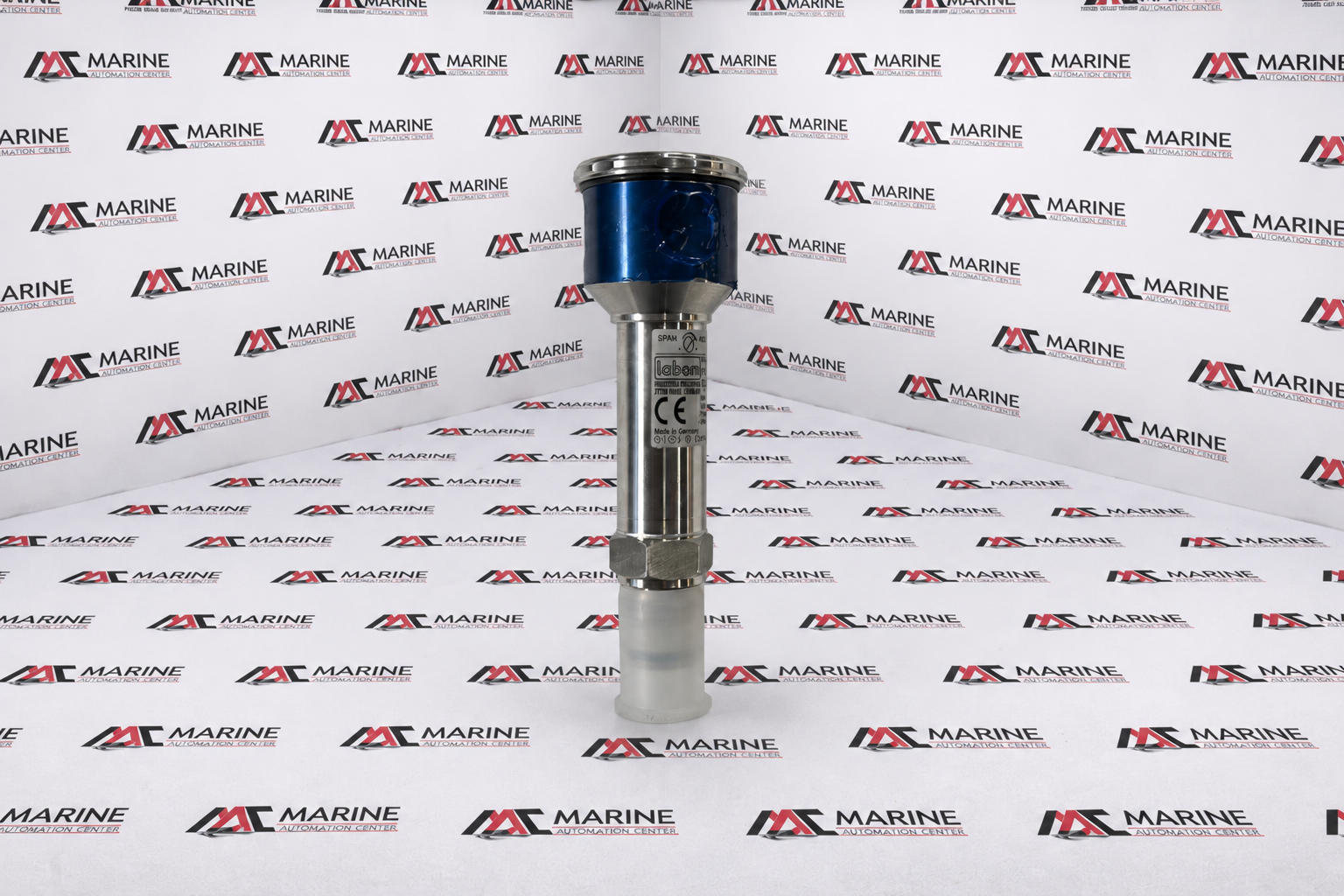

LABOM Pressure Transmitter COMPACT CE6110 SB-EM/ED/06/07
The LABOM 1113670/01/001 (COMPACT CE6110 SB-EM/ED/06/07) is a compact pressure transmitter designed for accurate and reliable pressure measurement in industrial process applications. It converts process pressure into a stable electrical output signal for monitoring and control systems. Its robust stainless-steel construction and compact design make it suitable for demanding environments, including chemical processing, marine, oil & gas, food & beverage, and general industrial automation applicat
BRAND
LABOM
TYPE
Pressure Transmitter
PART NO.
1113670/01/001
MODEL
COMPACT CE6110 SB-EM/ED/06/07
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | LABOM |
| TYPE | Pressure Transmitter |
| PART NO. | 1113670/01/001 |
| MODEL | COMPACT CE6110 SB-EM/ED/06/07 |
| Product Description | Electronic Pressure Transmitter with Flush Diaphragm |
| Pressure Range | 0...25 bar |
| Overpressure Limit | 60 bar |
| Output Signal | 4...20 mA (2-wire) |
| Voltage Rating | 6...30 VDC |
| Power Supply | 24 VDC Nominal (Operating Range 6...30 VDC) |
| Sensor Type | Piezoresistive Pressure Sensor |
| Measuring Principle | Electronic Pressure Measurement |
| Adjustments | Zero and Span Adjustable |
| Electrical Connection | 2-wire Current Loop |
| Wetted Parts | Stainless Steel, Fully Welded |
| Accuracy | ≤0.2% Full Scale (typical for CE6110 Series) |
| Application | Industrial pressure measurement for gases, liquids and vapours in process automation, marine systems, hydraulic and pneumatic applications |
| Made In | Germany |
| REF NO. | 352 |
