Kwant Controls R/I Converter
Kwant Controls R/I Converter 701365 is a resistance-to-current (R/I) signal converter designed to convert resistance-based input signals from sensors or potentiometers into a stable industrial current output for control and monitoring systems. Commonly used in marine and industrial automation, it ensures accurate signal conditioning, reliable transmission, and compatibility with control equipment
BRAND
Kwant Controls R/I Converter
TYPE
Resistance to Current Converter (R/I Converter)
PART NO.
701365
MODEL
Kwant R/I Converter 701365
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Kwant Controls R/I Converter |
| TYPE | Resistance to Current Converter (R/I Converter) |
| PART NO. | 701365 |
| MODEL | Kwant R/I Converter 701365 |

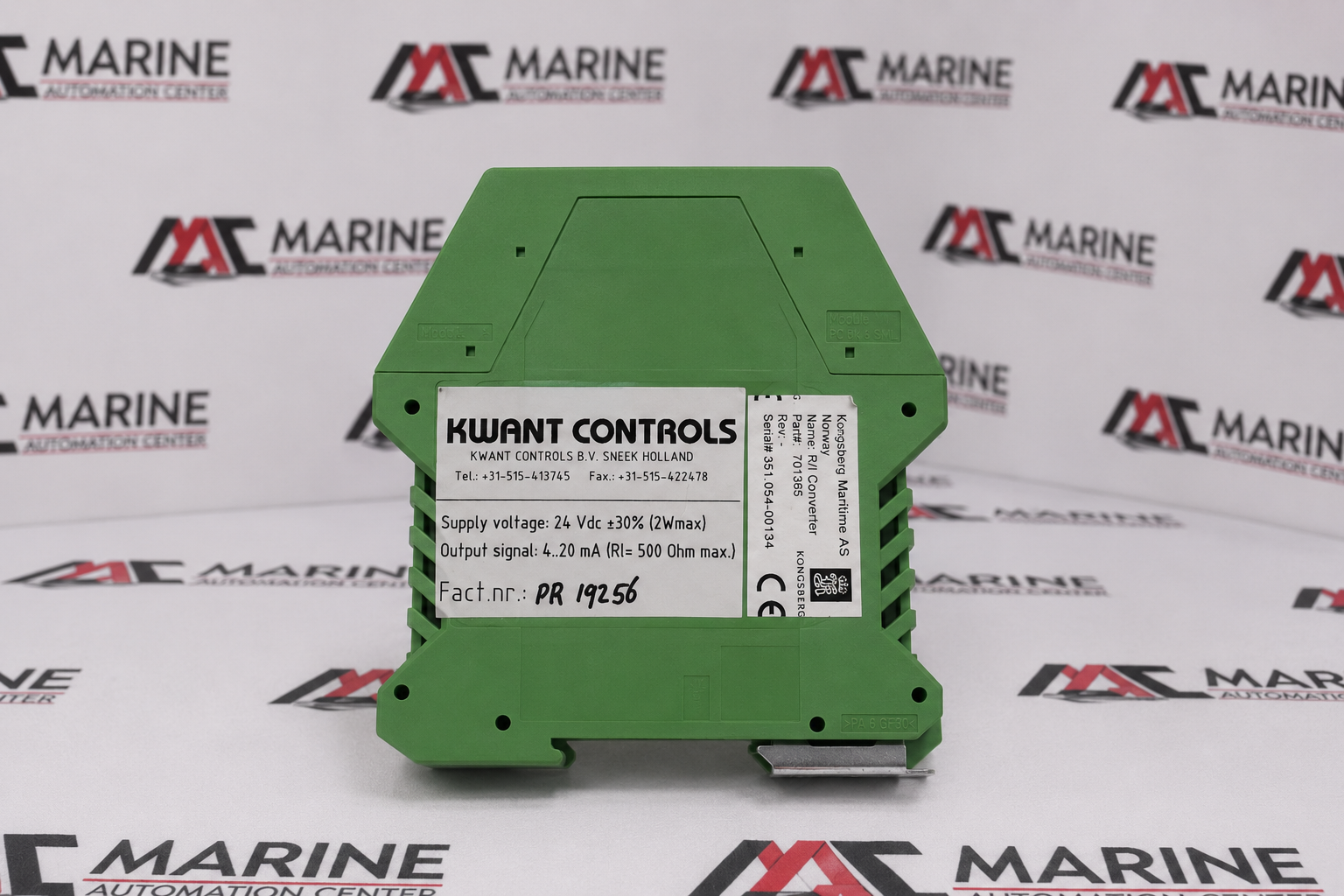

| Voltage Rating | 24 V DC ±30% |
| Application | Ship propulsion levers, rudder angle indicators, telegraph systems, and marine position feedback loops |
| IEC Standards | Built to international maritime machinery and Type Approval regulations; CE marked |
| Serial no. | 351.054-00134 |
| Analog Output Signal Loop | Generates a standard 4...20 mA DC current output signal representing the mechanical position or resistance value of the input tracking device |
| Maximum Output Loop Resistance | Supports an external circuit loop burden resistance rating of \(R_L = 500\ \Omega\text{ maximum}\) |

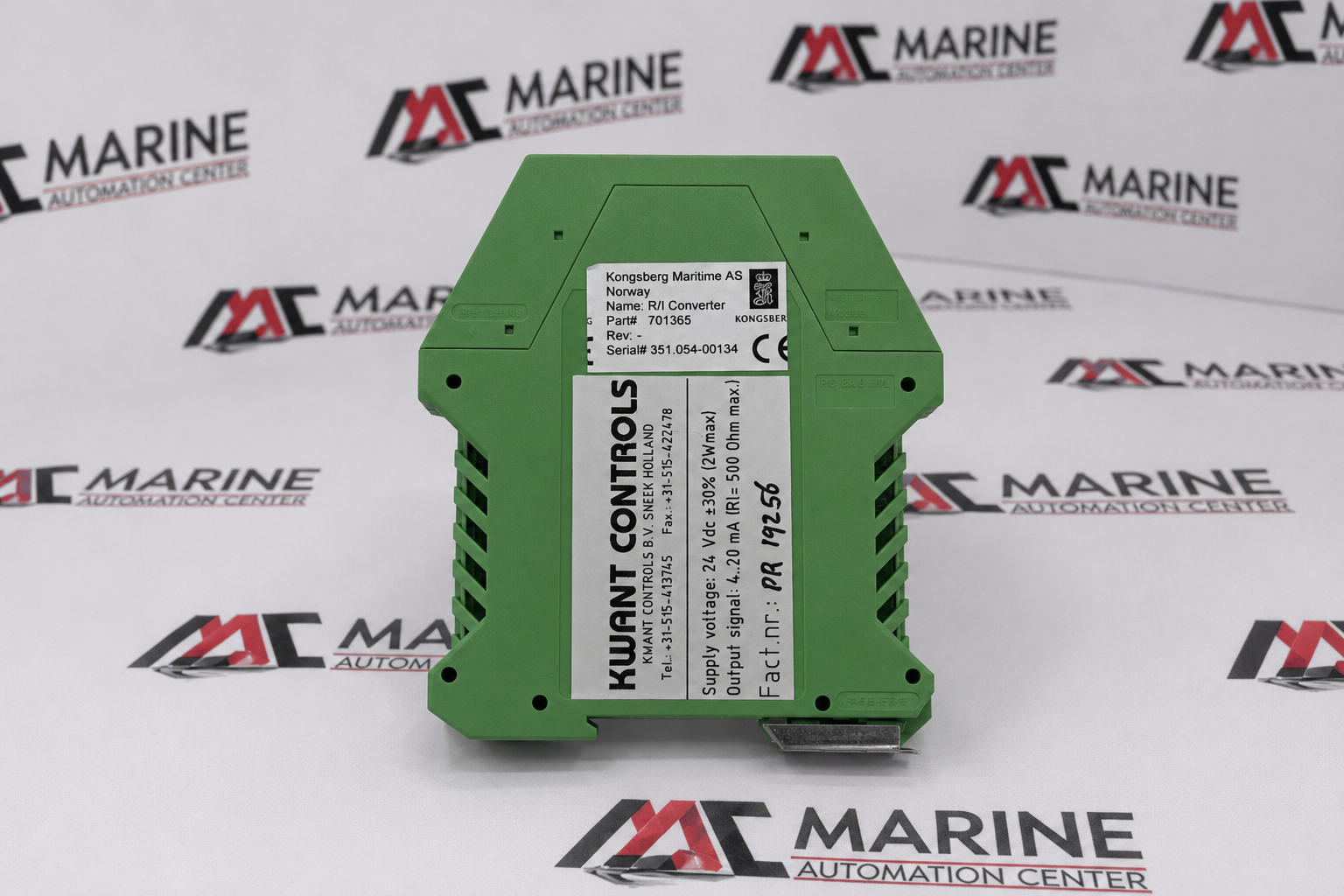

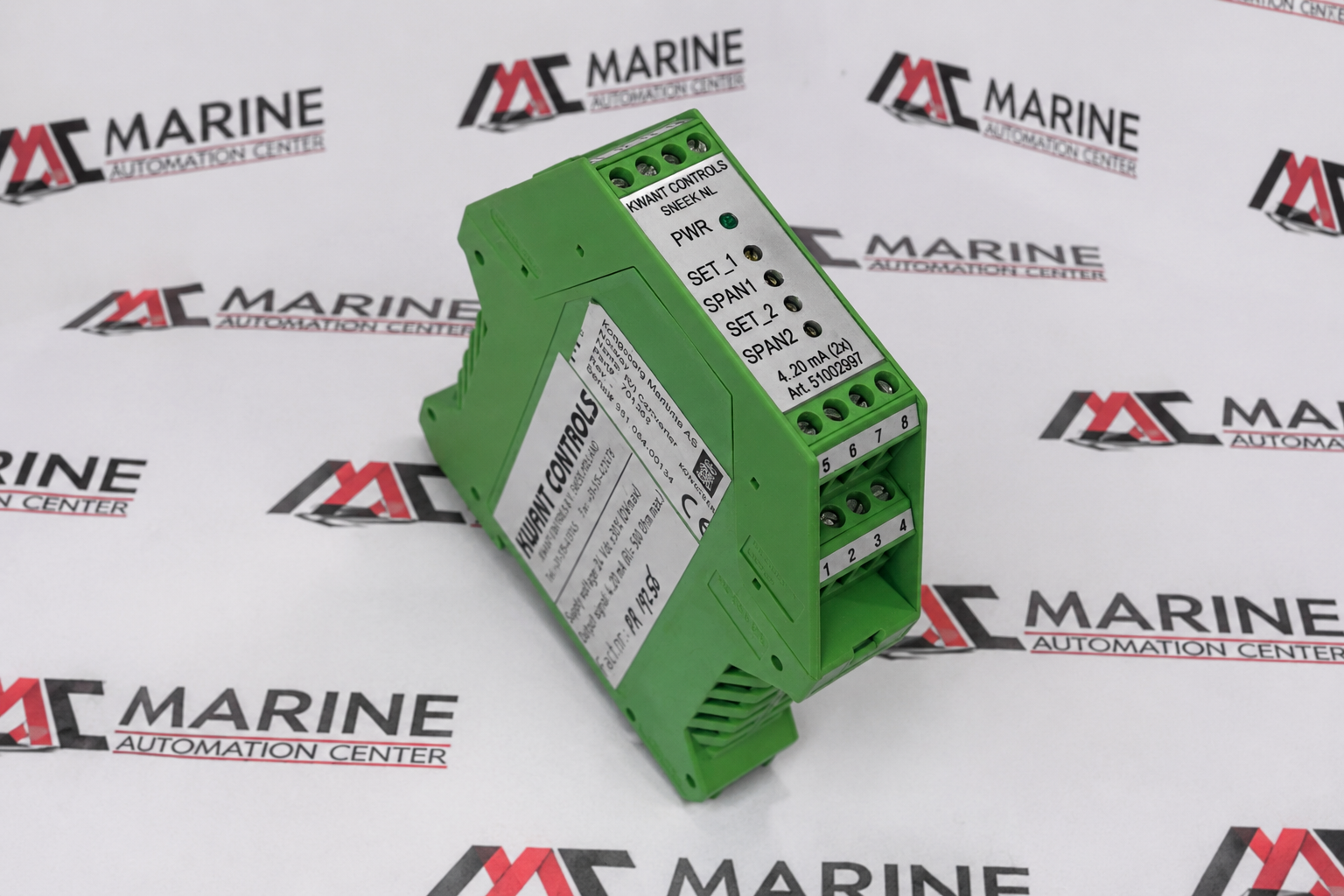

| Chassis & Mounting Layout | Enclosed in a compact green industrial plastic housing designed to mount directly onto standard 35mm symmetrical DIN rails inside marine engine control desks or bridge consoles |
| Power Consumption | ≤ 2 Watts Maximum capacity |

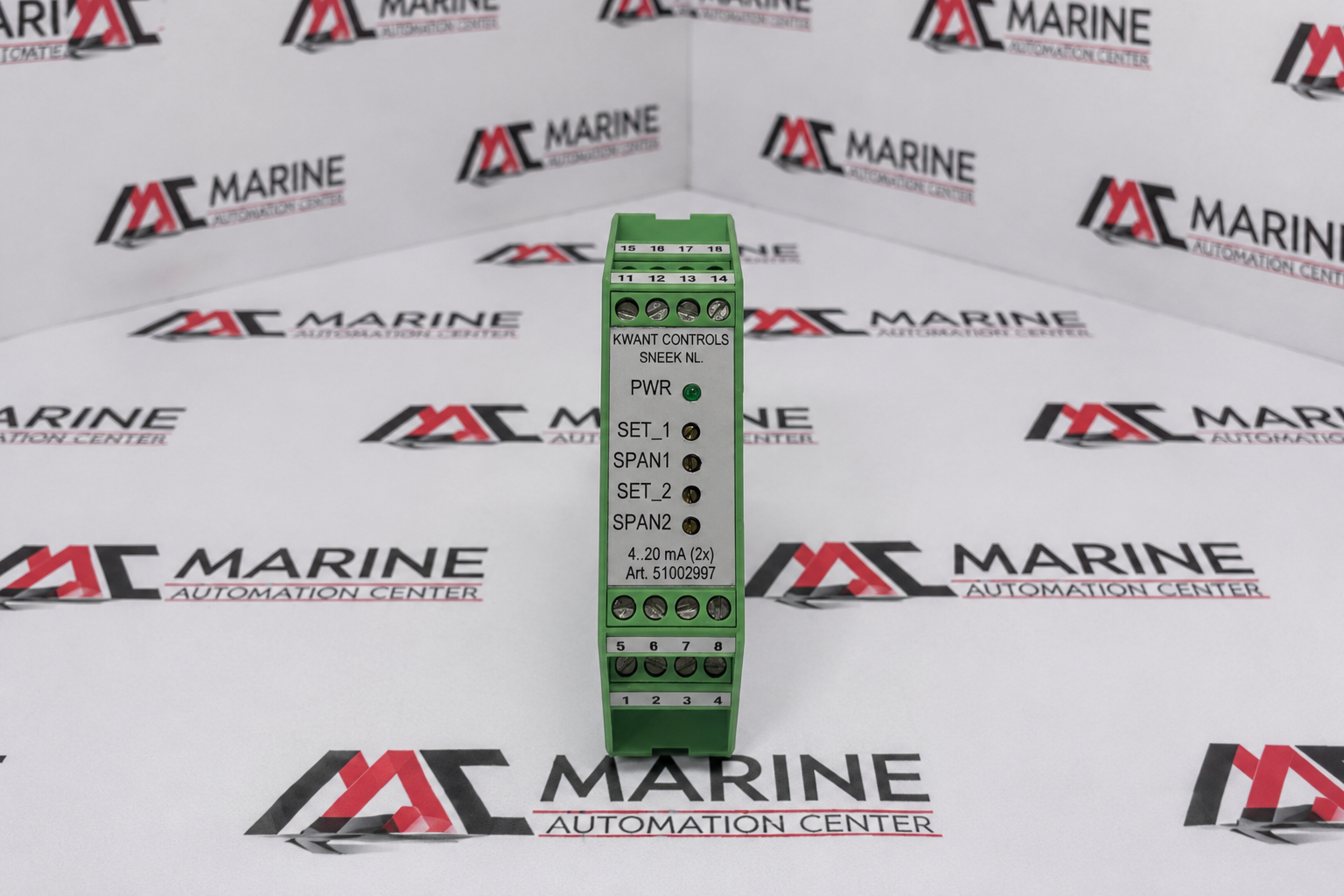

| Circuit Layout Design | Dual-channel isolation (Processes up to 2 independent wiper loops) |
| Potentiometer Input Threshold | 500 Ω Minimum up to 10,000 Ω Maximum range |
| Reference Excitation Output | Regulated +10 V DC tracking line |
| Analog Output Span | 4...20 mA DC current sourcing loops |
| Thermal Signal Stability | Low temperature coefficient tracking at < 50 ppm/°C |
| Made In | Netherlands |
| REF NO | 459 |
