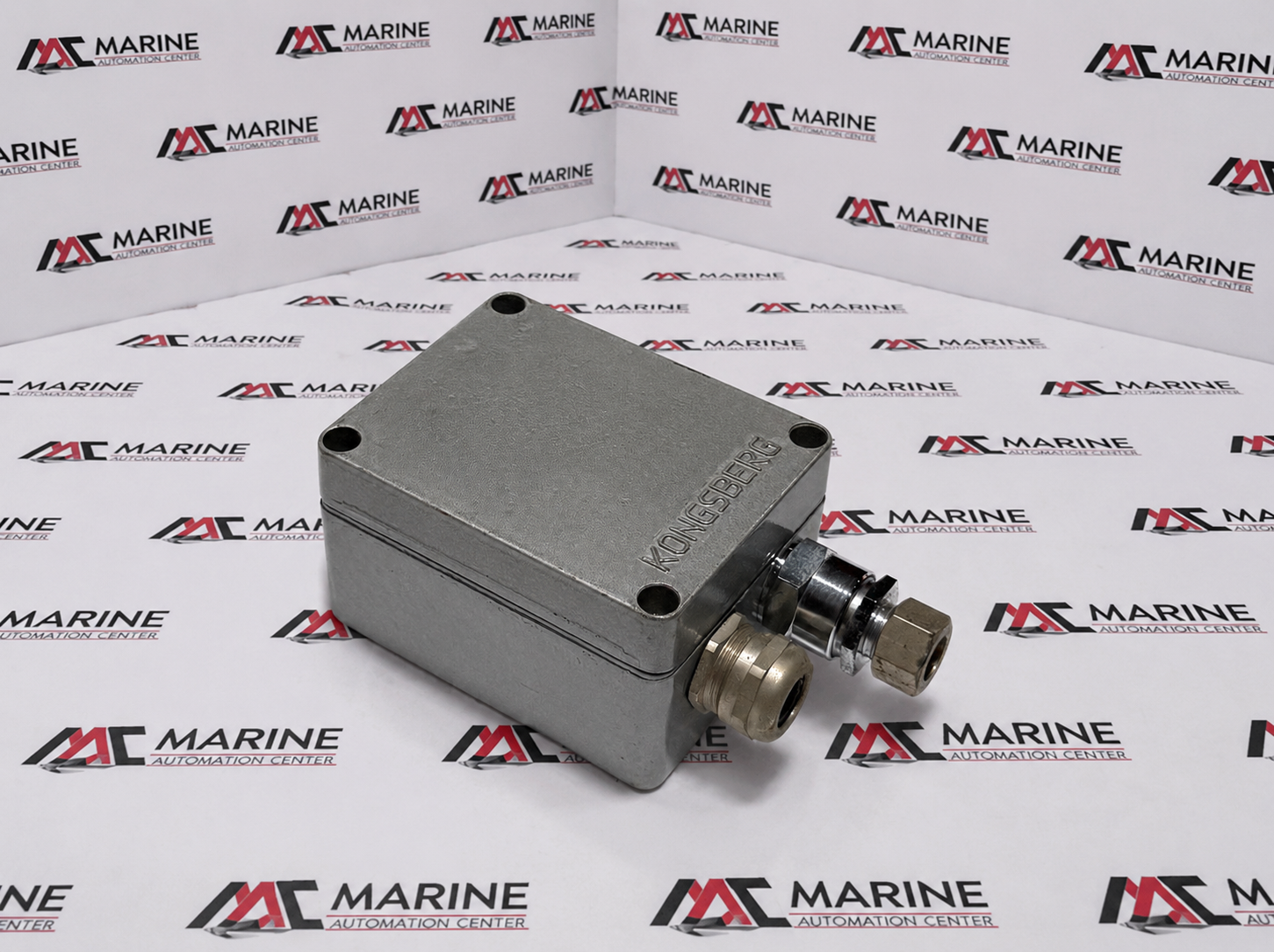

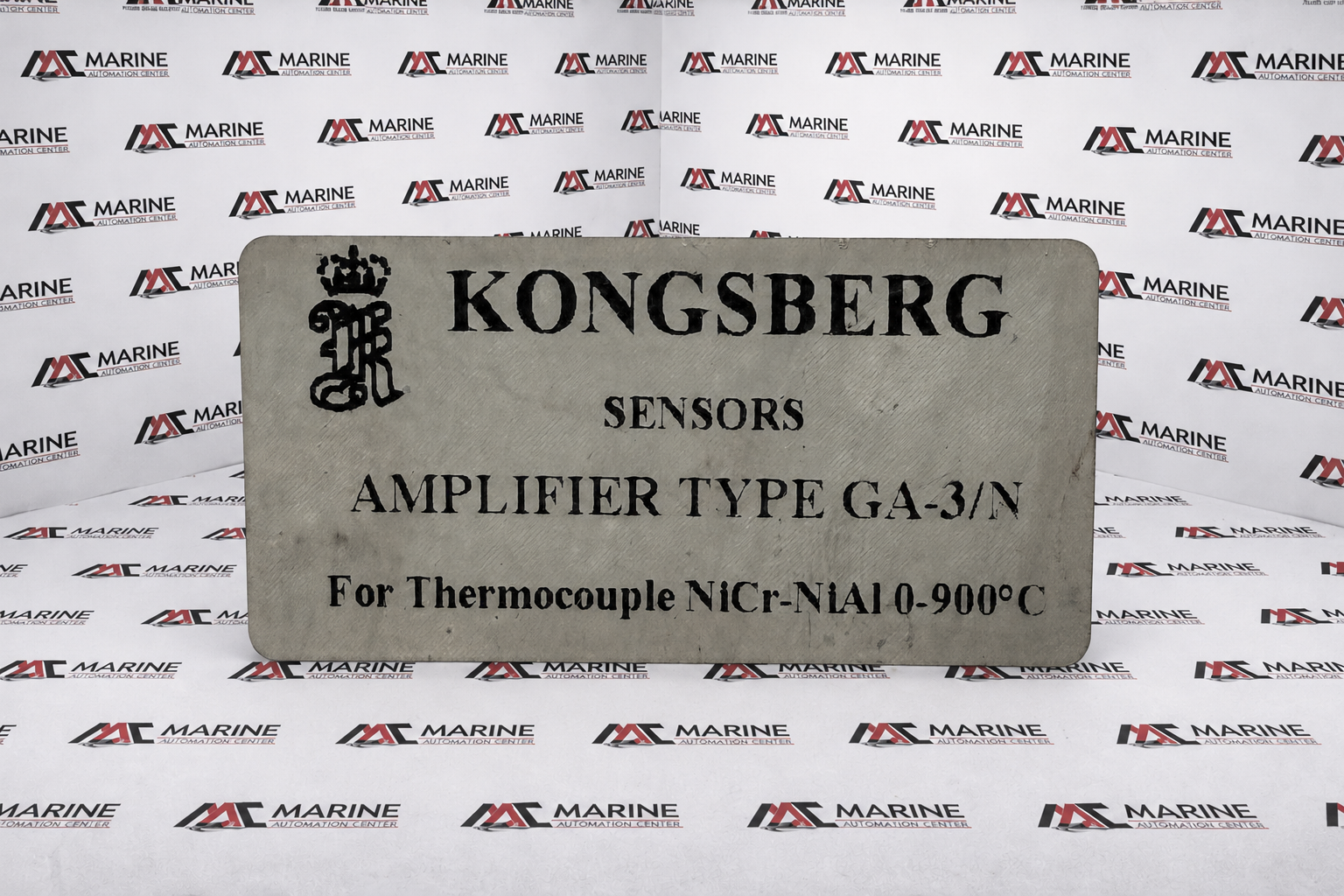

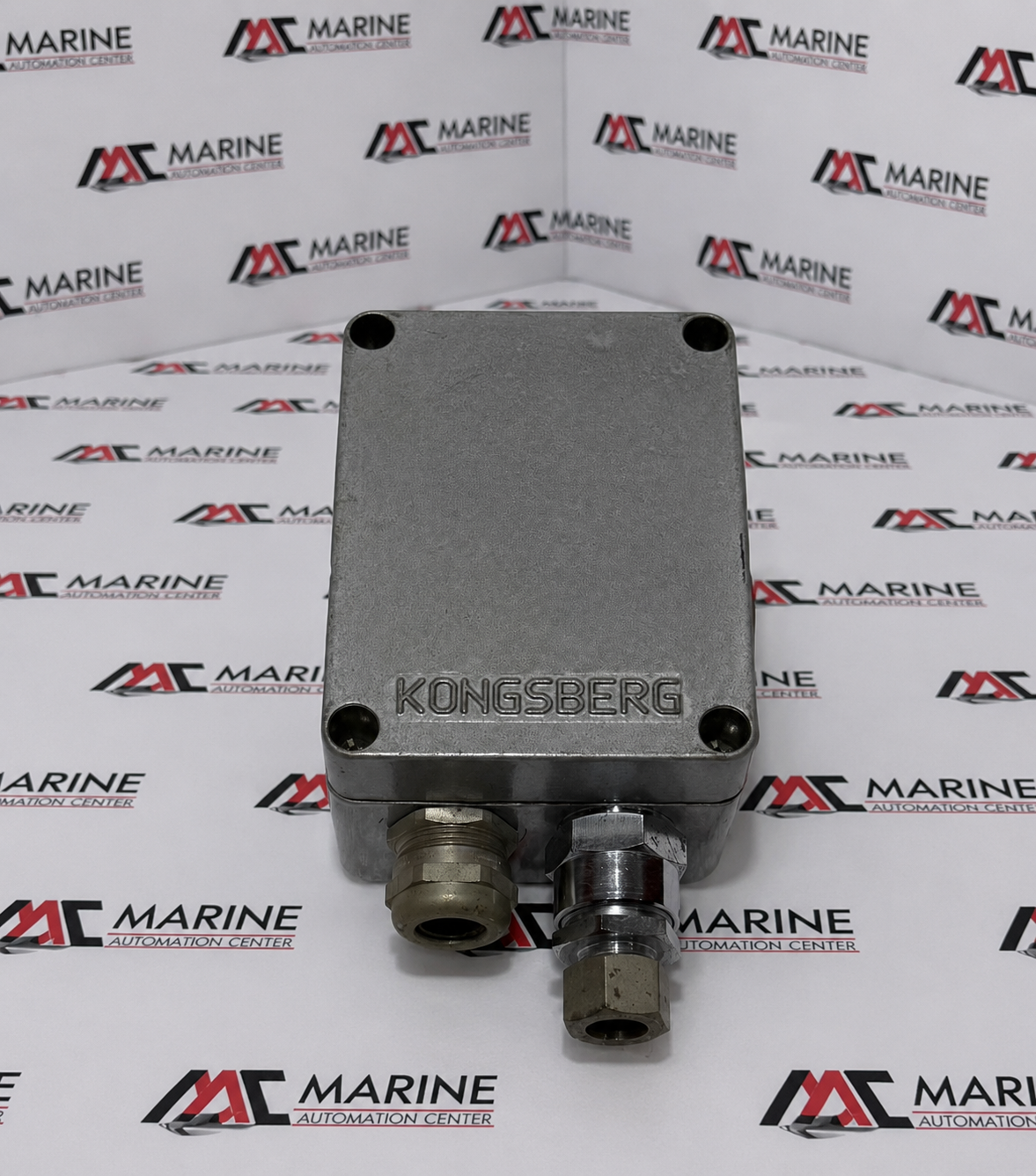

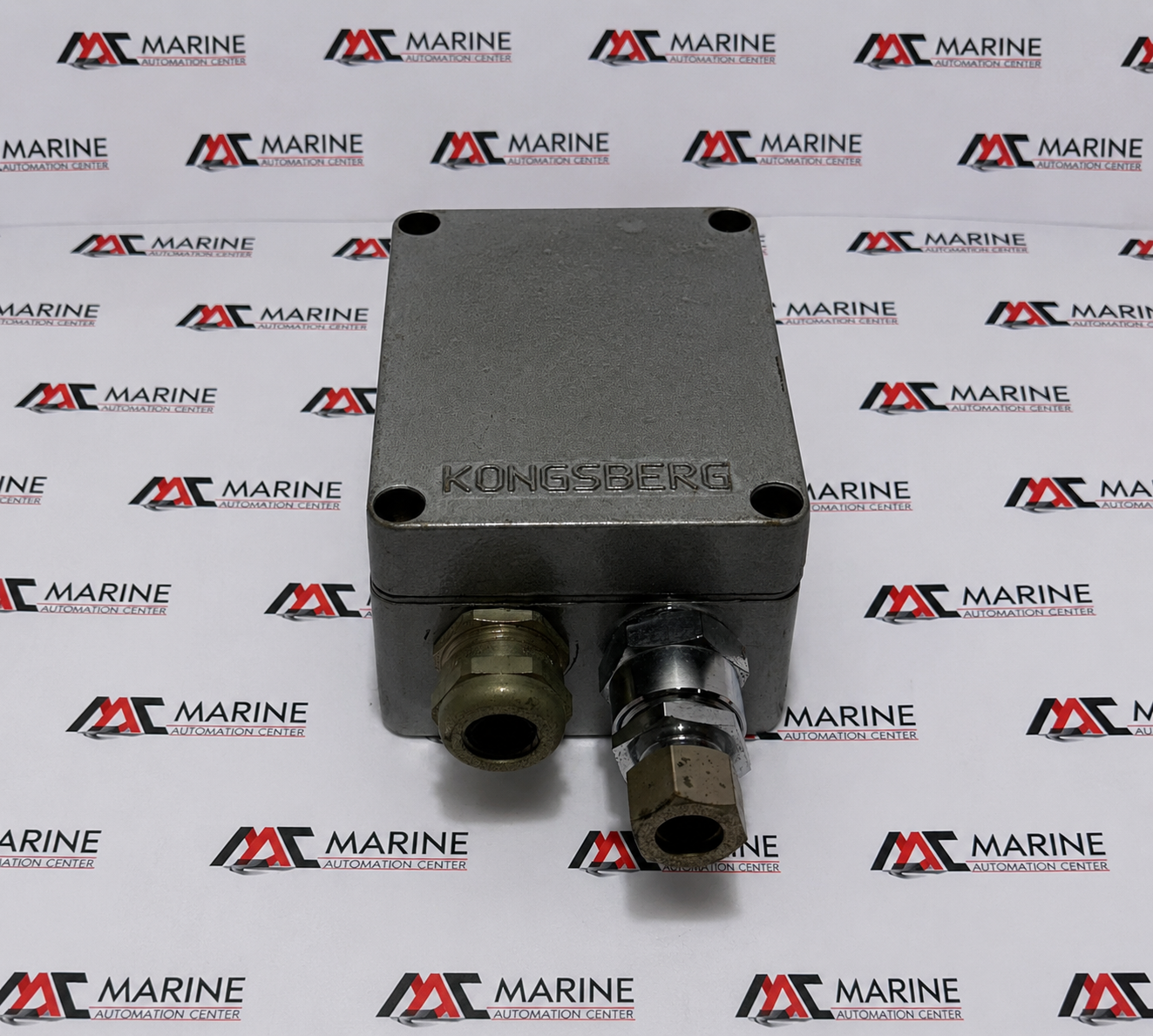

Kongsberg Thermocouple Amplifier GA-3/N
The Kongsberg GA-3/N Thermocouple Amplifier is an industrial signal conditioning module designed to amplify and convert low-level thermocouple signals into stable outputs for temperature monitoring and control systems. It provides accurate temperature signal processing for marine, offshore, and industrial automation applications, ensuring reliable measurement and integration with control and monitoring equipment.
BRAND
Kongsberg
TYPE
Thermocouple Amplifier
PART NO.
Kongsberg Thermocouple Amplifier GA-3/N
MODEL
GA-3/N
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Kongsberg |
| TYPE | Thermocouple Amplifier |
| PART NO. | Kongsberg Thermocouple Amplifier GA-3/N |
| MODEL | GA-3/N |
| Series | GA Series |
| Input Sensor Type | Type K Thermocouple (NiCr–NiAl) |
| Measuring Range | 0 to 900°C |
| Temperature Range | 0–900°C |
| Output Signal | 1–5 mA DC (Current Output) |
| Supply Voltage | 15 V DC |

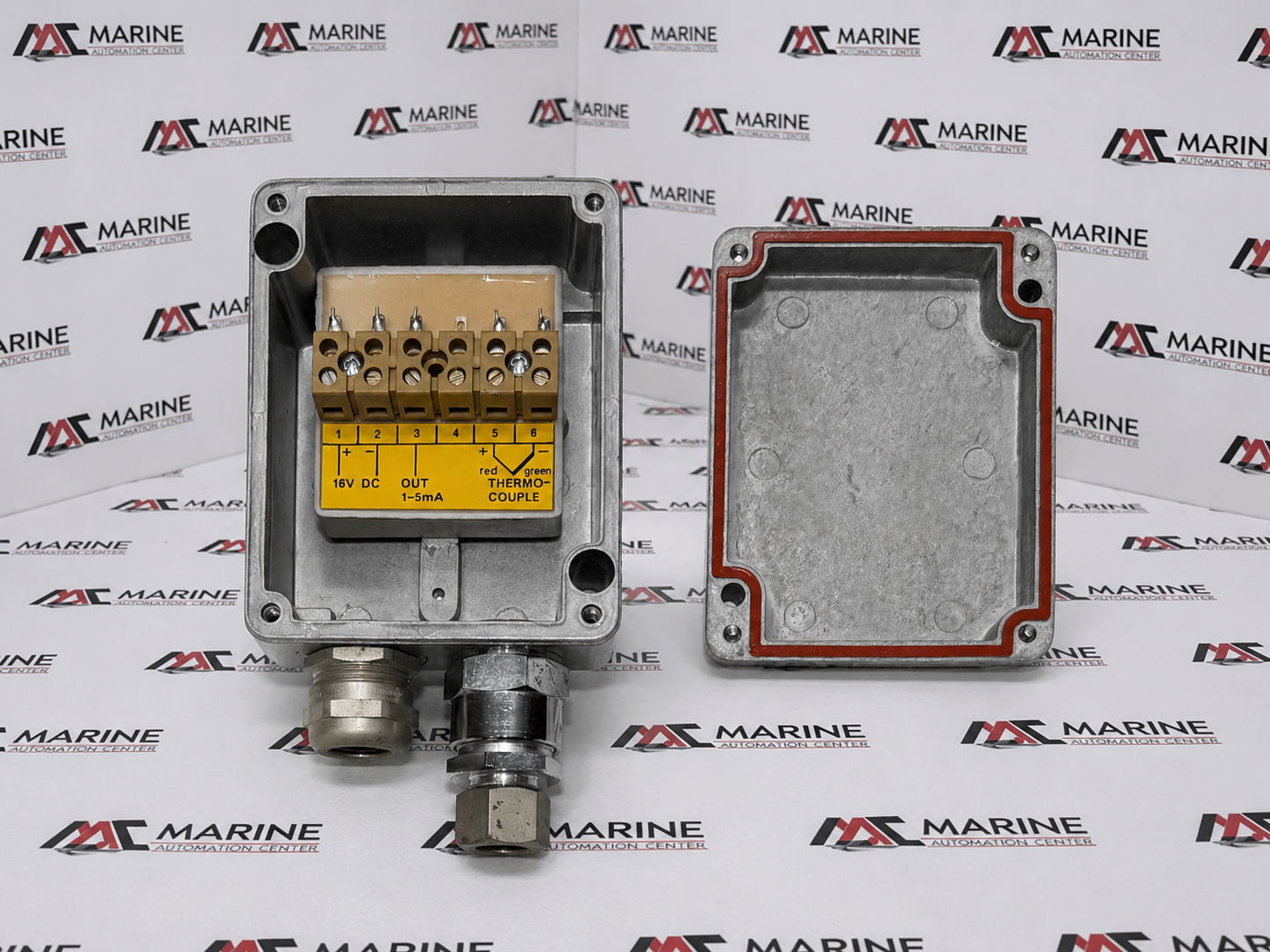

| Connection Type | Screw Terminal Connections |
| Mounting | Wall / Panel Mount |
| Application | Thermocouple signal amplification and conversion for marine engine temperature monitoring, exhaust gas temperature (EGT), boiler systems, industrial process control, and automation systems. |
| Amplifier Type (Label) | GA-3/N |
| Made In | Norway |
| REF NO | 1401 |
