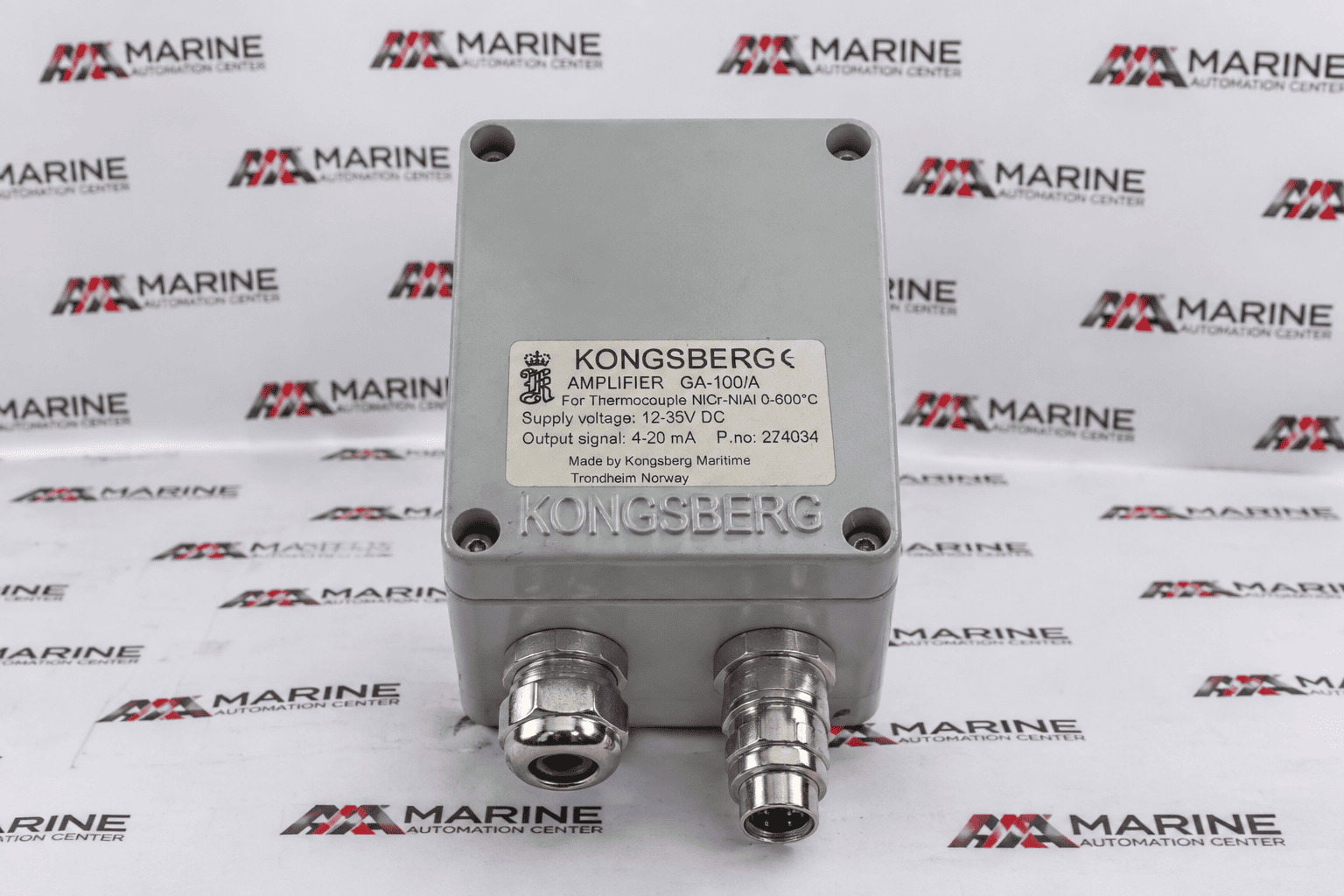

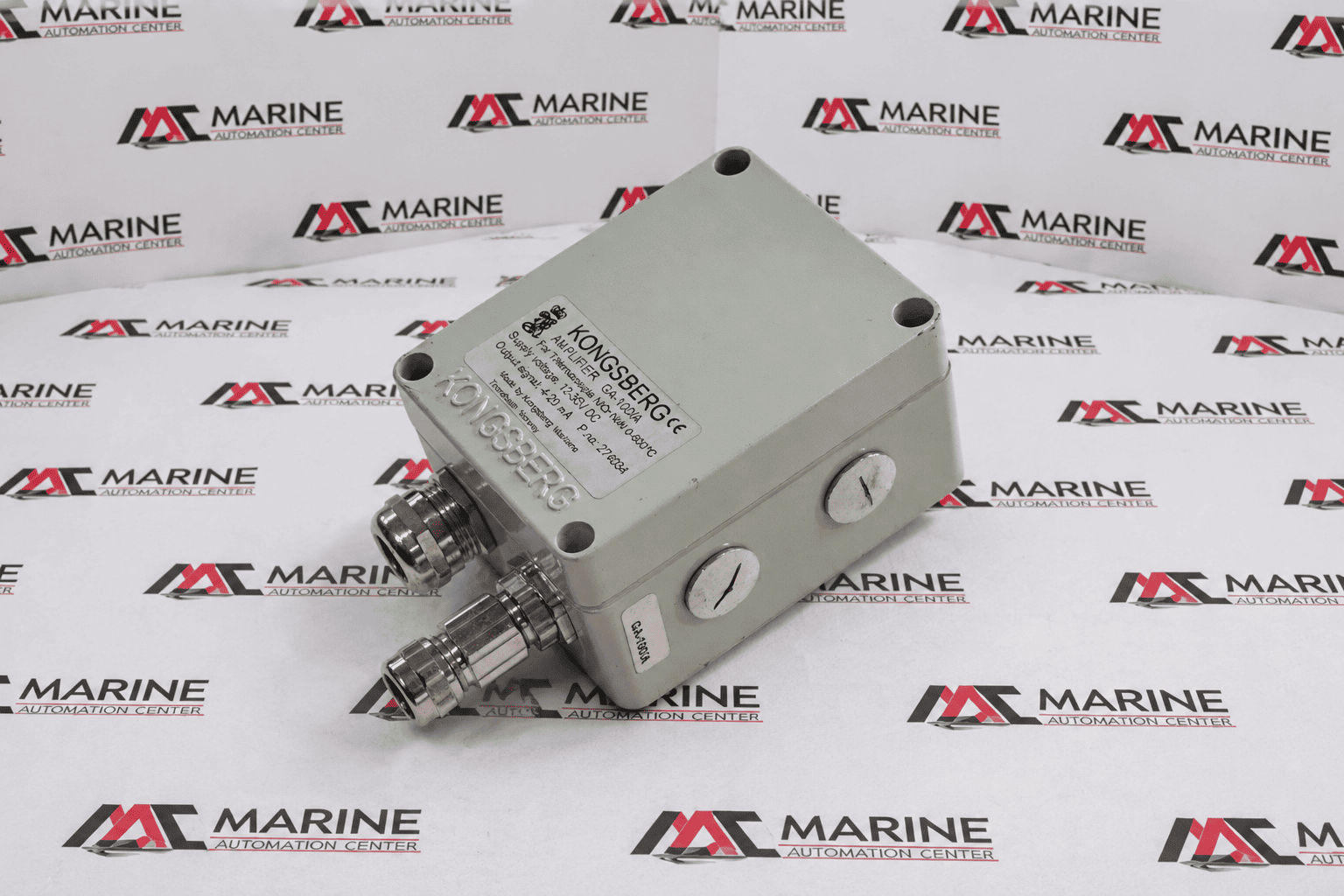

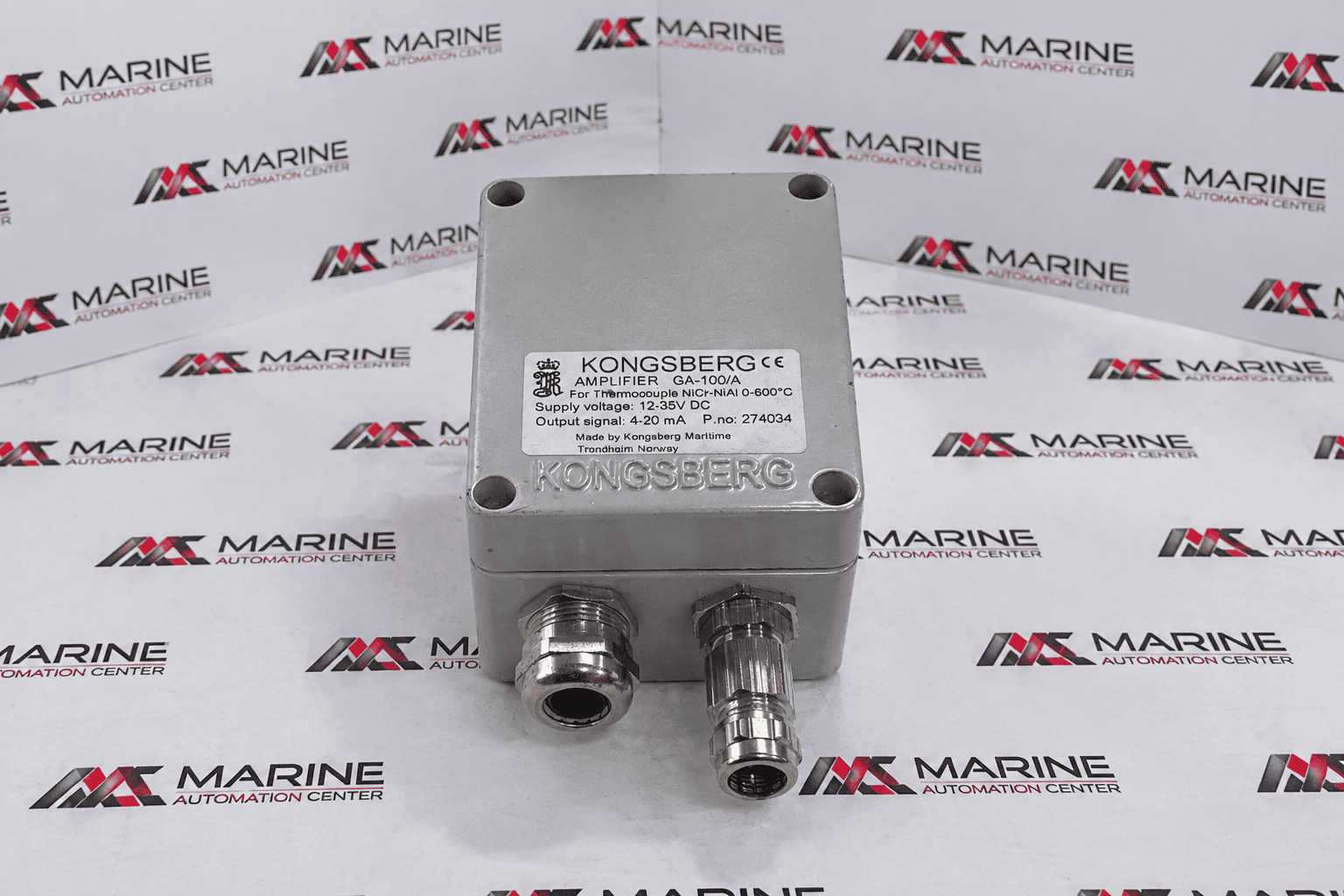

Kongsberg GA-100/A Thermocouple Amplifier Connection Box
Kongsberg GA-100/A Thermocouple Amplifier Connection Box, P/N 274034, designed for marine exhaust gas temperature monitoring. It amplifies Type K thermocouple signals and provides a reliable 4–20 mA analog output, with 12–35 VDC supply and robust marine-duty construction.
BRAND
Kongsberg
TYPE
Thermocouple Amplifier / Signal Transmitter
PART NO.
274034
MODEL
GA-100/A
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Kongsberg |
| TYPE | Thermocouple Amplifier / Signal Transmitter |
| PART NO. | 274034 |
| MODEL | GA-100/A |
| Voltage Rating | Supply Voltage: 12 - 35 VDC |
| Application | Exhaust gas temperature monitoring for main marine engines, cylinder exhaust loops, turbochargers, and auxiliary generators |
| IEC | Built with IP56-equivalent robust cast metal enclosure protection against heavy high-seas saltwater spray |
| Direct Signal Conversion | It captures the ultra-low millivolt readings from a standard NiCr-NiAl (Type K) thermocouple and cleanly converts it into an industrial standard linear analog 4–20 mA output signal |
| Integrated Terminal Junction | Serves a dual purpose as both a signal boosting amplifier and a localized field junction connection box |
| Accurate Process Window Range | 0°C up to 600°C |
| Flexible Operating Voltage | 12V DC up to 35V DC |
| Sealed Marine Shielding | IP56 environmental protection |
| Lightweight Profile | 650 grams |
| Made In | Norway |
| REF NO | 76 |
