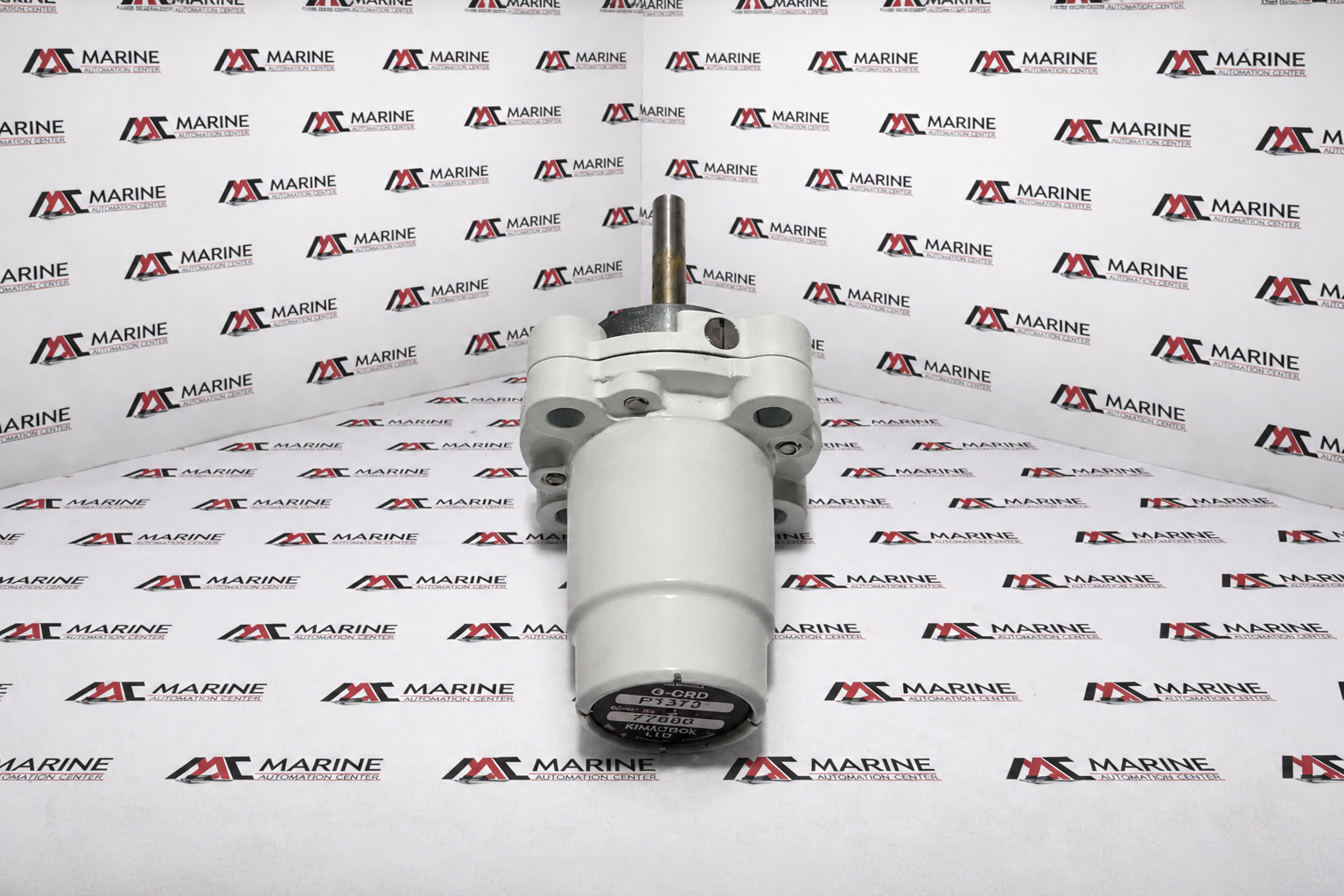

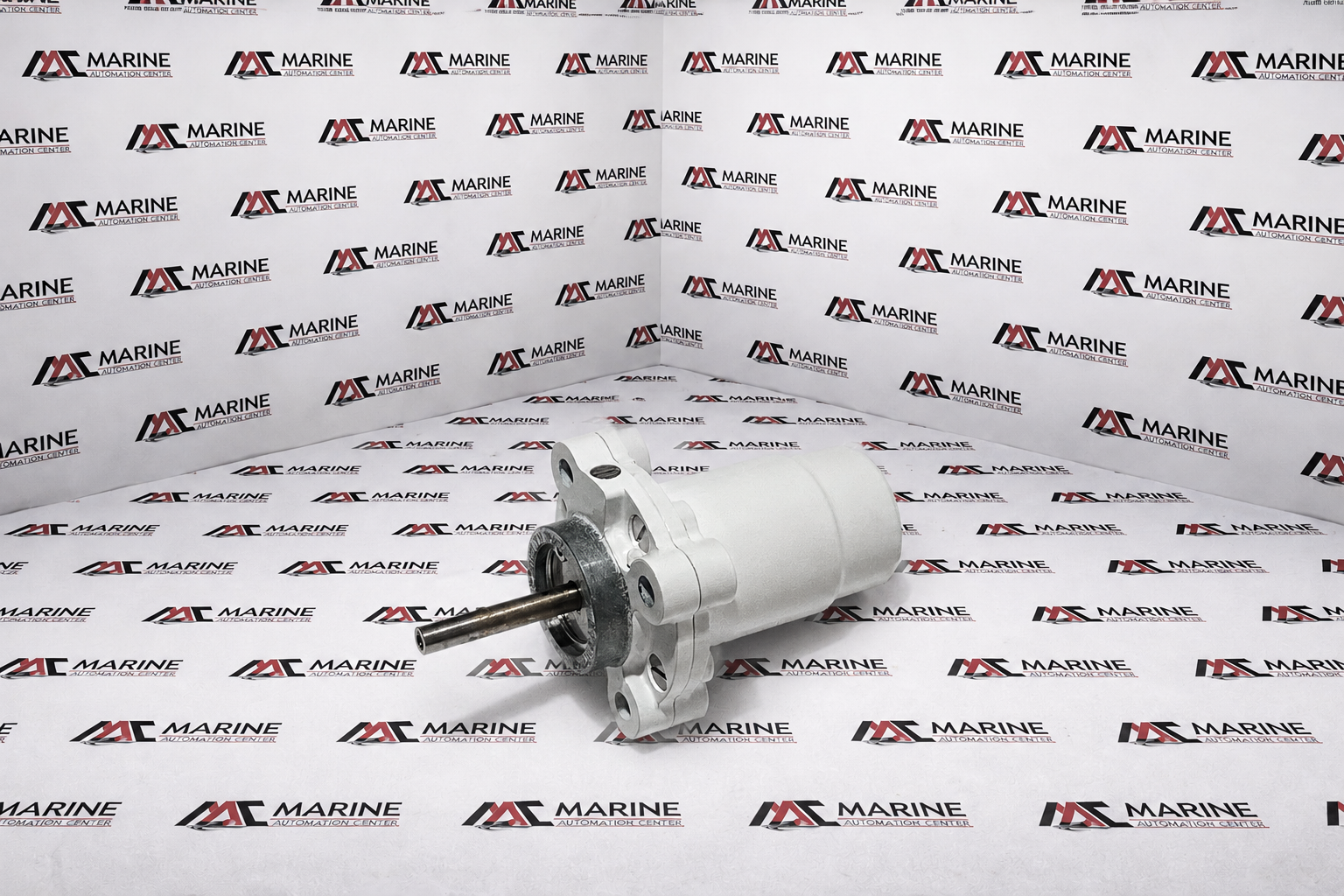

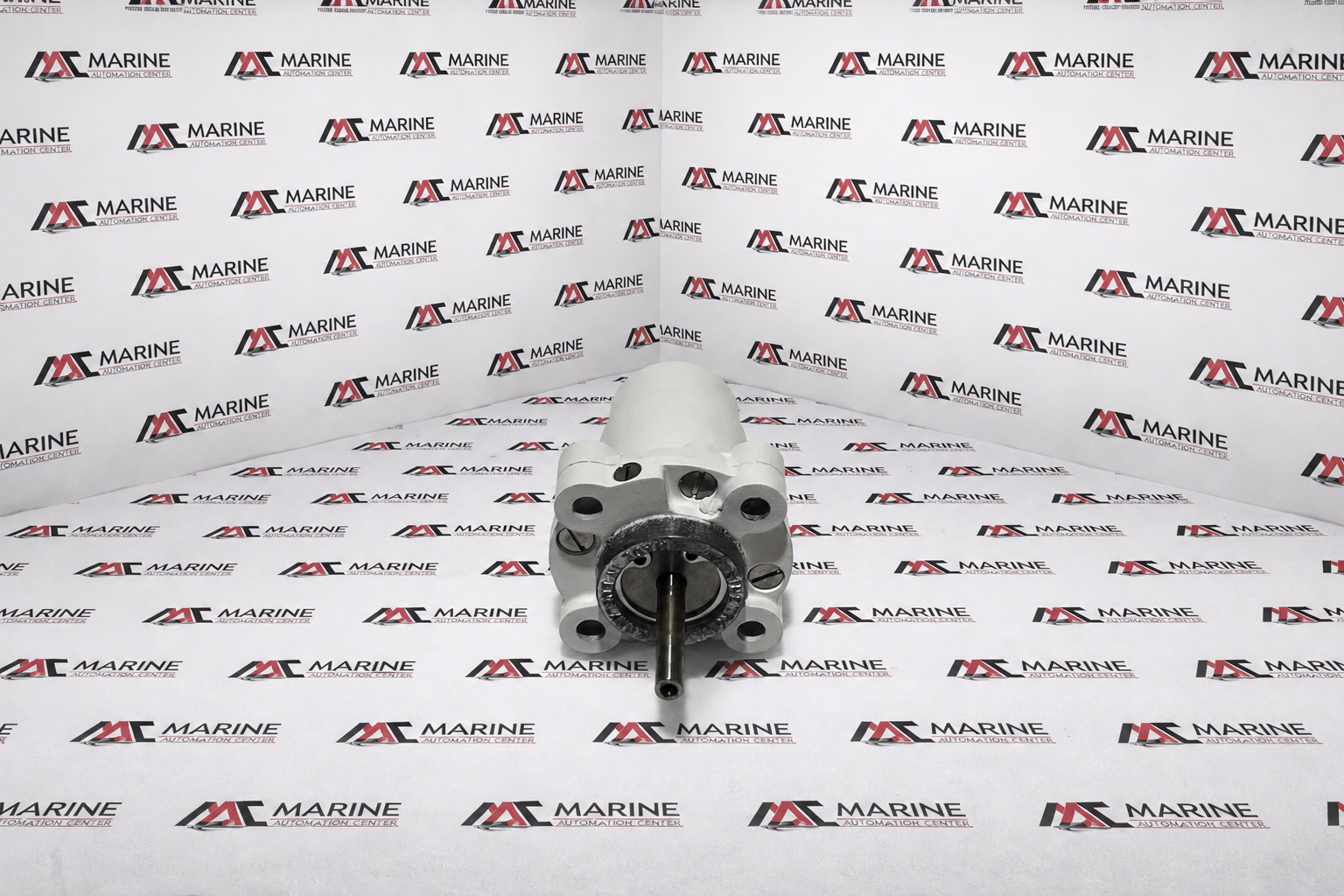

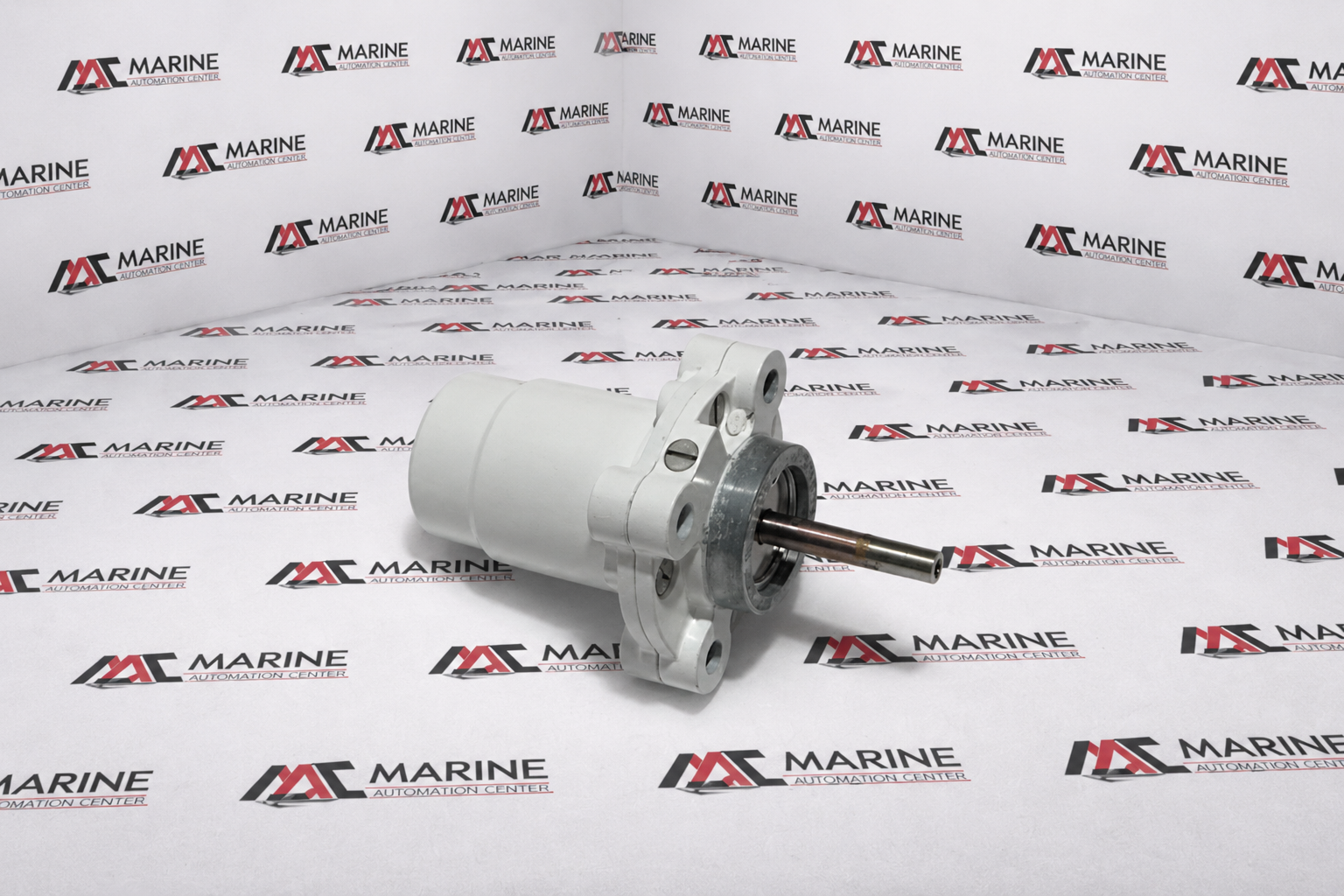

Kinetrol P1373 Q-CRD Continuous Rotation Rotary Hydraulic Dashpot
The Kinetrol P1373 Q-CRD is a continuous rotation rotary hydraulic dashpot designed to provide smooth, fixed-rate rotational damping for industrial motion control applications. It delivers reliable shock absorption and controlled deceleration with unlimited bidirectional rotation, making it ideal for machinery, automation, and process control systems where consistent damping performance is required.
BRAND
Kinetrol
TYPE
Rotary Hydraulic Damper
PART NO.
P1373
MODEL
Q-CRD
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Kinetrol |
| TYPE | Rotary Hydraulic Damper |
| PART NO. | P1373 |
| MODEL | Q-CRD |
| Series | Q-CRD Continuous Rotation Dashpot Series |
| Operating Principle | Hydraulic Rotary Dashpot for Continuous Rotation Motion Control |
| Rotation | Continuous (Unlimited Rotation in Both Directions) |
| Maximum Safe Torque | 1.5 Nm (13 lbf·in) |
| Damping Type | Fixed Damping Rate |
| Shaft Type | Precision Steel Output Shaft |
| Mounting Style | 4-Bolt Flange Mount |
| Body Material | Zinc Alloy (Mazak) Housing |
| Shaft Material | Mild Steel |
| Ambient Temperature | 0°C to +60°C |
| Maximum Shaft End Load | 89 N (20 lbf) |
| Maximum Shaft Side Load | 23 N (5.2 lbf) |
| Frictional Torque | Approximately 0.003 Nm (0.025 lbf·in) |
| Application | Rotary motion damping, valve mechanisms, marine automation systems, industrial automation equipment, control linkages, actuator damping, instrumentation, precision motion control. |
| IEC | Industrial Motion Control Component |

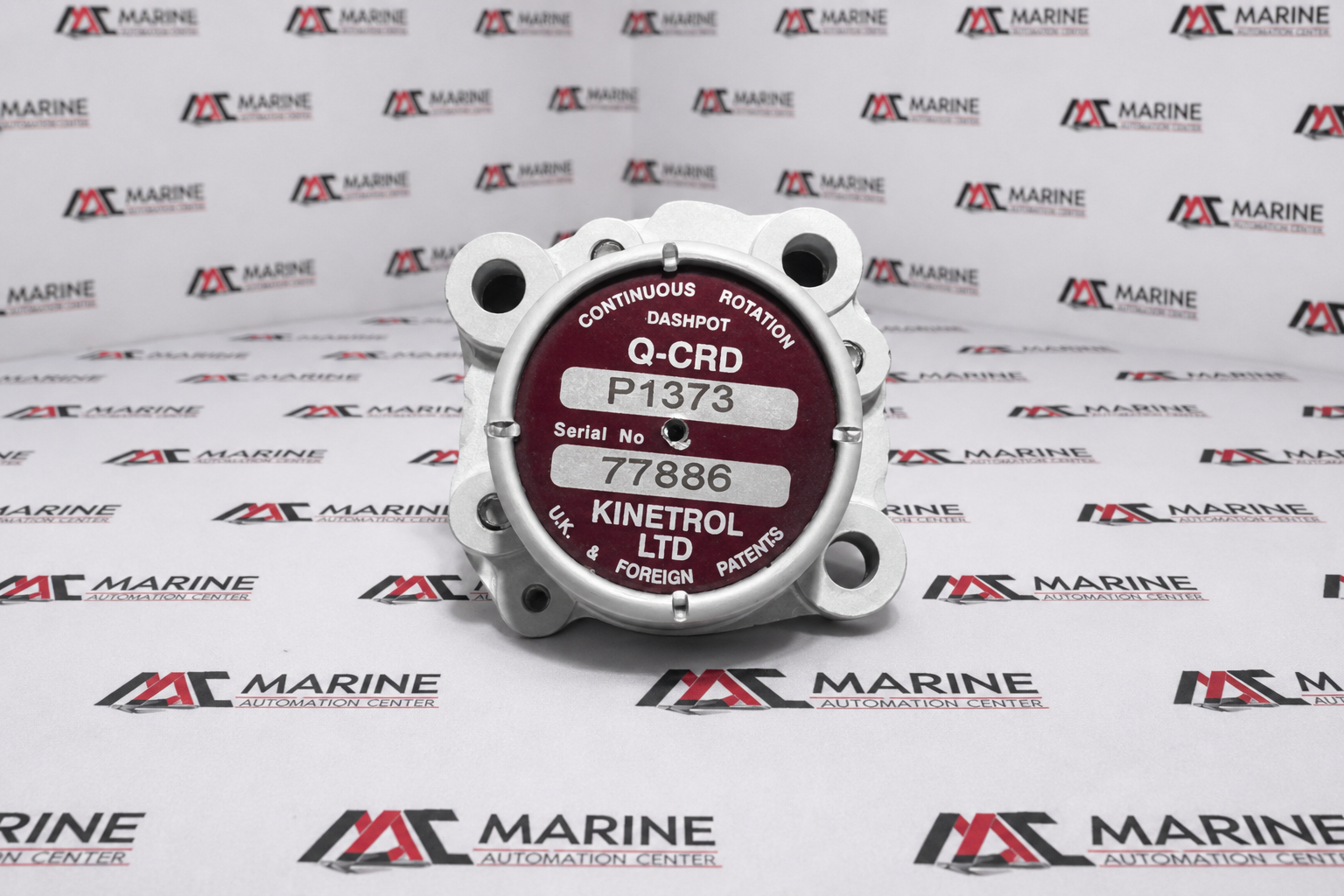

| Product Label Information | Continuous Rotation Dashpot, Model: Q-CRD, Part No.: P1373, Serial No.: 77886, Kinetrol Ltd., U.K. & Foreign Patents |
| Made In | United Kingdom |
| REF NO. | 1288 |
