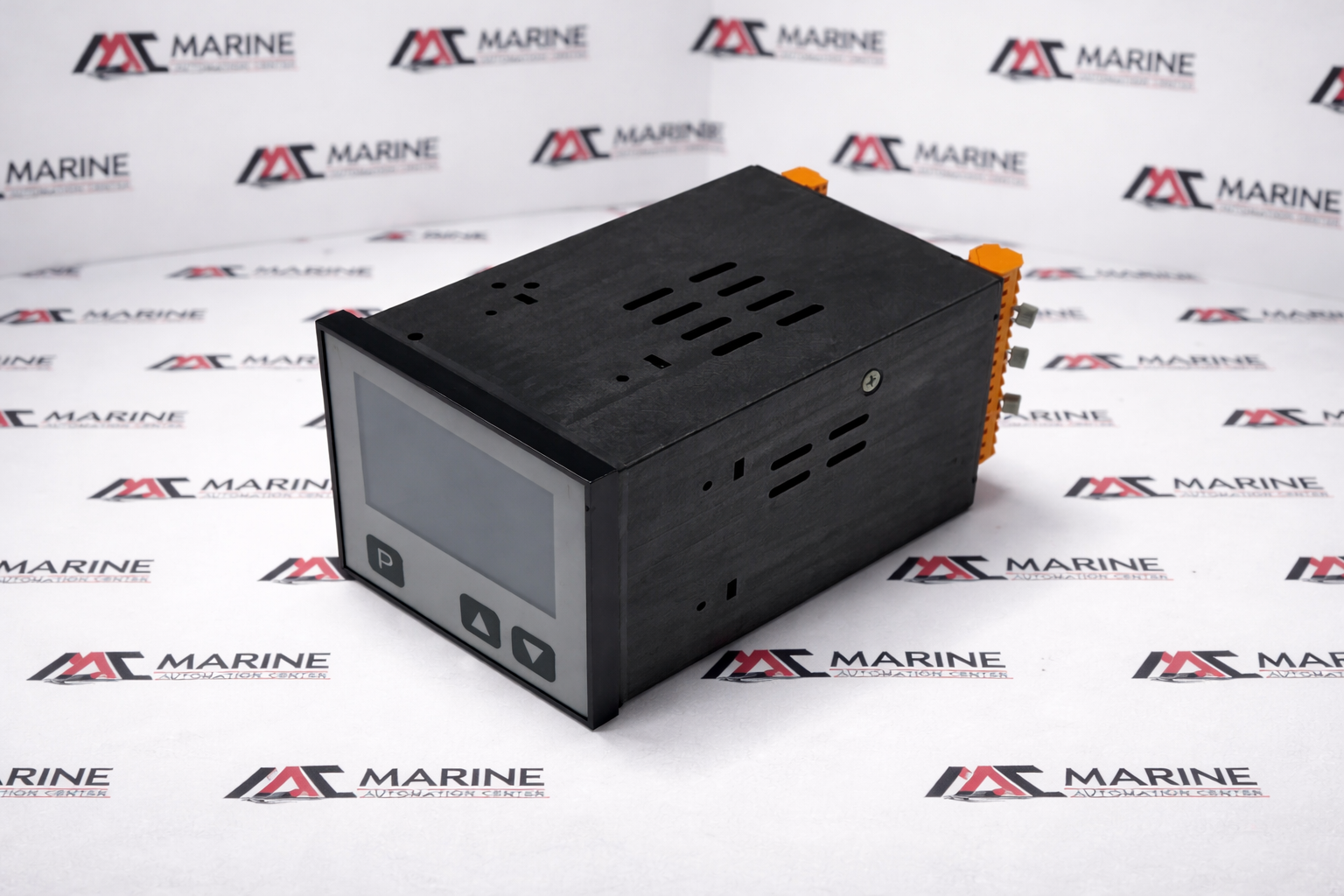

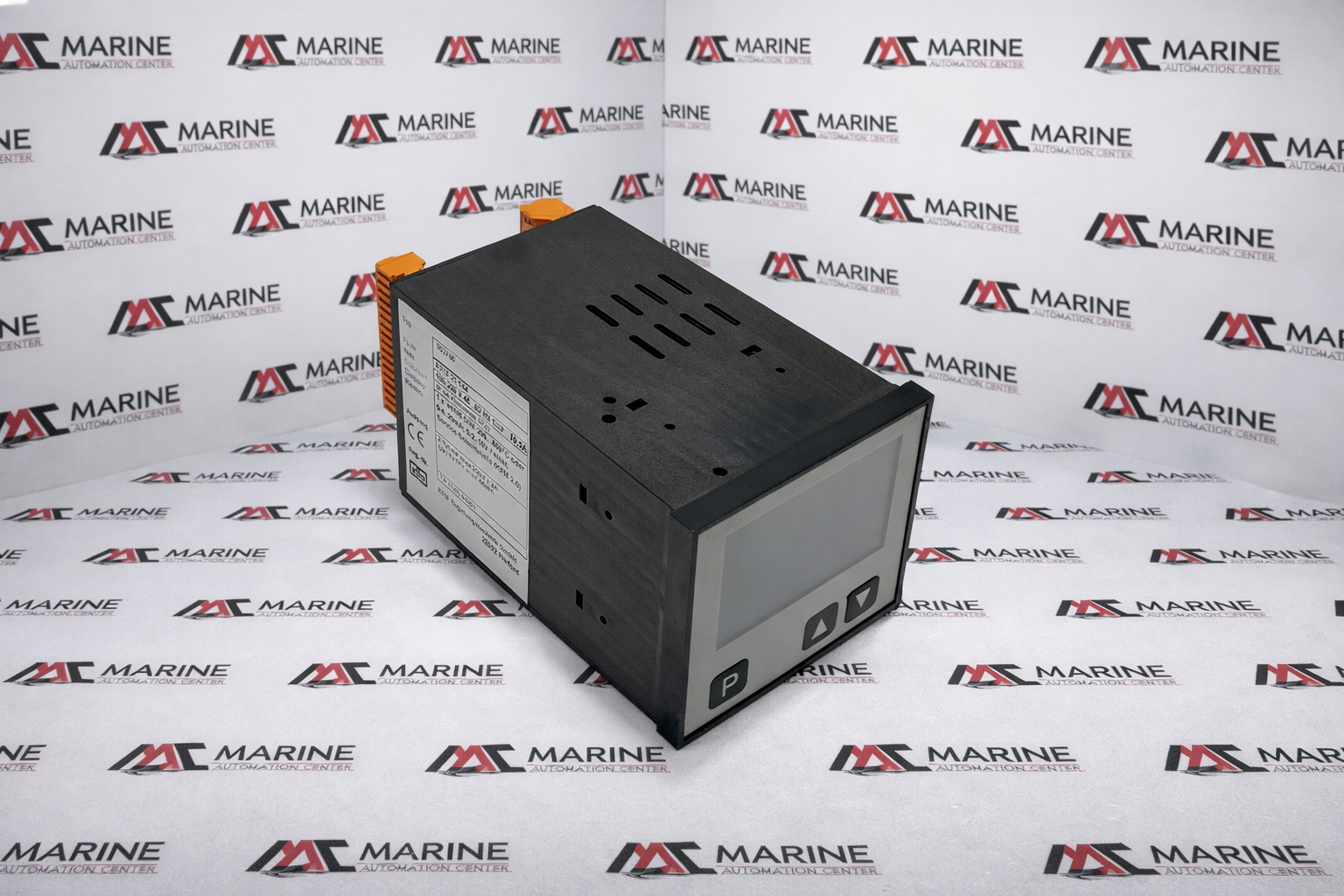

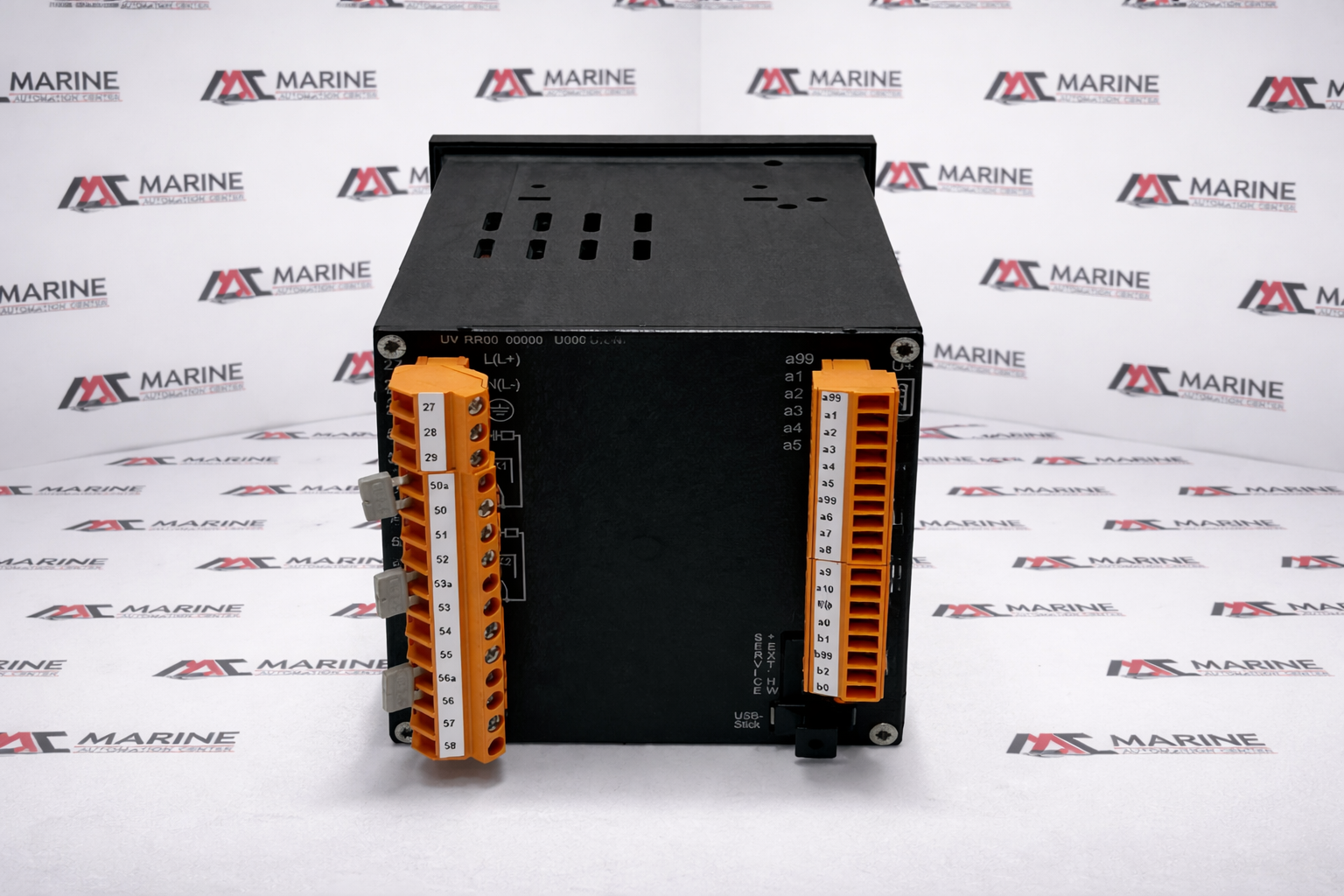

KFM 903700 Temperature Controller
Buy the KFM 903700 Temperature Controller (100-250V) with PT100, 0-4...20mA, and 0-2...10V inputs. Features two relays (250V/2A) and IP54 protection, ideal for industrial use.
BRAND
KFM
TYPE
Temperature Controller
PART NO.
KFM 903700 Temperature Controller
MODEL
903700
Full Technical Specifications ▶

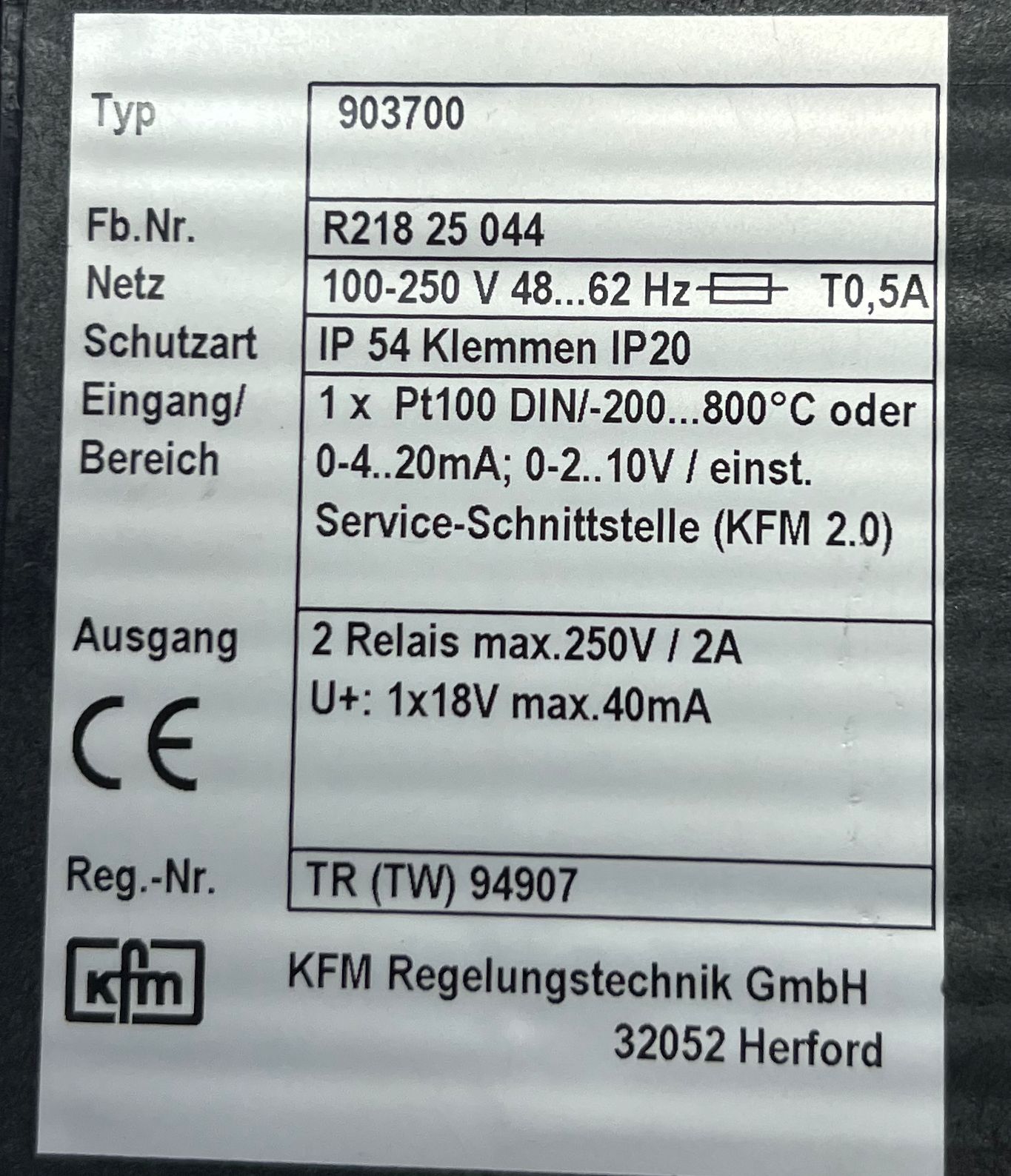

| Parameter | Value / Description |
|---|---|
| BRAND | KFM |
| TYPE | Temperature Controller |
| PART NO. | KFM 903700 Temperature Controller |
| MODEL | 903700 |
| Fb.No | R218 25 044 |
| Mains | 100-250 v 48...62hz T0,5a |
| Protection class | Ip 54 klemmen Ip20 |
| Input/area | 1 x pt100 din/-200...800c oder 0-4...20ma; 0-2...10v/ einst .Service-Interface |
| Output | 2 Relais max. 250v/2a |
| U+ | 1x18v max.40ma |
| Reg.No: | TR (TW)94907 |
| : | 32052 Herford |
| Reference No | 793 |
