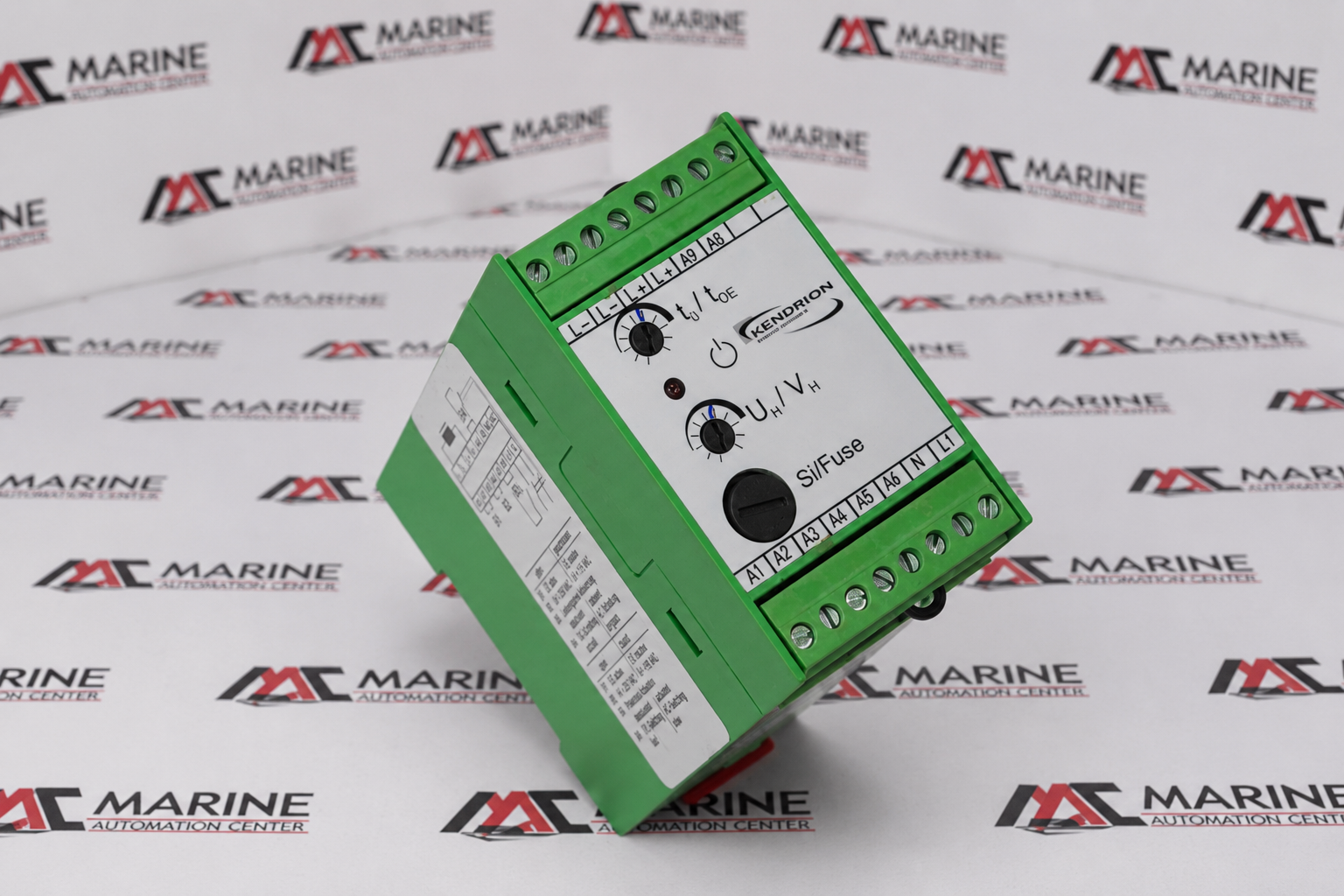

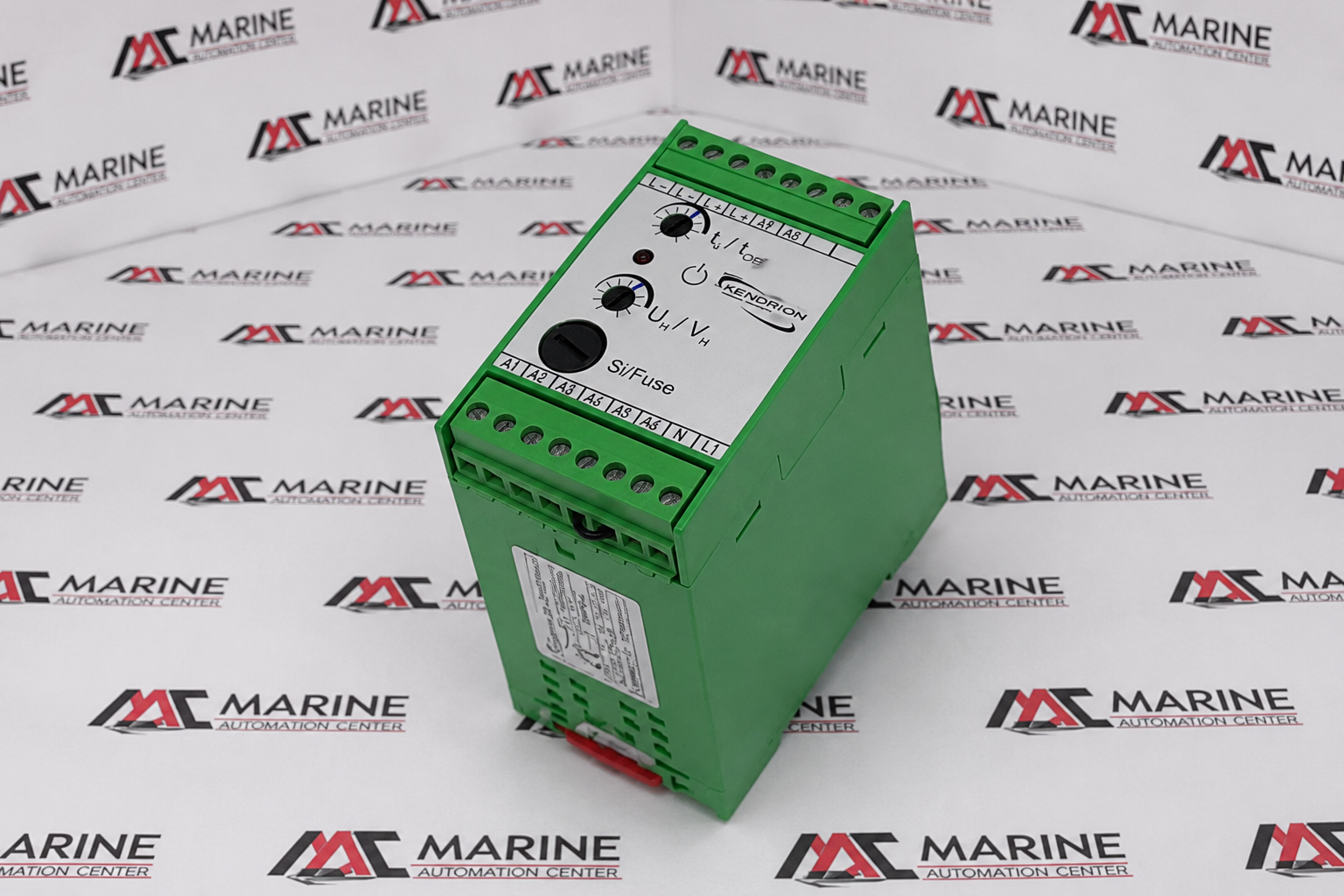

Kendrion Binder Magnete Single Phase Overexcitation Rectifier
Kendrion Binder Magnete 33 43311A03 is a single-phase overexcitation rectifier designed for fast and reliable control of electromagnetic brakes and clutches. It converts AC input to DC output with an initial overexcitation pulse for rapid brake release, ensuring reduced switching times, improved performance, and dependable operation in industrial automation and drive systems
BRAND
Kendrion Binder Magnete
TYPE
Overexcitation Single Phase Rectifier
PART NO.
33 43311A03
MODEL
33 433.. 11A03
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Kendrion Binder Magnete |
| TYPE | Overexcitation Single Phase Rectifier |
| PART NO. | 33 43311A03 |
| MODEL | 33 433.. 11A03 |

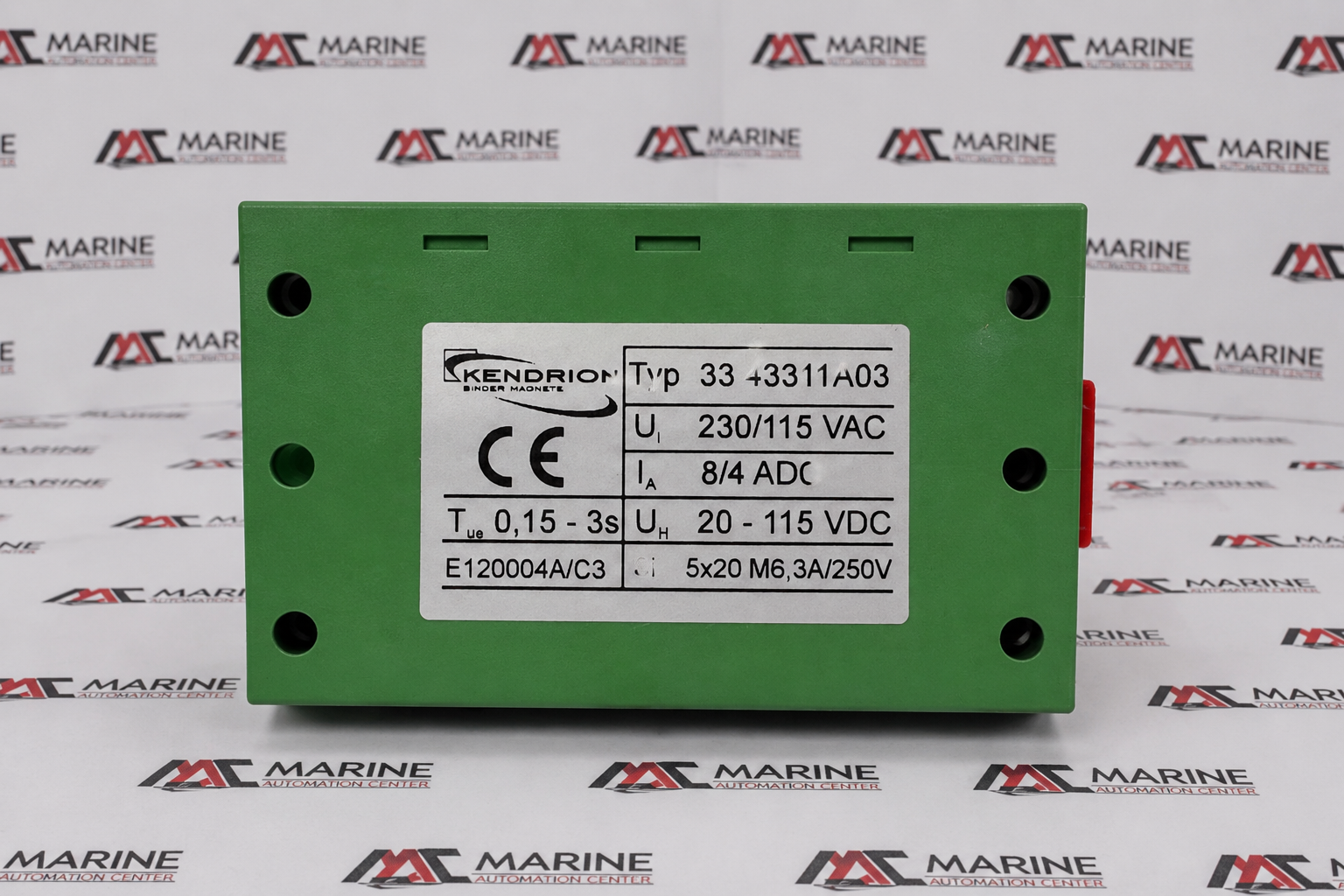

| Voltage Rating | Input Voltage (U₁): 110-120 V AC / 220-230 V AC ±10% (~50/60 Hz) |
| Application | High-speed release and energy-saving holding control of electromagnetic brakes, clutches, and industrial solenoids |
| IEC Standards | Built to European industrial electrical safety and EMV manufacturing benchmarks |
| Dual Voltage Configuration | 110-120V AC or 220-230V AC |
| Front Access Fuse Enclosure | Features a central screw-cap Si/Fuse compartment |
| Logistics Tracking & Cost Context | Material Group 0308 with a recorded warehouse valuation baseline of 569.79 USD. It was tracked in internal storage unit Location: Main Storeroom / B-02 |

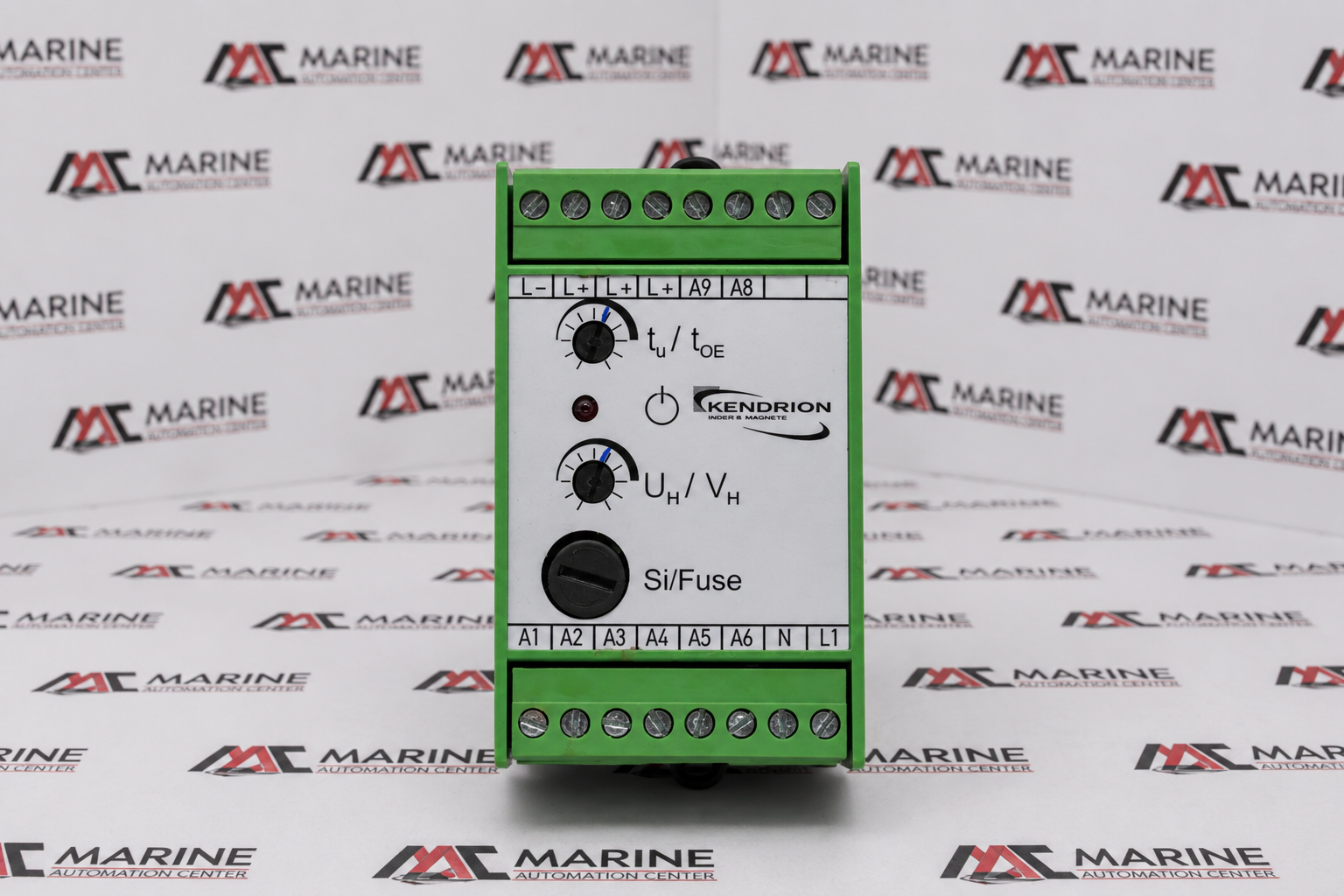

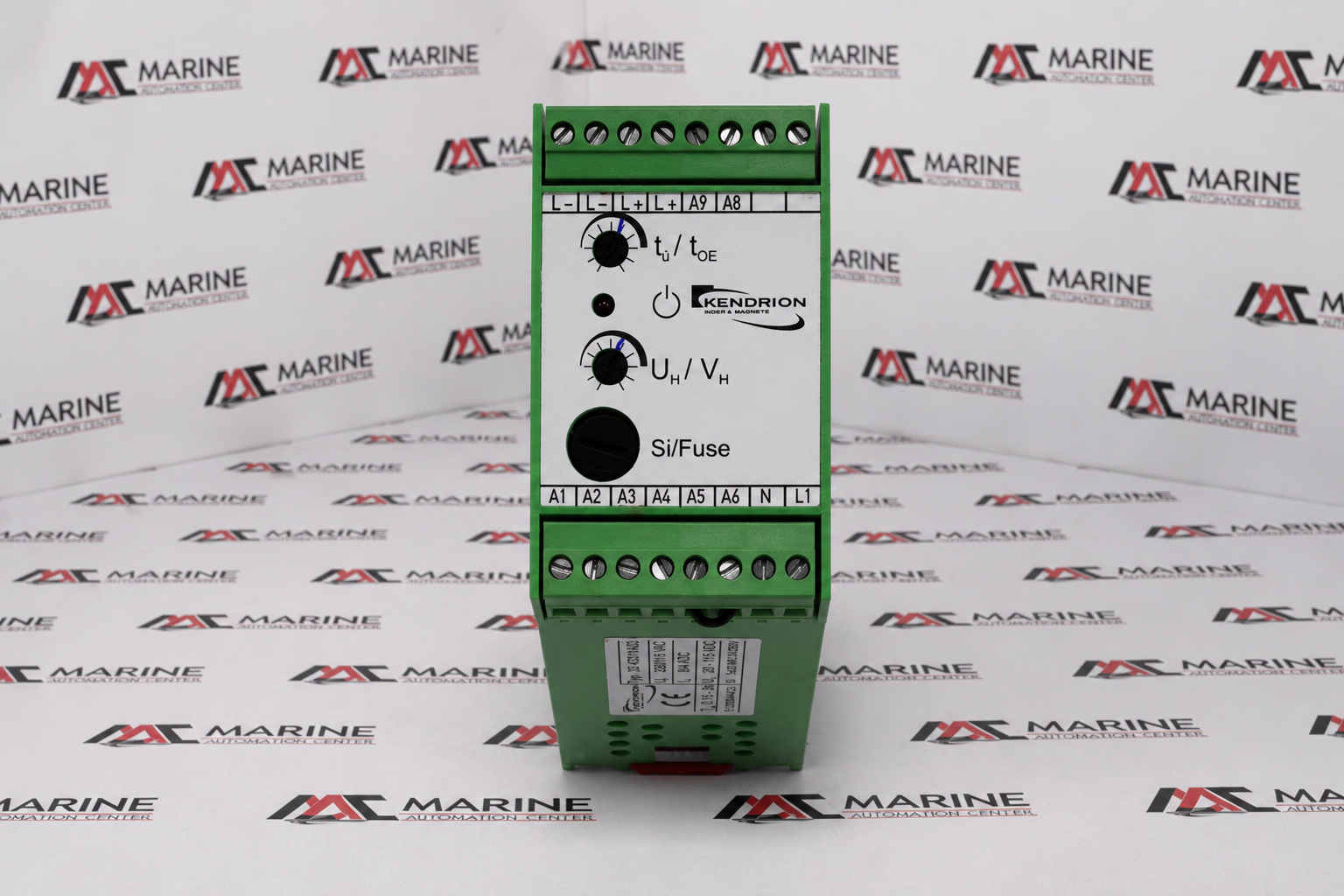

| Electrical Interface Interfacing | L-, L-, L+, L+, A9, A8 on the upper bank, and A1, A2, A3, A4, A5, A6, N, L1 on the lower bank |
| Thermal Boundaries | ambient running thermal threshold tracking safely from 0°C to +70°C |
| Holding Voltage Dial | adjustable between 20% and 60% of the nominal input voltage |
| Made In | Germany |
| REF NO | 461 |
