Kendrion Binder Magnete Single Phase Overexcitation Rectifier

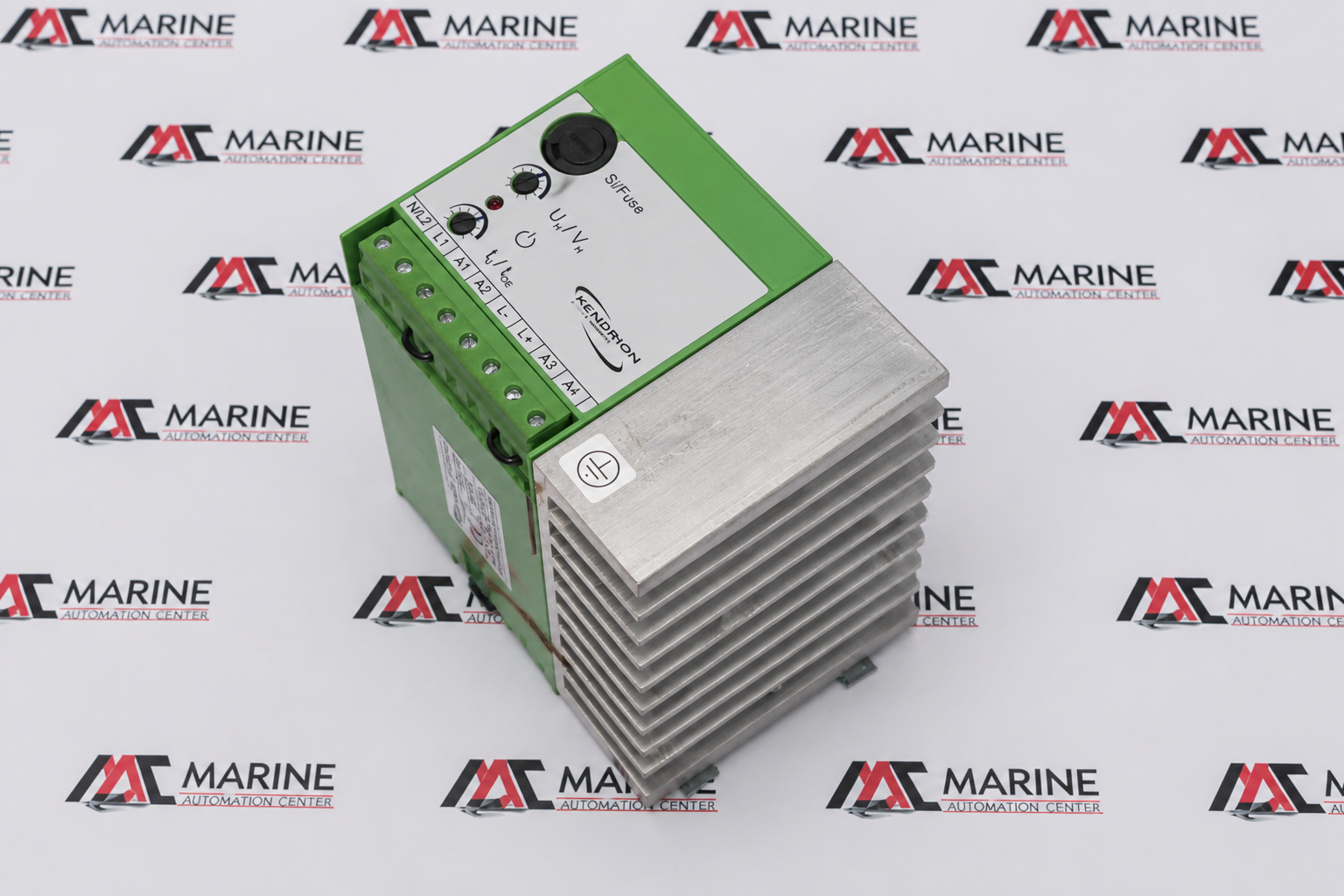

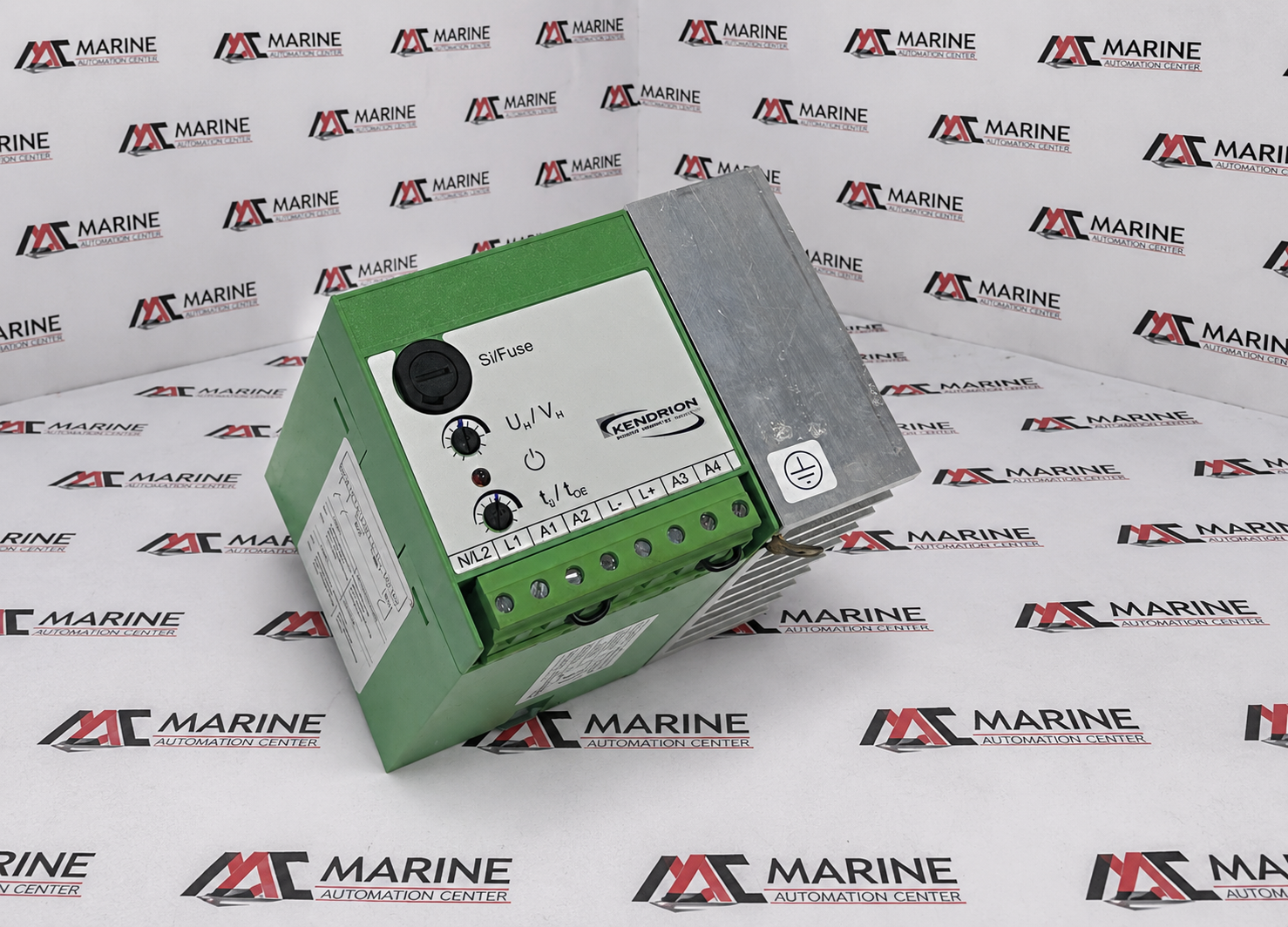

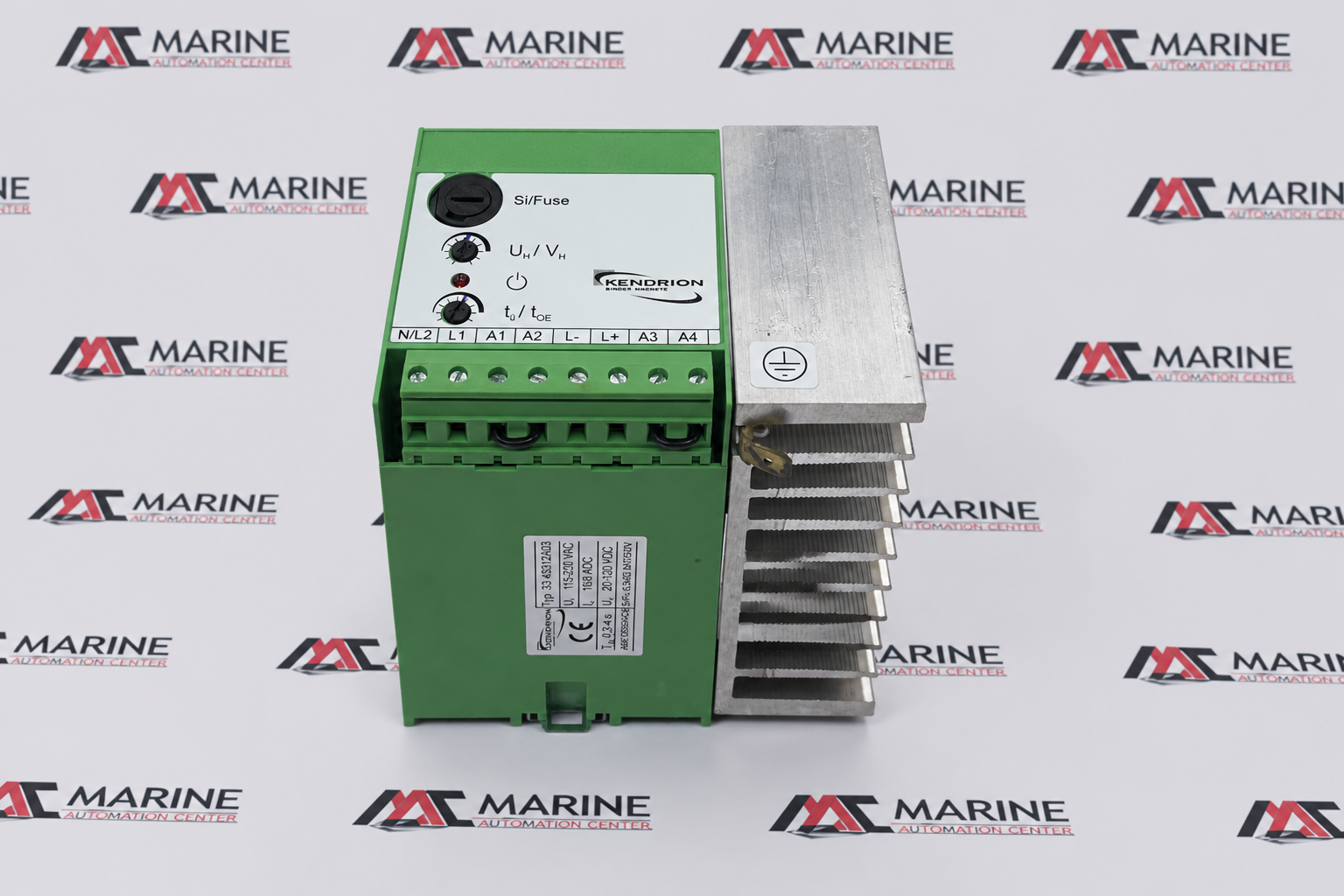

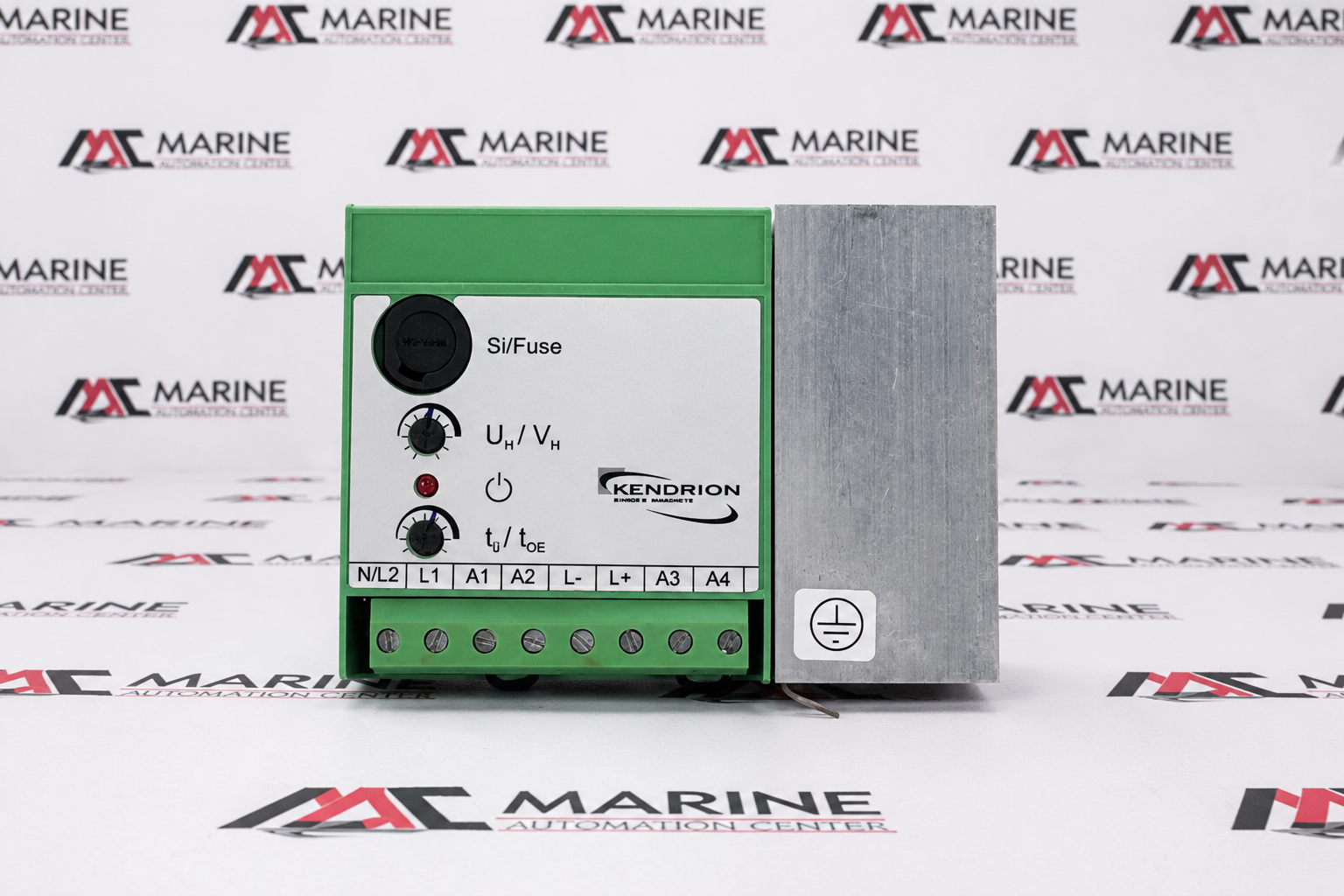

Kendrion Binder Magnete 33 43312A03 is a single-phase overexcitation rectifier designed to provide rapid engagement and reliable control of electromagnetic brakes and clutches. It converts AC input to DC output with an initial overexcitation pulse, ensuring fast response, reduced switching times, and efficient operation in industrial automation and motion control applications
BRAND
Kendrion Binder Magnete
TYPE
Overexcitation Single Phase Rectifier
PART NO.
33 43312A03
MODEL
33 433.. 12A03
Full Technical Specifications ▶

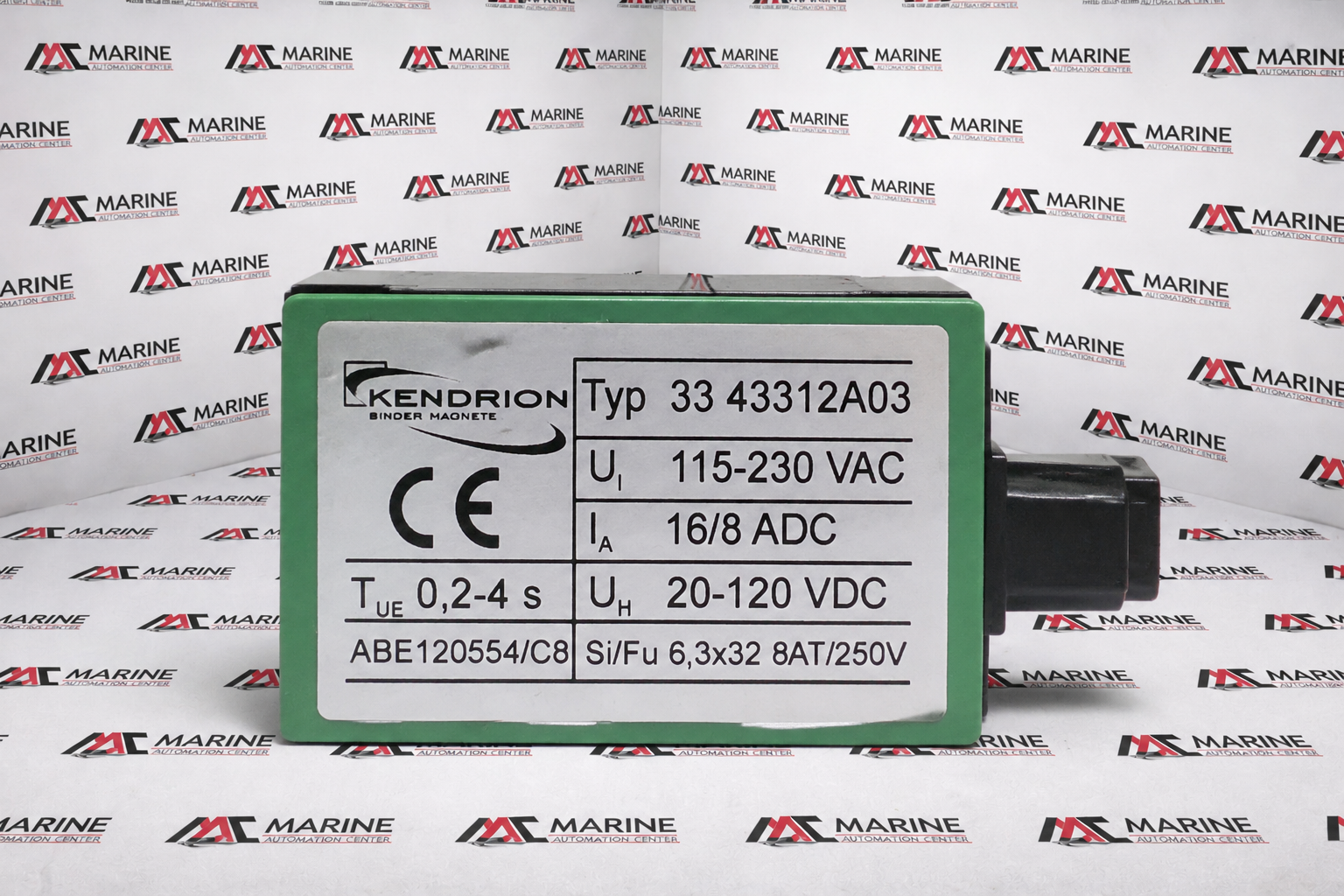

| Parameter | Value / Description |
|---|---|
| BRAND | Kendrion Binder Magnete |
| TYPE | Overexcitation Single Phase Rectifier |
| PART NO. | 33 43312A03 |
| MODEL | 33 433.. 12A03 |
| Voltage Rating | Input Voltage (U₁): 115 / 230 V AC ±10% (~50/60 Hz) | Overexcitation Output: 102 V DC (at 115VAC) / 205 V DC (at 230VAC) |
| Application | High-speed release of industrial electromagnetic brakes, solenoids, clutches, and heavy marine rigging actuators |
| IEC Standards | Labeled and built to European industrial electrical manufacturing thresholds |
| Current Carrying Margins | Engineered to handle a maximum output current configuration of 16A DC during overexcitation and an 8A DC continuous holding current capacity |
| Adjustable Overexcitation Time | integrated adjustment window ranging from 0.2 to 4 seconds |
| Integrated Safety Fuse | 6.3 x 32 mm (T8/250 V) |
| Holding Voltage Adjustment | Provides wide configurable field scaling outputs of 10–60 V DC or 20–120 V DC |
| Physical Termination Interfacing | 2.5 mm² fine wire conductors maintaining an absolute structural thermal running peak limit from 0 to 70 °C |
| Made In | Germany / Villingen |
| REF NO | 460 |
