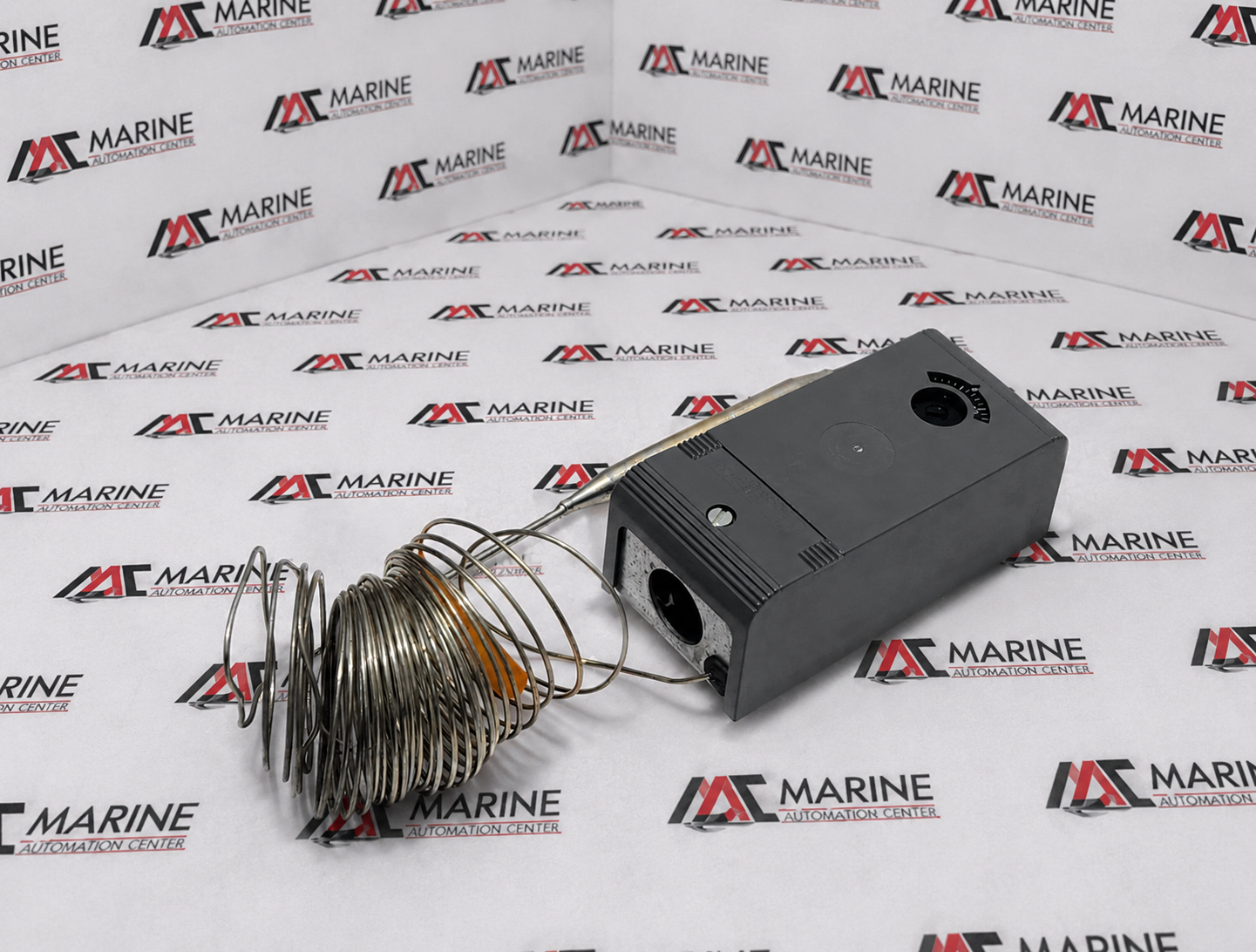

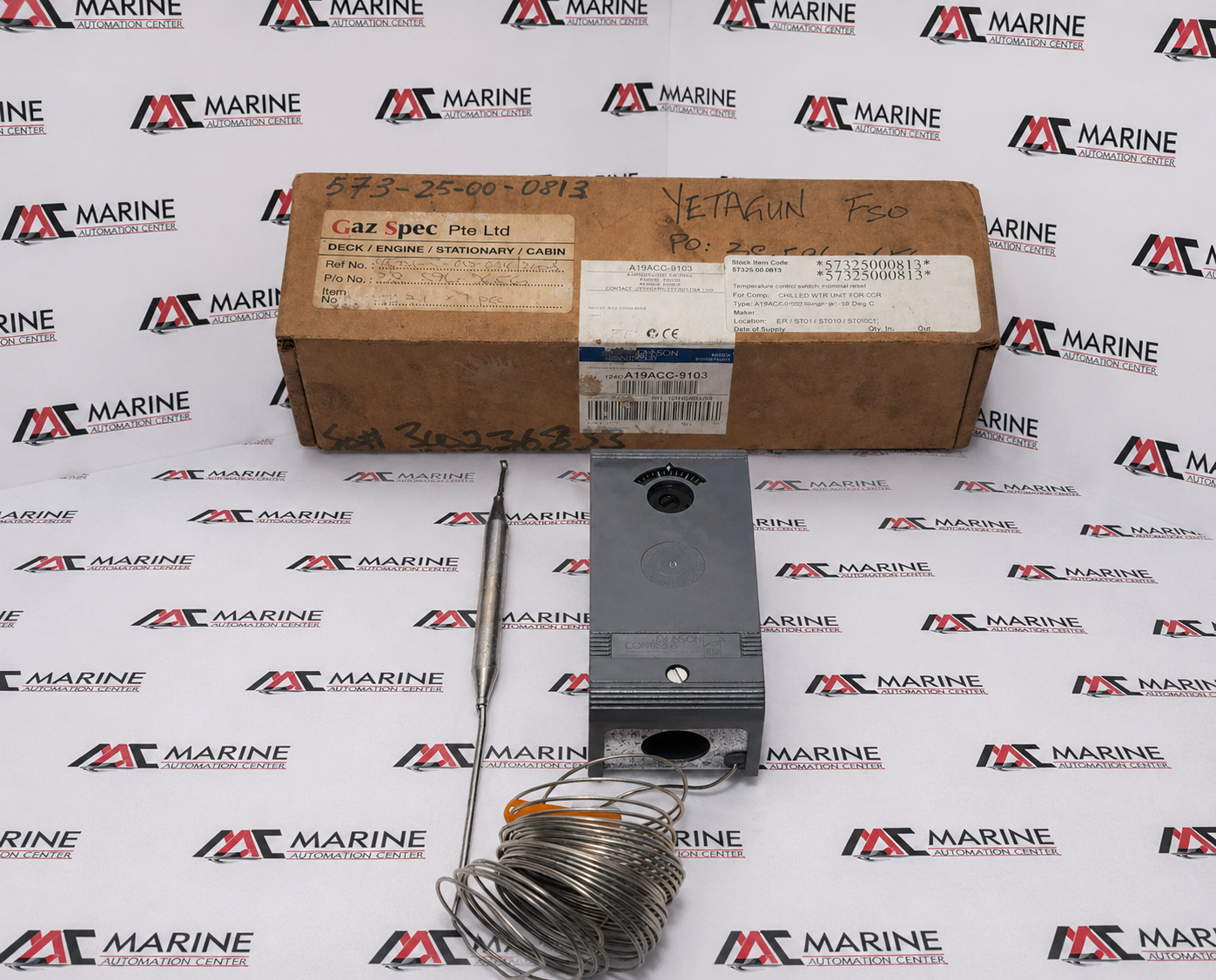

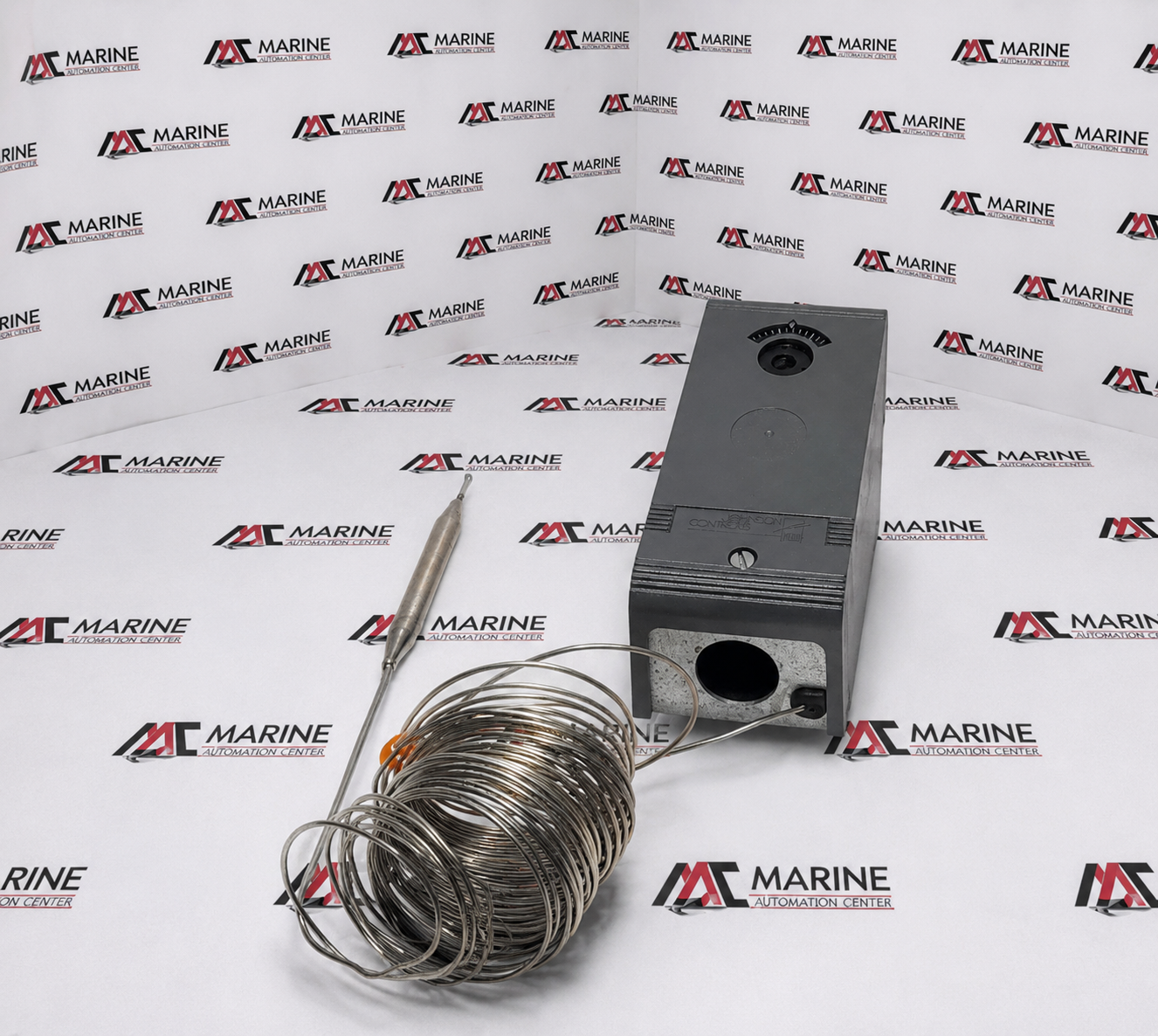

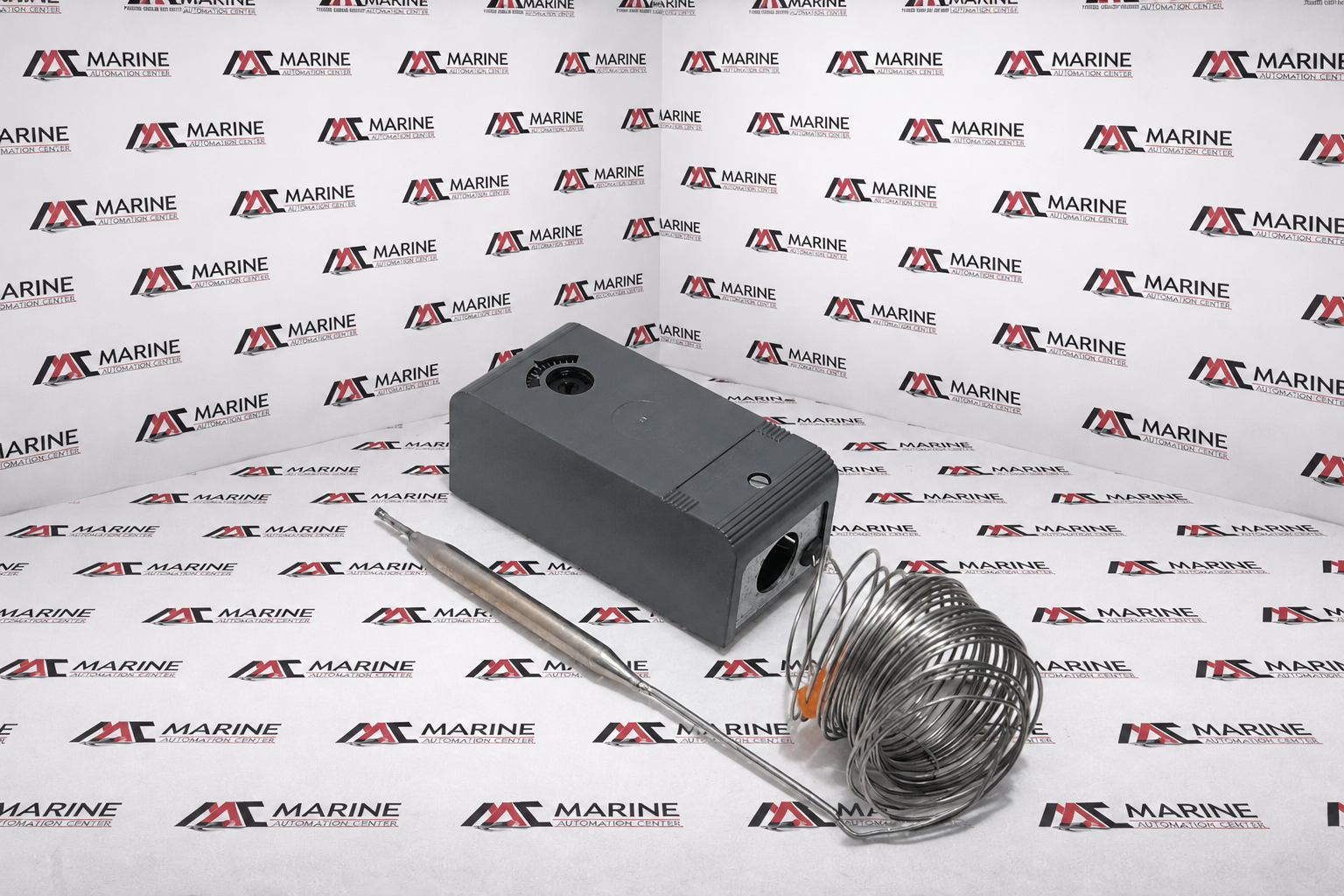

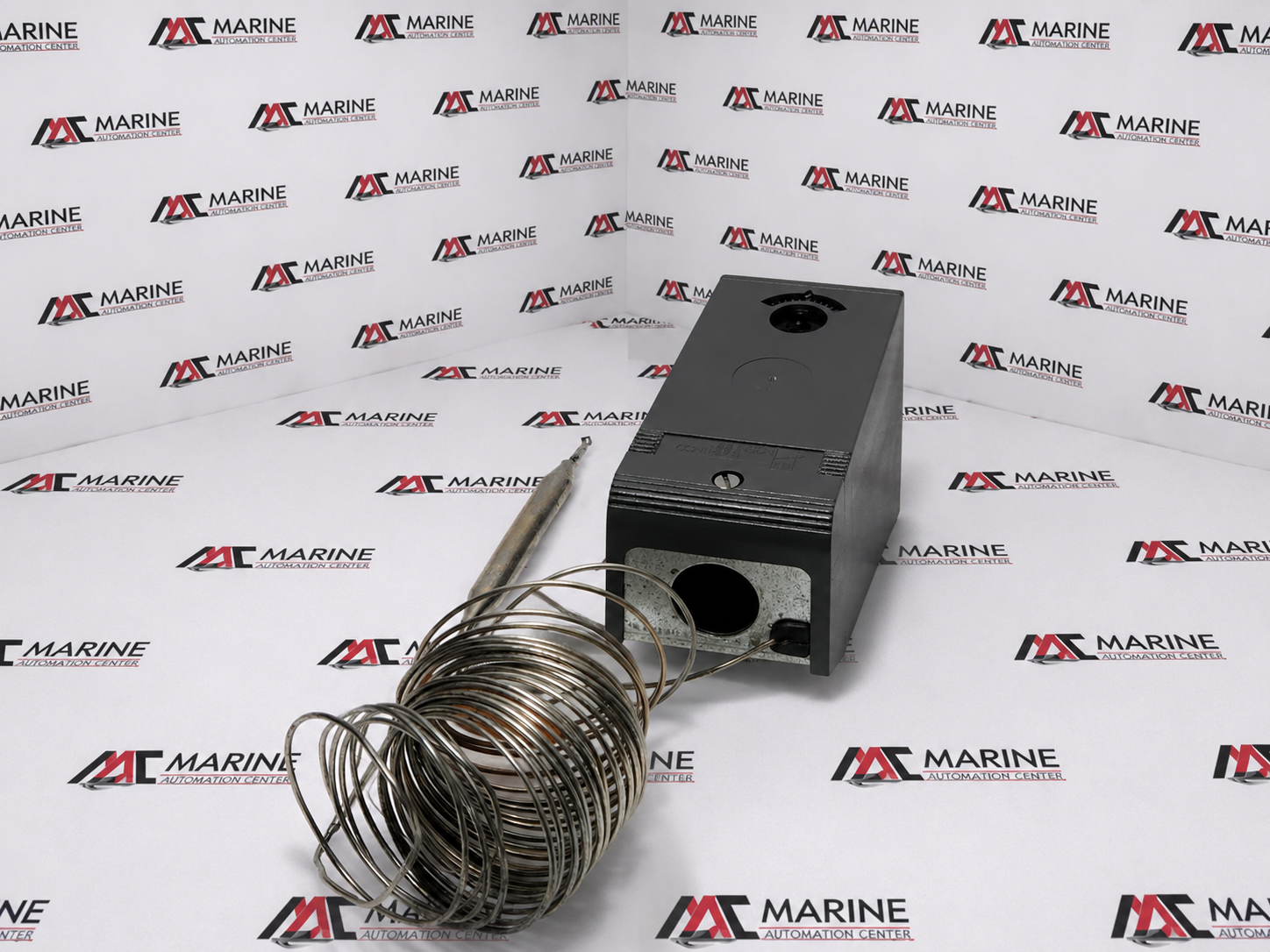

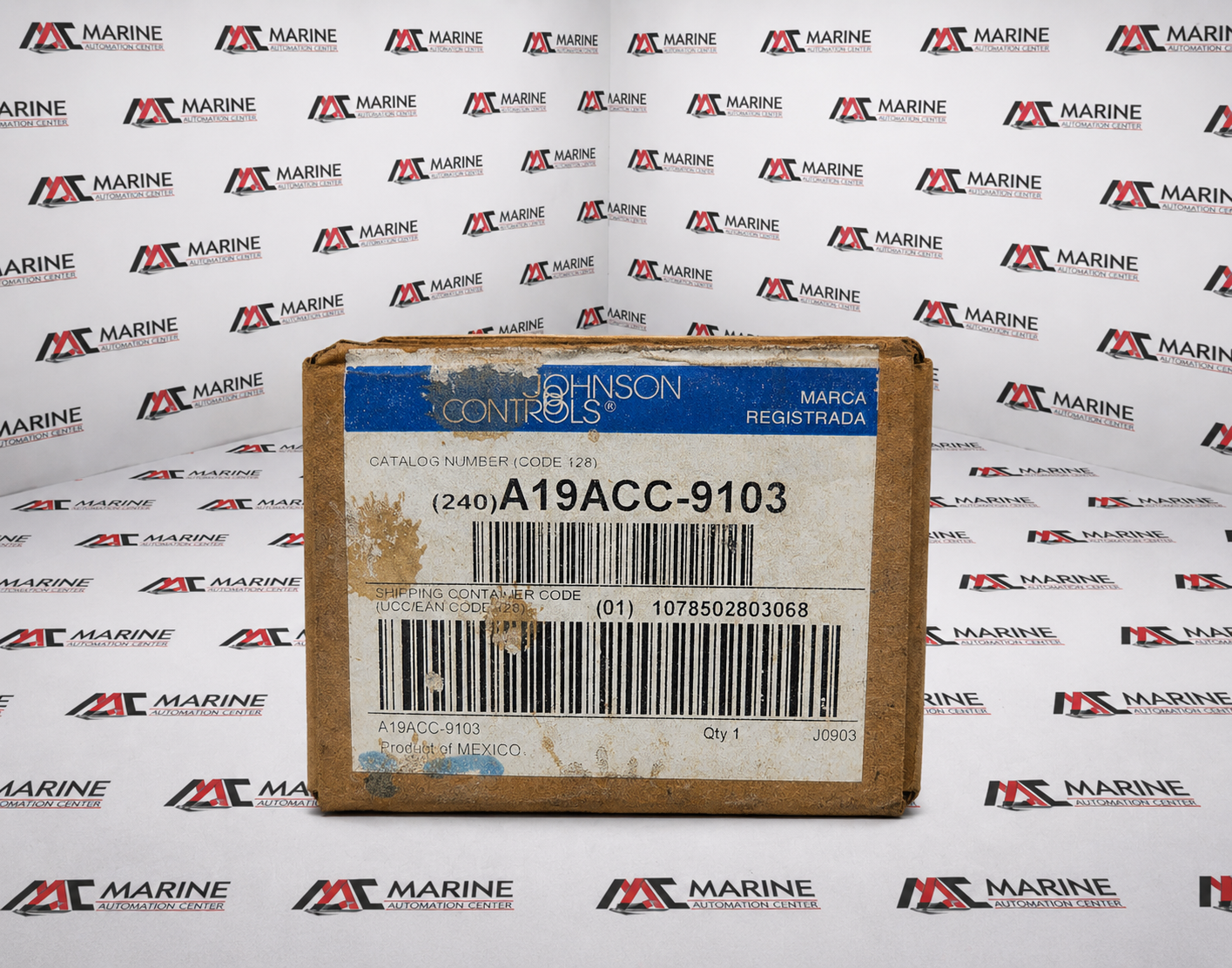

Johnson Controls Temperature Control A19ACC-9103
The Johnson Controls PENN A19ACC-9103 is a low-temperature manual reset capillary thermostat designed to provide reliable temperature monitoring and safety protection in refrigeration, HVAC, and marine cooling systems. Featuring a remote sensing bulb, adjustable temperature range, and manual reset function, it helps prevent equipment damage by ensuring accurate low-temperature control in demanding industrial applications
BRAND
Johnson Controls
TYPE
Low Temperature Manual Reset Capillary Thermostat
PART NO.
A19ACC-9103
MODEL
A19ACC Series
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Johnson Controls |
| TYPE | Low Temperature Manual Reset Capillary Thermostat |
| PART NO. | A19ACC-9103 |
| MODEL | A19ACC Series |
| MANUFACTURER | Johnson Controls, Inc. (PENN Controls) |
| Temperature Range | 5°C to +28°C |
| Differential | Fixed 5 K |
| Reset Type | Manual Reset |
| Contact Configuration | SPDT (Single Pole Double Throw) |
| Switch Action | Contact (1)-(2) Open, Contact (1)-(3) Close on Low Temperature |
| Electrical Rating | 15(8)A, 230V AC |
| Capillary Length | 5 m |
| Sensing Bulb Size | Ø9.5 × 135 mm |
| Maximum Bulb Temperature | 60°C |
| Application | Refrigeration systems, HVAC equipment, cold rooms, evaporators, compressors, marine refrigeration, chillers and industrial temperature protection |
| Made In | Mexico |
| REF NO. | 1375 |
