Johnson Controls

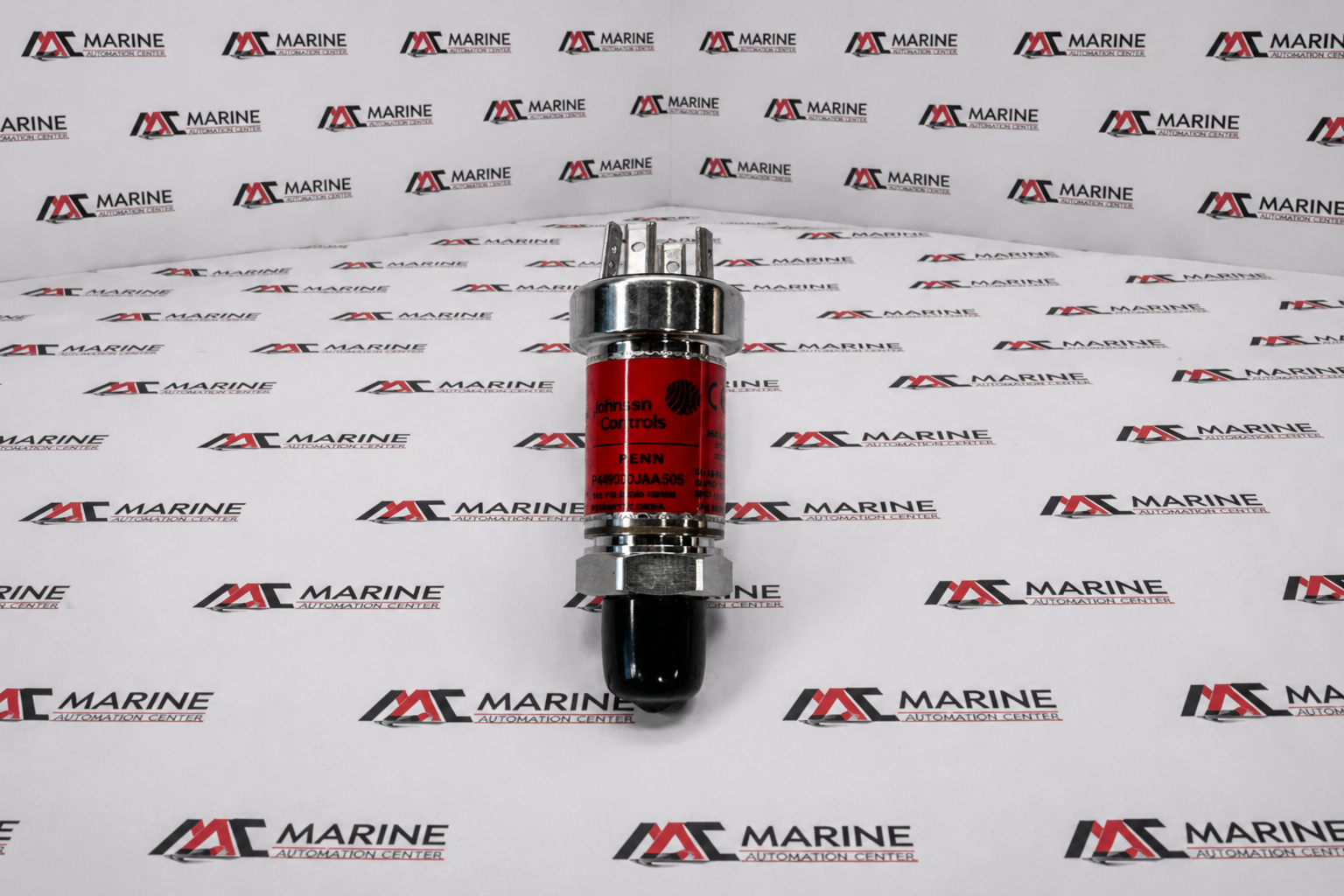

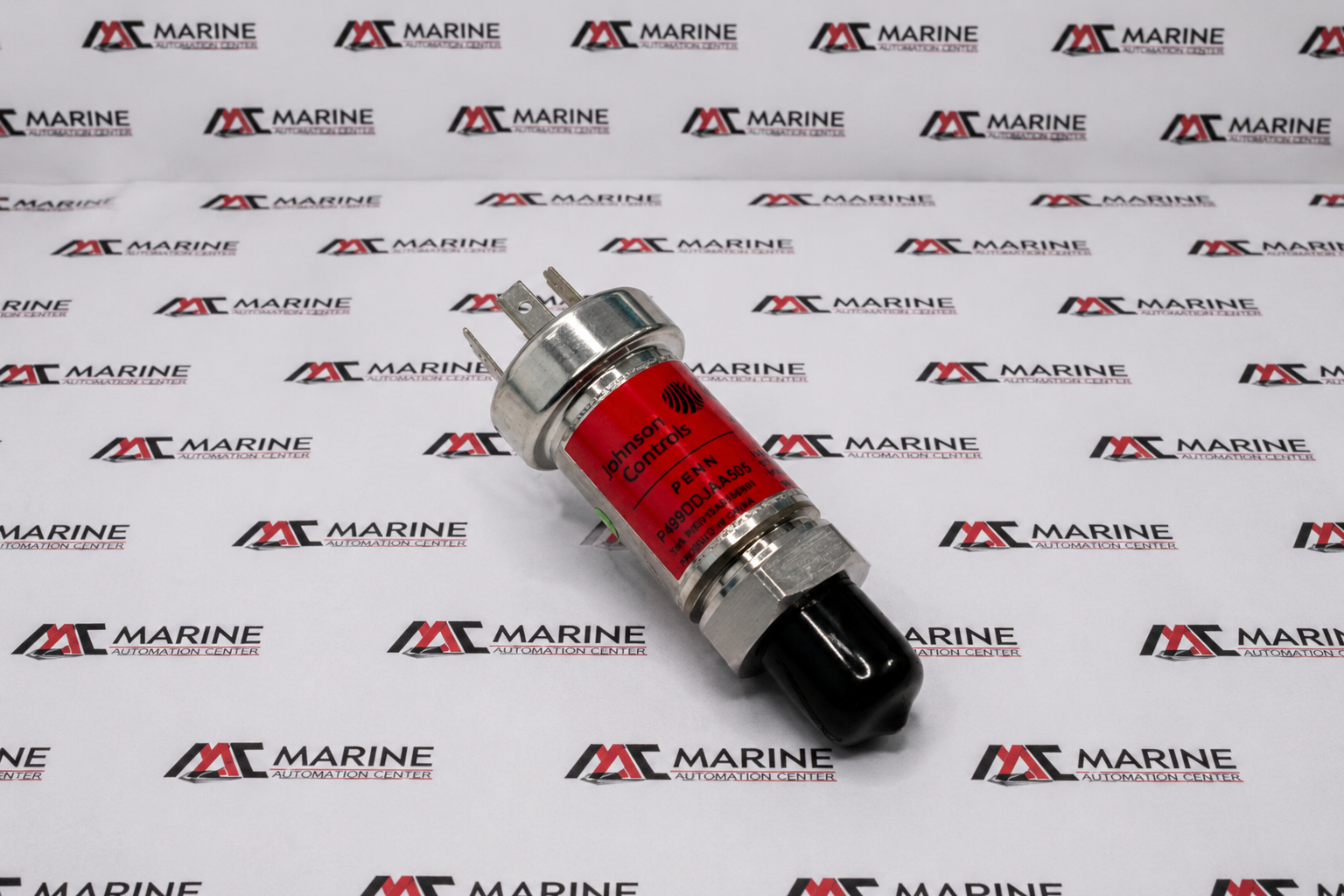

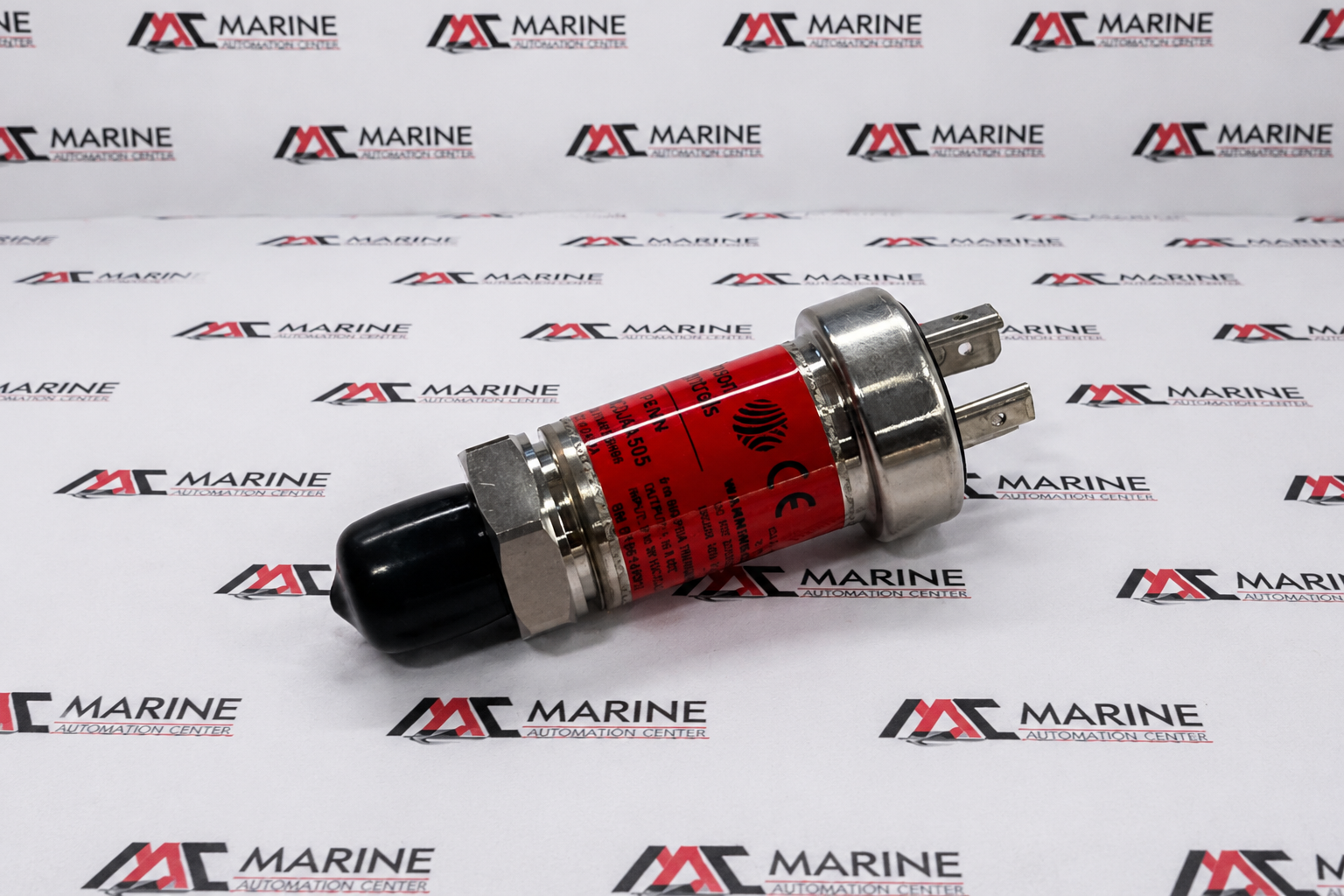

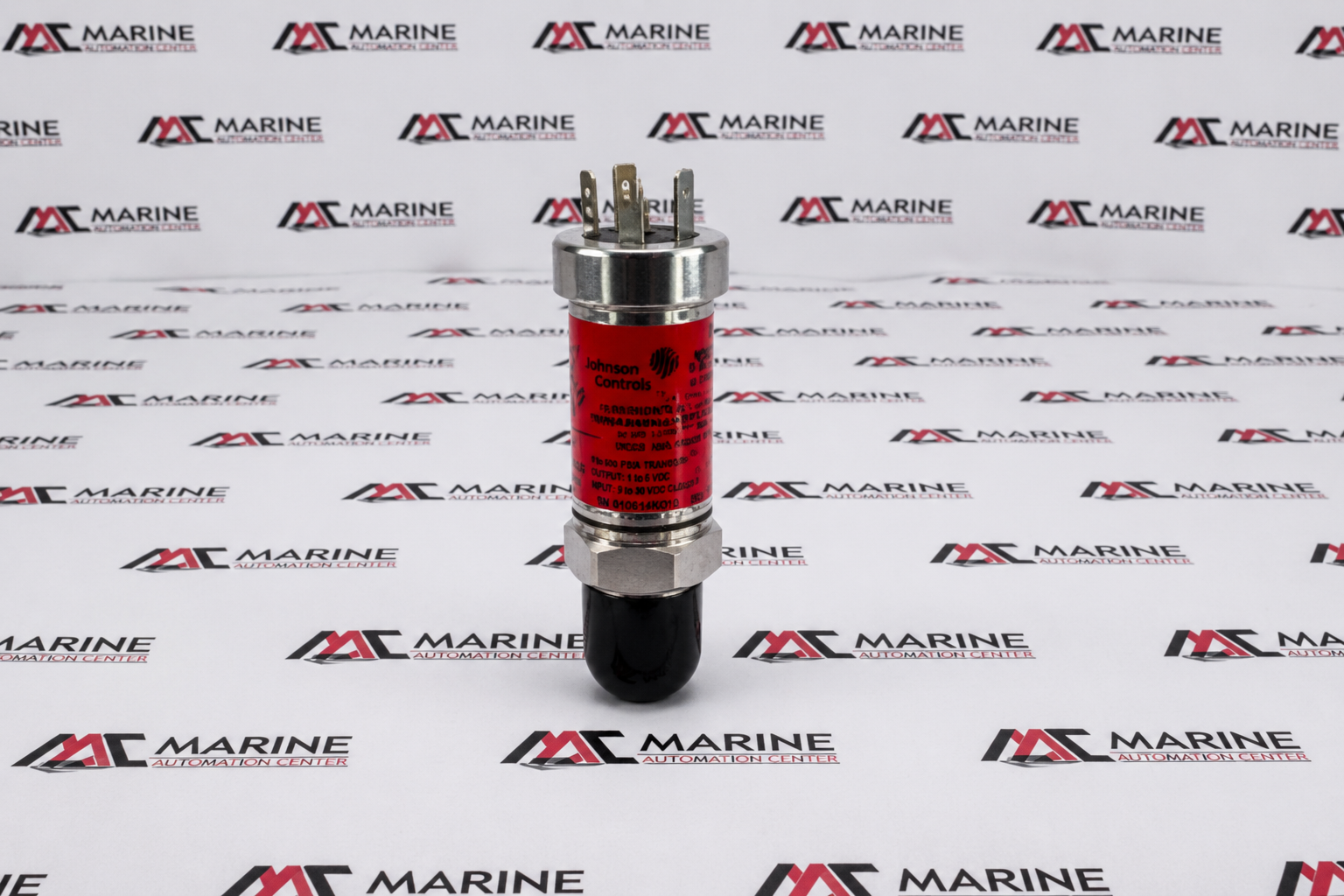

The Johnson Controls PENN Electronic Pressure Transducer is a high-accuracy pressure sensing device designed to measure and convert pressure into a proportional electrical output signal for monitoring and control systems. It provides reliable pressure measurement in refrigeration, HVAC, hydraulic, pneumatic, and industrial process applications. Its compact, rugged construction and stable performance make it suitable for continuous operation in demanding commercial and industrial environments.
BRAND
Johnson Controls
TYPE
Electronic Pressure Transducer
PART NO.
P499CDJAA505
MODEL
P499CDJAA505
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Johnson Controls |
| TYPE | Electronic Pressure Transducer |
| PART NO. | P499CDJAA505 |
| MODEL | P499CDJAA505 |
| YORK P/N | 913A0150H05 |
| PRESSURE SERIES | P499 Series |
| PRESSURE RANGE | 0 to 500 PSI (0 to 34.5 bar) |
| OUTPUT SIGNAL | 4–20 mA DC |
| SUPPLY VOLTAGE | 9 to 30 VDC (Class 2 / SELV) |
| MAXIMUM WORKING PRESSURE | 2 × Rated Pressure Range |
| BURST PRESSURE | 5 × Rated Pressure Range |
| OPERATING TEMPERATURE | -40°C to +85°C |
| STORAGE TEMPERATURE | -40°C to +125°C |
| COMPENSATED TEMPERATURE RANGE | -20°C to +85°C |
| ACCURACY | ±1% Full Scale Maximum |
| APPLICATION | Refrigeration, HVAC, Industrial Process Control, Chillers, Compressors, Pumps, Marine Refrigeration & Pressure Monitoring Systems |
| Made In | China |
| Ref no. | 313 |
