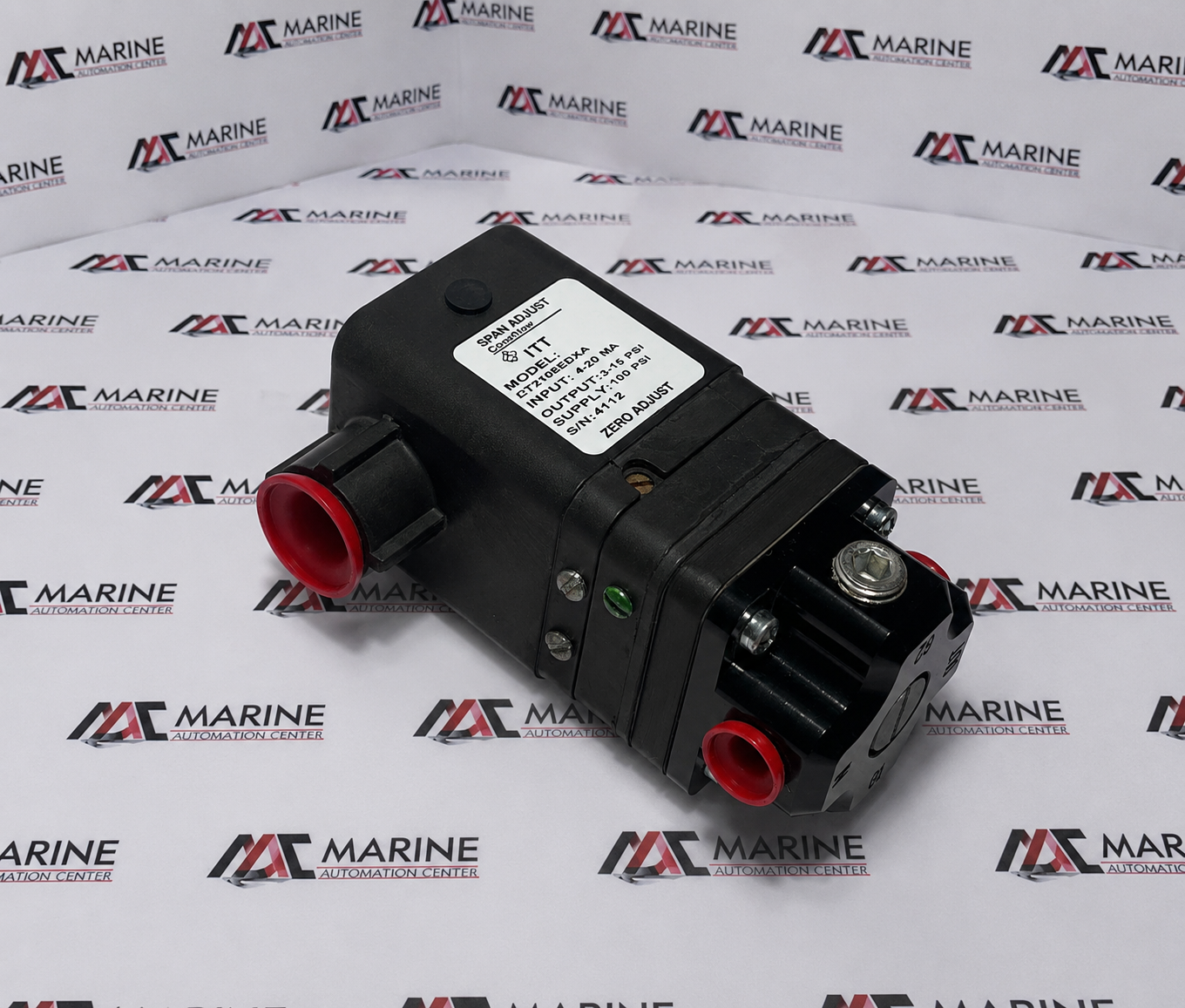

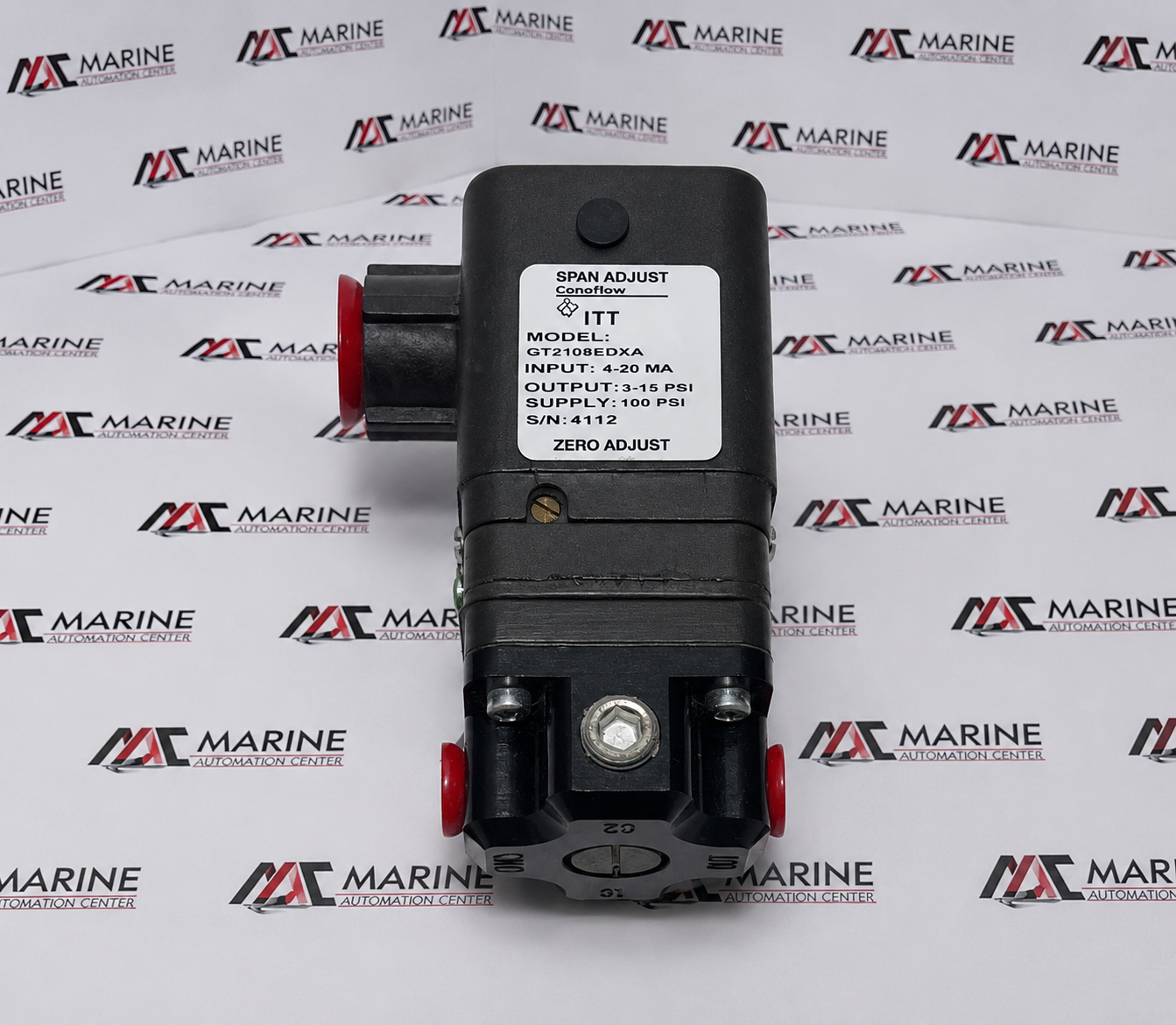

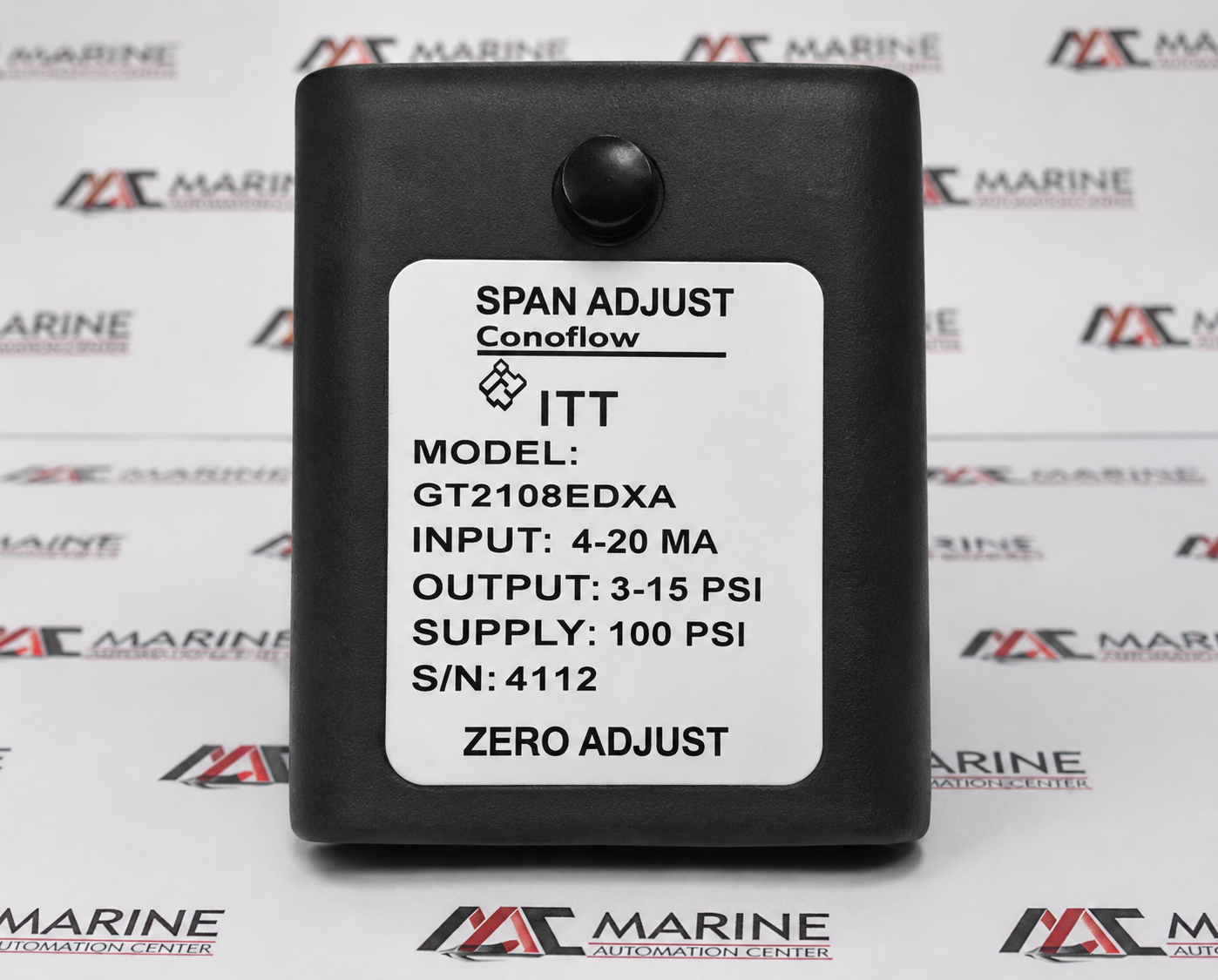

ITT Conoflow Electro-Pneumatic Transducer (I/P Converter)
The ITT Conoflow GT2108EDXA is an electro-pneumatic (I/P) transducer designed to convert electrical current signals into proportional pneumatic output pressure. It provides precise and reliable control for industrial process automation, making it ideal for operating control valves, actuators, and other pneumatic instrumentation in demanding applications.
BRAND
ITT Conoflow
TYPE
Electro-Pneumatic Transducer (I/P Converter)
PART NO.
Electro-Pneumatic Transducer (I/P Converter) GT2108EDXA
MODEL
GT2108EDXA
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | ITT Conoflow |
| TYPE | Electro-Pneumatic Transducer (I/P Converter) |
| PART NO. | Electro-Pneumatic Transducer (I/P Converter) GT2108EDXA |
| MODEL | GT2108EDXA |
| Voltage Rating | None (Loop-powered via 4-20 mA electrical DC current input) |
| Application | Converts electronic automation loop currents to proportional pneumatic control signals for valve positioning |
| IEC | Intrinsically safe architectures designed to meet generic industrial electrical standards |
| Q | Air Consumption: Approx. 0.1 SCFM (0.003 m³/min) / Max Air Delivery: 4.0 SCFM |
| Output Signal | 3 - 15 PSI |
| Position Effect | 3 PSIG Output - Output decreases by 0.65 PSIG at 45º tilt - Output decreases by 2.03 PSIG at 90º tilt - 15 PSIG Output - Output decreases by 0.78 PSIG at 45º tilt - Output decreases by 2.54 PSIG at 90º tilt |
| Supply Pressure Effect | - 0.08 PSIG decrease for every 10 PSIG increase in supply pressure |
| Required Regulated Air Supply Pressure | - 20 PSI |
| Air Delivery Rate (Max.) | - 4 SCFM (0.1113 m3/min) |
| Exhaust Rate (Max.) | - 1.5 SCFM (0.042 m3/min) |
| Linearity | - ±0.75% of Span |
| Ambient Temperature Range | - 0º to +130ºF (-17º to +55ºC |
| Approximate Shipping Weight | - 1.7 lbs. (0.77 Kg) |
| Made In | USA |
| REF NO | 1224 |
