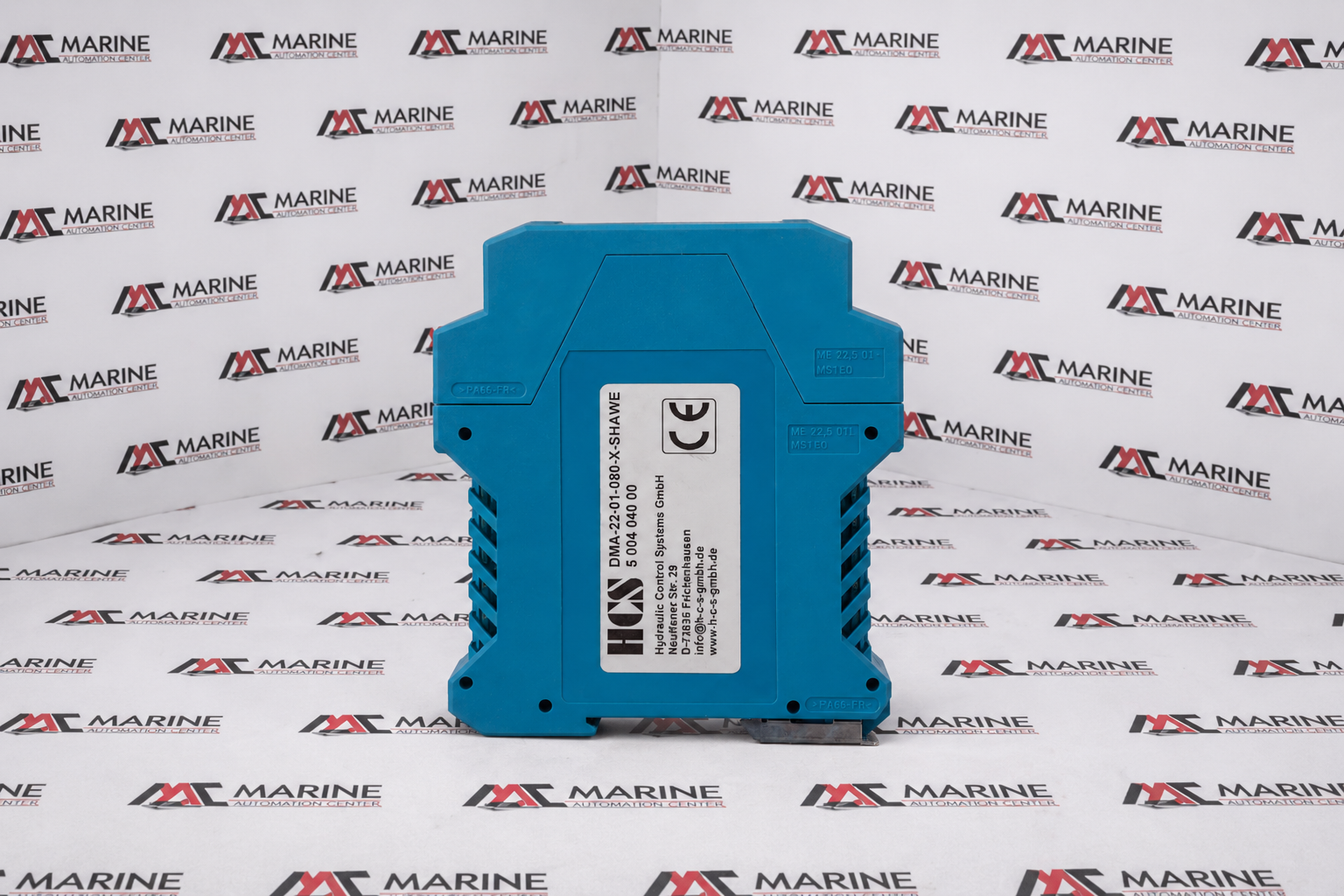

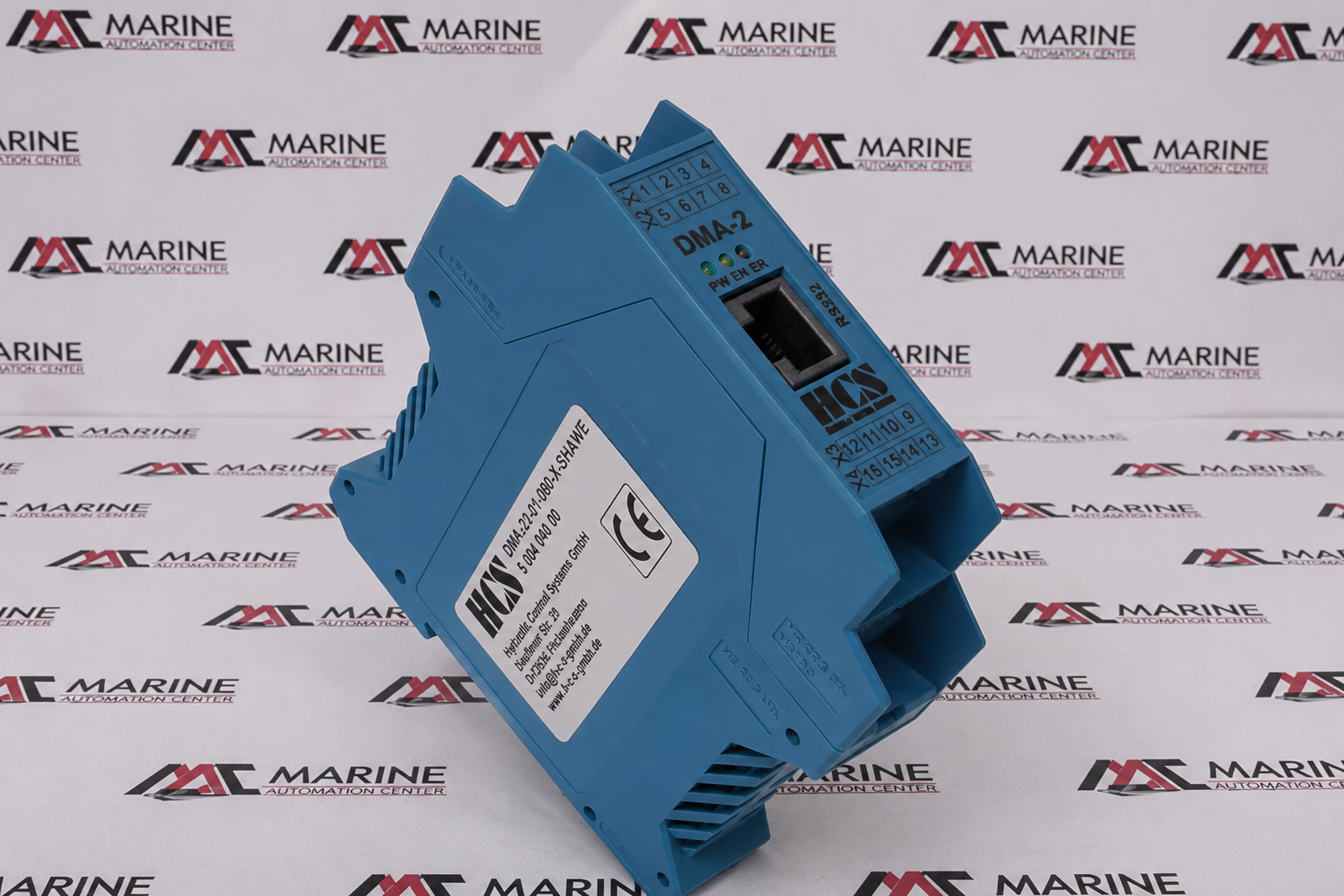

HCS (Hydraulic Control Systems GmbH) Digital Amplifier Module
HCS DMA-2 Digital Amplifier Module (DMA-22-01-080-X-SHAWE) is a compact digital amplifier and electro-hydraulic valve controller designed for precise control of proportional hydraulic valves. It provides accurate signal processing, reliable performance, and flexible configuration, making it ideal for industrial hydraulic systems, automation equipment, and mobile machinery applications
BRAND
HCS (Hydraulic Control Systems GmbH)
TYPE
Digital Amplifier Module / Electro-Hydraulic Valve Controller
PART NO.
DMA-22-01-080-X-SHAWE
MODEL
DMA-2
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | HCS (Hydraulic Control Systems GmbH) |
| TYPE | Digital Amplifier Module / Electro-Hydraulic Valve Controller |
| PART NO. | DMA-22-01-080-X-SHAWE |
| MODEL | DMA-2 |
| Series | DMA-22 Digital Module Amplifier |
| Operation Mode | 01 – One Proportional Valve with Two Solenoids |
| Current Rating | 080 = 800 mA Solenoid Output (per HCS ordering code) |
| Communication Interface | RS-232 Service / Programming Port (RJ45) |

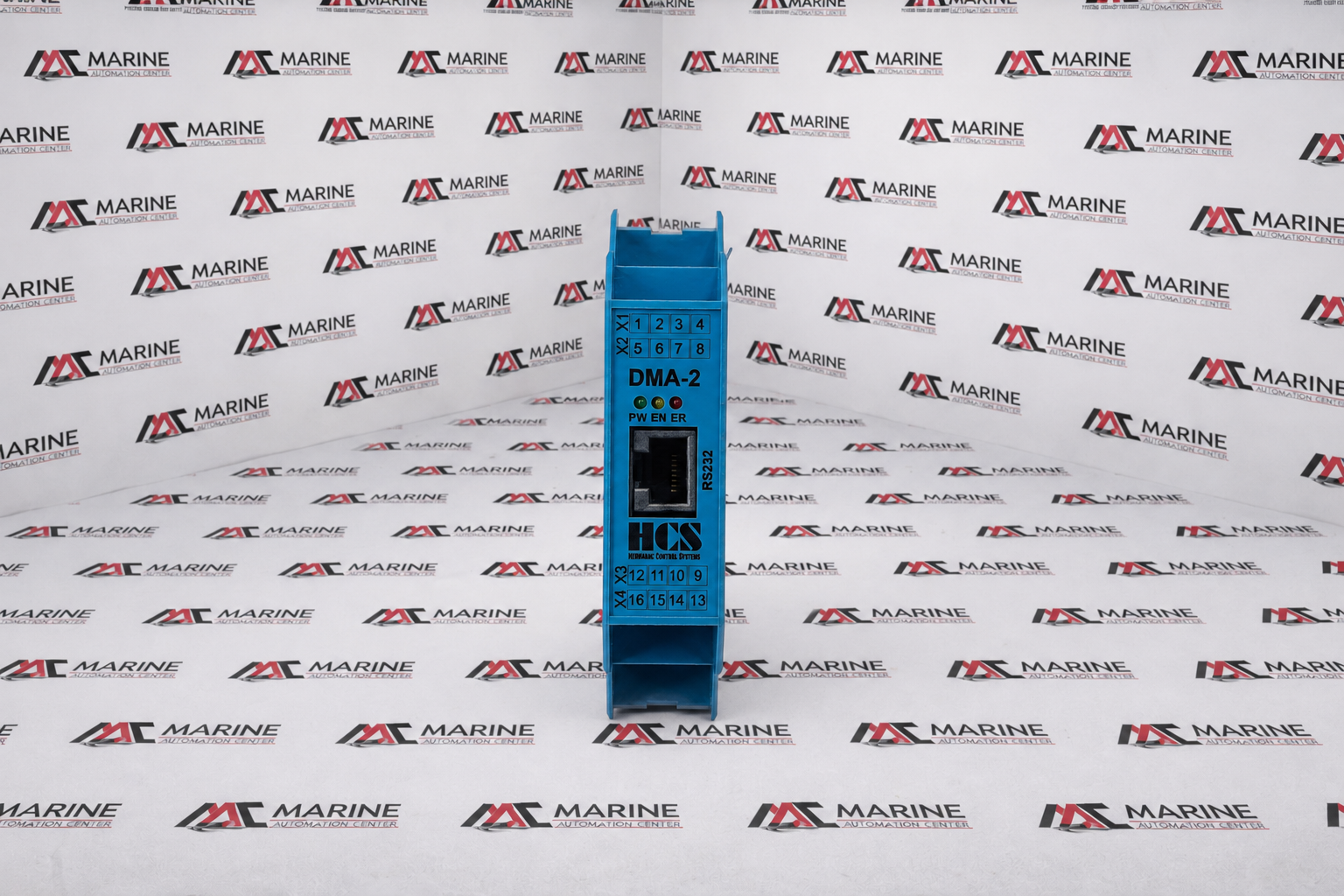

| Status Indicators | Power (PW), Enable (EN), Error (ER) LED Indicators |
| Supply Voltage | 24 V DC |
| Mounting Type | DIN Rail Mount |
| Control Function | Digital Current Amplifier for proportional hydraulic valve control |
| Compatible Valve Type | HAWE Twin Solenoid Valves (SHAWE parameter version) |
| Protection Class | Industrial Control Module |
| Housing Material | High-strength Industrial Thermoplastic |
| Connection Type | Pluggable Terminal Connections with RJ45 Service Interface |
| Certification | CE Marked |
| Application | Used in electro-hydraulic proportional control systems for marine equipment, offshore hydraulic systems, cranes, winches, steering gear, industrial hydraulic power units, and automation systems requiring precise proportional valve control |

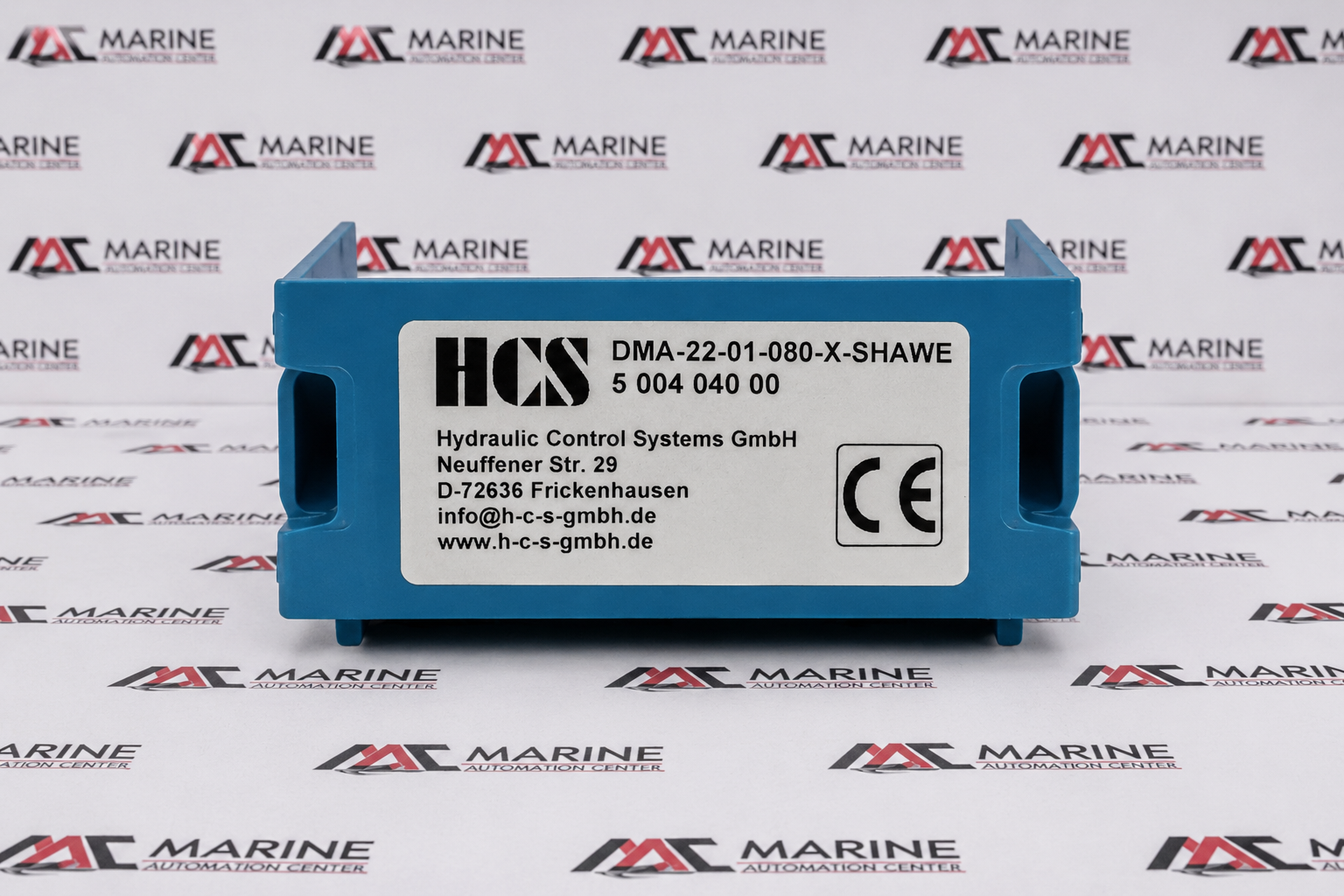

| Additional Information from Product Label | DMA-2 Controller; Type Code: DMA-22-01-080-X-SHAWE; Part Number: 5 004 040 00; RS232 communication interface; Terminal Identification X1–X4; PW/EN/ER status LEDs; HCS logo; CE marked; Manufacturer Email: info@h-c-s-gmbh.de |
| MADE IN | Germany |
| REF NO | 502 |
