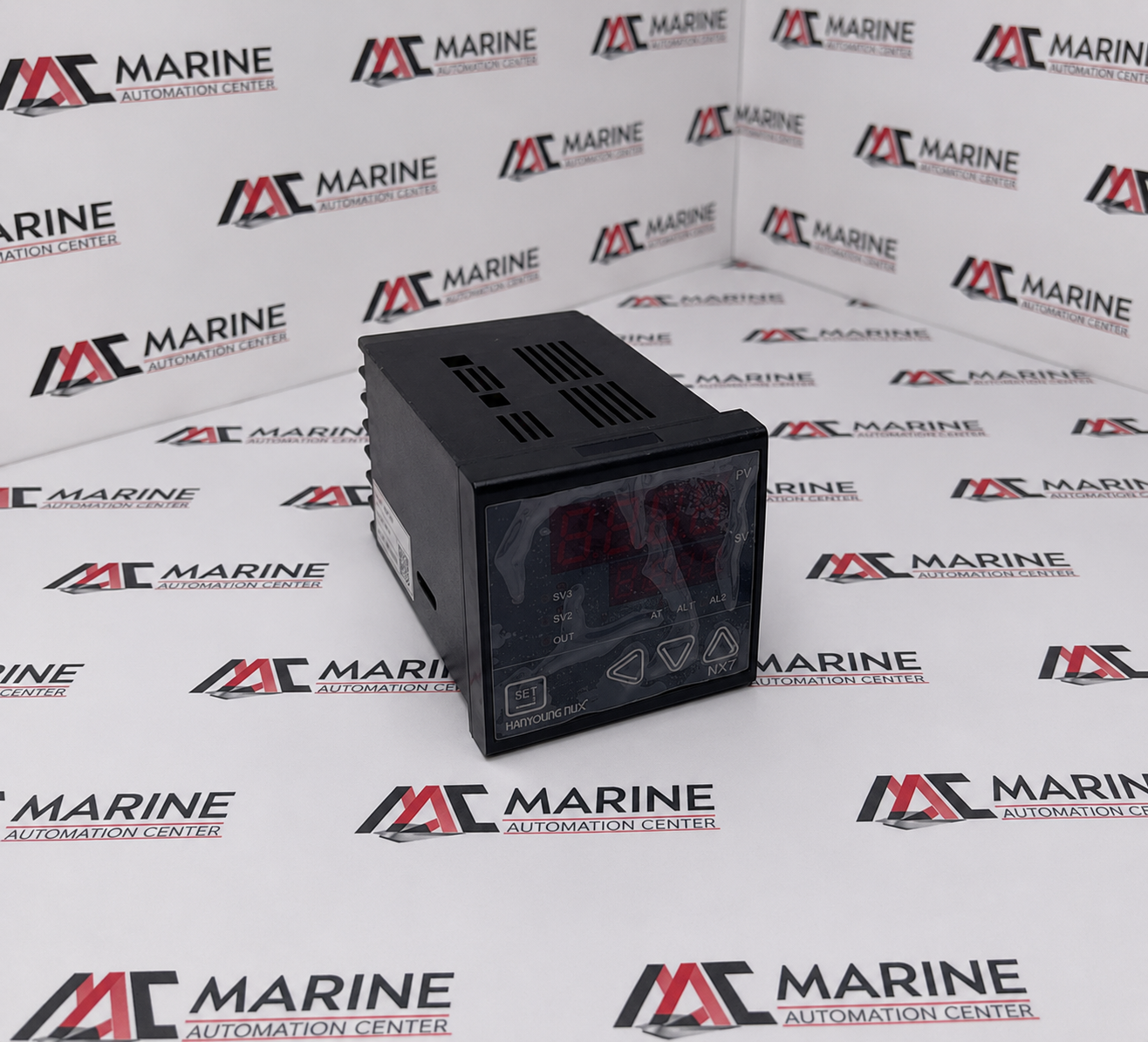

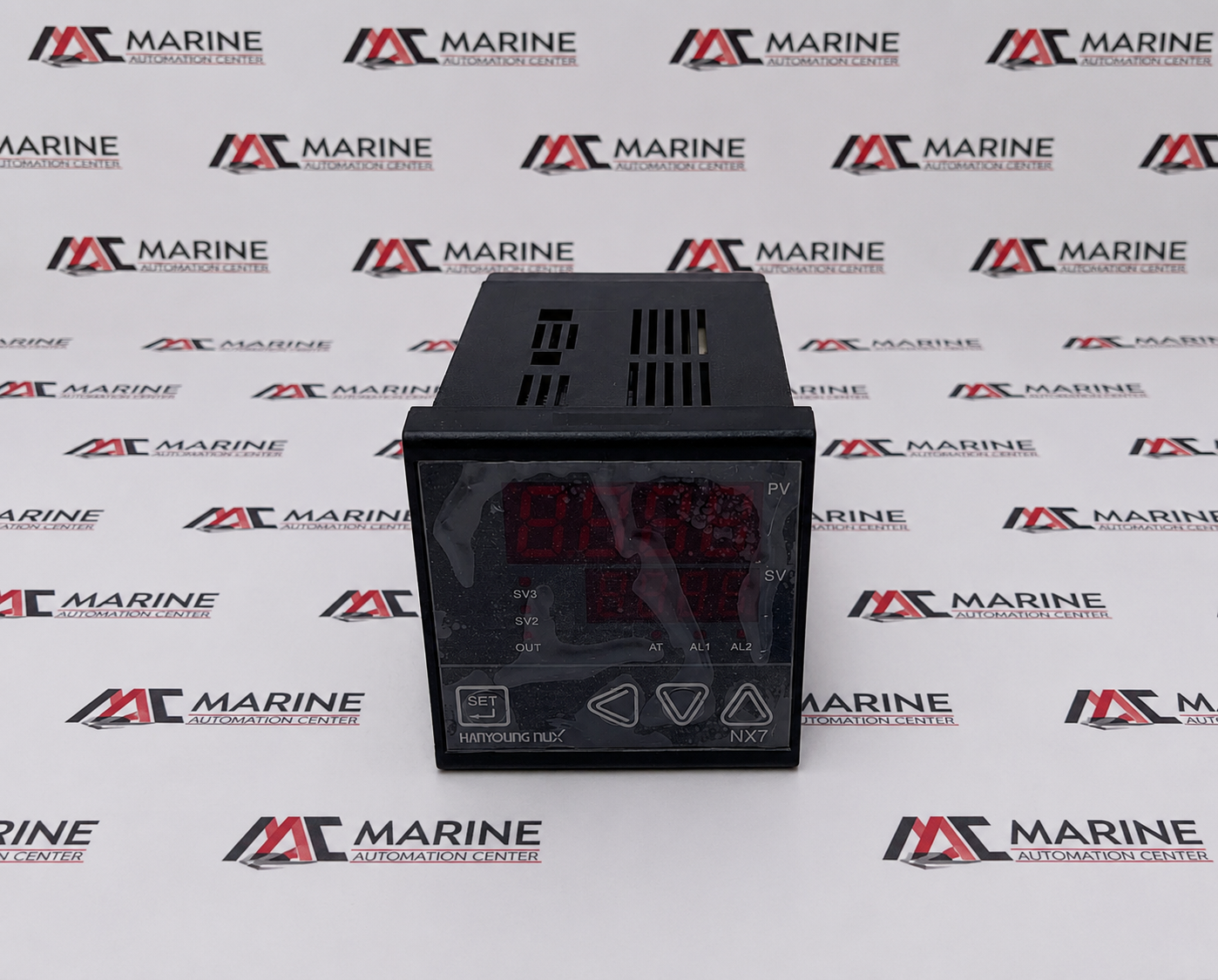

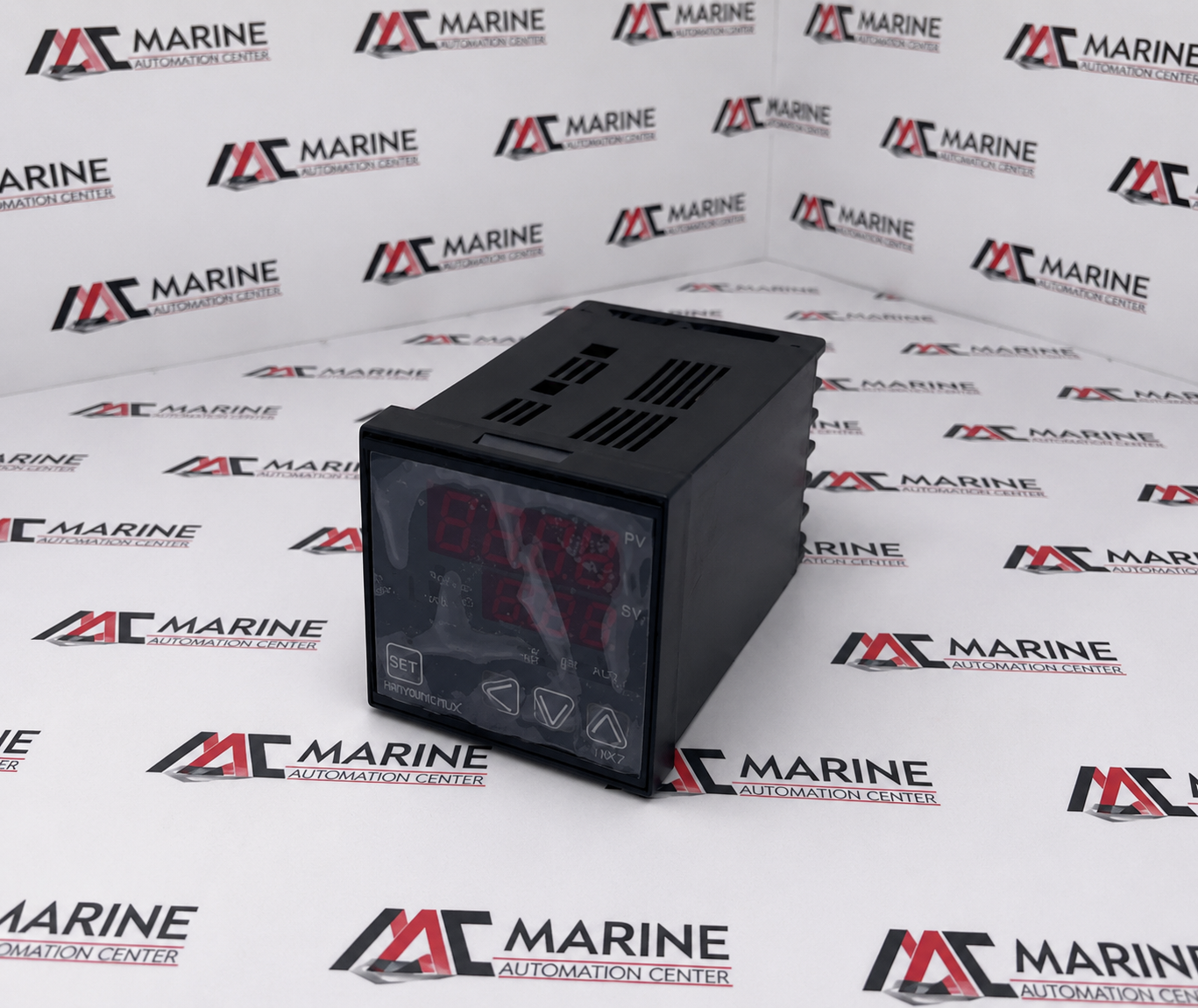

Hanyoung Nux NX7 Series Digital PID Temperature Controller
Hanyoung Nux NX7 Series Digital PID Temperature Controller (NX7-00) is a multi-input digital temperature controller designed for accurate temperature monitoring and PID process control in industrial applications. It supports thermocouple, RTD, voltage, and current inputs, features PID auto-tuning, ON/OFF and heating/cooling control modes, and offers multiple output options including relay, SSR, and analog output for precise and reliable temperature regulation
BRAND
Hanyoung Nux
TYPE
Digital Multi-Input/Output Temperature Controller
PART NO.
NX7 00
MODEL
NX7
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Hanyoung Nux |
| TYPE | Digital Multi-Input/Output Temperature Controller |
| PART NO. | NX7 00 |
| MODEL | NX7 |
| Voltage Rating | Power Input: 100 – 240 V AC (~ 50 / 60 Hz) | Power Consumption: 6 W (Max. 10 VA) |
| Application | Precise thermal management, heating/cooling systems, industrial ovens, and marine control automation |
| IEC Standards | CE Certified, cRUus recognized, and KC compliant (MSIP-REM-NUX-NX7) |
| Relay Output (OUT1) | 3 A at 240 V AC |
| Current Output (OUT1/2) | 4 – 20 mA DC |
| Solid State / Voltage Pulse | 12 V DC voltage pulse output |
| Circuit Specifications (AL1 & AL2) | maximum output capacity of 1 A at 240 V AC |
| Thermocouples | Types K, J, E, T, R, B, S, L, N, U, W, PL2 |
| Resistance Temperature Detectors | Pt100 Ω and KPt100 Ω platinum elements |
| Analog Inputs | Low-voltage millivolt signals (mV/V) or direct current scaling lines |
| Advanced Logic Processing | Fuzzy Logic control loops combined with PID Auto-Tuning algorithms |
| Environmental Parameters | copper or copper-clad aluminum conductors only |
| Made In | South Korea (ROK) |
| REF NO | 451 |
