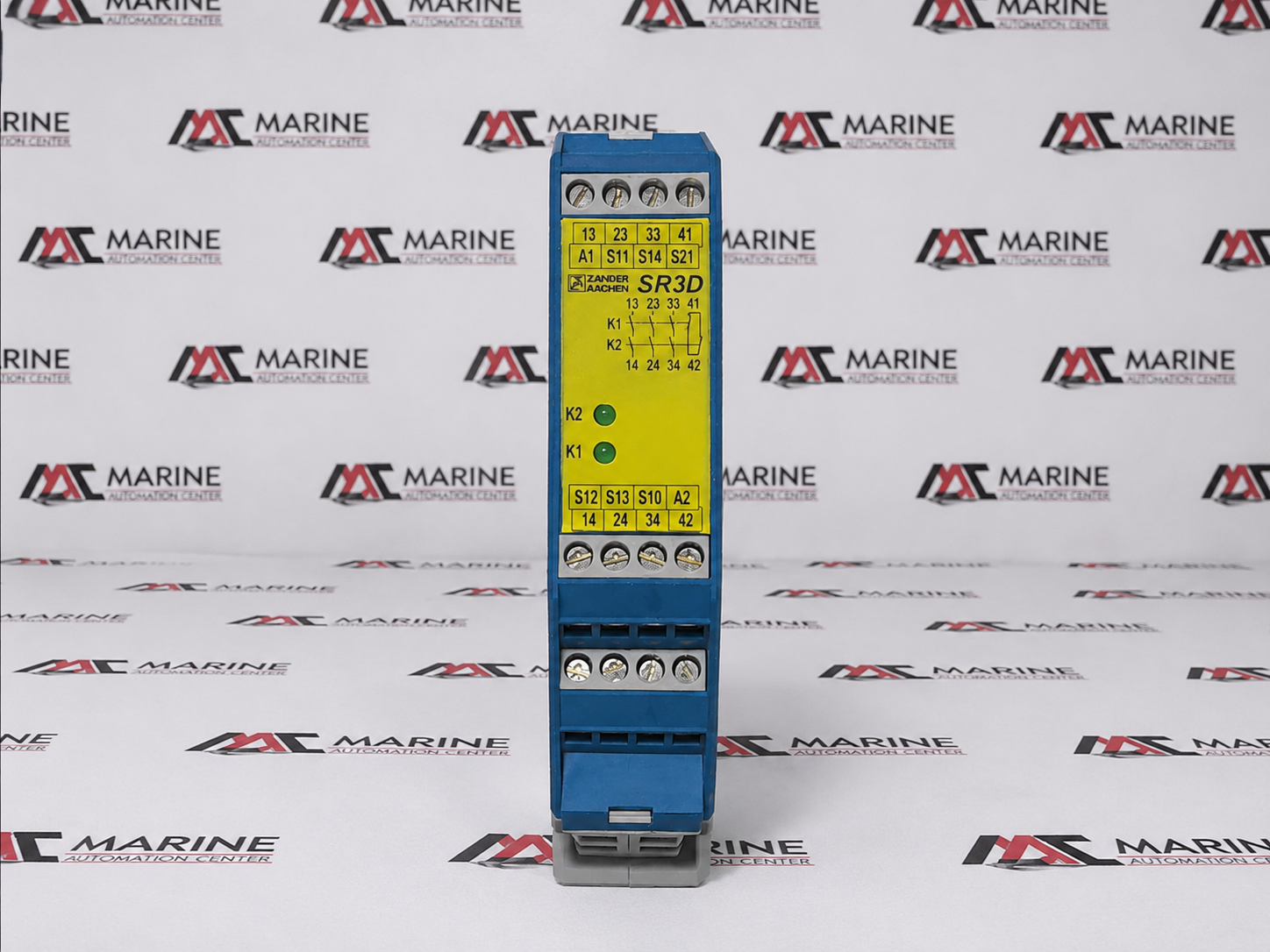

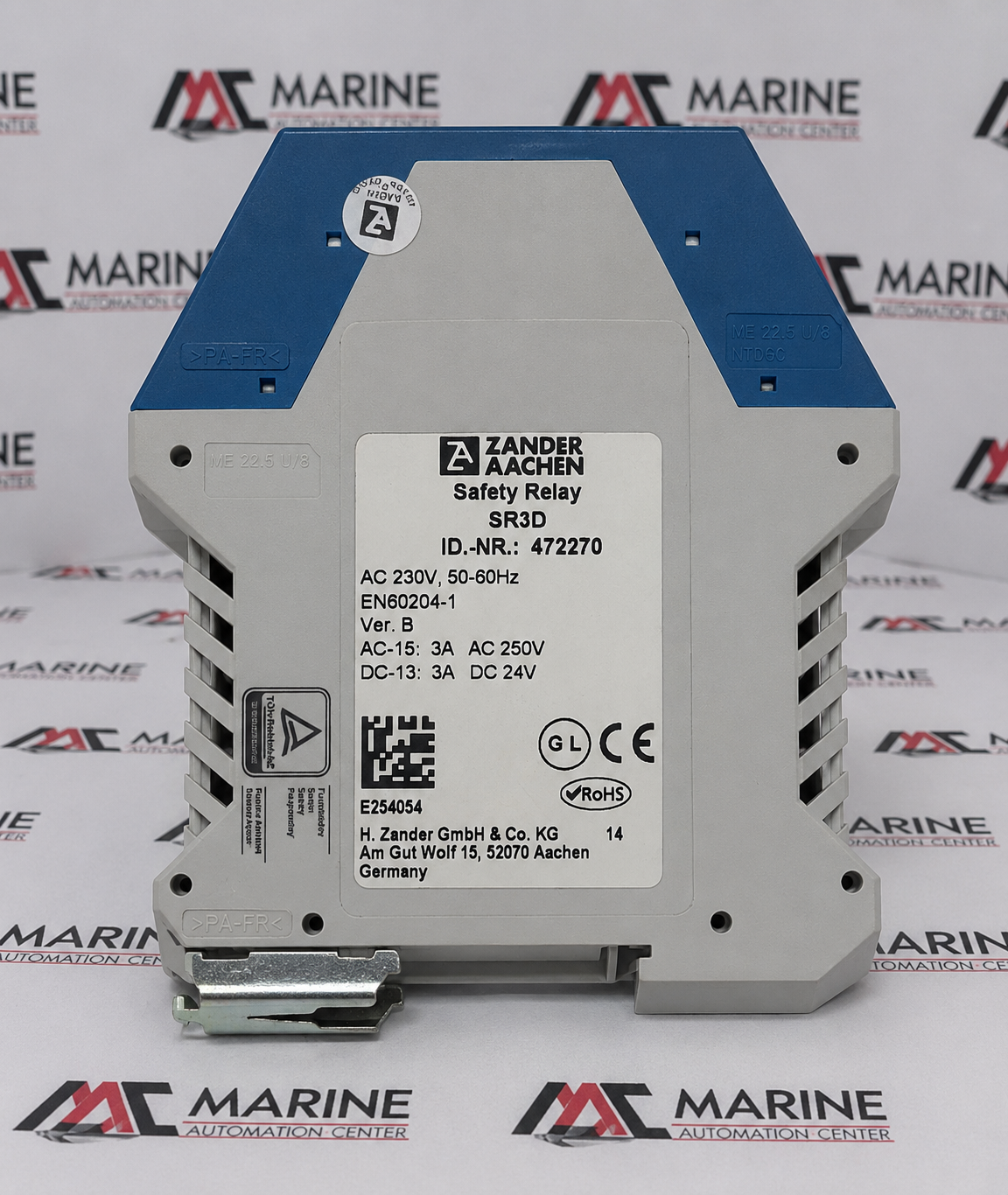

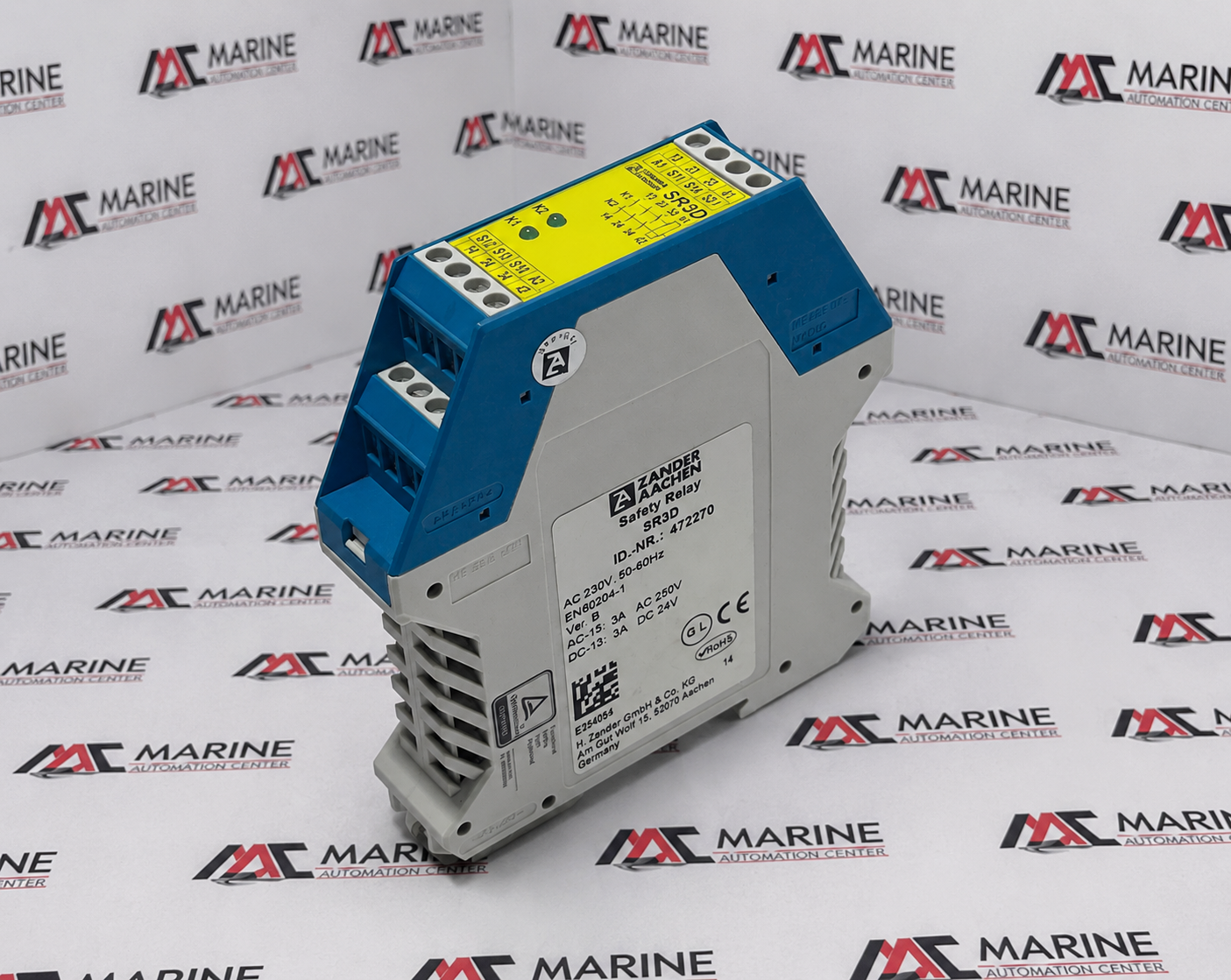

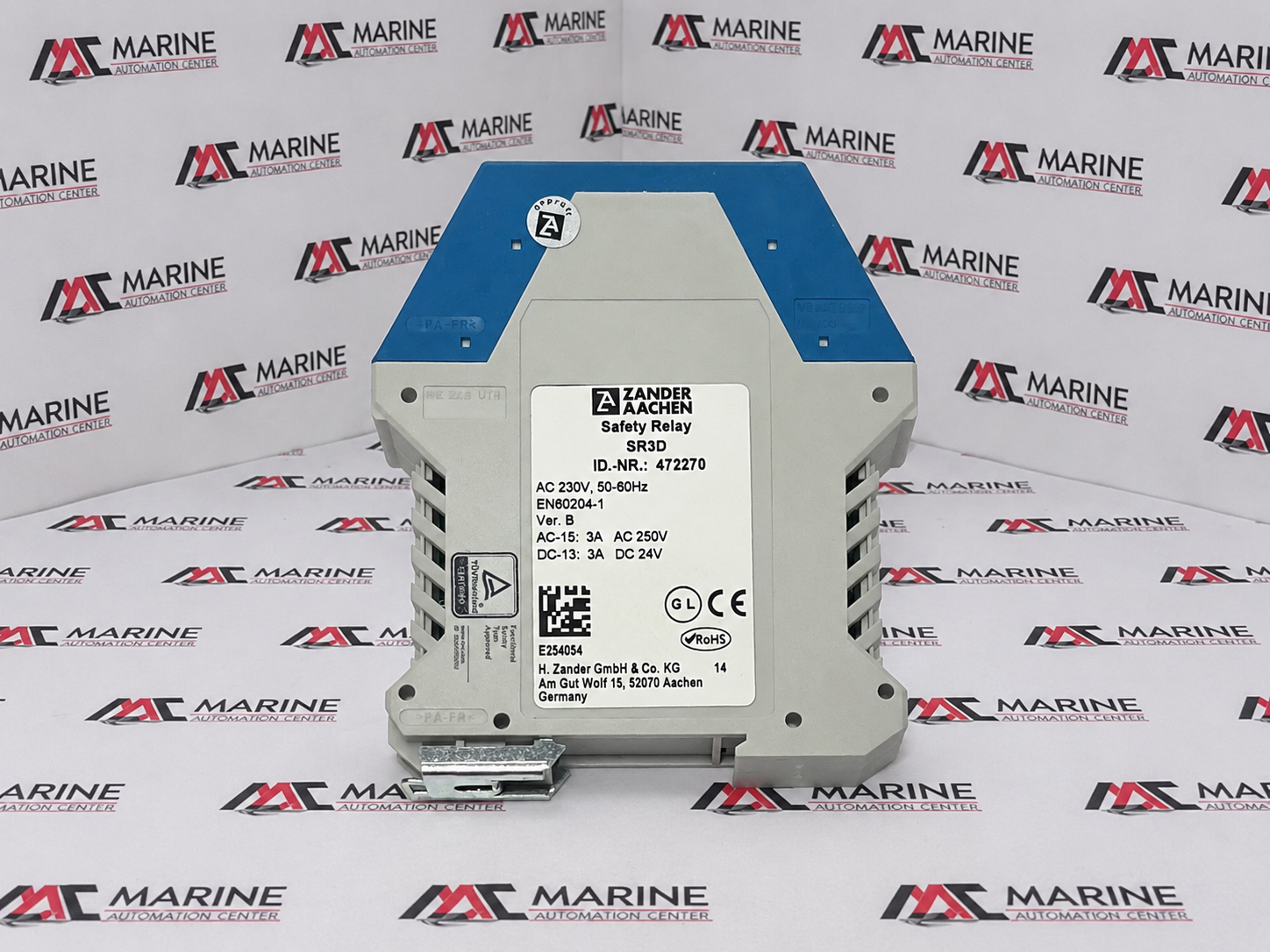

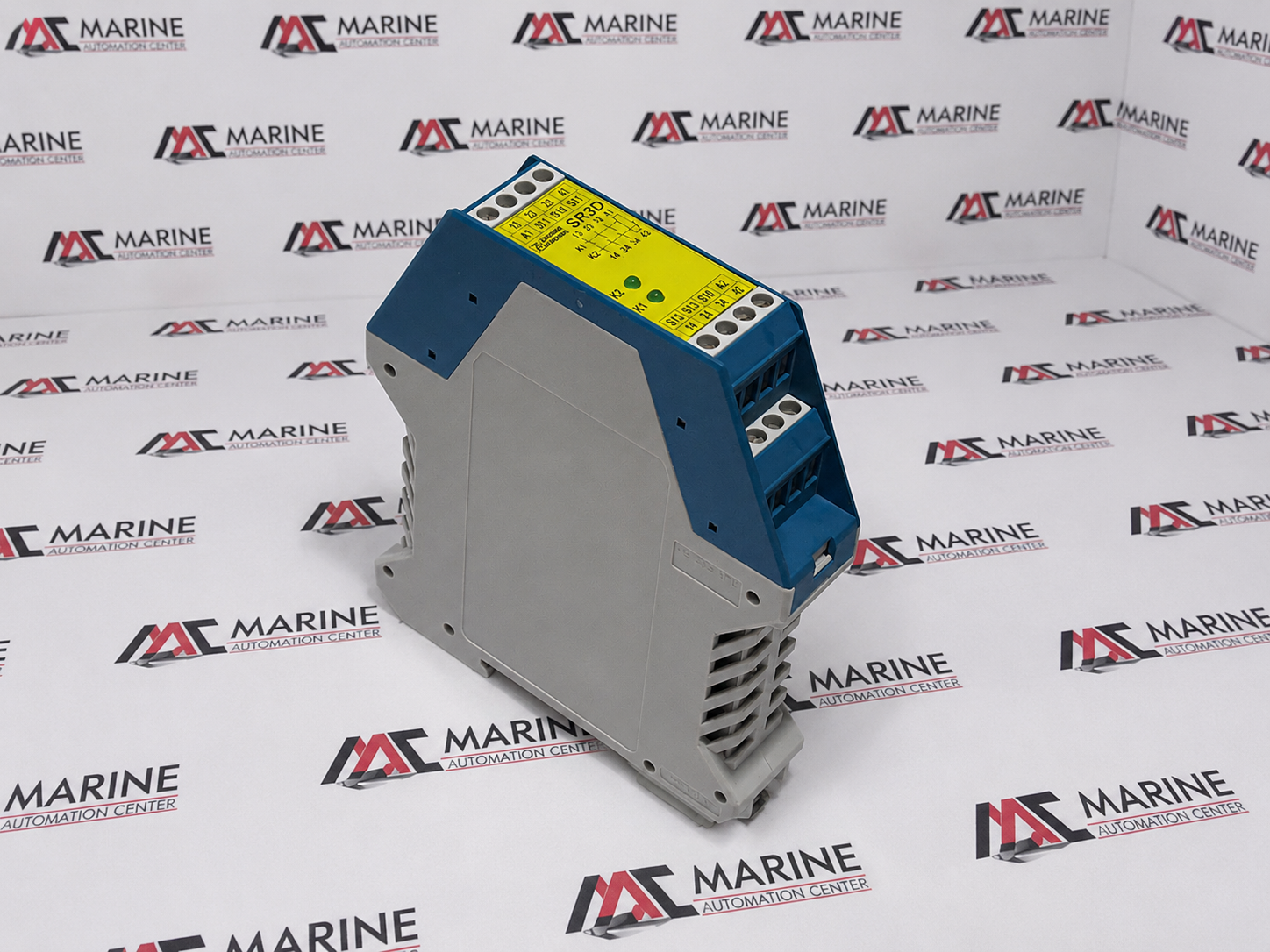

H. Zander GmbH & Co - Safety Relay SR3D
The H. Zander GmbH & Co SR3D Safety Relay is a high-performance industrial safety relay designed to monitor emergency stop circuits, safety gates, and other machine safety functions. It provides reliable safety switching with forced-guided contacts to ensure the safe shutdown of machinery, helping protect personnel and equipment in industrial automation and process control applications.
BRAND
Zander GmbH & Co
TYPE
Safety Relay
PART NO.
Safety Relay SR3D
MODEL
SR3D
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Zander GmbH & Co |
| TYPE | Safety Relay |
| PART NO. | Safety Relay SR3D |
| MODEL | SR3D |
| ID NUMBER | 472270 |
| SUPPLY VOLTAGE | AC 230 V |
| SUPPLY FREQUENCY | 50–60 Hz |
| CONTROL STANDARD | EN 60204-1 |
| RATED OPERATIONAL CURRENT (AC-15) | 3 A @ AC 250 V |
| RATED OPERATIONAL CURRENT (DC-13) | 3 A @ 24 V DC |
| CONTACT CONFIGURATION | 3 Safety Normally Open (NO) Contacts + 1 Auxiliary Normally Closed (NC) Contact |
| SAFETY OUTPUT RELAYS | Dual Redundant Safety Relays (K1 & K2) |
| STATUS INDICATION | Dual LED Status Indicators (K1 & K2) |
| MOUNTING TYPE | 35 mm DIN Rail Mount |
| TERMINAL TYPE | Screw Terminal |
| FUNCTION | Emergency Stop (E-Stop), Safety Gate & Interlock Monitoring |
| APPLICATION | Machine safety circuits, emergency stop systems, safety gate monitoring, industrial automation, machinery protection, control panels |
| CERTIFICATION | CE, GL (Germanischer Lloyd), TÜV Functional Safety Approved, RoHS |
| MADE IN | Germany |
| REF NO. | 1313 |
