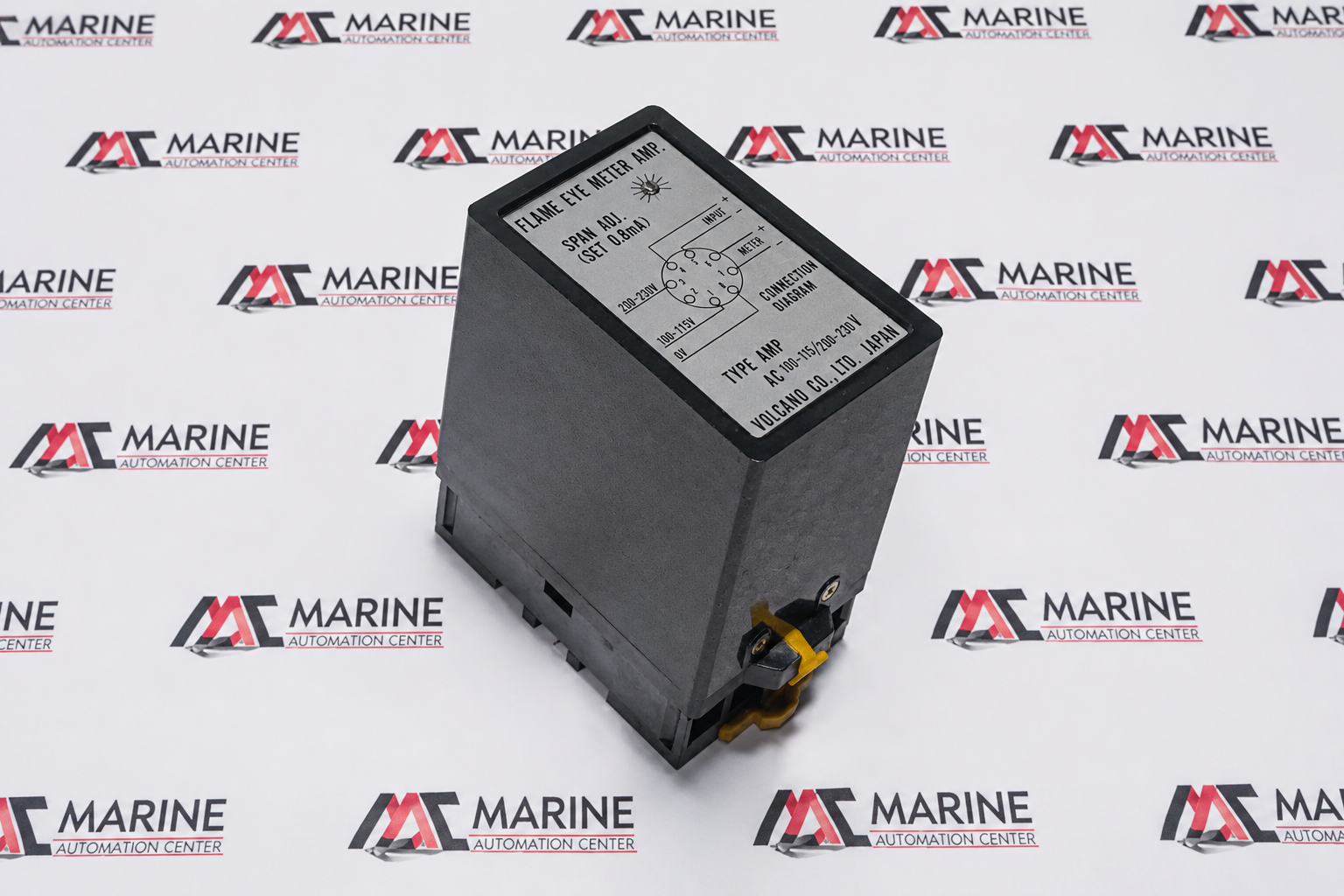

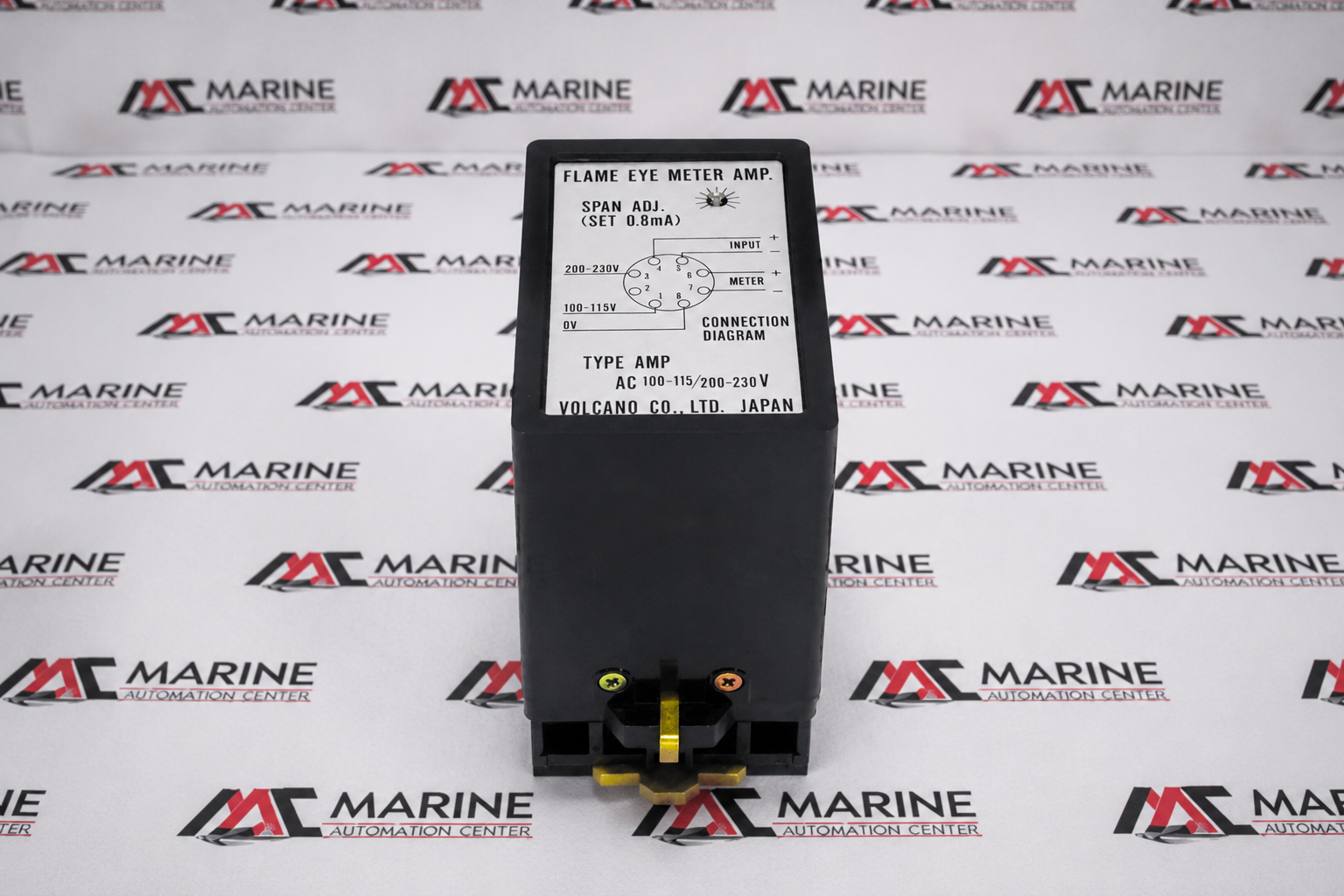

Flame Eye Meter Amplifier
The Volcano Flame Eye Meter Amplifier (Type AMP) is an industrial signal amplifier designed to process and amplify flame detection signals from flame eye sensors used in burner and boiler control systems. It provides stable signal conditioning for accurate flame monitoring, ensuring reliable combustion control and enhanced operational safety. The unit is widely used in marine boilers, industrial furnaces, and combustion management systems.
BRAND
Volcano Co., Ltd.
TYPE
Flame Eye Meter Amplifier
PART NO.
AMP
MODEL
AMP
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Volcano Co., Ltd. |
| TYPE | Flame Eye Meter Amplifier |
| PART NO. | AMP |
| MODEL | AMP |
| Voltage Rating | AC 100–115 V / 200–230 V |
| Application | Amplifier module for Volcano Flame Eye (flame monitoring) system used in marine boiler and burner combustion control systems. It amplifies the flame detector signal and drives the flame indication meter while enabling burner flame supervision |

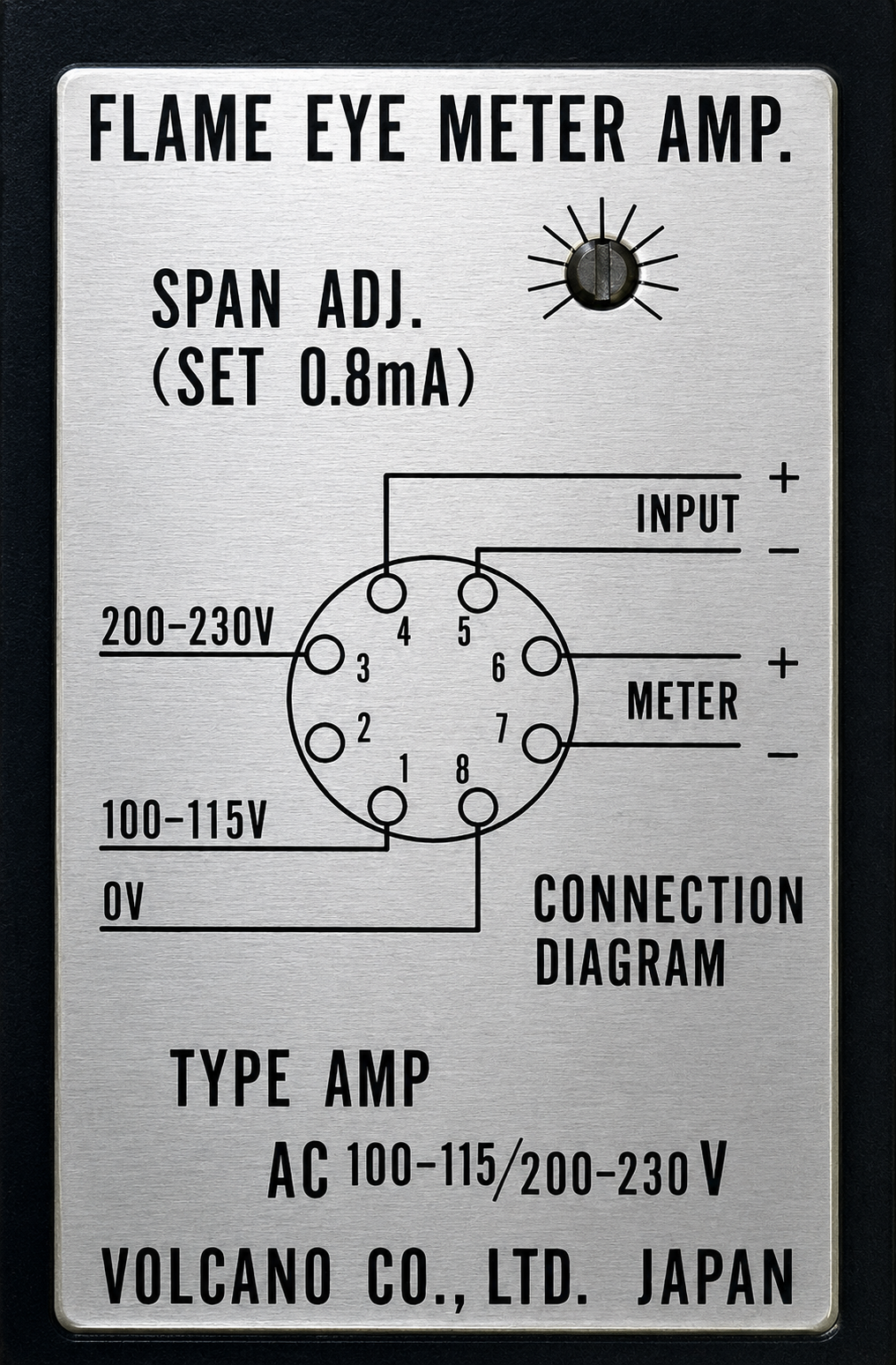

| Span Adjustment | Factory set to 0.8 mA |
| Meter Output | Analog meter output |
| Input Signal | Flame detector input |
| Supply Frequency | 50/60 Hz |
| Mounting | Plug-in socket mounting |
| Connection | Multi-pin socket |
| Housing | Industrial plastic enclosure |
| Cooling | Natural air cooling |
| Electrical Connection | Rear plug-in connector |
| Protection | Intended for installation inside a burner control panel |
| Function | Flame signal amplification and indication |
| Industry | Marine Boiler Automation |
| Compatible Equipment | Volcano burner control systems |
| Made In | Japan |
| REF NO. | 1188 |
