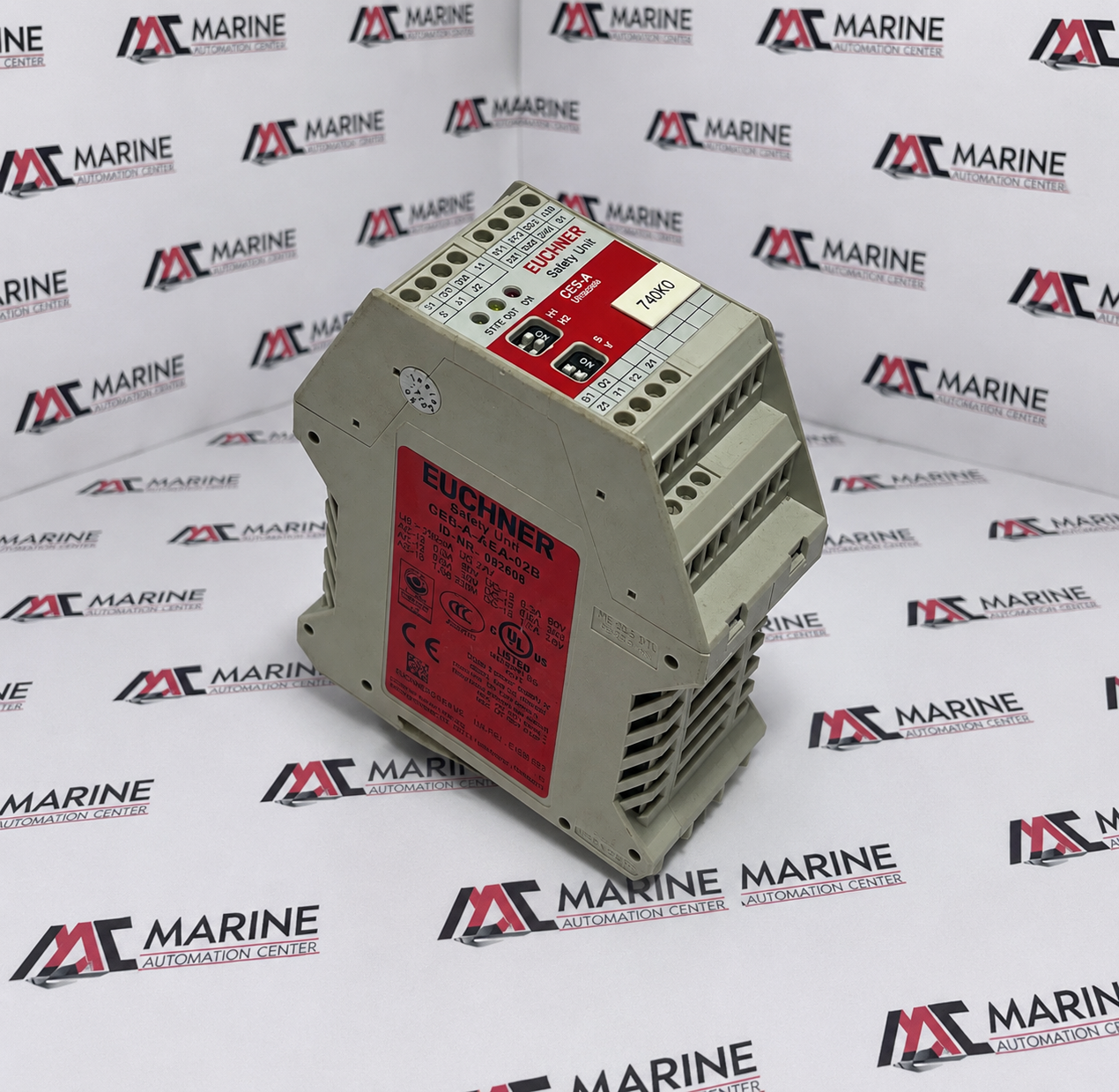

EUCHNER Safety Unit CES-A-AEA-02B
The Euchner GmbH + Co. KG CES-A-AEA-02B Safety Unit is a non-contact coded electronic safety switch evaluation unit designed for monitoring safety doors, guards, and access points in industrial machinery. It provides reliable safety monitoring, tamper-resistant operation, and integration with machine safety circuits to help ensure personnel protection and compliance with industrial safety standards.
BRAND
Euchner
TYPE
Safety Unit
PART NO.
Euchner Safety Unit CES-A-AEA-02B
MODEL
CES-A-AEA-02B
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Euchner |
| TYPE | Safety Unit |
| PART NO. | Euchner Safety Unit CES-A-AEA-02B |
| MODEL | CES-A-AEA-02B |
| ID NUMBER | 092560 |

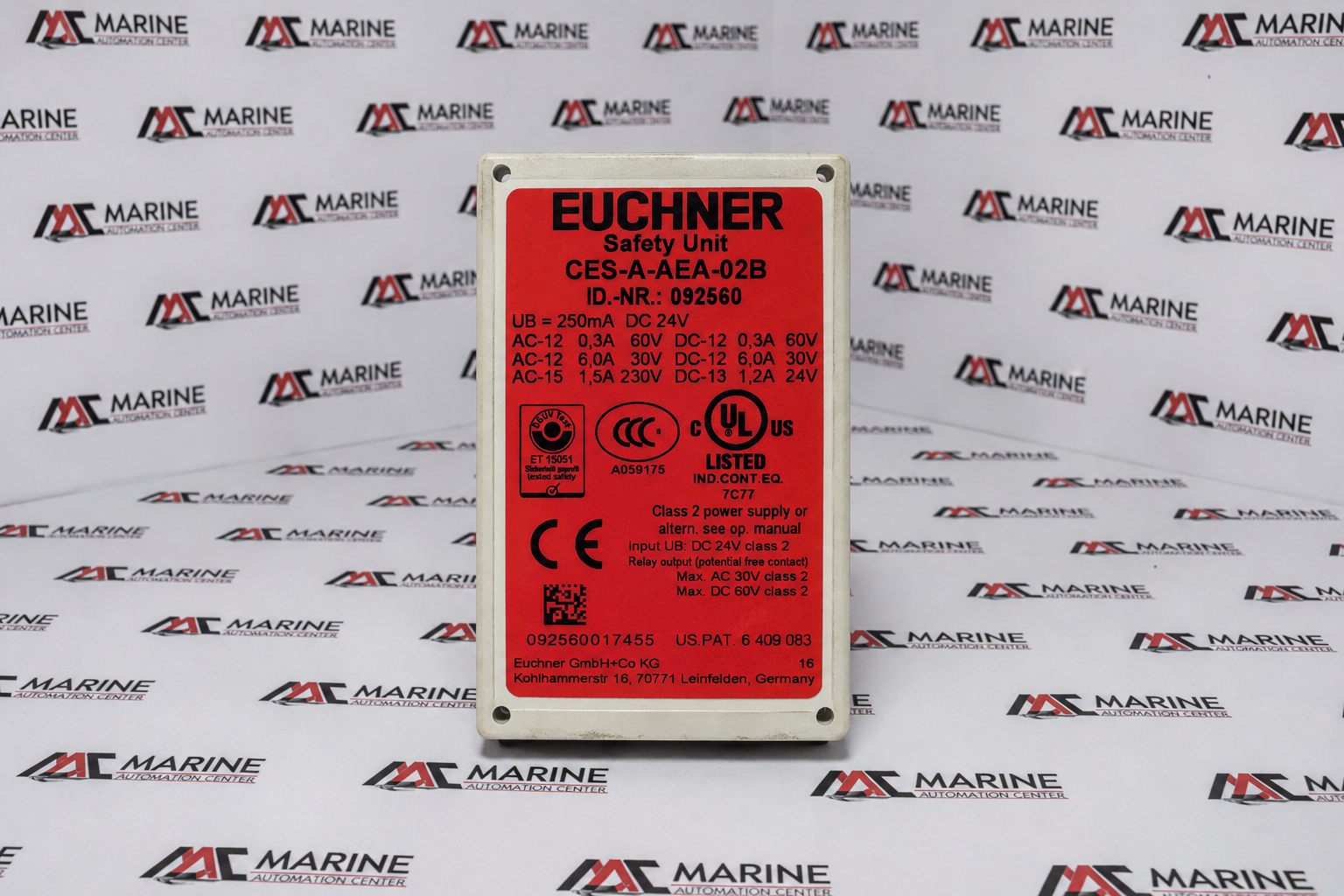

| OPERATING VOLTAGE (UB) | 24 V DC |
| CURRENT CONSUMPTION | 250 mA |
| POWER SUPPLY | Class 2, 24 V DC |
| INPUT VOLTAGE | DC 24 V Class 2 |
| RELAY OUTPUT | Potential-Free (Dry Contact) Relay Output |
| MAX AC OUTPUT VOLTAGE | 30 V AC (Class 2) |
| MAX DC OUTPUT VOLTAGE | 60 V DC (Class 2) |
| SWITCHING CAPACITY (AC-12) | 0.3 A @ 60 V AC |
| SWITCHING CAPACITY (AC-15) | 1.5 A @ 230 V AC |
| SAFETY FUNCTION | Monitoring and evaluation of Euchner CES Unicode safety transponder sensors |

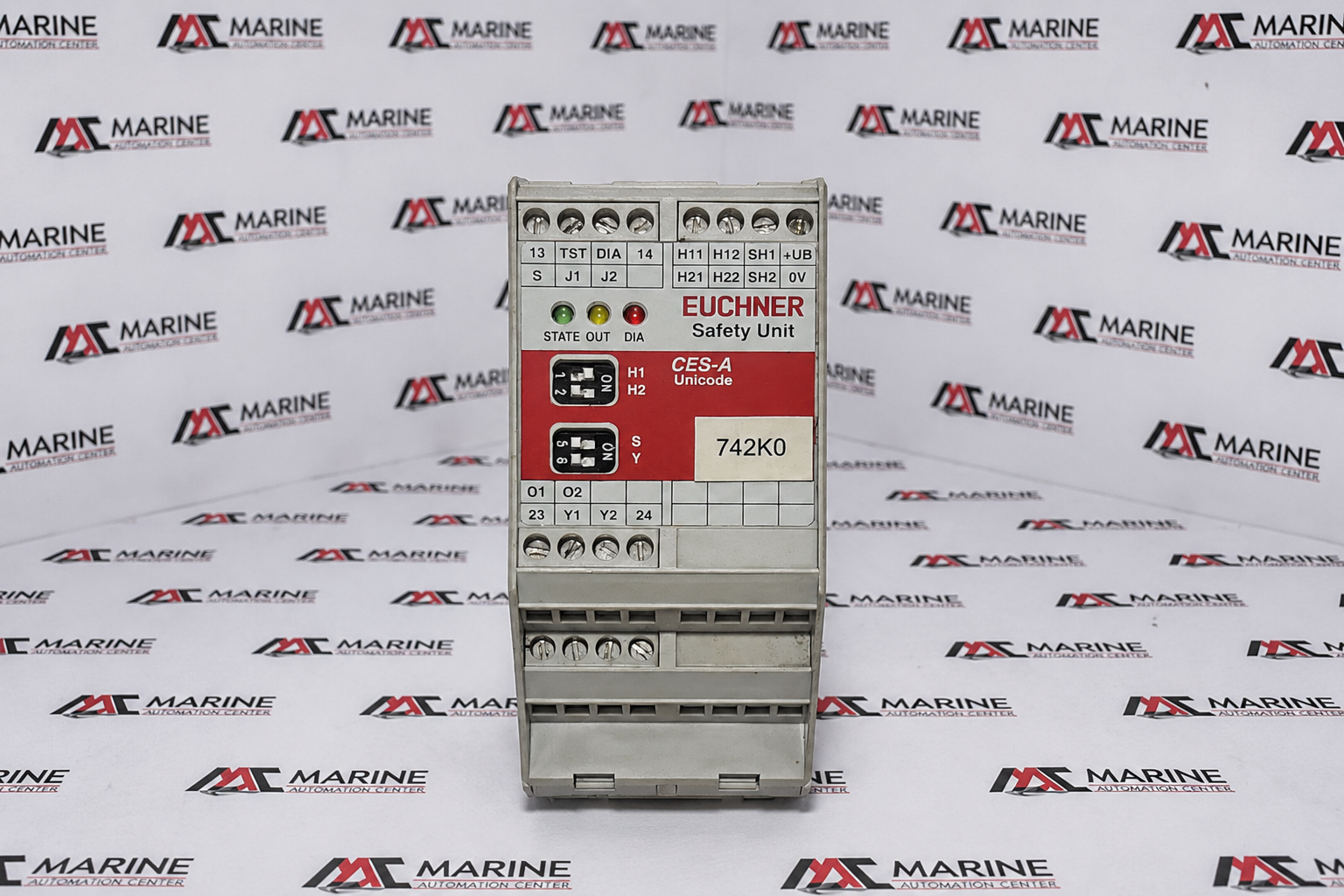

| STATUS INDICATORS | STATE OUT (Green), DIA (Yellow), DIA (Red) LEDs |
| MADE IN | Germany |
| REF NO. | 1340 |
