ESD GmbH CAN-CBM-Repeater-Y CAN Bus Module
The esd GmbH CAN-CBM-Repeater-Y is a DIN-rail mounted CAN bus repeater module designed to split one CAN network into two branches while maintaining reliable communication. It supports three CAN interfaces, data rates up to 1 Mbit/s, and complies with ISO 11898. The C.1330.07 variant includes galvanic isolation for improved electrical protection in industrial automation applications
BRAND
ESD GmbH (electronic system design)
TYPE
CAN Bus Repeater / Converter Module
PART NO.
C.1330.03 (Standard model) / C.1330.07 (Opto-isolated variation)
MODEL
CAN-CBM-Repeater-Y
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | ESD GmbH (electronic system design) |
| TYPE | CAN Bus Repeater / Converter Module |
| PART NO. | C.1330.03 (Standard model) / C.1330.07 (Opto-isolated variation) |
| MODEL | CAN-CBM-Repeater-Y |
| Voltage Rating | 24 V DC Nom |
| Application | Coupling of up to three independent CAN bus networks (CAN Net 1, CAN Net 2, CAN Net 3), extending physical transmission lengths, isolating bus branches, and branching network topology into star formations |
| IEC | Conforms to standard industrial electrical isolation and electromagnetic compatibility (EMC) regulations |

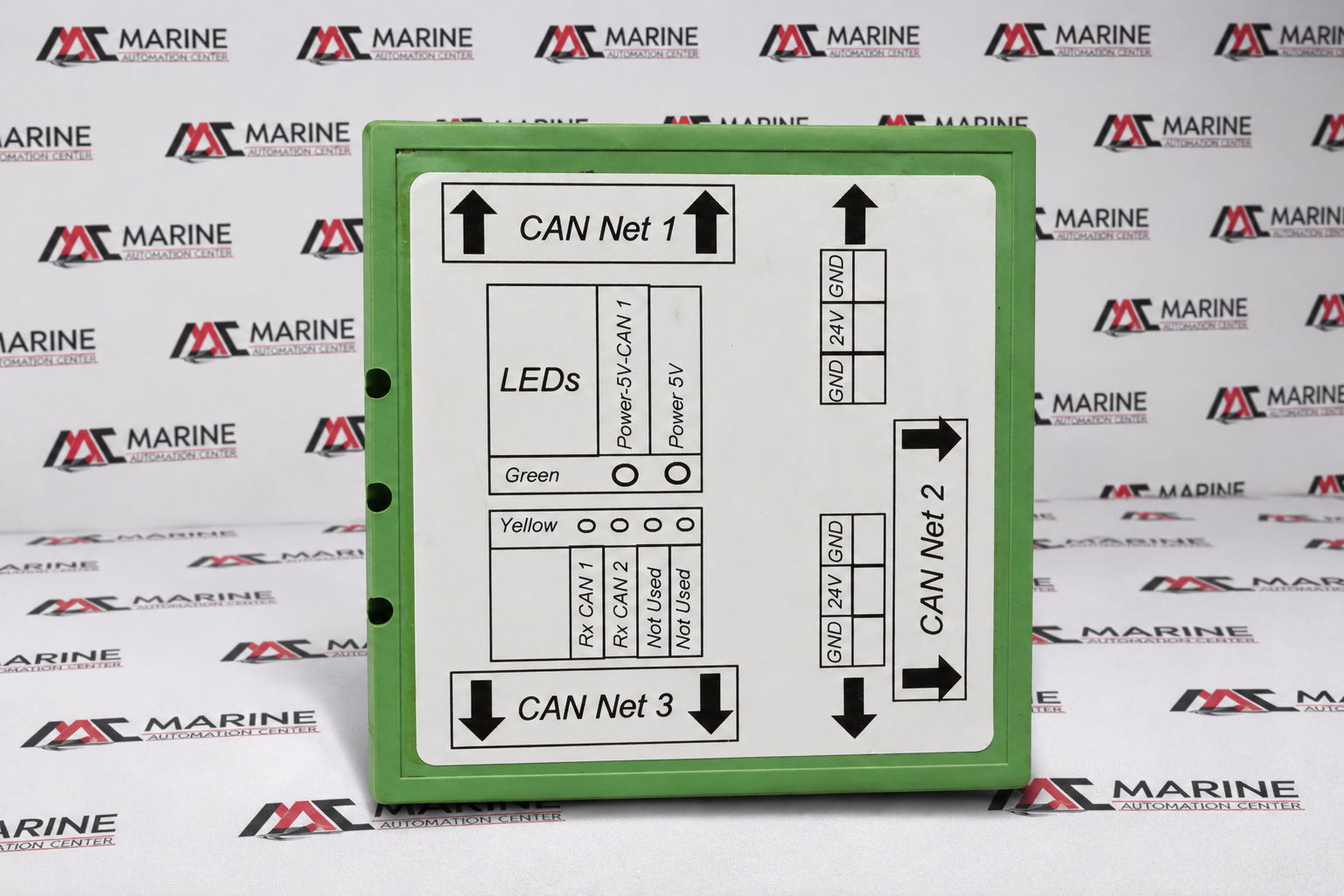

| Green LEDs | Power 5V-CAN 1 (Internal isolated loop power status) & Power 5V (Main internal logic rail validation) |
| Yellow LEDs | Rx CAN 1 & Rx CAN 2 signaling active data transmission/receive pulses across primary networks |
| Power Redundancy Construction | Features dual 3-pin GND / 24V / GND terminal connection clusters to hook up redundant power grid feeds |
| Galvanic Isolation | Electrically separates connected CAN net sections to block ground loop interference or cross-network transient spikes from damaging upstream PLC/PC interface controllers |
| Made In | Germany |
| REF NO | 1468 |
