ENERTEC FAR 1210 B Measurement Transducer 7JLKGUG001
Explore the FAR 1210 B measurement transducer by ENERTEC. Discover key specs including accuracy class 0.2, 58-62 Hz range, and nominal current of 1A. Made in France with reliable performance
BRAND
ENERTEC
TYPE
Measurement Transducer
PART NO.
7JLKGUG001
MODEL
FAR 1210 B
Full Technical Specifications ▶

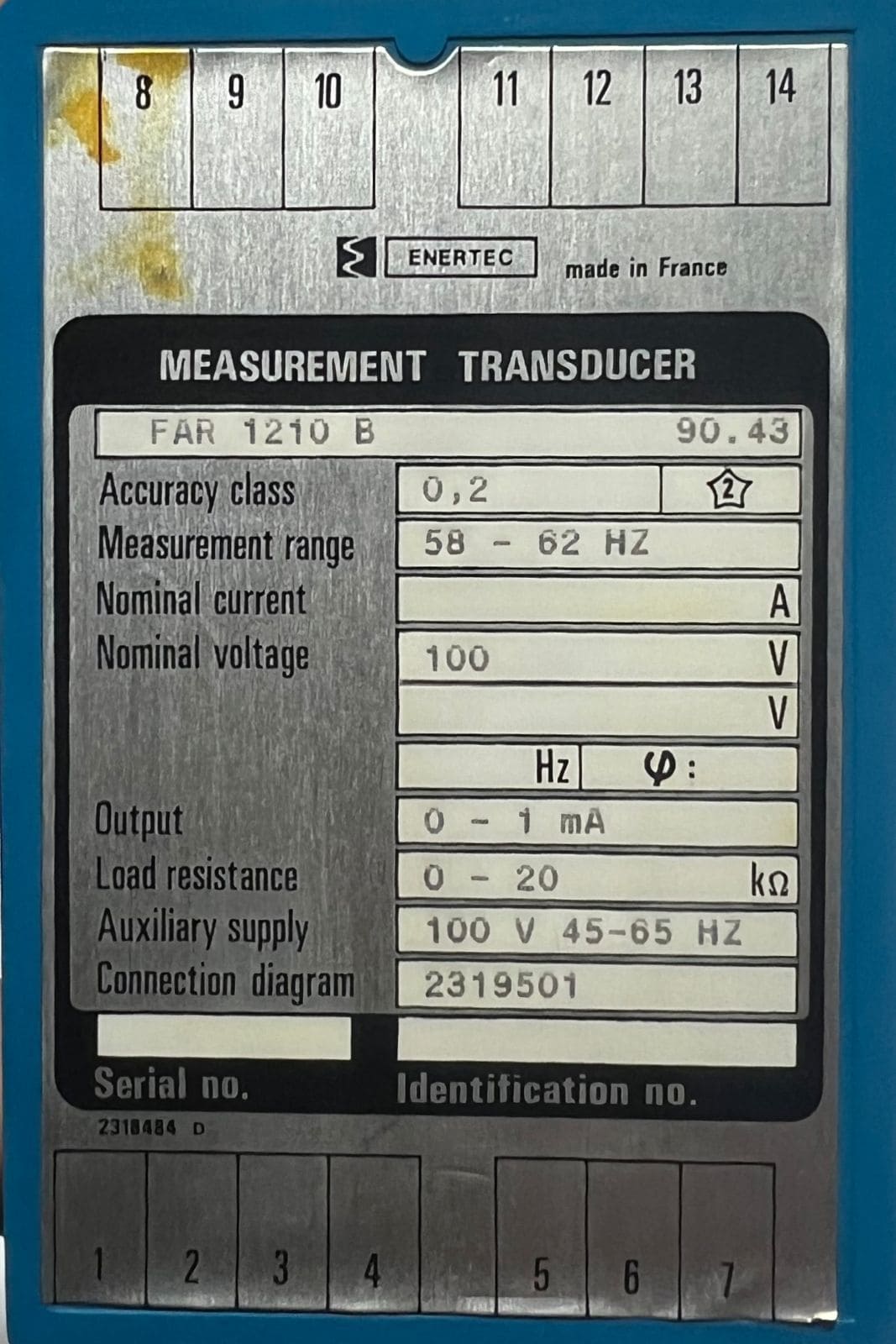

| Parameter | Value / Description |
|---|---|
| BRAND | ENERTEC |
| TYPE | Measurement Transducer |
| PART NO. | 7JLKGUG001 |
| MODEL | FAR 1210 B |
| Serial number | 2318484 D |
| Measurement range | 58 - 62 Hz |
| Nominal current | 1 A |
| Nominal voltage | 100 V |
| Output | 0 - 1 mA |
| Load resistance | 0 - 20 kΩ |
| Auxiliary supply | 100 V 45-65 Hz |
| Connection diagram | 2319501 |
| Accuracy class | 0,2 |
| Made in | France |
| Reference No. | 884 |
