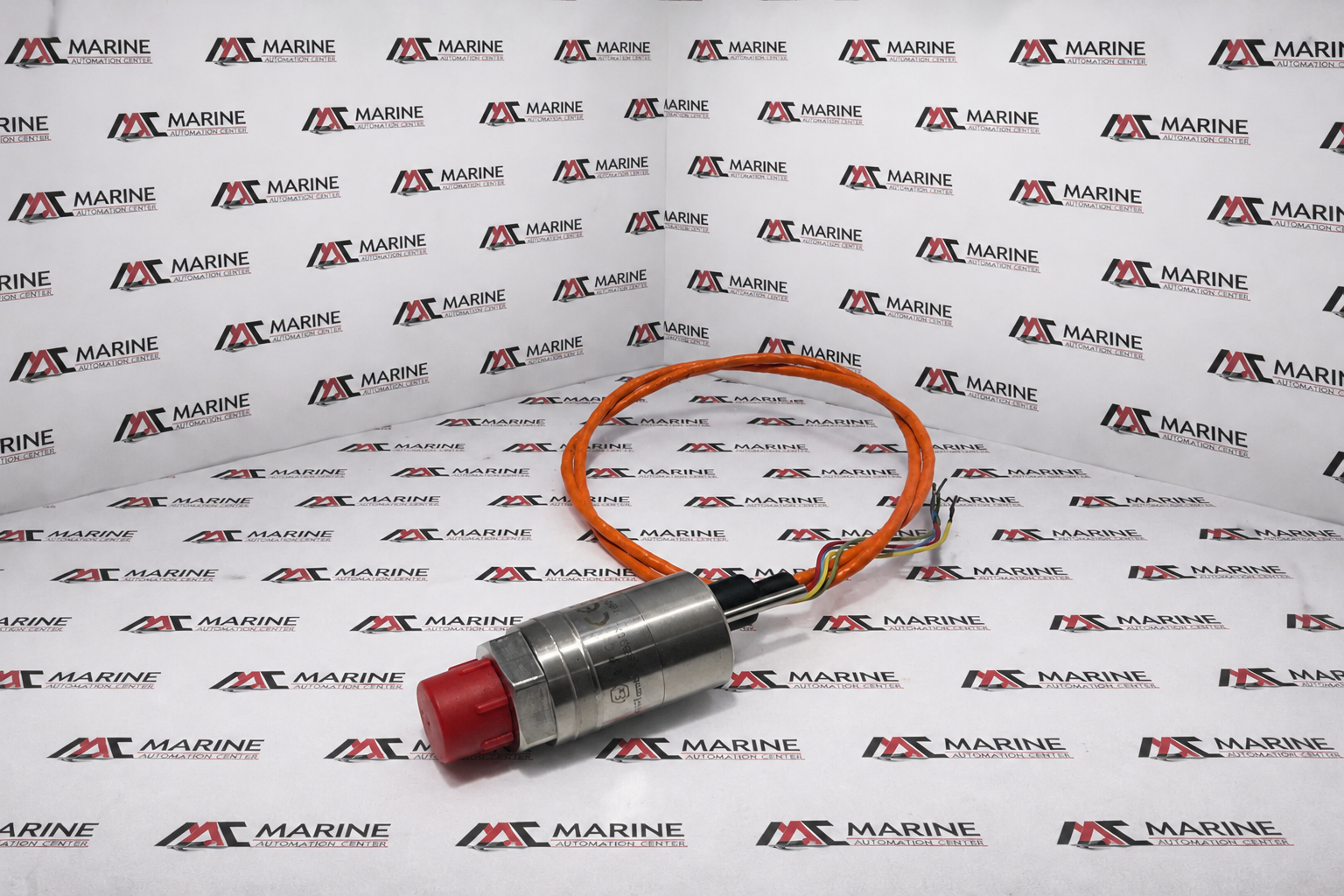

Emerson Damcos Rosemount Saab Tank Radar Pressure Transducer
Emerson Damcos Rosemount Saab Tank Radar Pressure Transducer (9150065-601SP) is a high-precision pressure sensor designed for Saab tank radar gauging systems. Featuring a DRUCK sensing element (PDCR 921-1742), it provides accurate and reliable pressure measurement for tank level monitoring, marine, and industrial process applications, ensuring stable performance in demanding environments
BRAND
EMERSON / ROSEMOUNT
TYPE
Tank Radar Gauge Pressure Sensor / Transducer
PART NO.
9150065-601SP
MODEL
Saab Tank Radar Pressure Transducer (PDCR 921-1742)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | EMERSON / ROSEMOUNT |
| TYPE | Tank Radar Gauge Pressure Sensor / Transducer |
| PART NO. | 9150065-601SP |
| MODEL | Saab Tank Radar Pressure Transducer (PDCR 921-1742) |
| Voltage Rating | 5 V DC (Excitation/Supply Voltage) |
| Application | Liquid level gauging, ballast tank pressure monitoring, and cargo level tracking systems utilizing Saab/Rosemount Tank Radar processing networks onboard marine vessels |
| IEC | Intrinsically safe parameters complying with ATEX / IECEx directives (BAS02ATEX1250X / EEx ia IIC T4) |
| Pressure Range | -0.5 bar to +0.5 bar (-500 to +500 m bar g) |
| Output Span | 35 mV ± 0.5 mV |
| Zero Offset Stability | 0 mV ± 1.5 mV |
| Process Connection Fitting Size | M14 x 1.5 mm Male thread configuration |
| Mounting Installation Torque | 20 Nm |
| Ambient Operating Temperature Limits | -40°C to +80°C (\(-40\leq T_{amb}\leq 80^\circ\text{C}\)) |
| Made In | United Kingdom |
| REF NO | 1363 |
