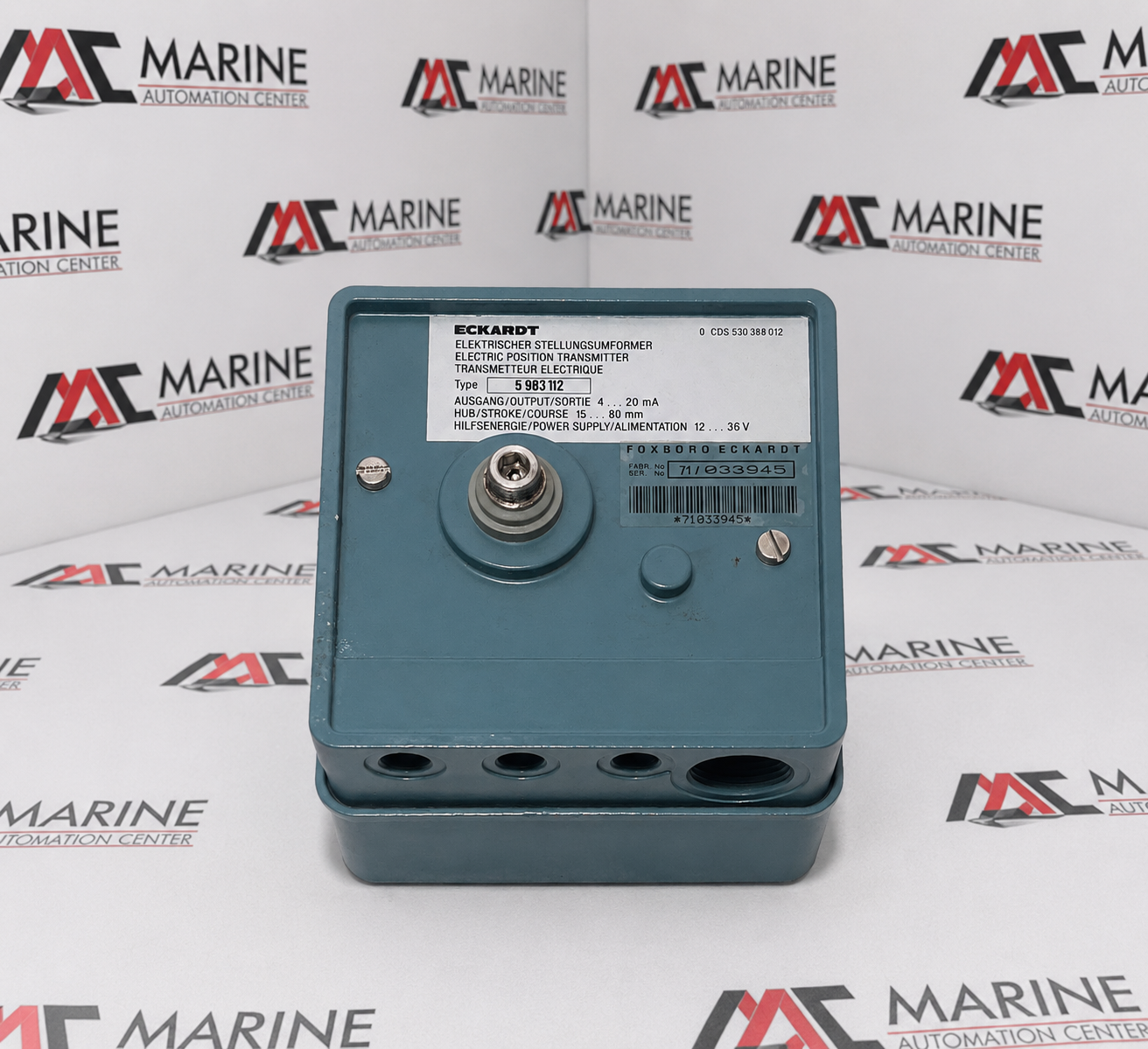

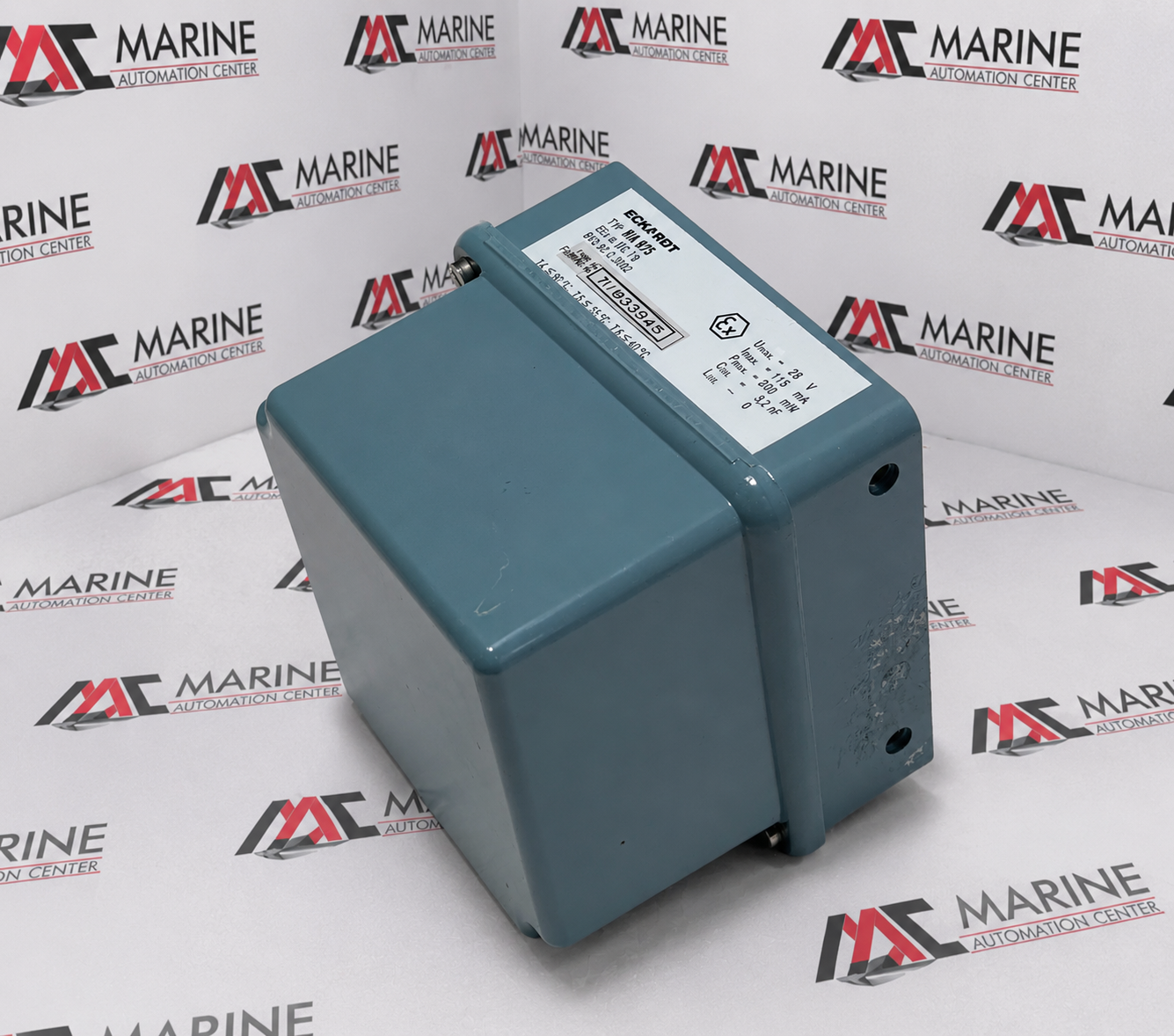

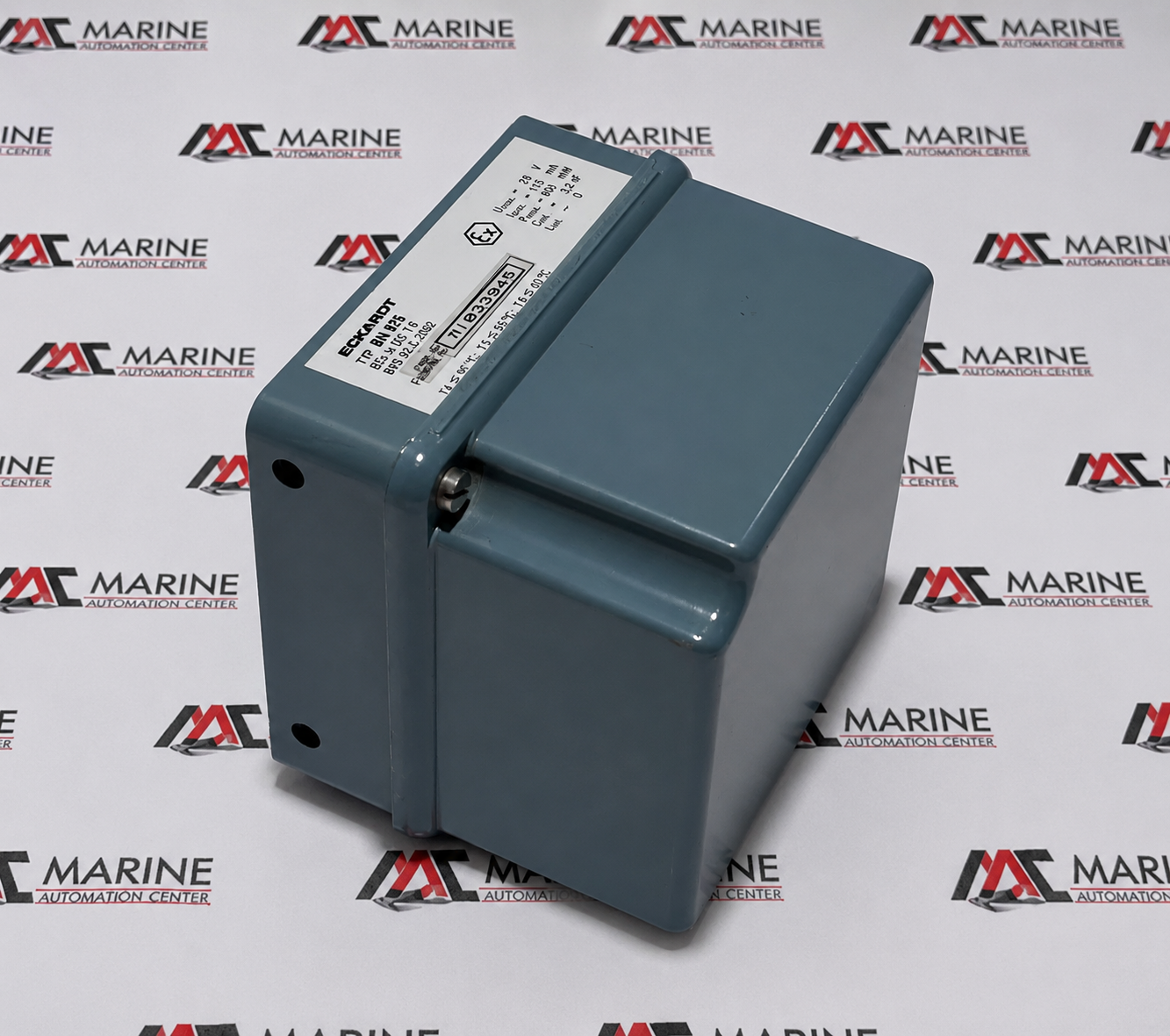

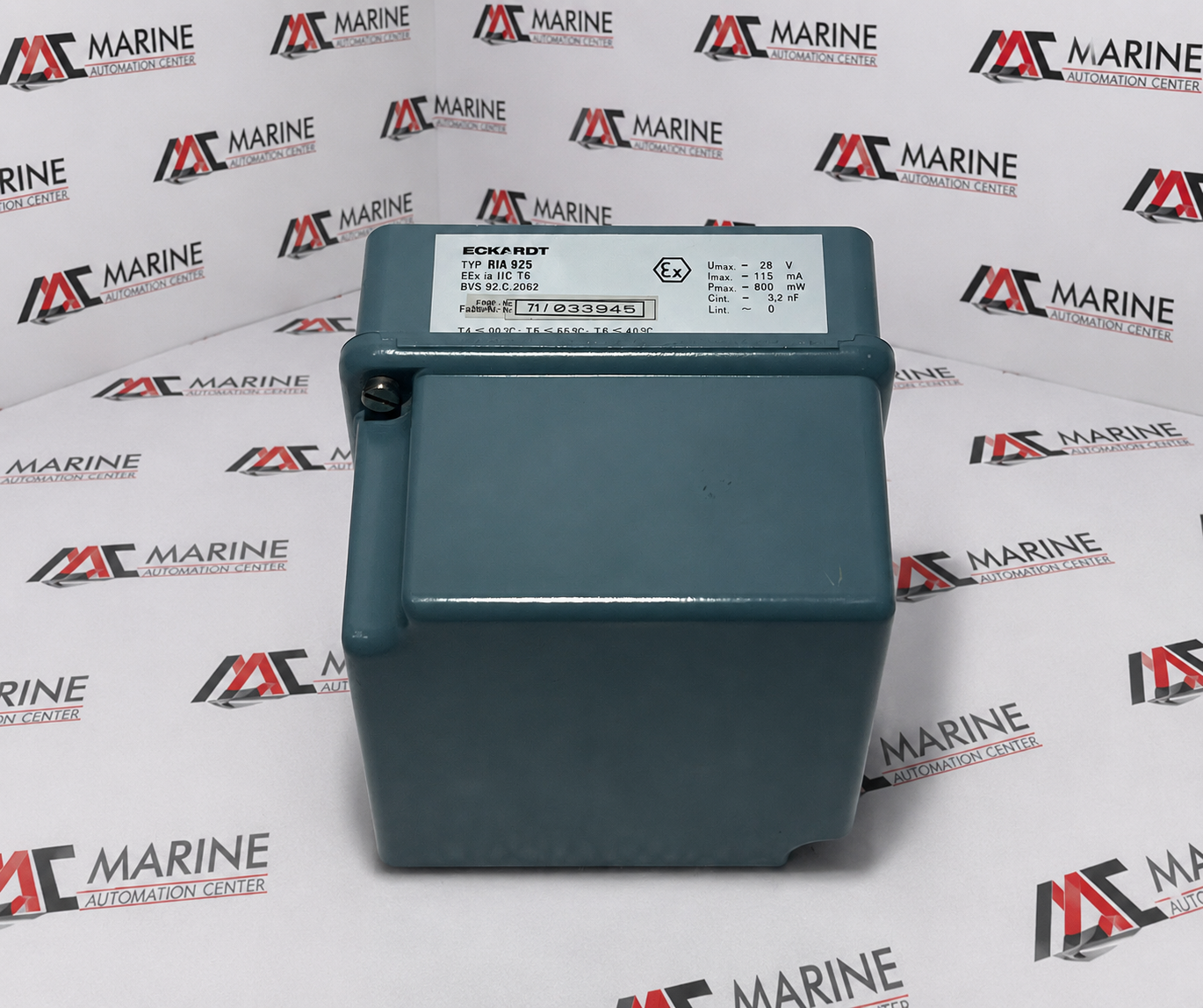

Eckardt Electric Position Transmitter
The Eckardt 5983112 BIA 925 is an electric position transmitter designed to accurately convert valve or actuator position into a proportional electrical output signal for monitoring and control applications. It provides reliable position feedback, high measurement accuracy, and stable performance, making it suitable for industrial automation, process control, and valve position indication systems.
BRAND
Eckardt
TYPE
Electric Position Transmitter
PART NO.
5983112
MODEL
BIA 925
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Eckardt |
| TYPE | Electric Position Transmitter |
| PART NO. | 5983112 |
| MODEL | BIA 925 |
| OUTPUT SIGNAL | 4–20 mA DC |
| POWER SUPPLY | 12–36 V DC |
| STROKE RANGE | 15–80 mm |

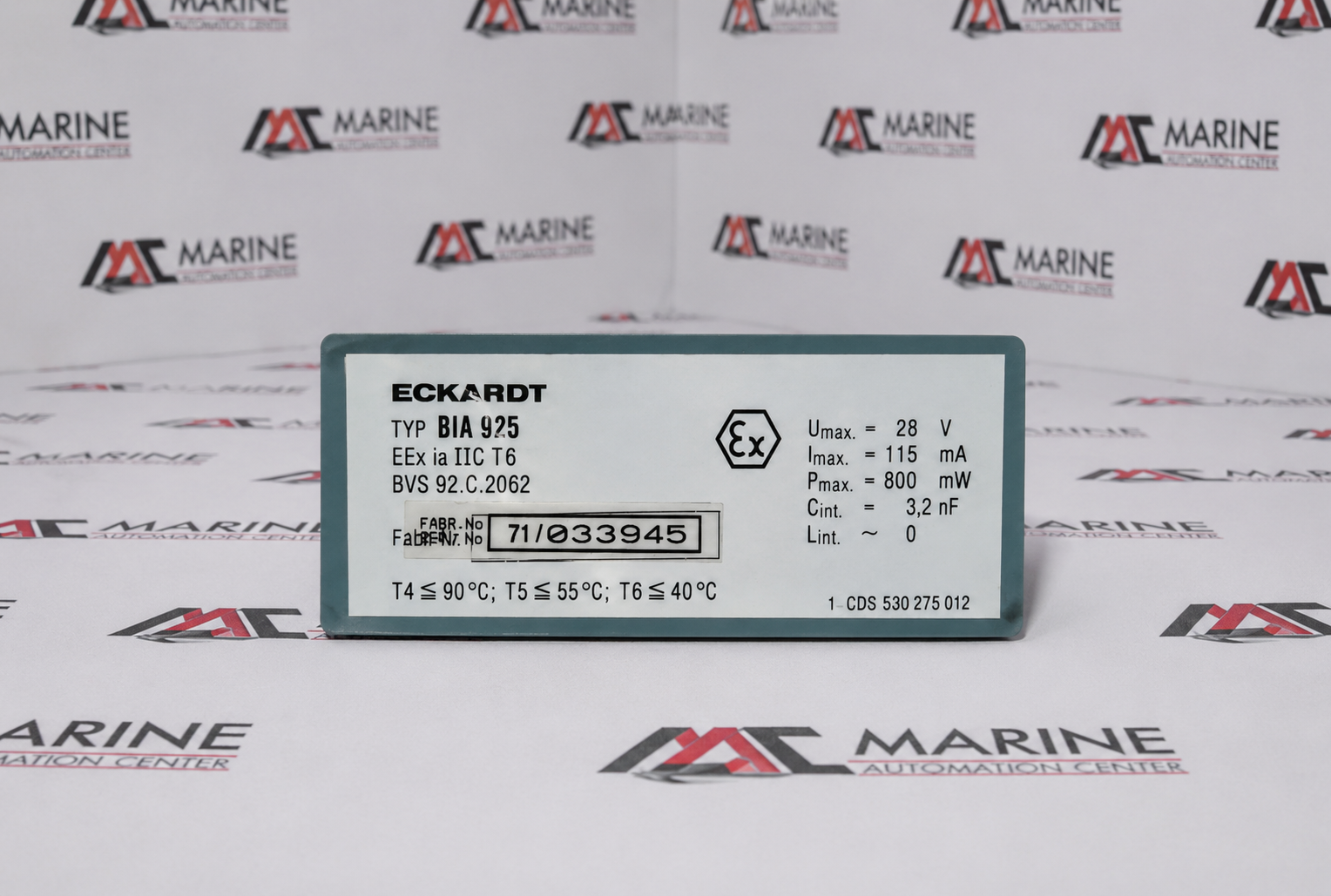

| EXPLOSION PROTECTION | EEx ia IIC T6 (Intrinsically Safe) |
| APPLICATION | Valve position feedback, valve position monitoring, process automation, pneumatic control valves, marine automation systems, industrial instrumentation |
| IEC | Intrinsically Safe Industrial Position Transmitter |
| MADE IN | Germany |
| REF NO. | 1296 |
