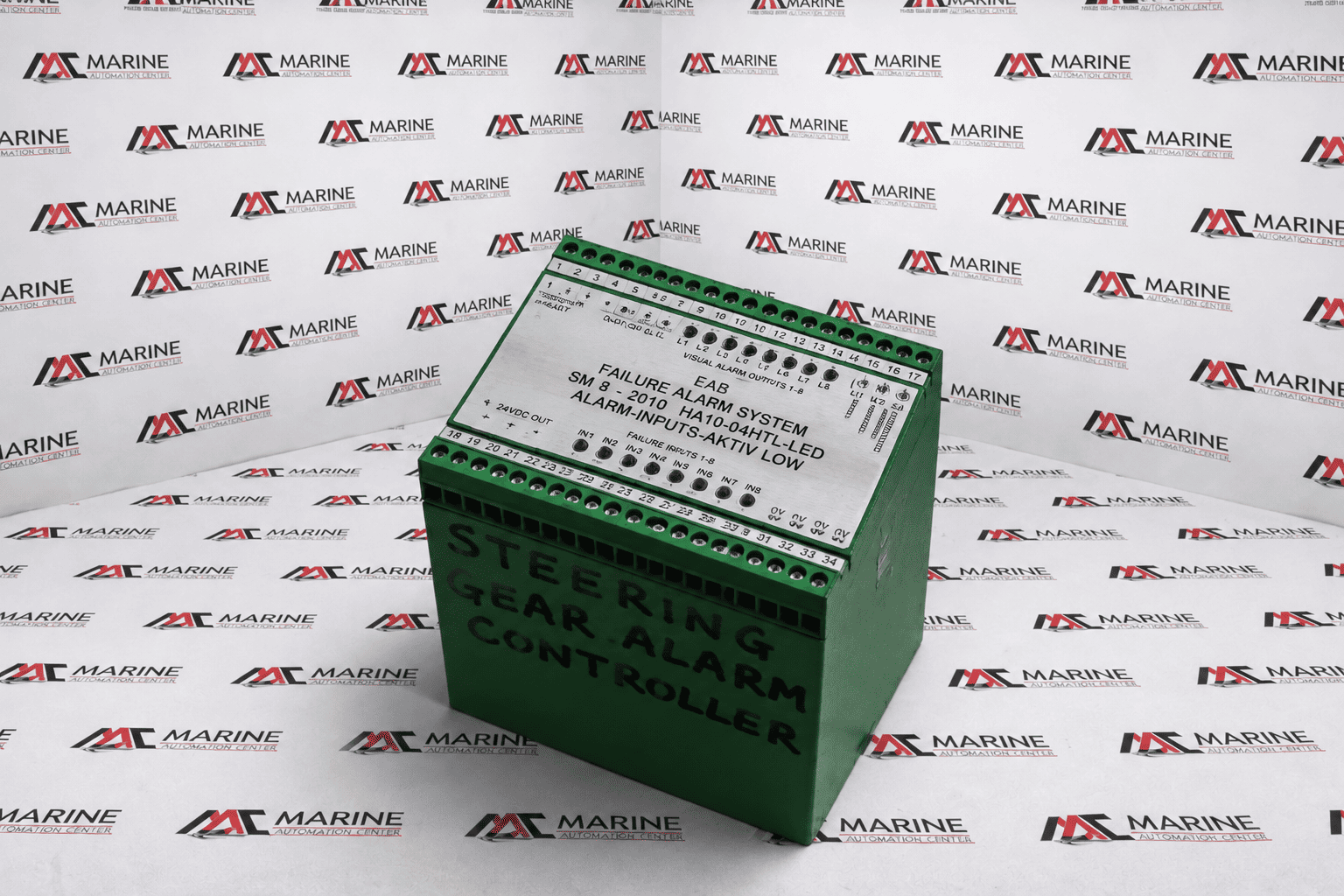

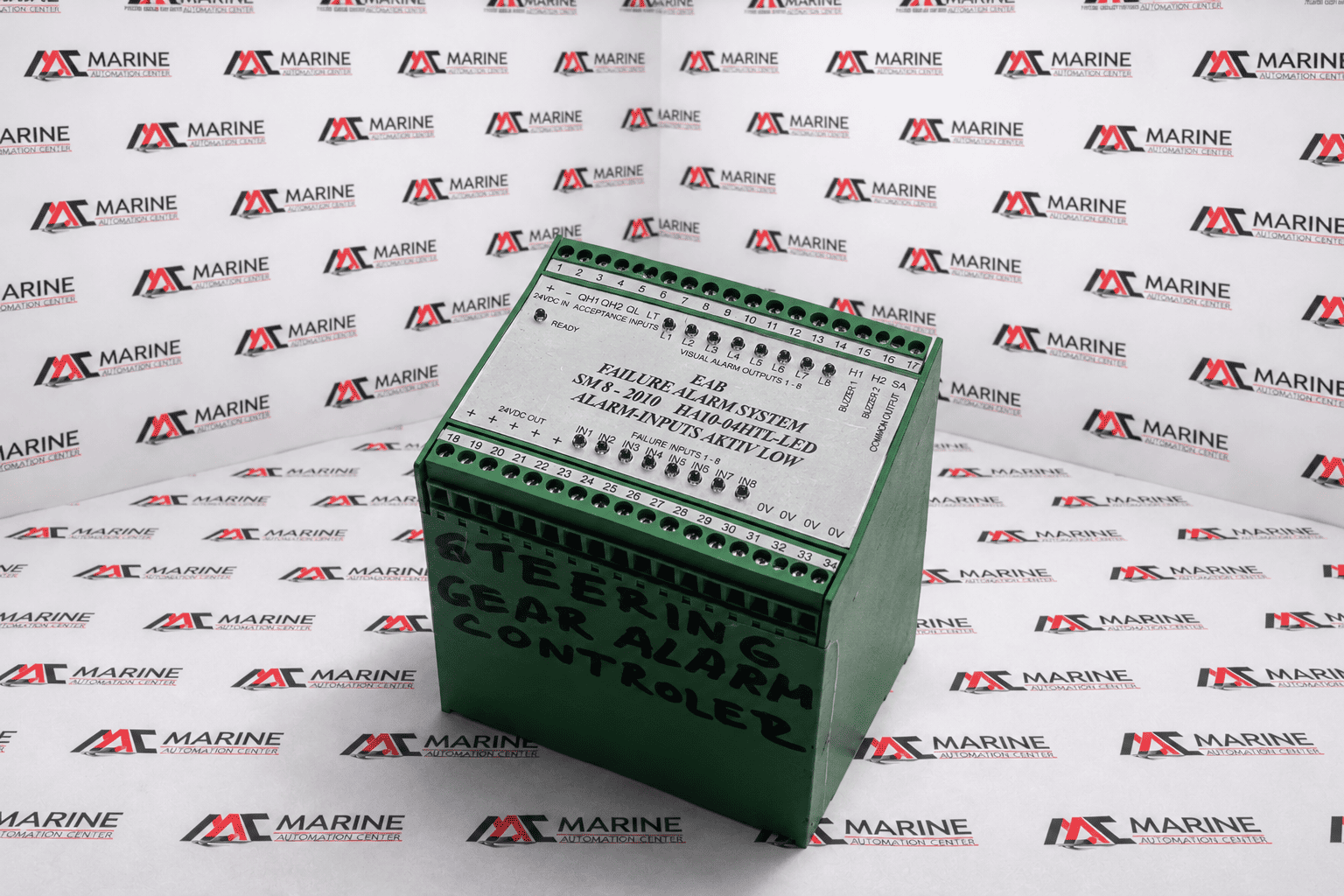

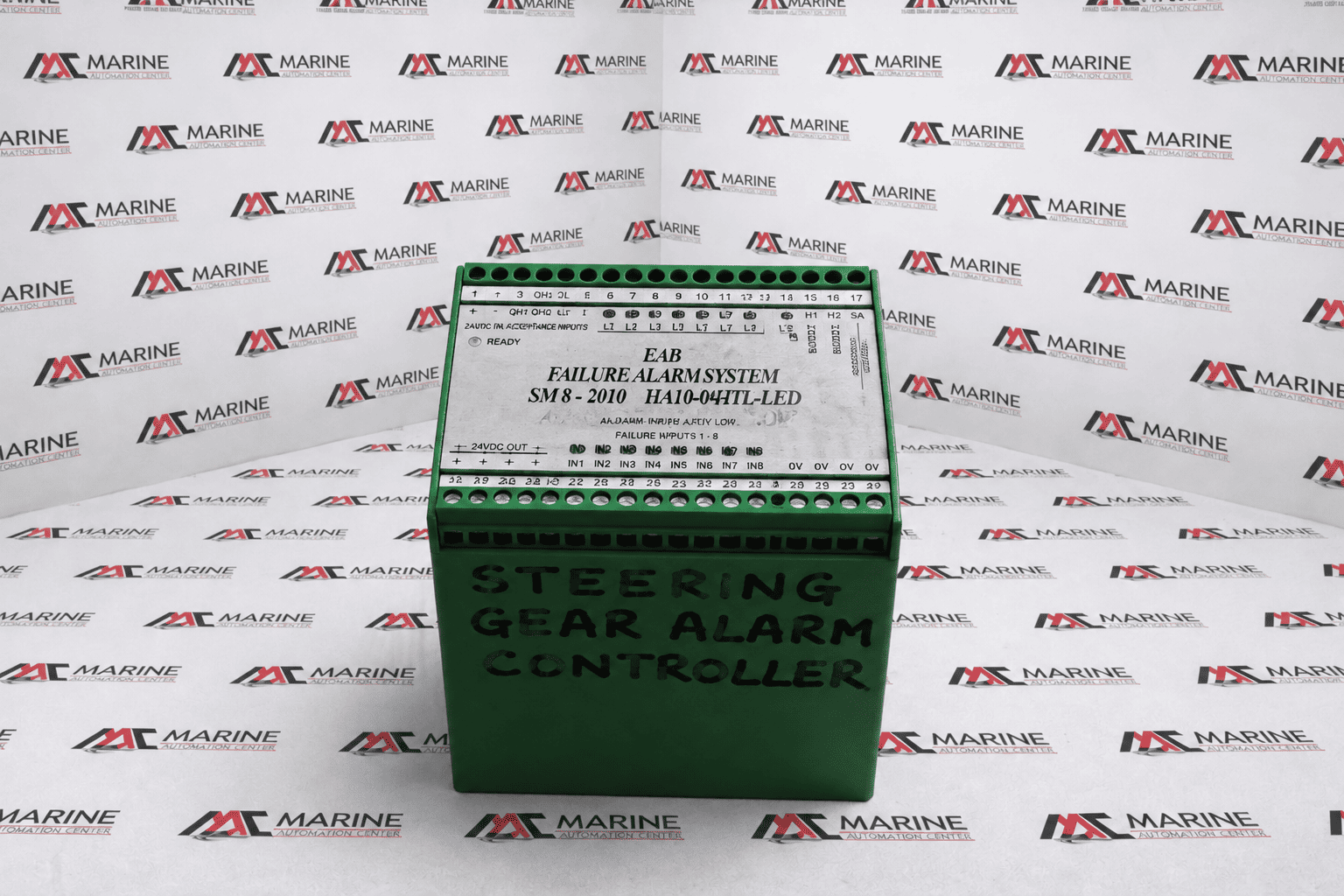

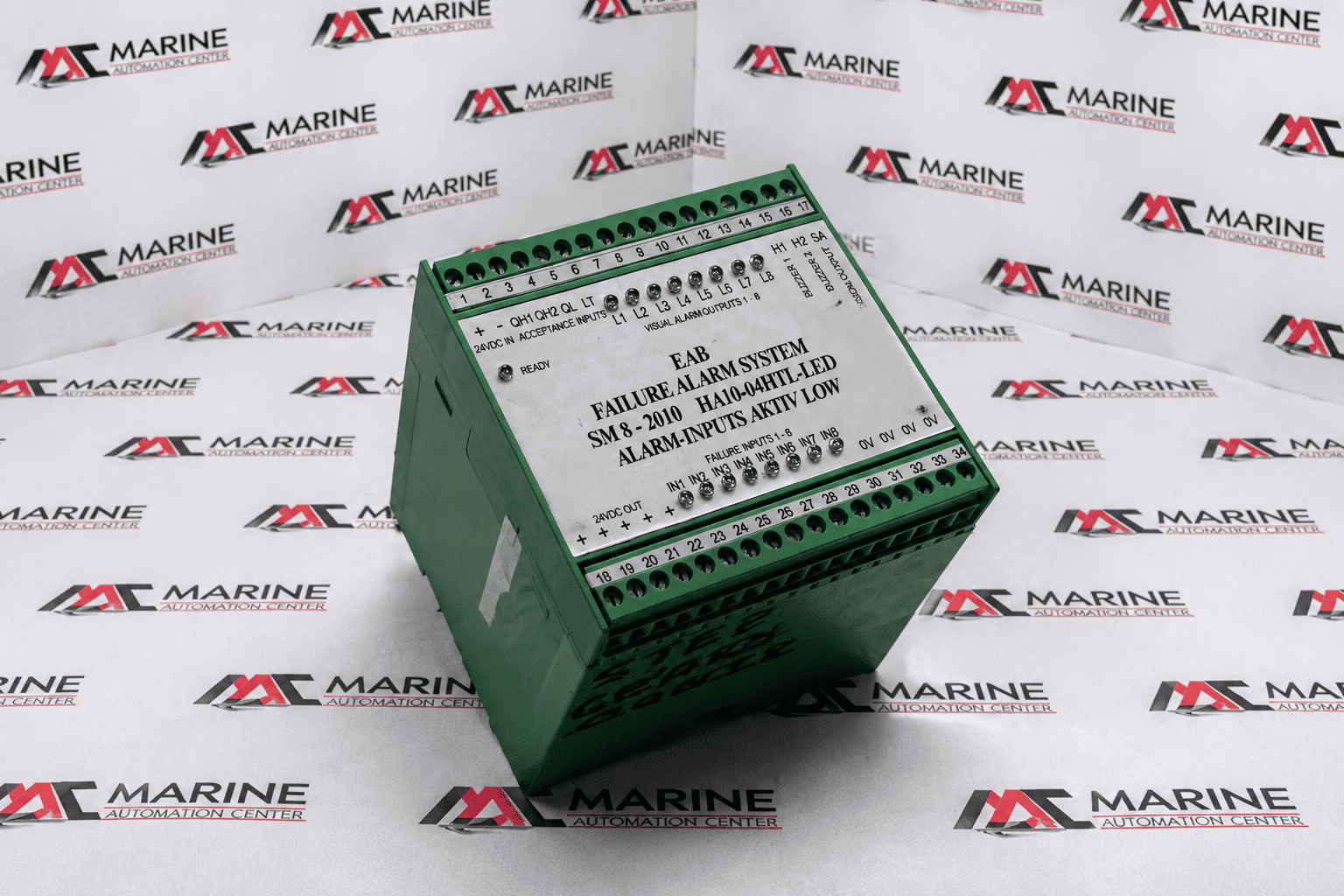

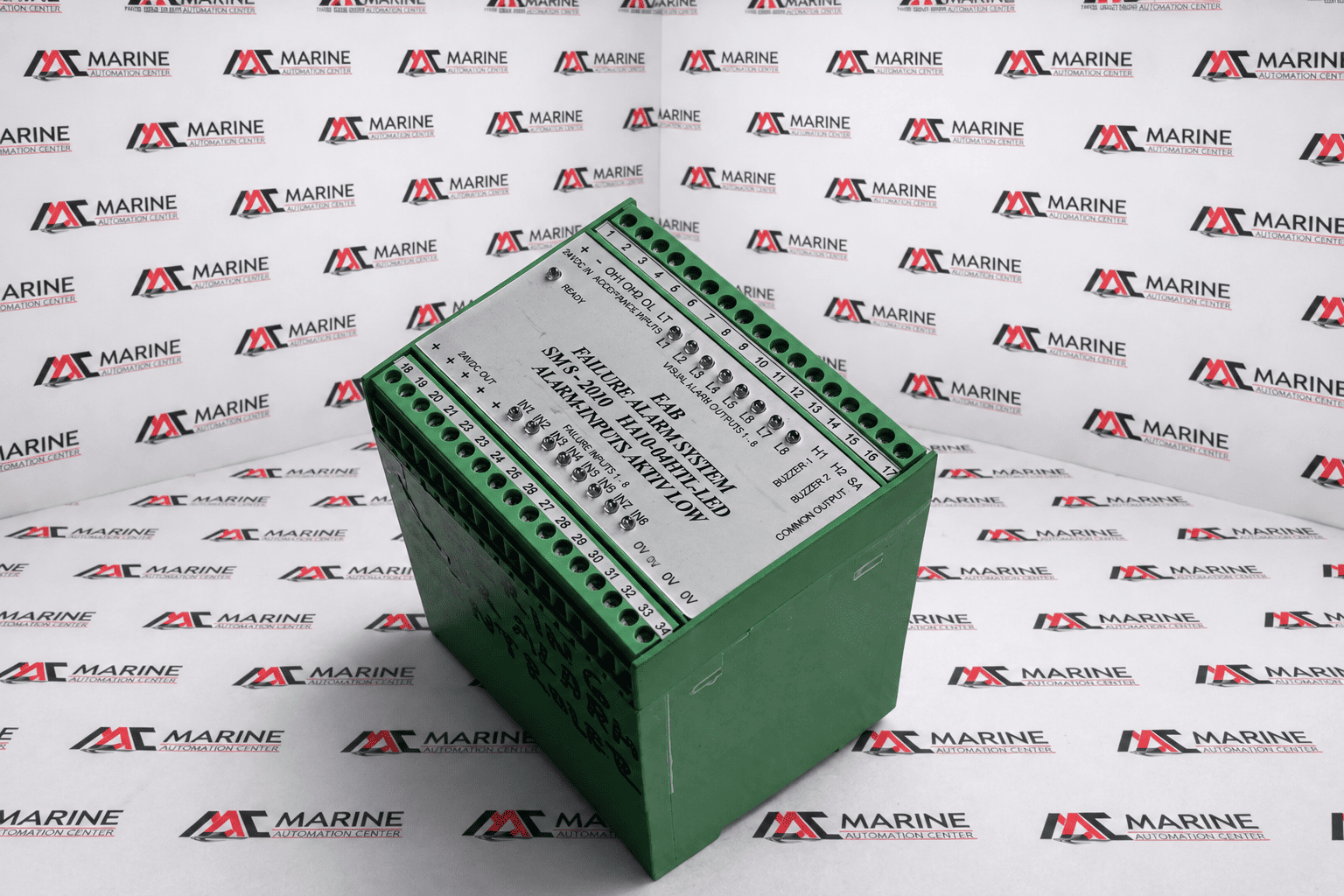

EAB Alarm & Monitoring Module SM 8 - 2010
Operating on a 24 V DC supply voltage, this compact system actively monitors 8 digital input channels (IN1–IN8) to detect equipment or circuit disruptions. It features a flexible input configuration that allows users to toggle individual channels between Normally Open (N/O) and Normally Closed (N/C) states.
BRAND
EAB
TYPE
Alarm & Monitoring Module
PART NO.
HA10-04HTL-LED / 720 332
MODEL
SM 8 - 2010
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | EAB |
| TYPE | Alarm & Monitoring Module |
| PART NO. | HA10-04HTL-LED / 720 332 |
| MODEL | SM 8 - 2010 |
| Supply Voltage | 24 V DC |
| Input Channels | 8 digital inputs, IN1–IN8 |
| Alarm Indicators | 8 visual alarm indicators, L1–L8 |
| Buzzer Outputs | H1 and H2 |
| Common Diagnostic Output | SA |
| Input Configuration | Selector for Normally Open (N/O) or Normally Closed (N/C) input configuration |
| Application | Marine deck machinery, steering gear control systems, compressor automation and industrial alarm monitoring |
| Made In | Germany |
| REF NO | 179 |
