Detcon 500-005065-007 Standard Connection Board
Detcon 500-005065-007 Standard Connection Board is a connection interface PCB designed for Detcon gas detection and industrial monitoring systems. It provides secure electrical connections between system components, ensuring reliable signal transmission, simplified wiring, and dependable operation in hazardous and industrial environments
BRAND
DETCON
TYPE
Standard Connector Board / Connection Interface PCB
PART NO.
500-005065-007
MODEL
500-005065-007 Standard Connection Board
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DETCON |
| TYPE | Standard Connector Board / Connection Interface PCB |
| PART NO. | 500-005065-007 |
| MODEL | 500-005065-007 Standard Connection Board |
| Voltage Rating | 24 V DC Nominal operating industrial sensor framework loop |
| Application | Serves as the localized termination connection base interface for Detcon H2S (Hydrogen Sulfide), CH4 (Methane), and toxic gas detection sensor transmitters |
| IEC | Designed to comply with intrinsically safe control signaling standards when combined with certified Detcon explosion-proof sensor housings. |

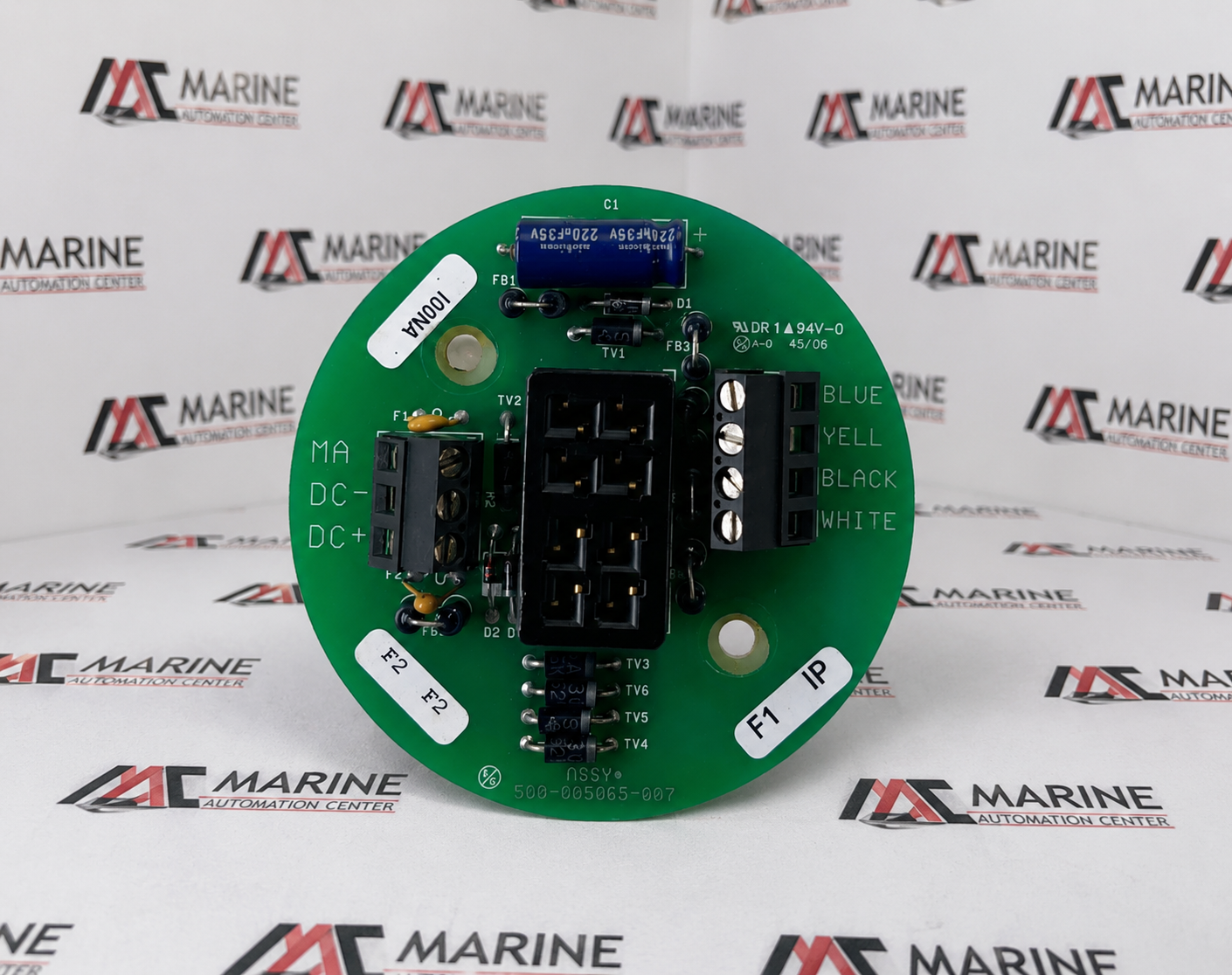

| Wiring Signal Pinout Assignments | BLUE / YELL (Yellow) / BLACK / WHITE sensor signal tracking channels |
| Power Supply Terminals | MA (Milliamp signaling output line). DC- and DC+ 24V primary instrument network interface loops |
| Component Code Identifiers | On-board hardware sub-assemblies labeled under VN001 and trace circuit markers F1 IP / F2 IP |
| Physical Weight Parameters | 50 grams (0.05 kg) |
| Made In | United States |
| REF NO | 391 |
