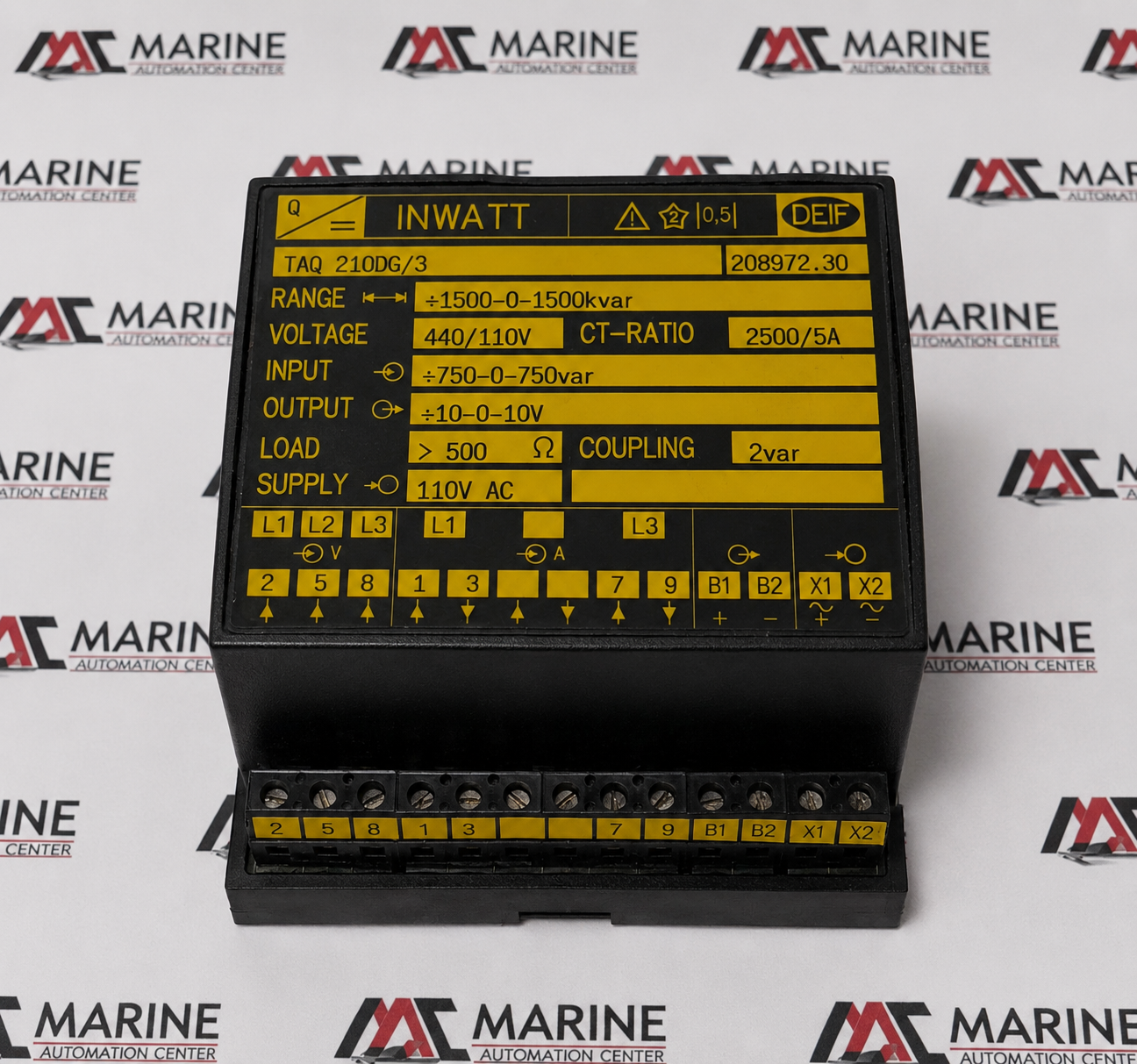

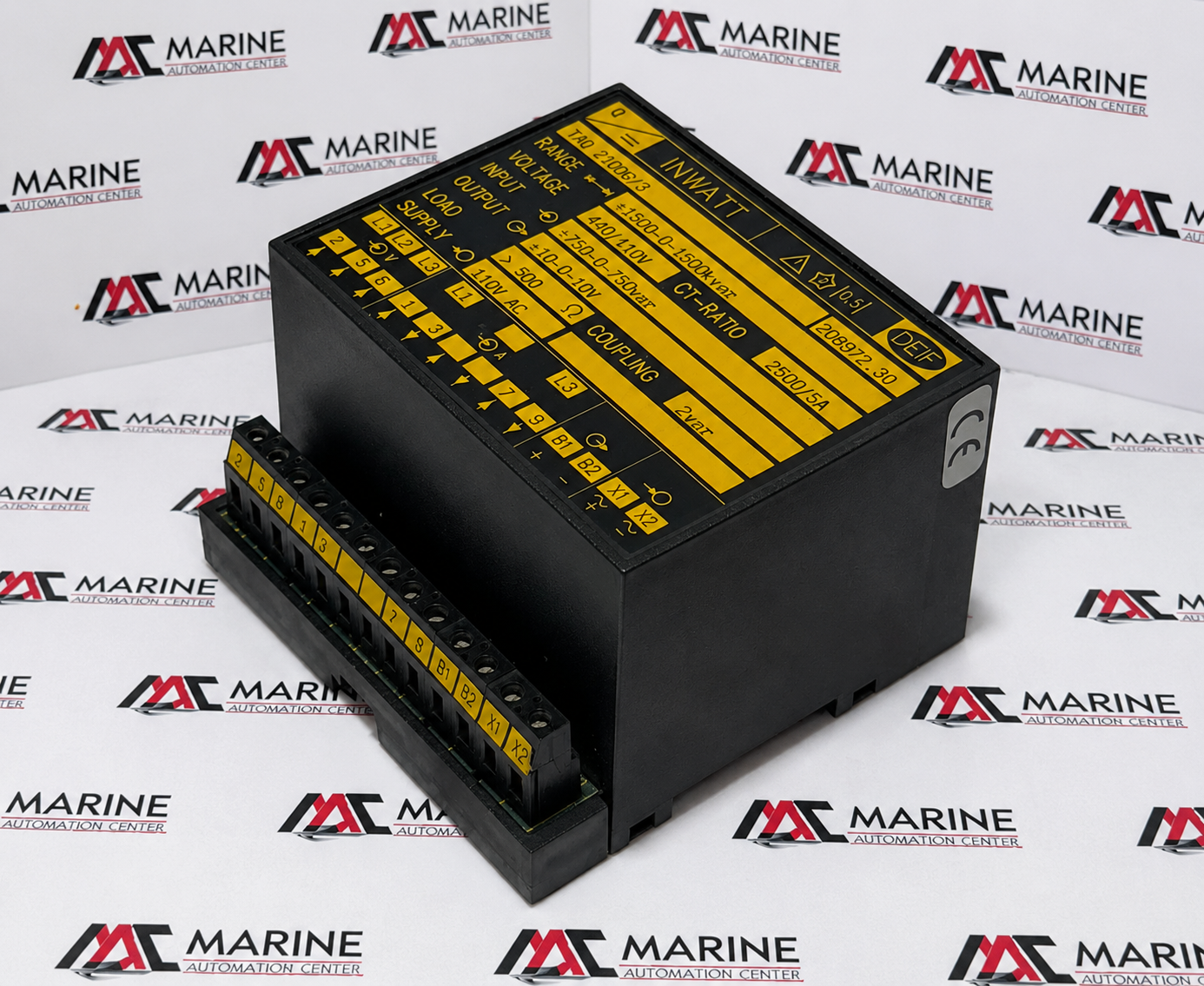

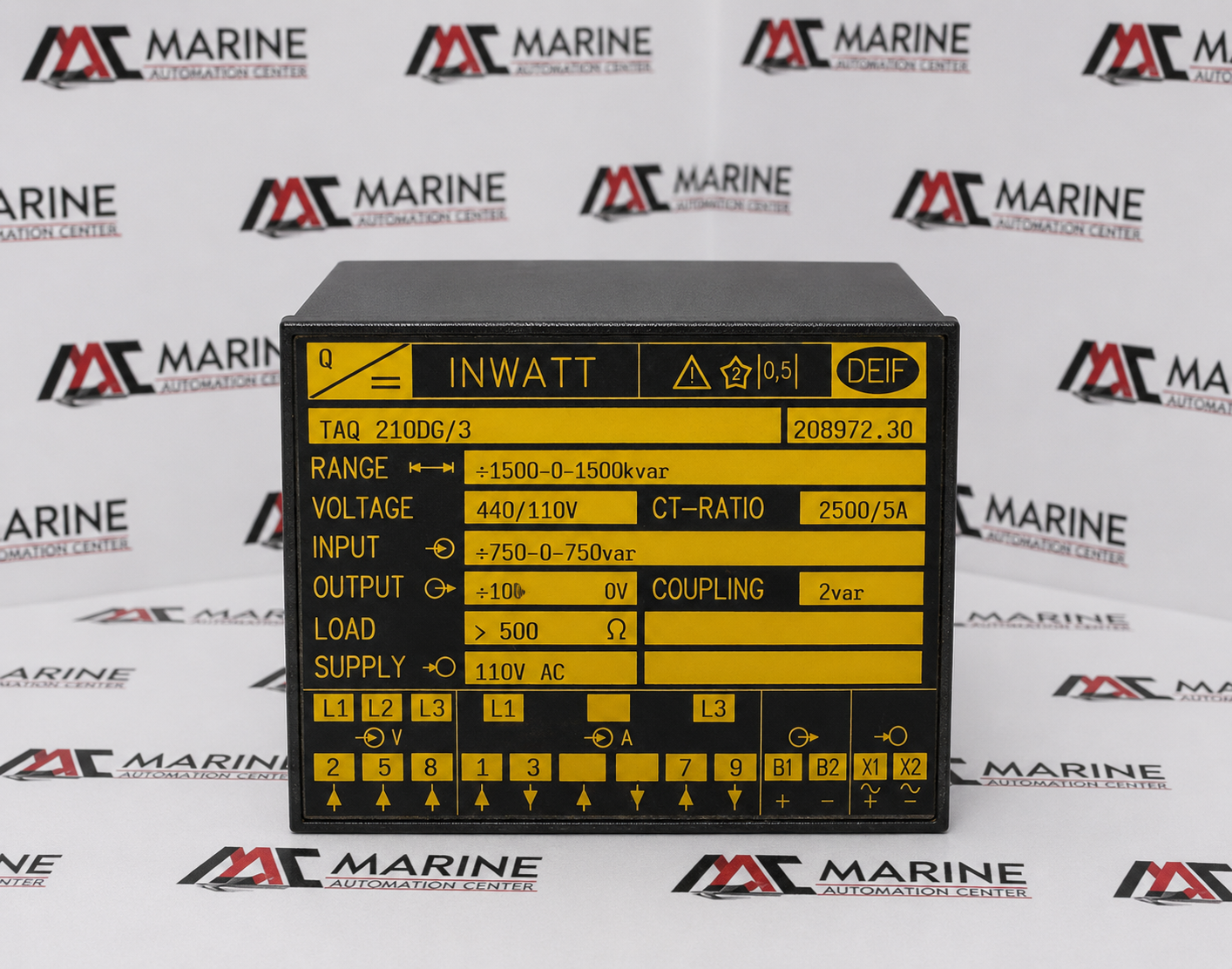

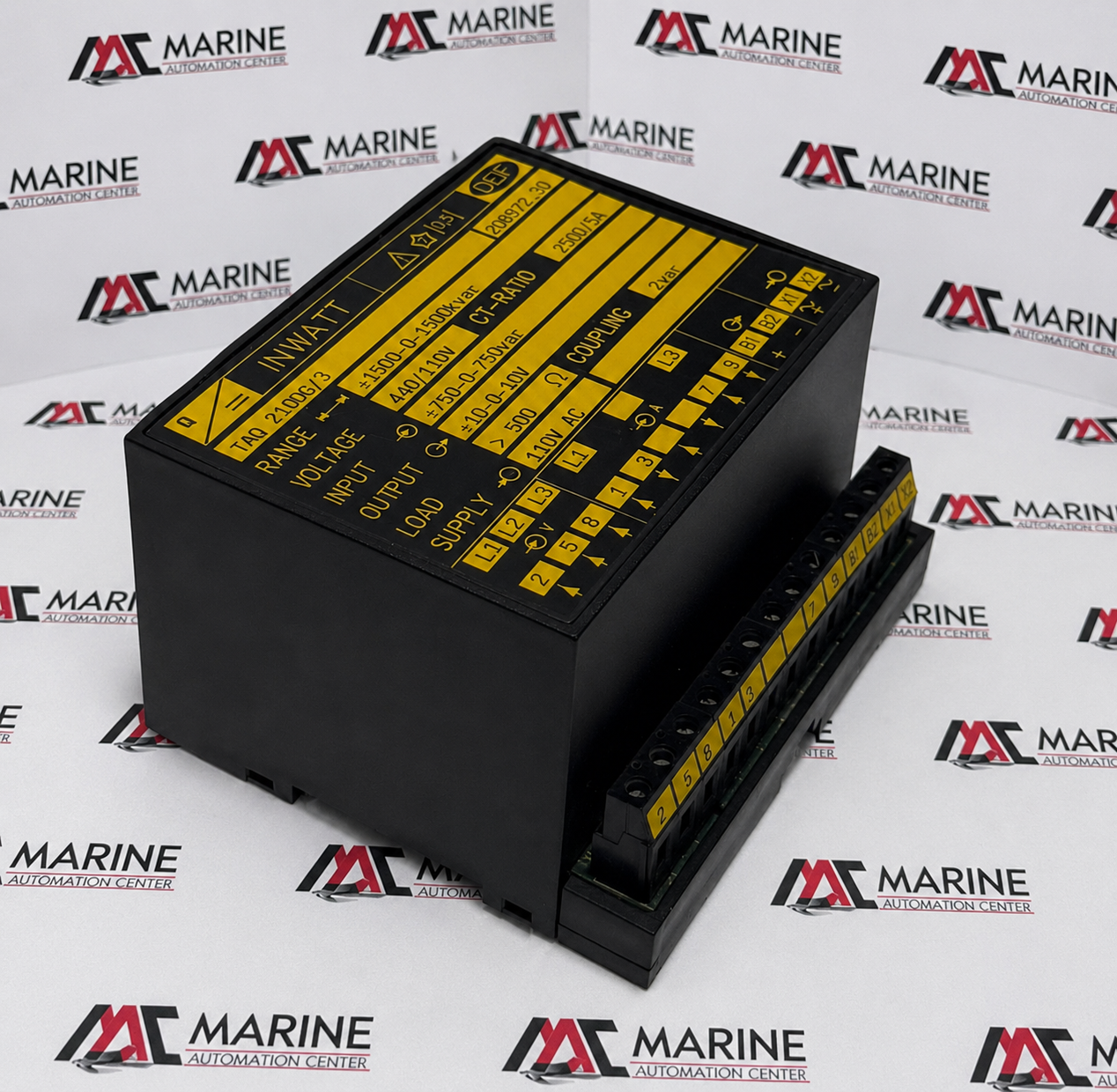

DEIF TAQ 210DG/3 Reactive Power Transducer
The DEIF TAQ 210DG/3 is a precision reactive power (VAR) transducer designed to measure reactive power in single-phase and three-phase AC electrical systems. It converts the measured reactive power into a proportional analog output signal (such as 4–20 mA or voltage output) for use in power monitoring, automation, protection, and energy management applications. It is widely used in industrial, utility, and marine electrical systems
BRAND
DEIF
TYPE
Power Transducer (Inwatt / Reactive Power - Invar)
PART NO.
208972.30
MODEL
TAQ 210DG/3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Power Transducer (Inwatt / Reactive Power - Invar) |
| PART NO. | 208972.30 |
| MODEL | TAQ 210DG/3 |
| Voltage Rating | Supply: 110V AC | Measuring Voltage: 440/110V |
| Application | Converting electrical reactive power (kvar) measured from a 3-phase system into a proportional analog electrical output signal for marine switchboards, power monitoring systems, and generator control logic loops |
| IEC | Conforms to IEC 60688 standard measurement requirements (indicated by accuracy class logo |
| Measuring Range | -1500 kvar to 0 to +1500 kvar |
| Input Signal Range | -750var to 0 to +750var |
| Analog Output Signal | -10V to 0 to +10V DC |
| Current Transformer (CT) Ratio | 2500/5A |
| Output Load Impedance | > 500 Ω |
| Coupling Configuration | 2var (Suitable for 3-phase, 3-wire unbalanced systems using reactive power measurement circuitry) |
| Terminals 2, 5, 8 | Voltage measuring inputs (L1, L2, L3) |
| Terminals 7, 9 | Current transformer phase input (L3) |
| Terminals B1, B2 | Analog Output signal loops (+ / -) |
| Made In | Denmark |
| REF NO | 1465 |
