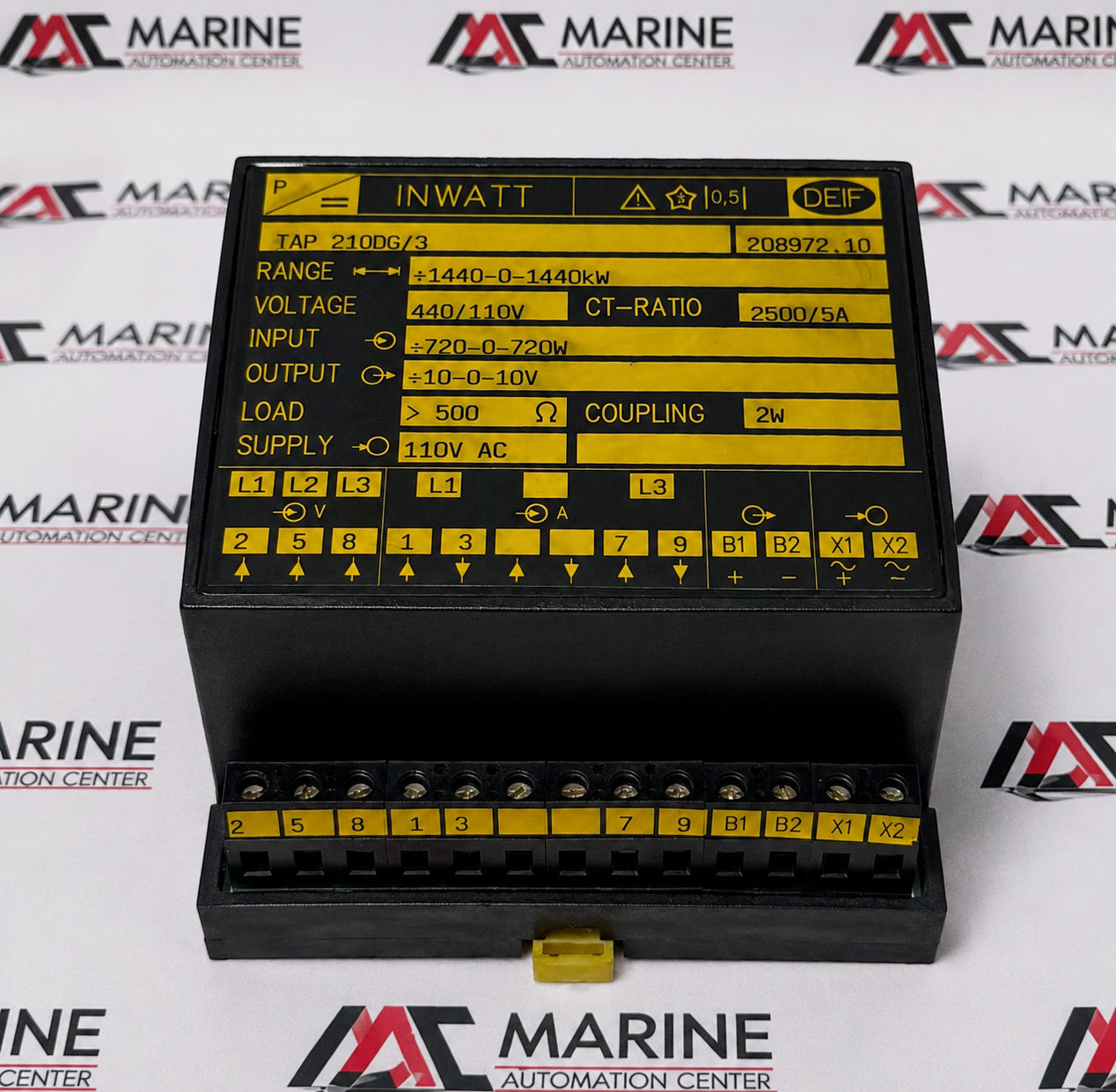

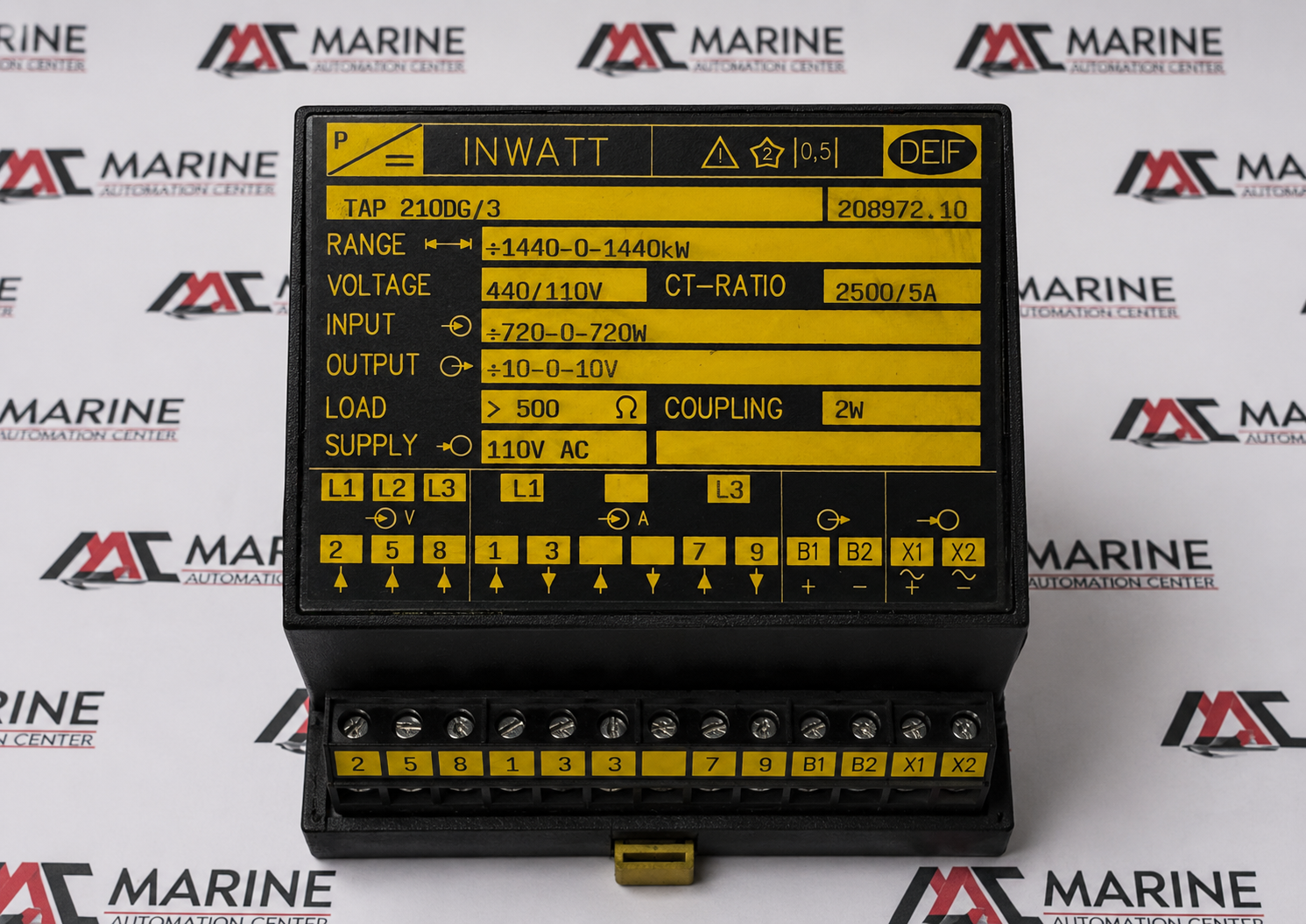

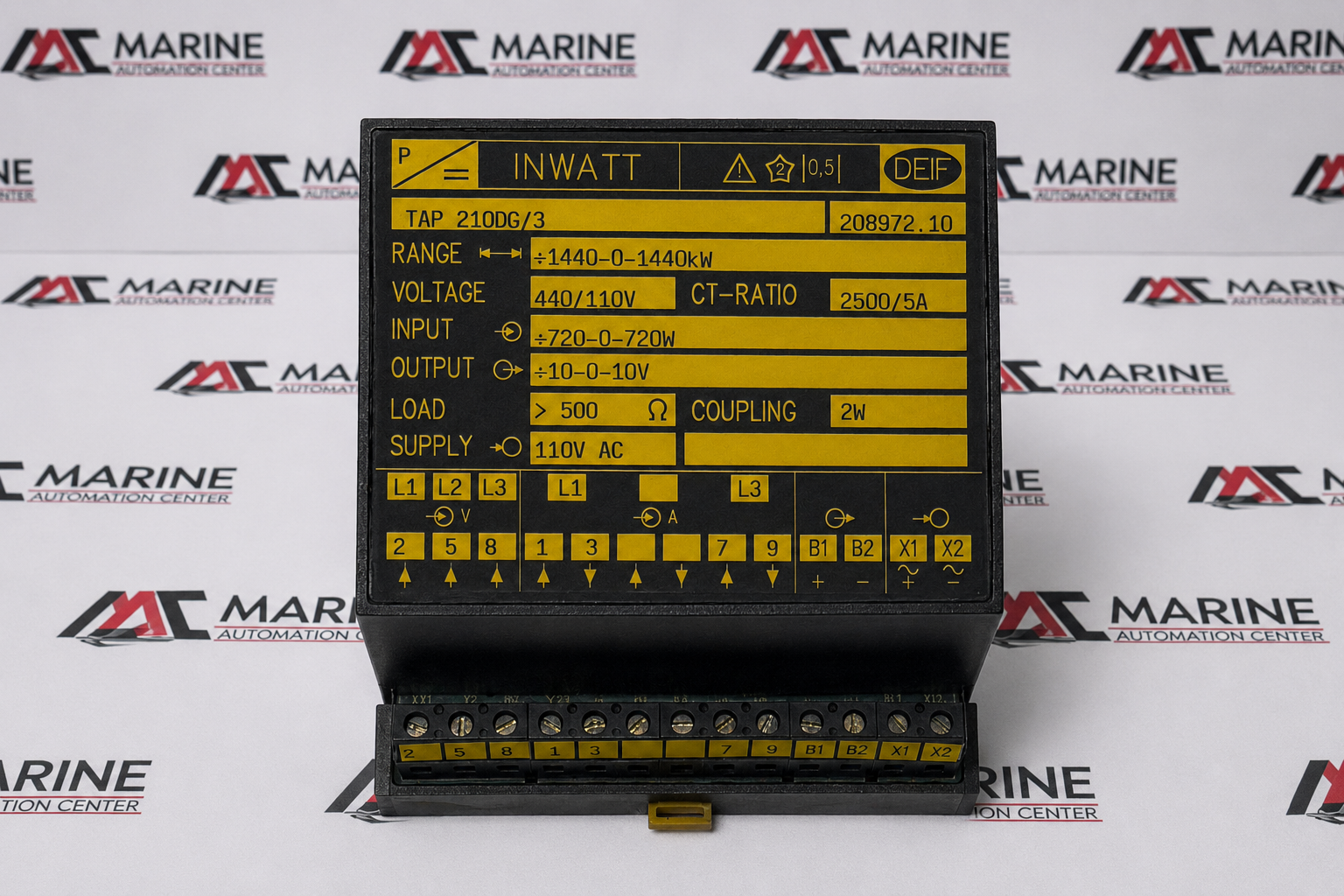

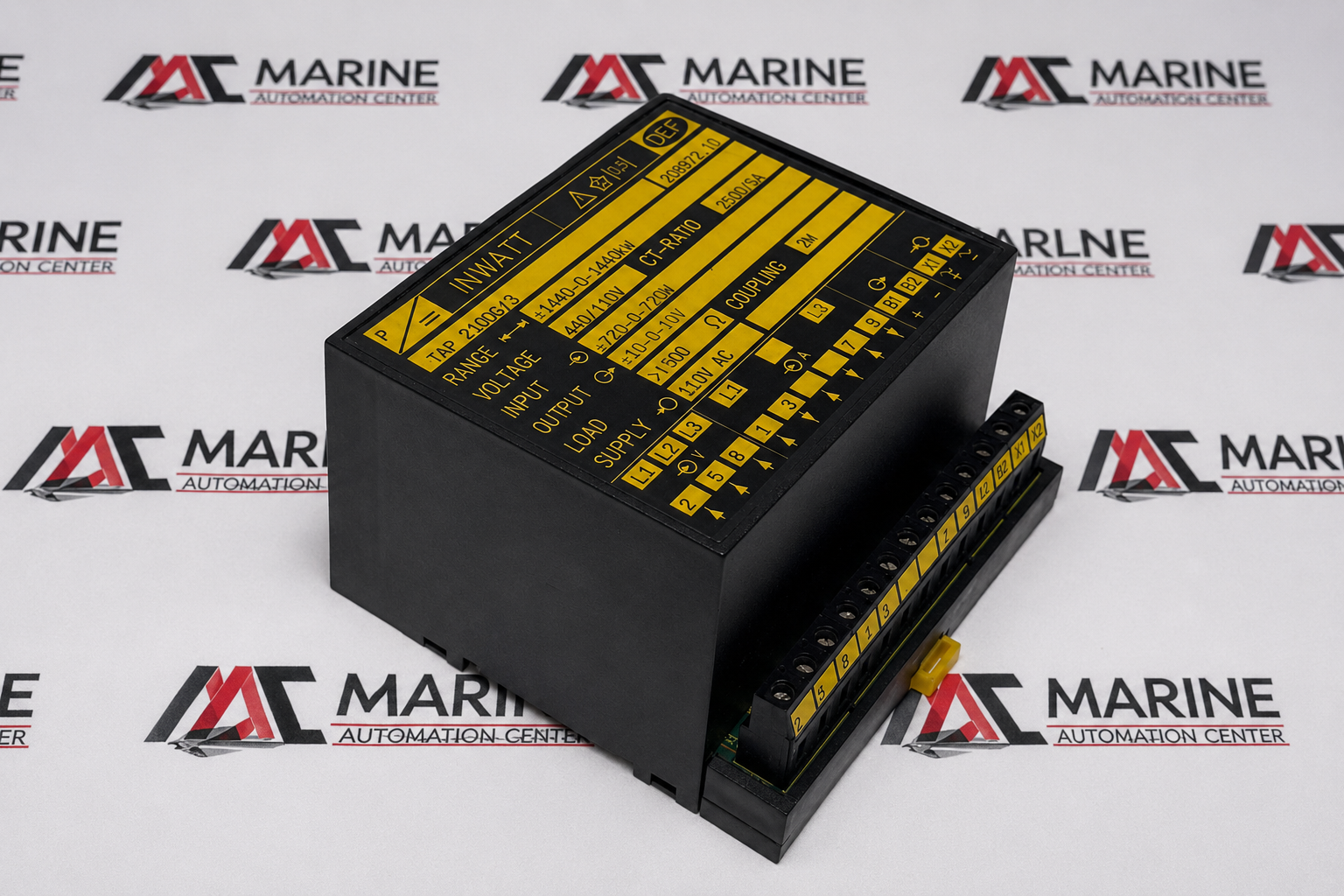

DEIF TAP 210DG/3 Active Power Transducer
The DEIF TAP 210DG/3 is a high-accuracy active power (watt) transducer designed to measure real power in single-phase and three-phase AC electrical systems. It converts the measured active power into a proportional analog output signal (such as 4–20 mA or voltage output) for use in power monitoring, control, protection, and automation systems. It is widely used in industrial and marine power distribution applications
BRAND
DEIF
TYPE
Power Transducer (Inwatt / Active Power)
PART NO.
208972.10
MODEL
TAP 210DG/3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Power Transducer (Inwatt / Active Power) |
| PART NO. | 208972.10 |
| MODEL | TAP 210DG/3 |
| Voltage Rating | Supply: 110V AC | Measuring Voltage: 440/110V |
| Application | Converting electrical active power (kW) measured from a 3-phase system into a proportional analog electrical output signal for marine switchboards, power management systems (PMS), and generator control logic loops |
| IEC | Conforms to IEC 60688 standard measurement requirements (indicated by accuracy class logo |
| Measuring Range | -1440 kW to 0 to +1440 kW |
| Input Signal Range | -720W to 0 to +720W |
| Analog Output Signal | -10V to 0 to +10V DC |
| Current Transformer (CT) Ratio | 2500/5A |
| Output Load Impedance | > 500 Ω |
| Coupling Configuration | 2W (Suitable for 3-phase, 3-wire systems with unbalanced loads using the 2-wattmeter/Aron connection method) |
| Terminals 2, 5, 8 | Voltage measuring inputs (L1, L2, L3) |
| Terminals 1, 3 (First Pair) | Current transformer phase input (L1) |
| Terminals B1, B2 | Analog Output signal loops (+ / -) |
| Made In | Denmark |
| REF NO | 1464 |
