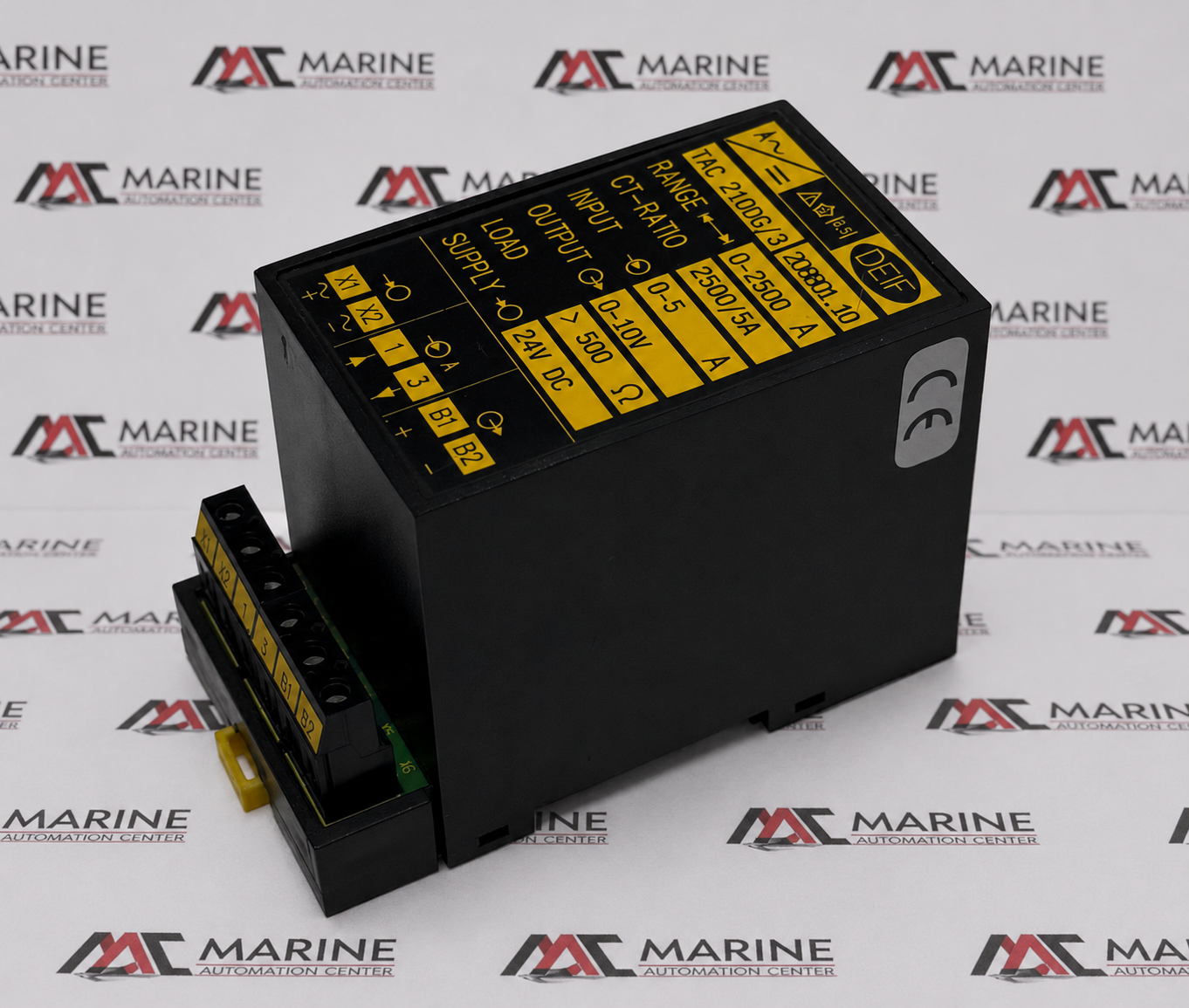

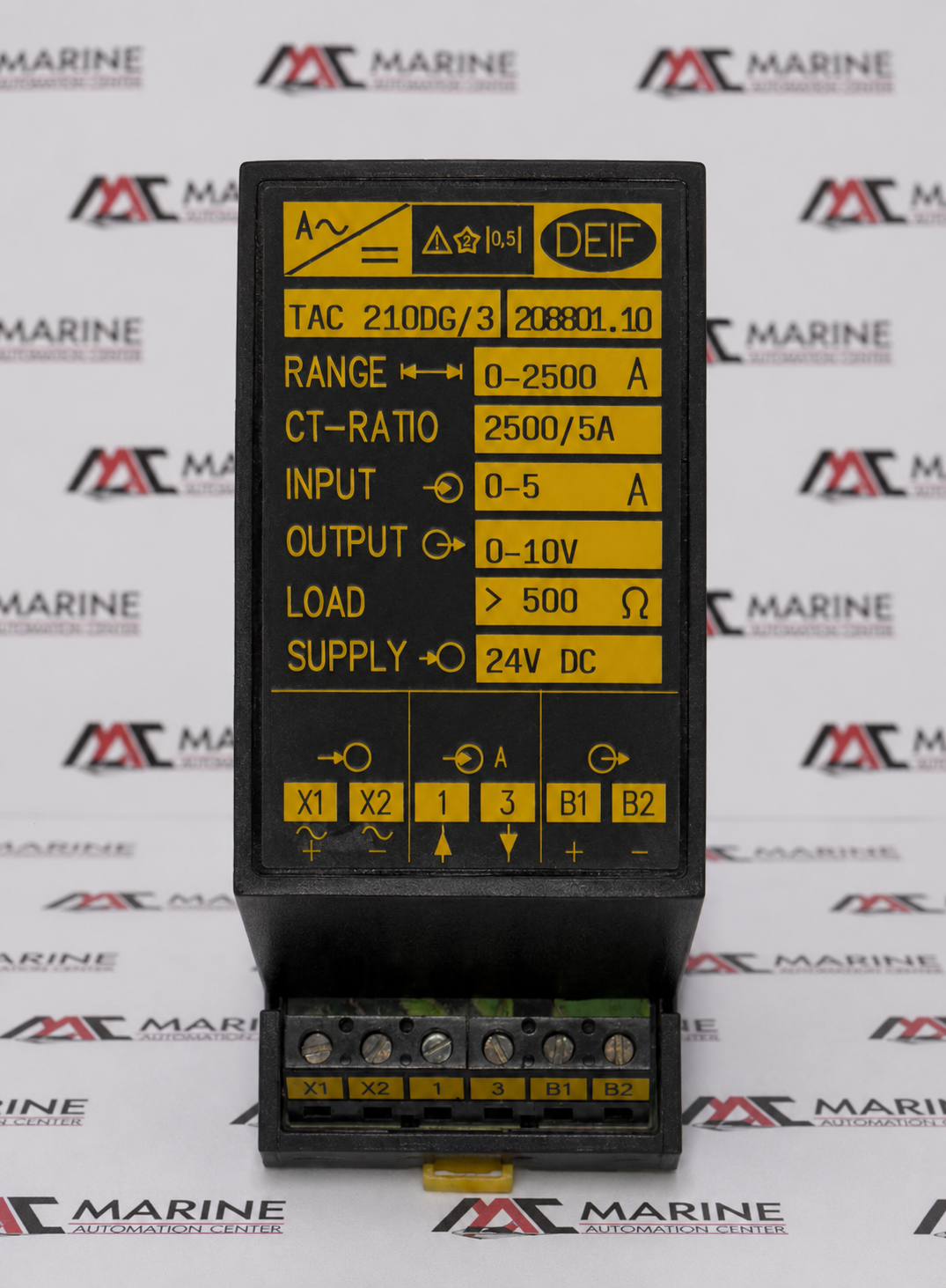

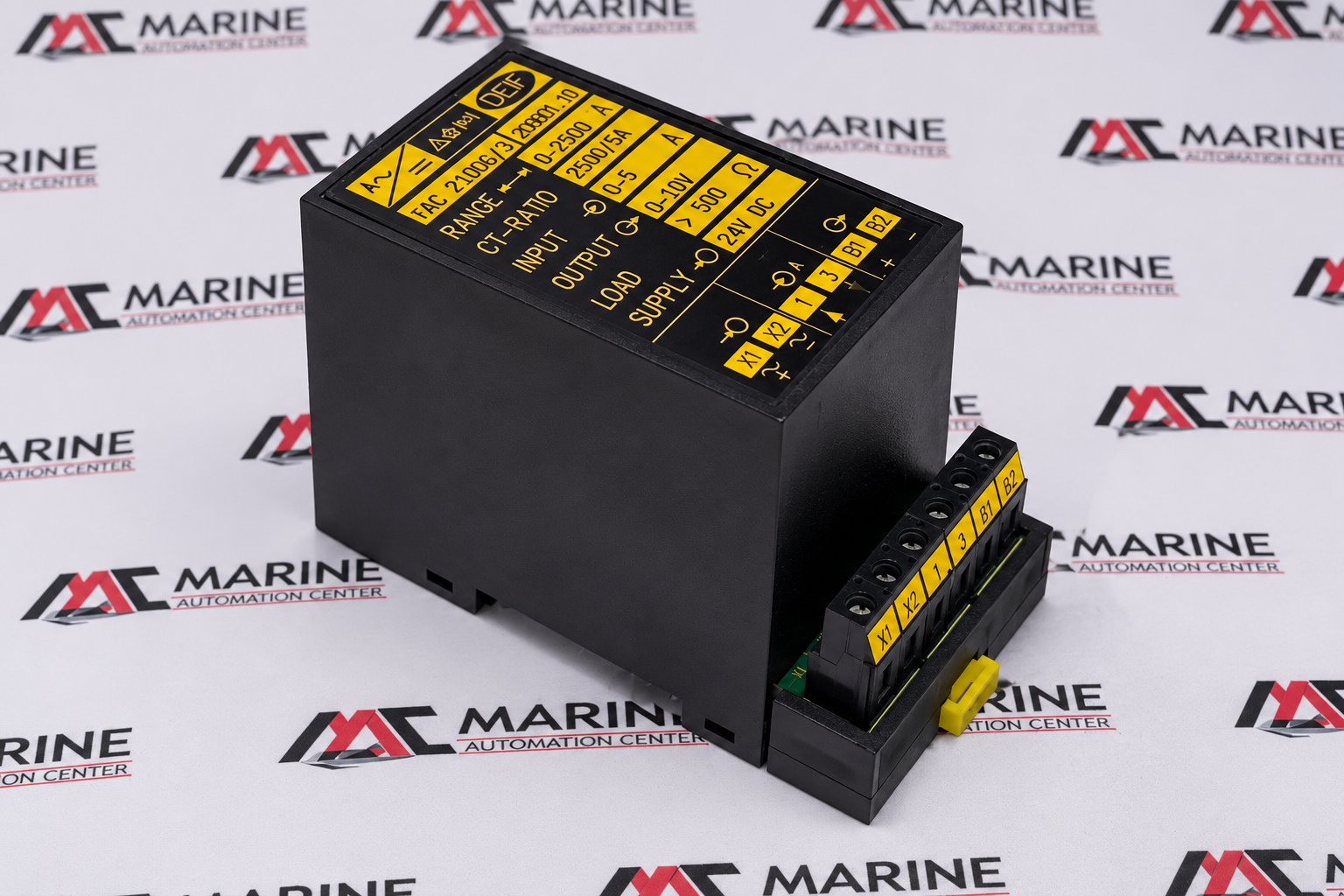

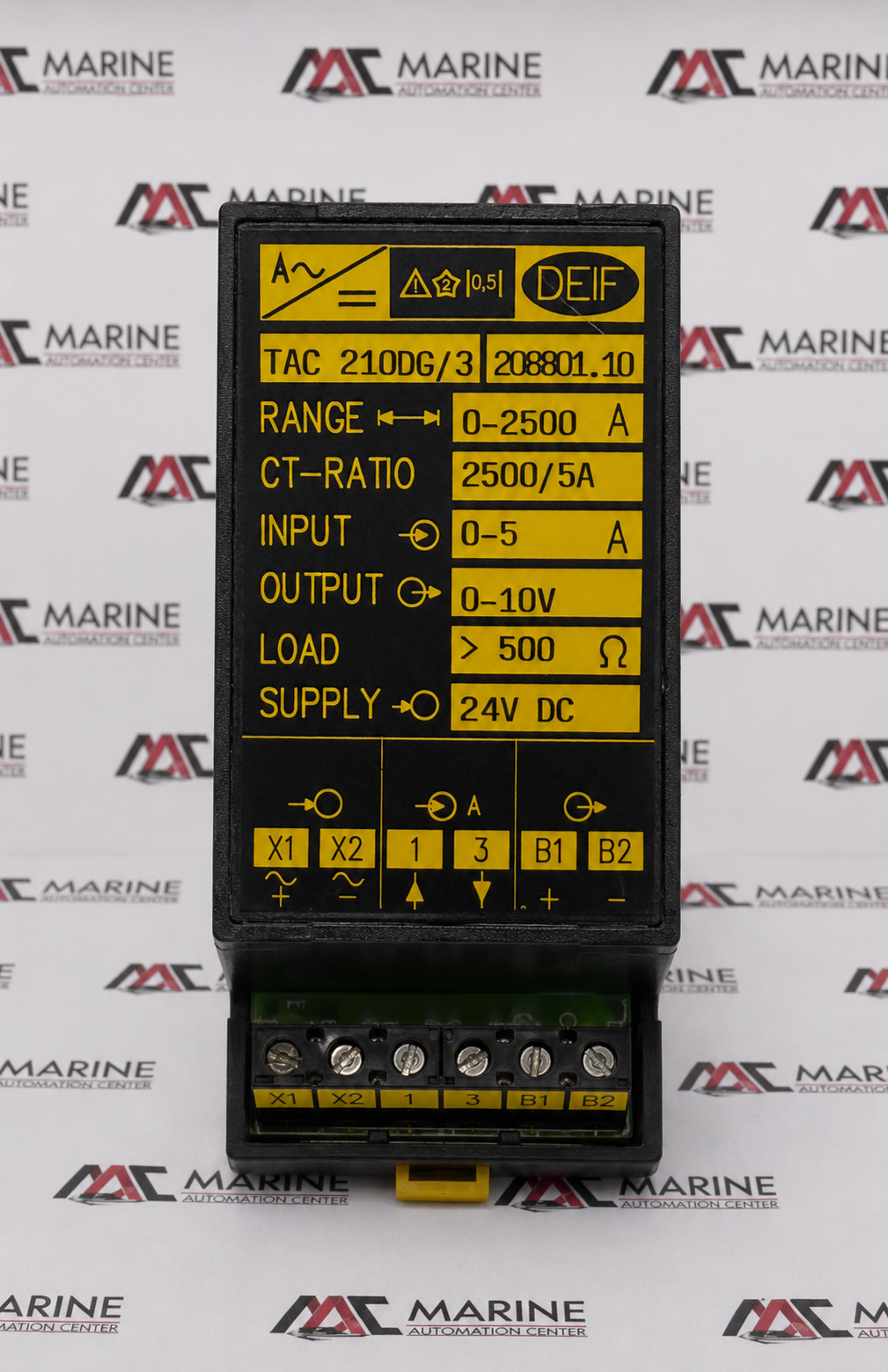

DEIF TAC 210DG/3 Current Transducer
DEIF TAC 210DG/3 Current Transducer (Part No. TAC 210DG/3) is a high-accuracy current transducer designed to measure AC current and convert it into a standardized output signal for industrial monitoring and control systems. It delivers reliable electrical measurements, stable performance, and precise signal conversion, making it ideal for power distribution, generator control, energy management, and industrial automation applications.
BRAND
DEIF
TYPE
Current Transducer
PART NO.
Current Transducer TAC 210DG/3
MODEL
TAC 210DG/3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Current Transducer |
| PART NO. | Current Transducer TAC 210DG/3 |
| MODEL | TAC 210DG/3 |
| Measurement Range | 0–2500 A (Primary Current Scaling) |
| Input Signal | 0–5 A AC (Current Transformer Secondary Input) |
| Input Terminals | Terminals 1 & 3 |
| Output Signal | 0–10 V DC (Linear Analog Output) |
| Minimum Output Load | >500 Ω |
| Auxiliary Power Supply | 24 V DC |
| Power Supply Terminals | X1 (+), X2 (−) |
| Isolation | Galvanically Isolated Analog Output |
| Voltage Rating | 24 V DC |
| Application | Current measurement, generator monitoring, PLC/SCADA interface, power management, and industrial automation systems |
| Made In | Denmark |
| REF NO | 1463 |
