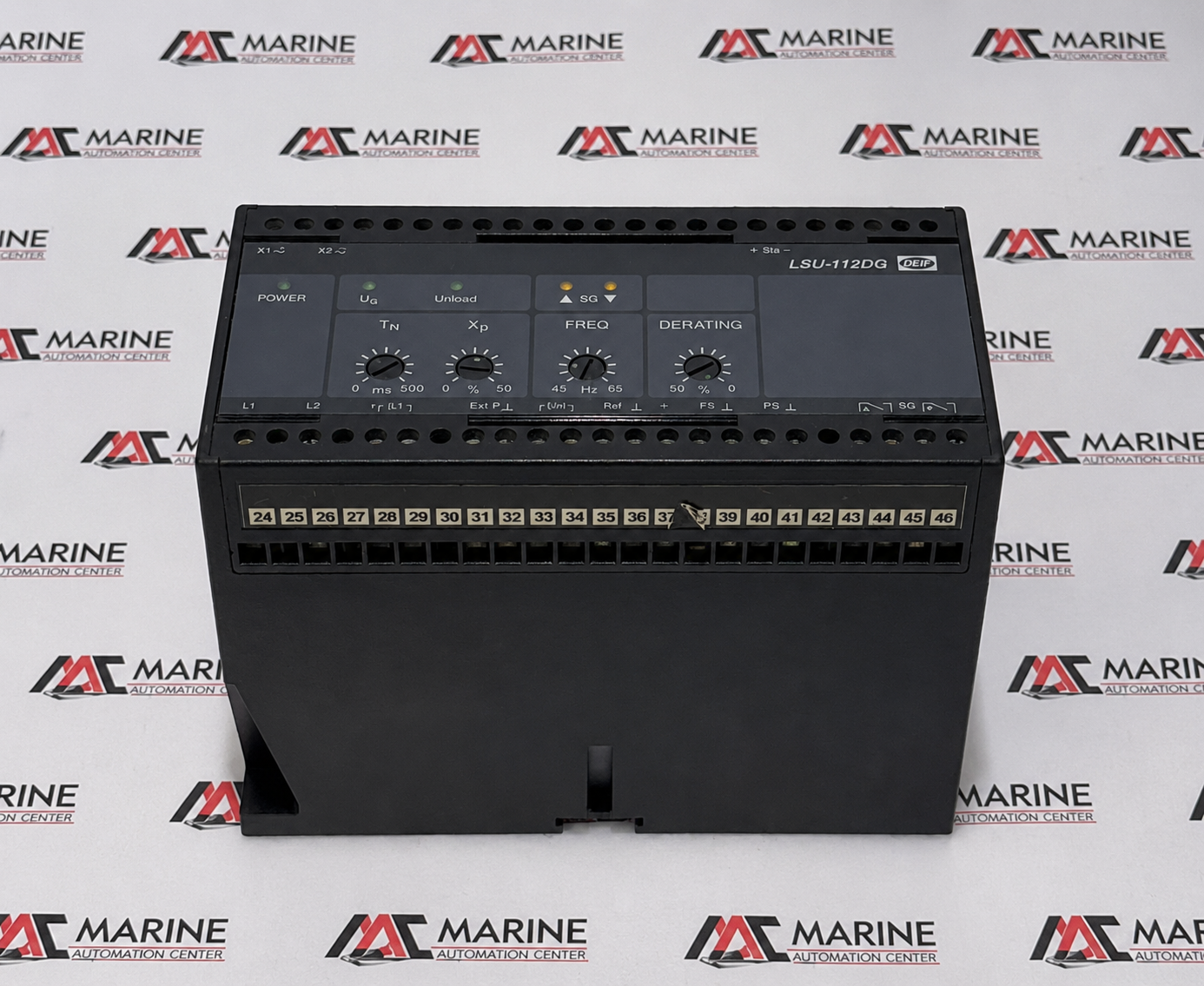

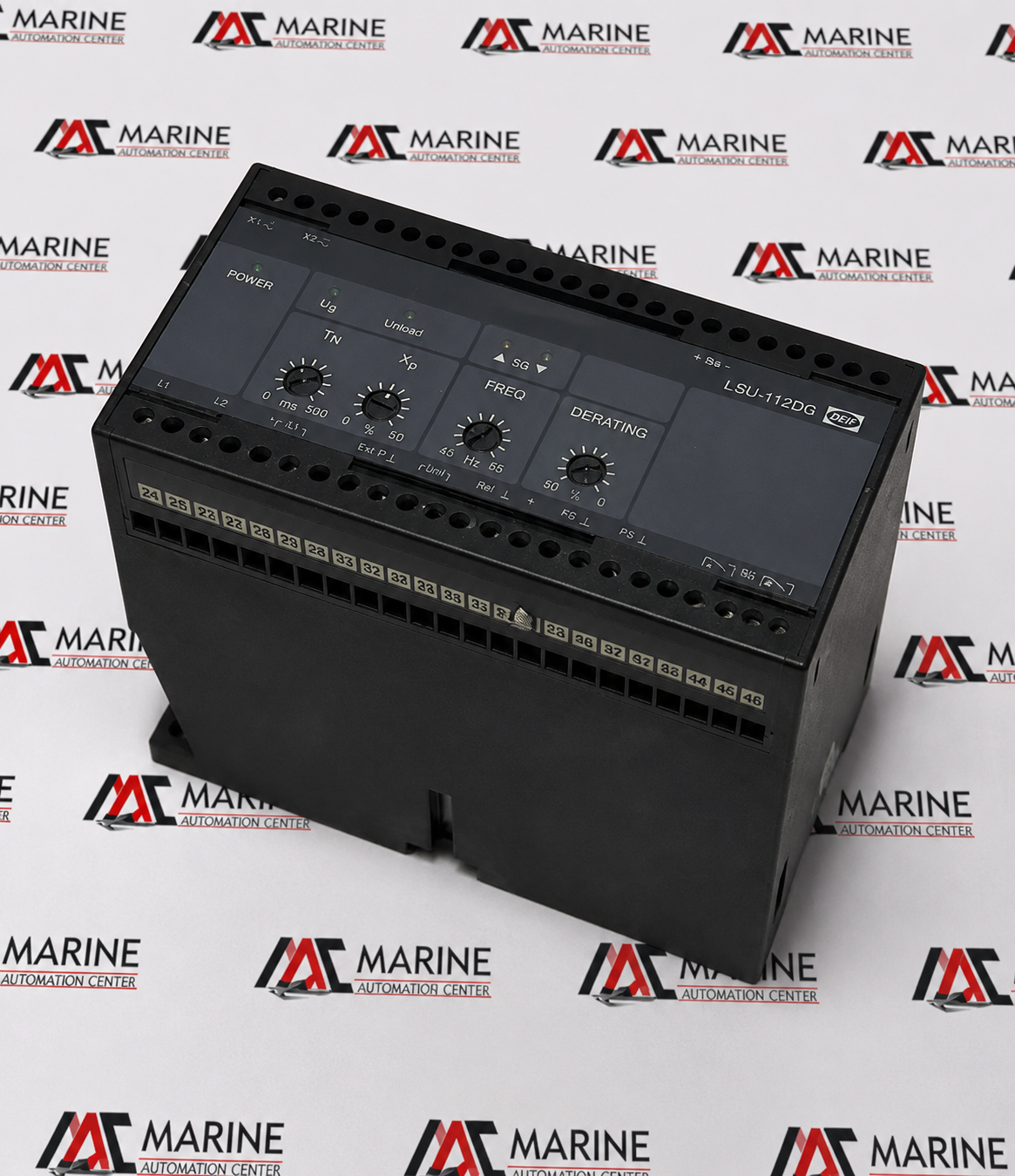

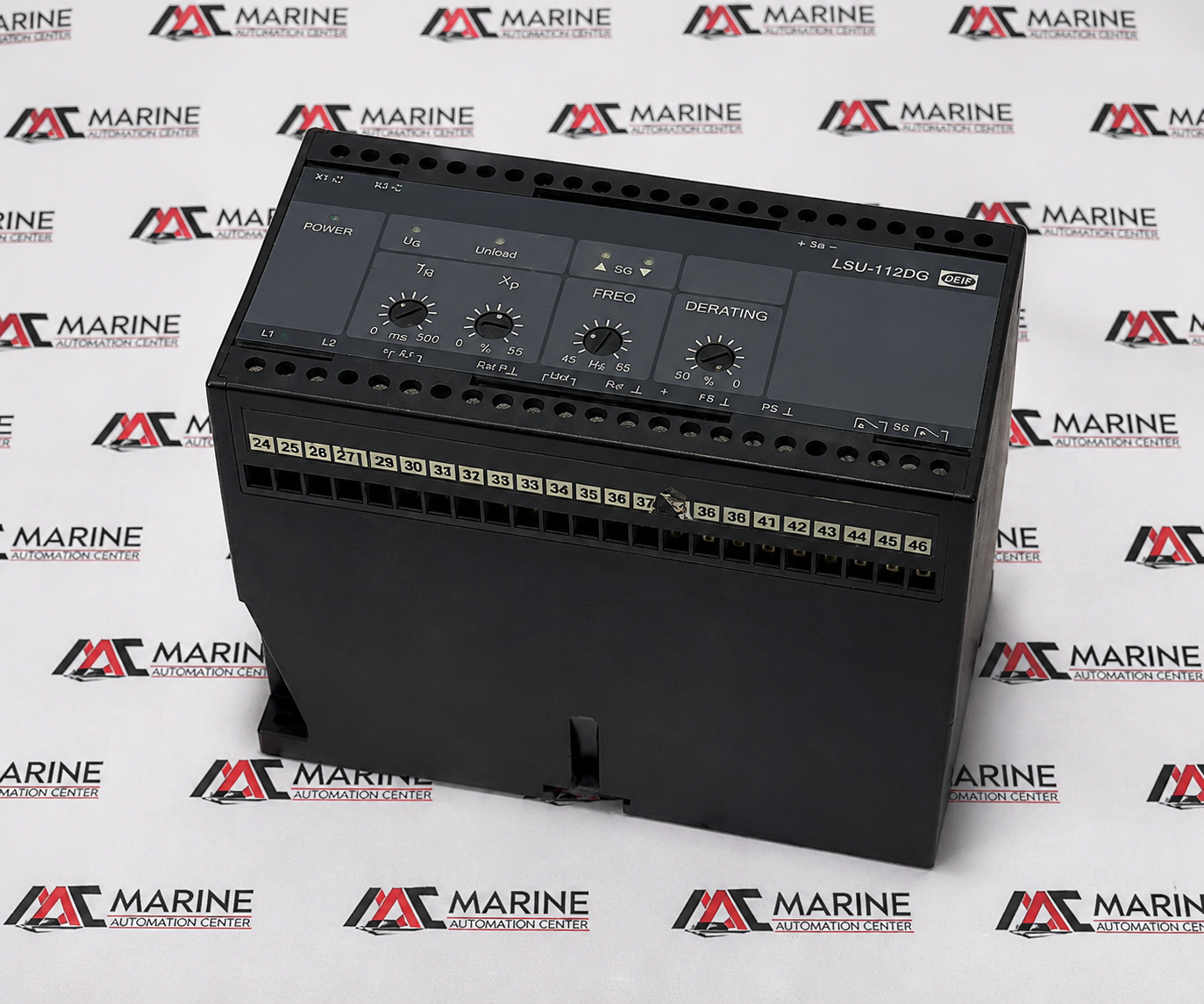

DEIF LSU112DG Load Sharing Unit (
DEIF LSU112DG Load Sharing Unit (Part No. 100000613.20)is a reliable generator load sharing controller designed to ensure balanced power distribution between multiple generator sets operating in parallel. It provides precise load sharing, stable system performance, and efficient generator synchronization, making it ideal for marine, power generation, and industrial standby power applications.
BRAND
DEIF
TYPE
Sharing Unit
PART NO.
100000613.20
MODEL
LSU112DG
Full Technical Specifications ▶

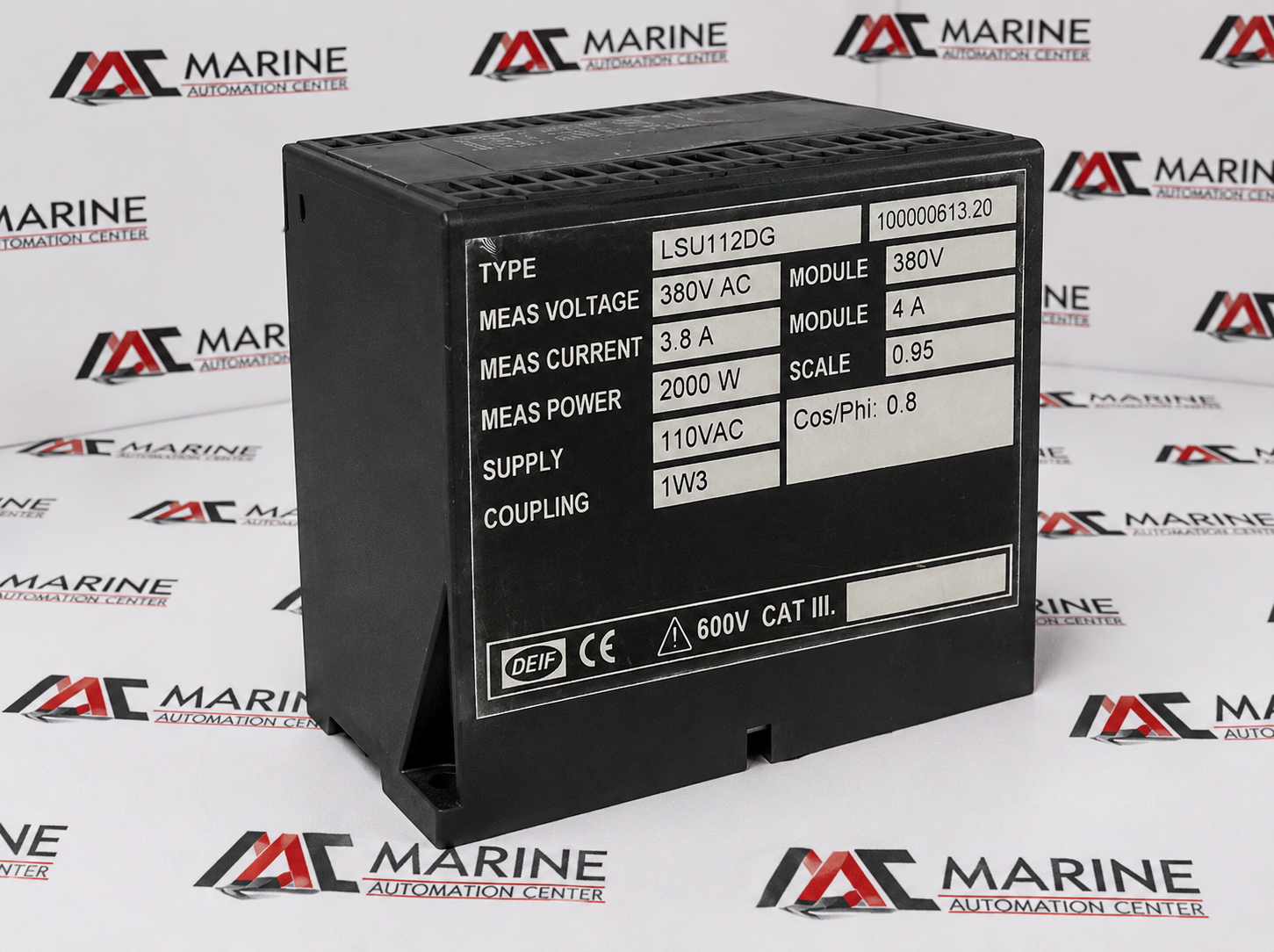

| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Sharing Unit |
| PART NO. | 100000613.20 |
| MODEL | LSU112DG |
| MANUFACTURER | DEIF |
| Measuring Voltage | 380 V AC |
| Measuring Current | 3.8 A (Module: 4 A) |
| Measuring Power | 2000 W |
| Scale | 0.95 |
| Power Factor (Cos/Phi) | 0.8 |
| Coupling Configuration | 1W3 (Three-Phase, 1 Element, Unbalanced Load) |
| Supply Voltage | 110 VAC |
| Operating Frequency | 40–65 Hz |
| DC Supply Voltage | 24 V DC |
| Power Consumption | 100 W |
| Output Type | Digital |
| Total I/O Points | 16 |
| Safety Class Rating | 600 V CAT III |
| Mounting Type | Panel Mount / 35 mm DIN Rail Mount |
| Weight | Approximately 860 g |
| Application | Generator load sharing, synchronizing, paralleling, power management, and marine/industrial power control systems |
| Made In | Denmark |
| REF NO | 1434 |
