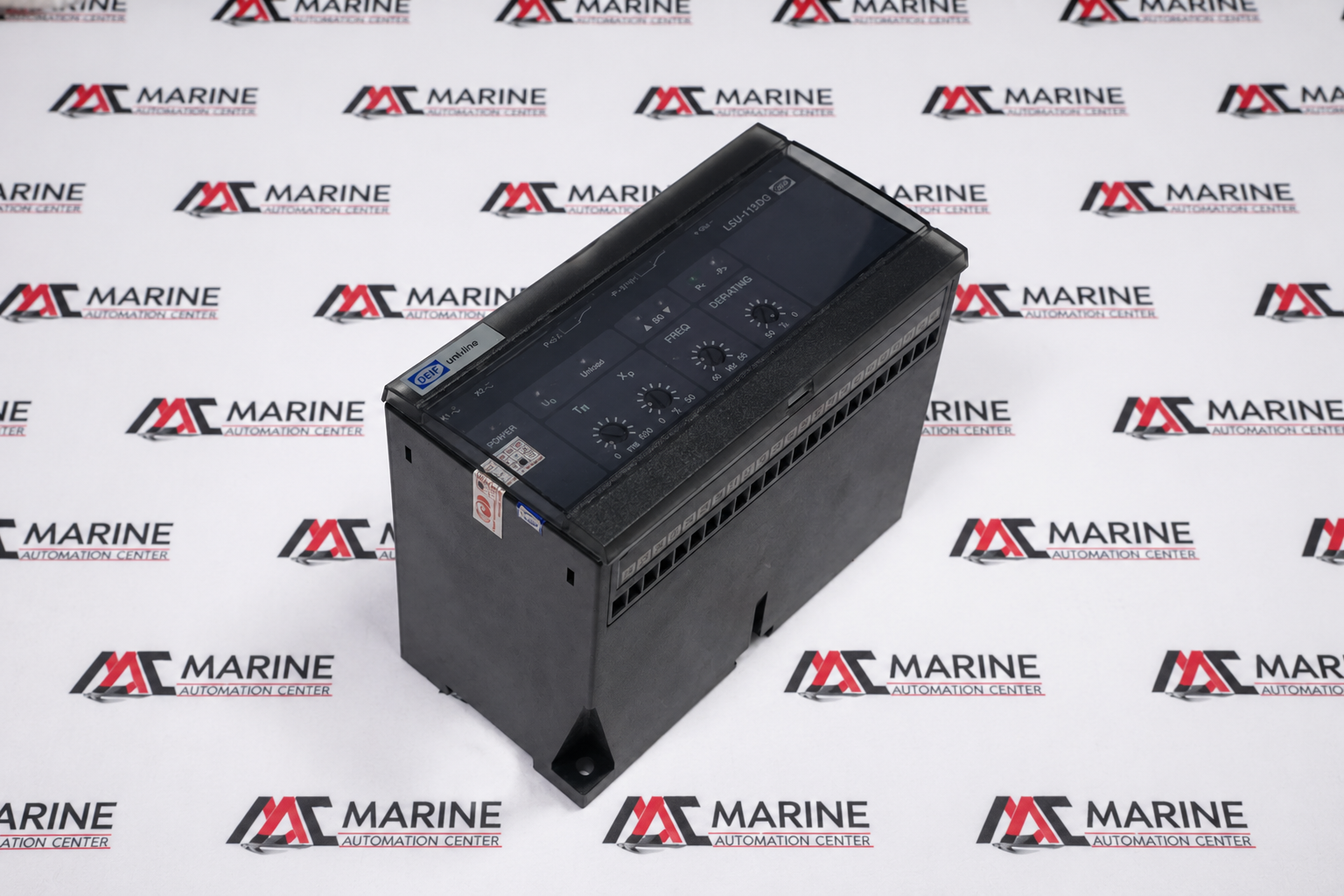

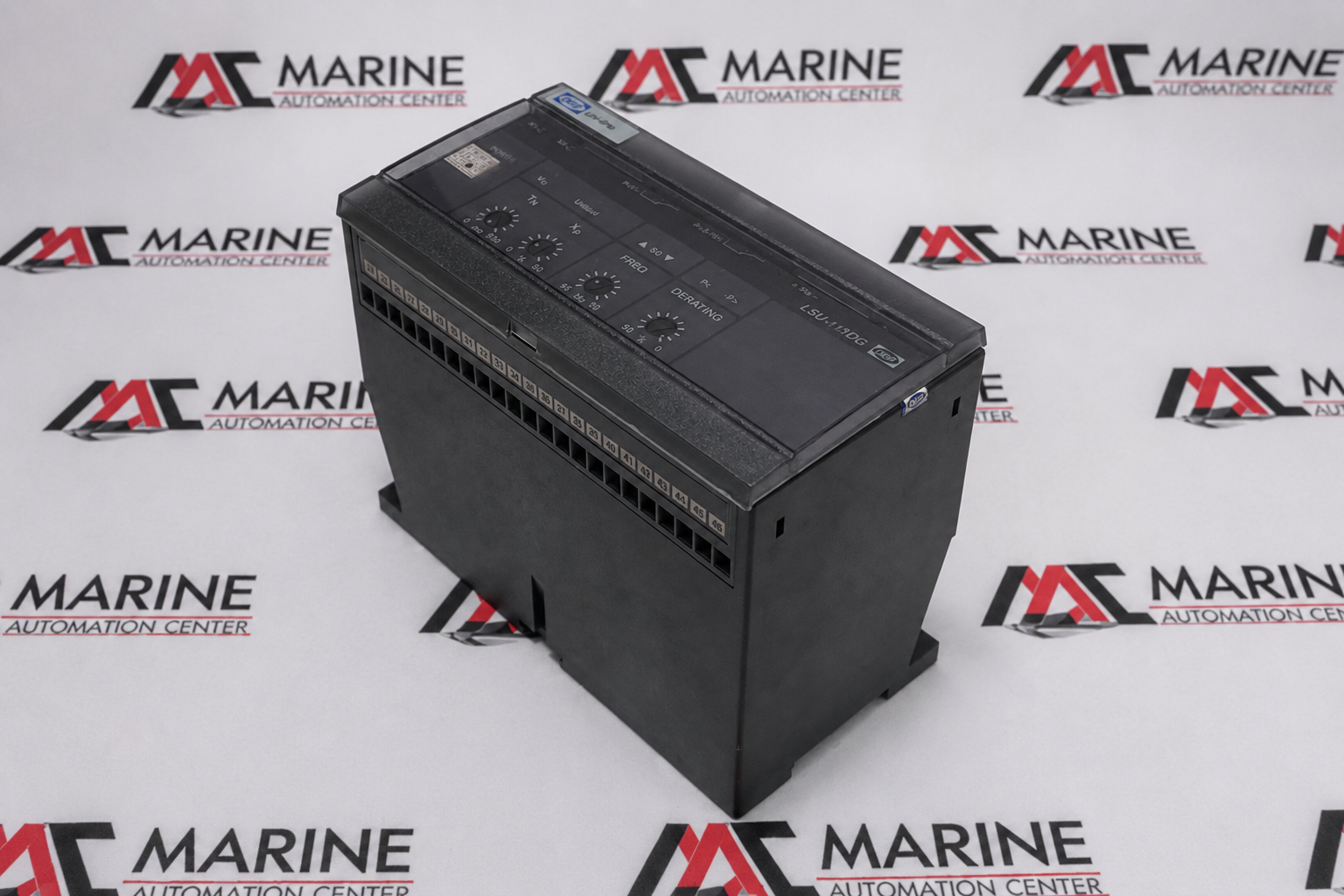

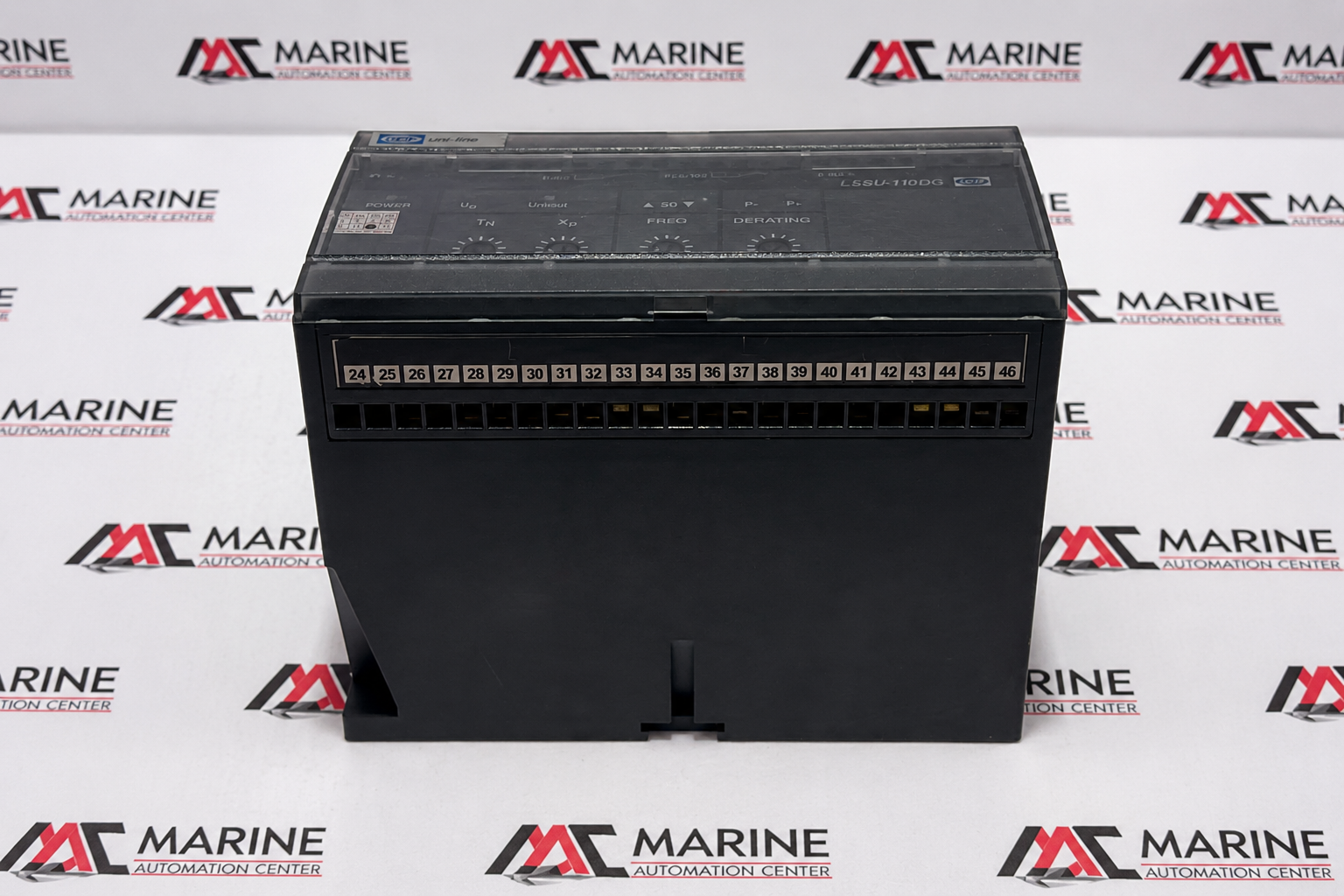

DEIF LSU-113DG (Uni-line Series) Generator Load Sharing Unit
The DEIF LSU-113DG (Uni-line Series) Generator Load Sharing Unit is an advanced generator control module designed to provide automatic load sharing, frequency regulation, and power control for parallel-operated generators. It ensures stable power distribution, balanced load sharing, and reliable synchronization between multiple generator sets, making it ideal for marine vessels, power plants, and industrial power management systems.
BRAND
DEIF
TYPE
Generator Load Sharing Unit / Frequency & Power Controller
PART NO.
DEIF Generator Frequency & Power Controller 241241.30
MODEL
LSU-113DG (Uni-line Series)
Full Technical Specifications ▶

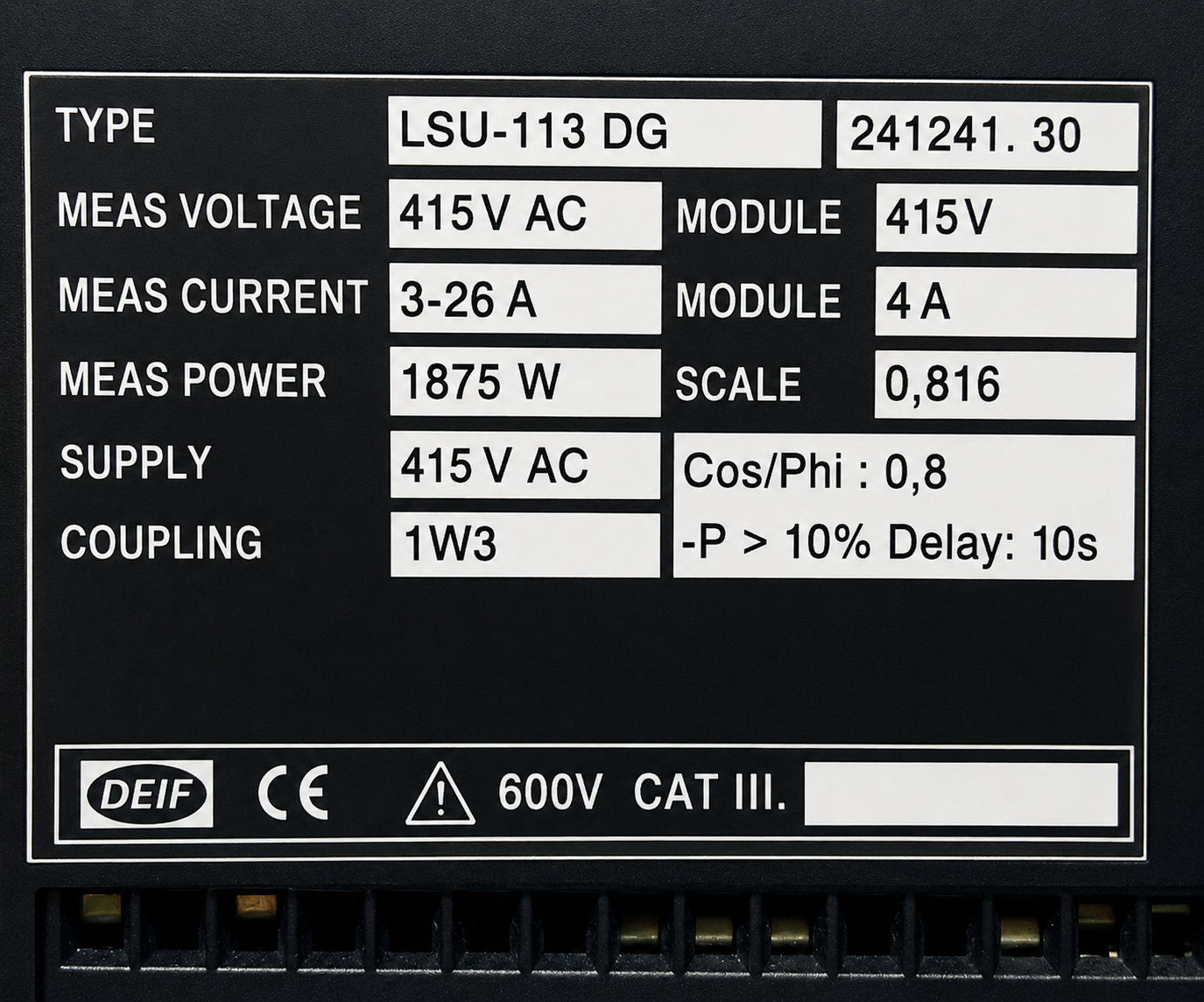

| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Generator Load Sharing Unit / Frequency & Power Controller |
| PART NO. | DEIF Generator Frequency & Power Controller 241241.30 |
| MODEL | LSU-113DG (Uni-line Series) |
| Measuring Voltage | 415 V AC |
| Voltage Module | 415 V |
| Measuring Current | 3–26 A |
| Current Module | 4 A |
| Measuring Power | 1875 W |
| Scale Factor | 0.816 |
| Power Factor (Cos φ) | 0.8 |
| Coupling | 1W3 |
| Reverse Power Setting | -P > 10% |
| Reverse Power Delay | 10 seconds |
| Frequency Range | Adjustable 45–65 Hz |
| Protection Category | 600 V CAT III |
| Mounting | 35 mm DIN Rail or Base Mount |
| Control Modes | Frequency Control, Active Load Sharing, Constant Power, Isochronous Mode |
| Built-in Transducers | Power and Frequency |
| Outputs | Relay outputs for governor speed control |
| LED Indication | Power, Frequency, Derating, Load Sharing Status |
| Application | Diesel & Gas Generator Load Sharing and Generator Paralleling Systems |
| Typical Industry | Marine, Offshore, Industrial Power Plants, Generator Control Panels |
| IEC / Certification | CE Marked |
| Made In | Denmark |
| REF NO | 1185 |
