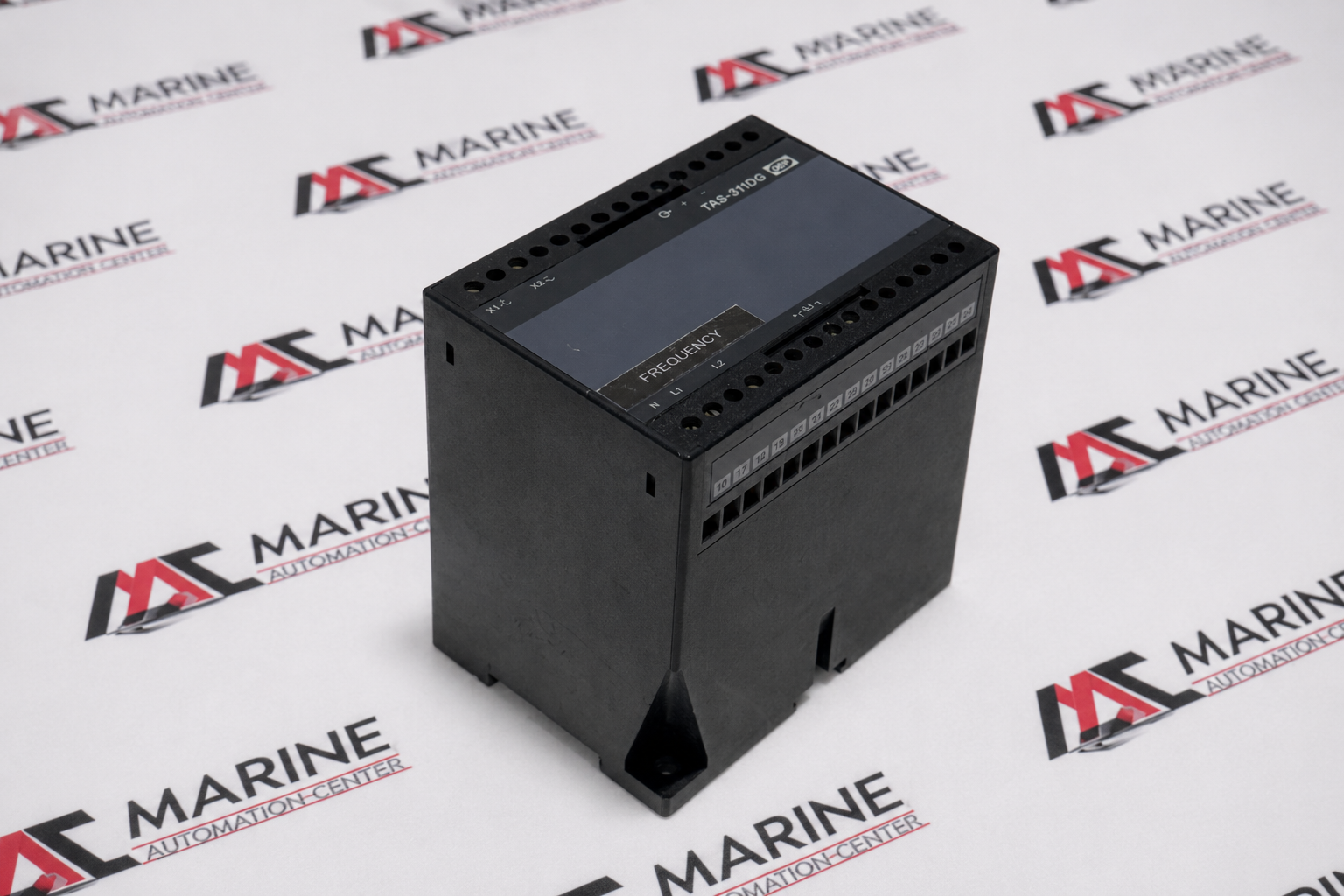

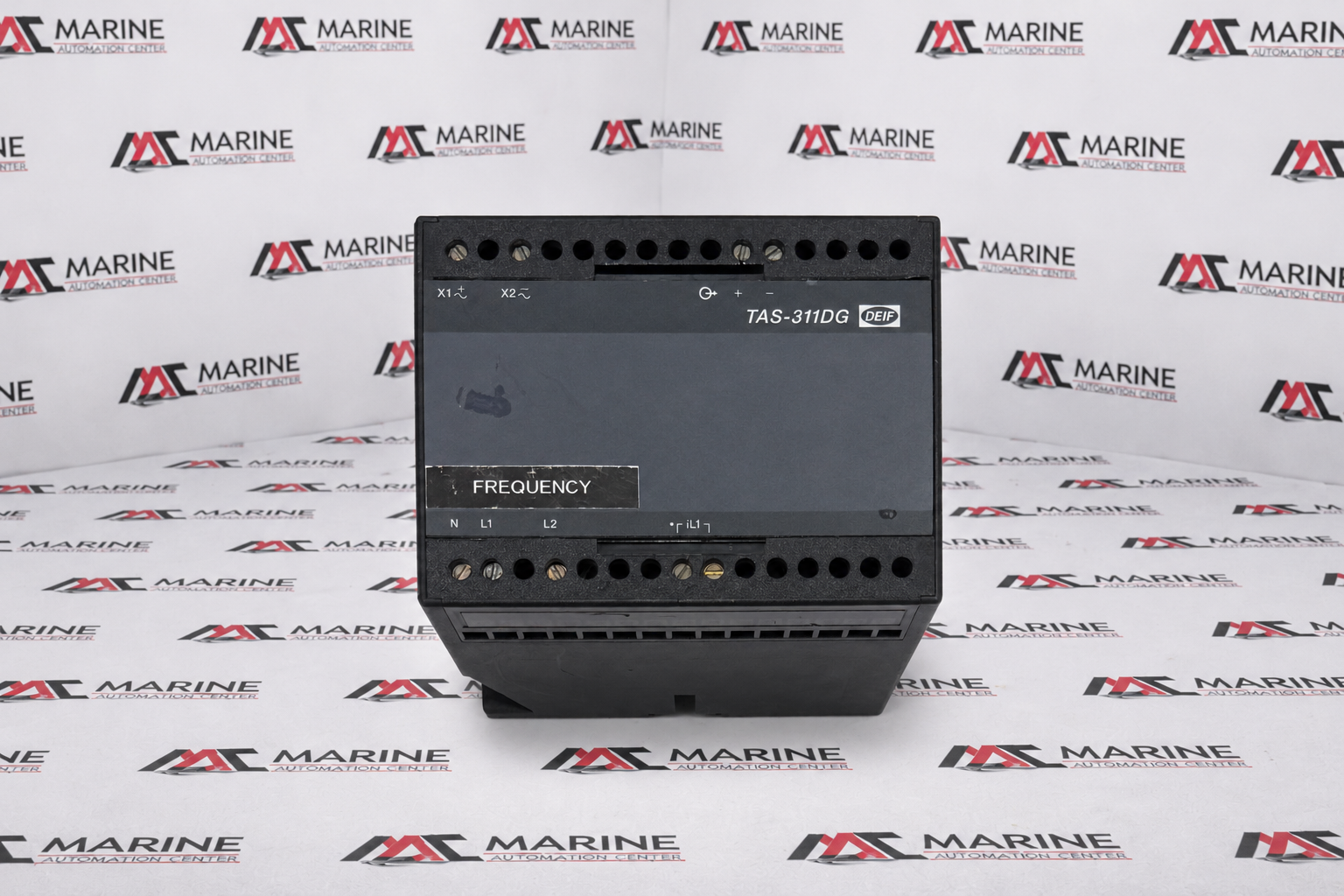

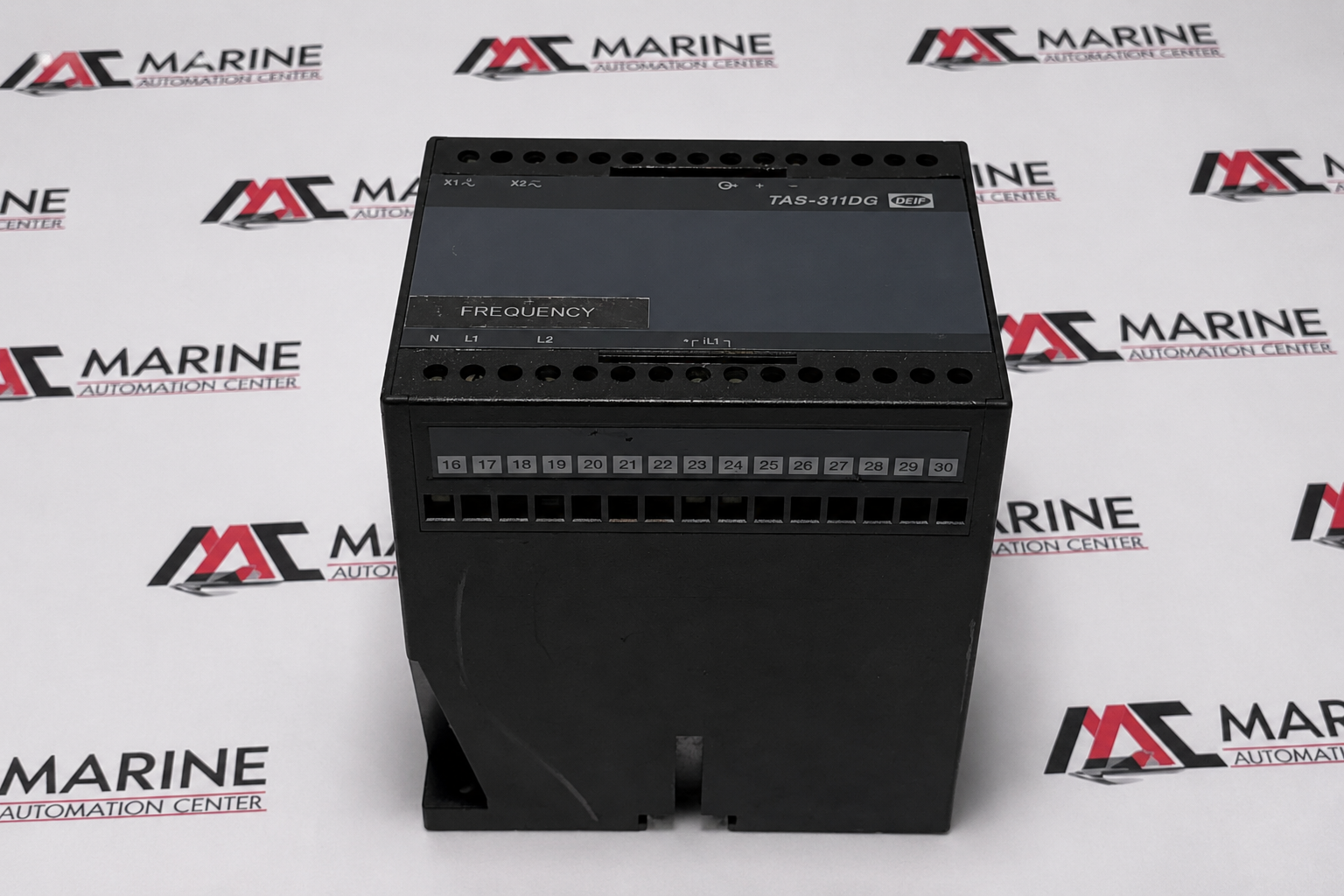

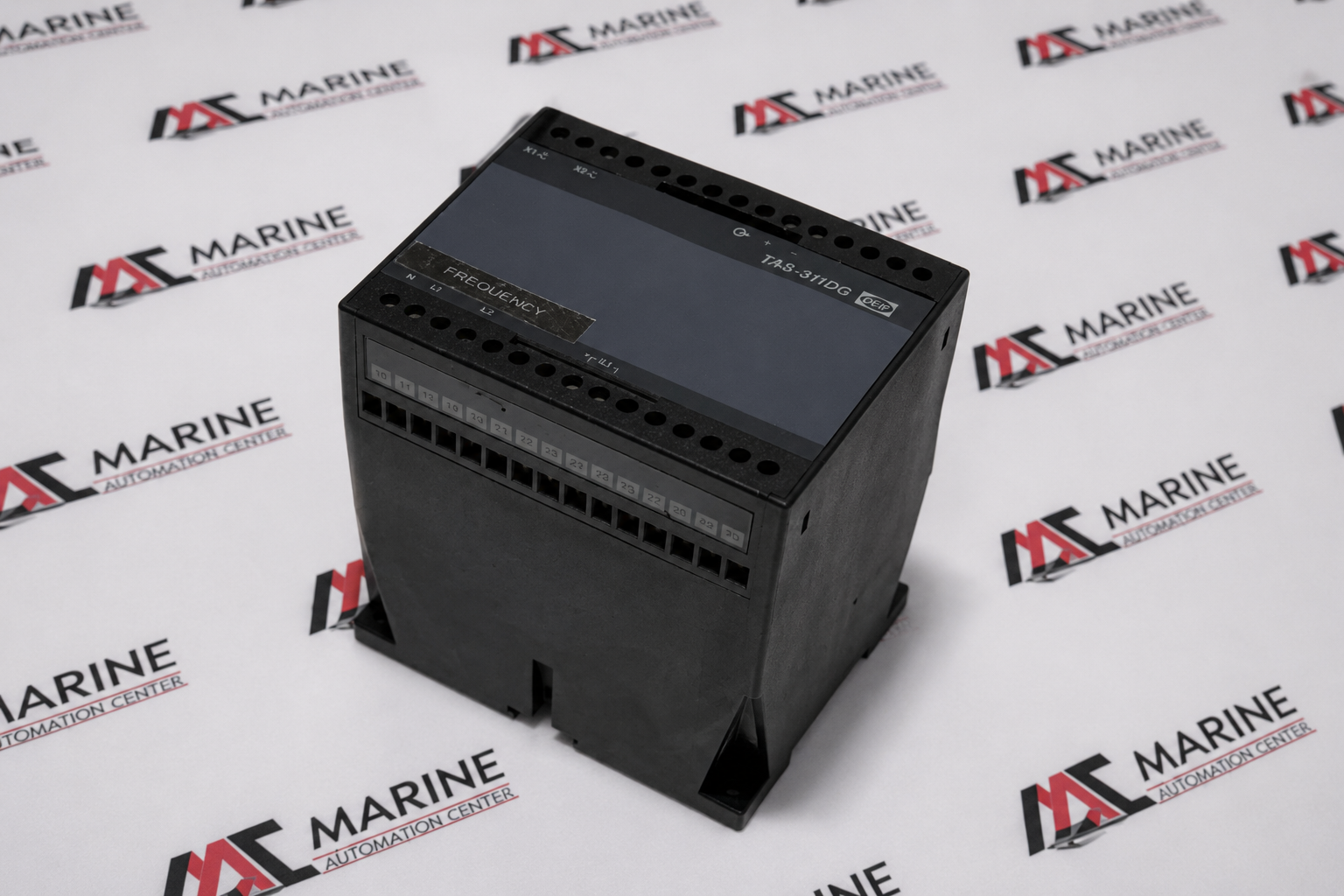

DEIF Frequency Transducer TAS-311DG
The DEIF TAS-311DG is a microprocessor-based AC frequency measuring transducer designed for accurate monitoring of AC network frequency. It converts frequency signals into a proportional 4–20 mA analog output for PLCs, automation systems, marine switchboards, power management systems, and industrial control applications. The unit offers Class 0.5 accuracy, supports measuring and supply voltages up to 690 VAC, provides 24 VDC auxiliary supply, and can be factory-configured or PC-configured for fl
BRAND
DEIF
TYPE
Frequency Transducer
PART NO.
600007724.30
MODEL
TAS-311DG
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Frequency Transducer |
| PART NO. | 600007724.30 |
| MODEL | TAS-311DG |
| MANUFACTURER | DEIF A/S |
| Voltage Rating | Measuring Voltage: Up to 690V AC (Delta L-L). Auxiliary Supply: 24V DC. Input Frequency: 45...60...75 Hz. |
| Application | Frequency monitoring and conversion in marine switchboards, generator control systems, power management systems (PMS), synchronizing panels, PLC systems, industrial automation, power distribution panels, and process control applications. Converts AC frequ |
| IEC | IEC 688 Class 0.5 Measurement Accuracy, CE Certified, 600V CAT III. |
| Measured Parameter | Frequency |
| Coupling | Delta (L-L) |
| Frequency Measuring Range | 45...60...75 Hz |
| Input Signal | 45...60...75 Hz AC |
| Output Signal | 4...12...20 mA Analogue Output |
| Maximum Load | < 500 Ω |
| Made In | Denmark |
| Ref no. | 1429 |
