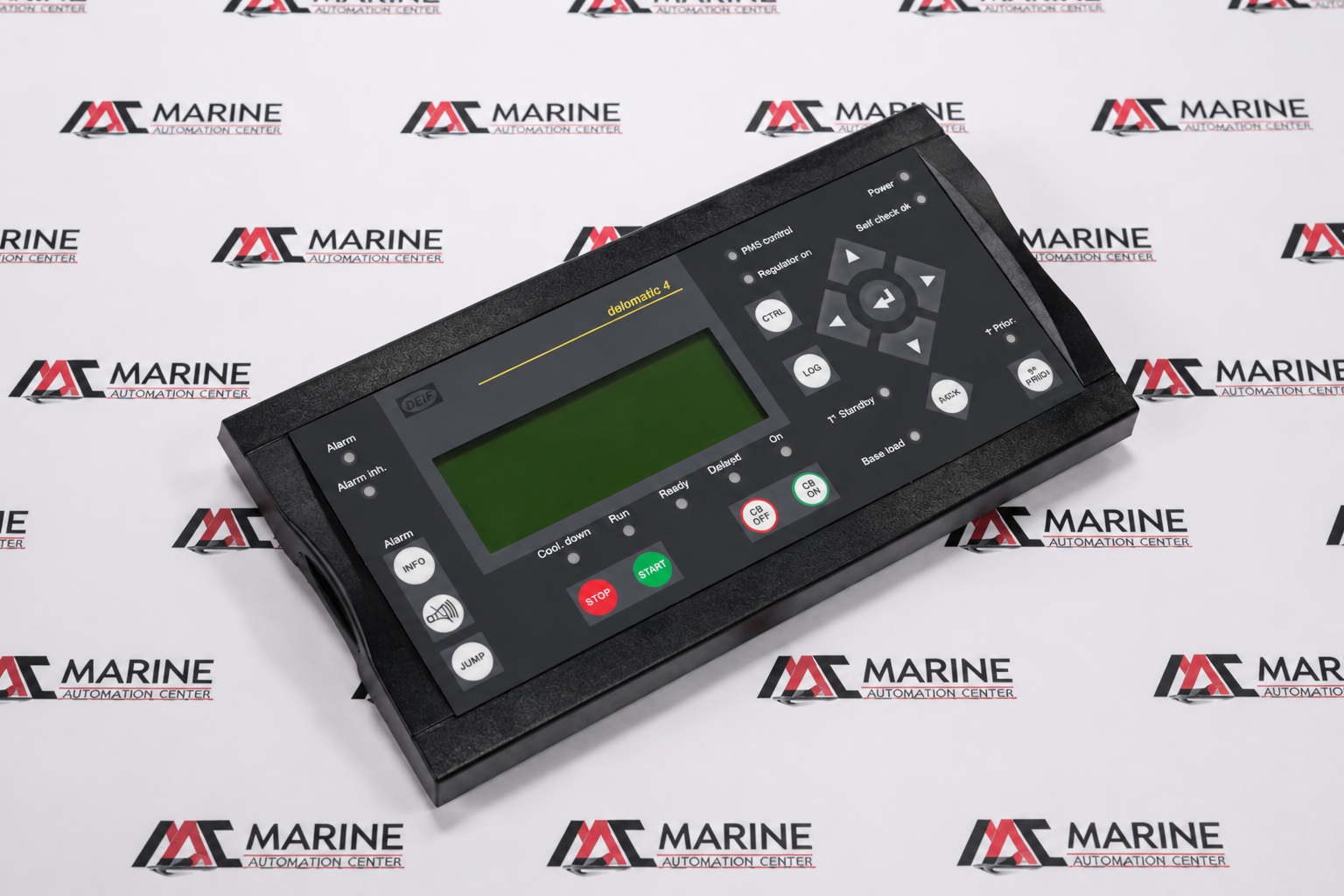

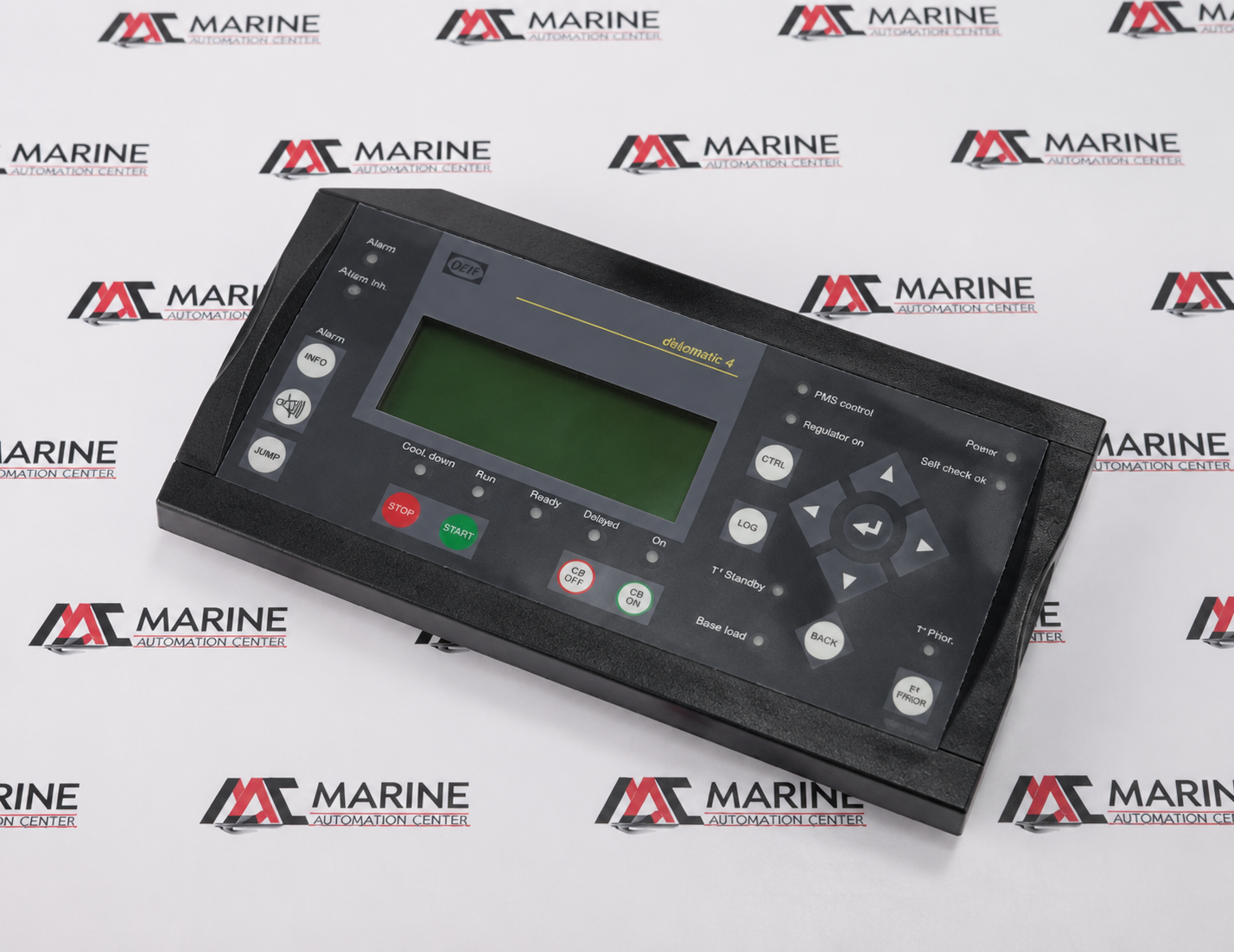

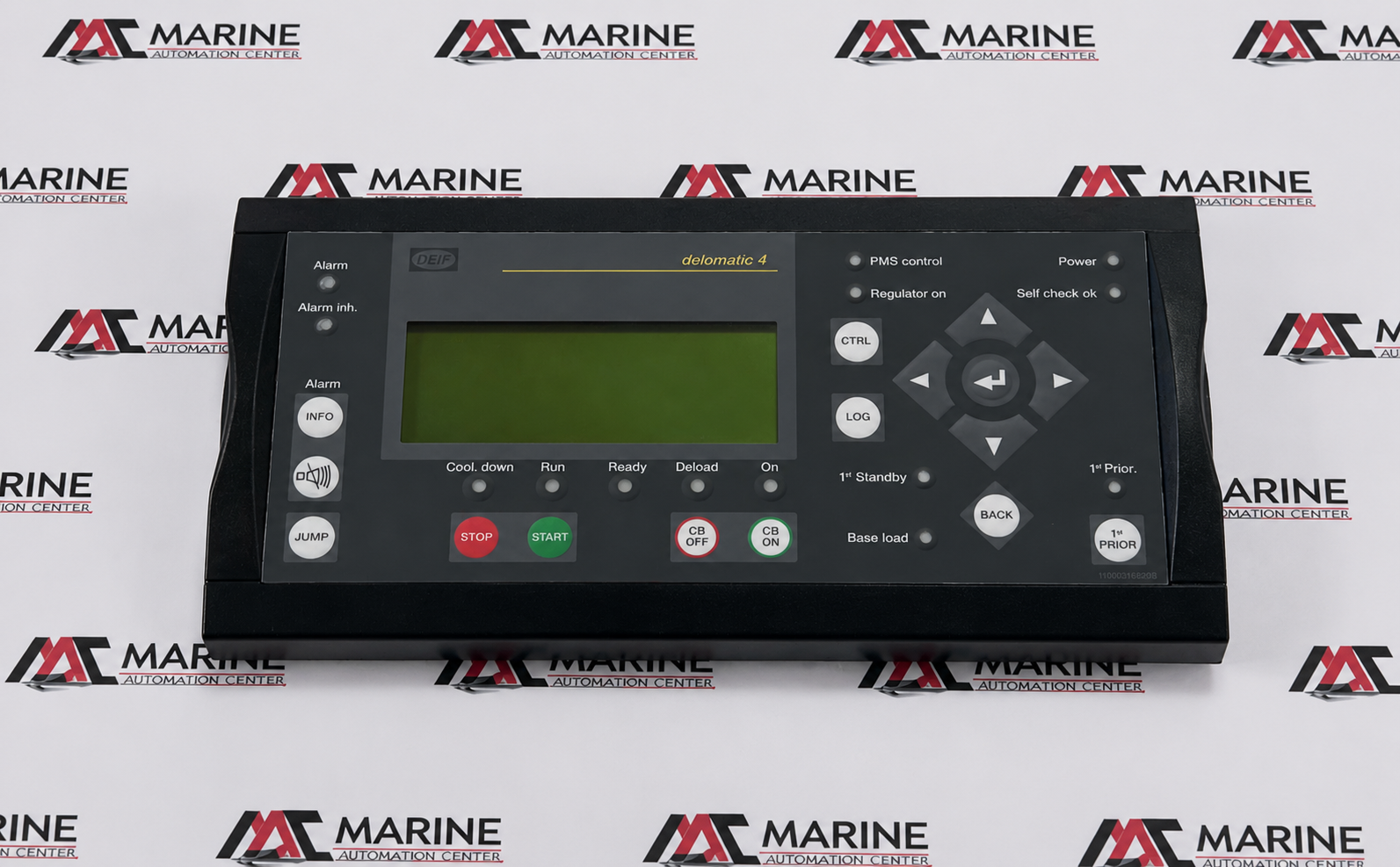

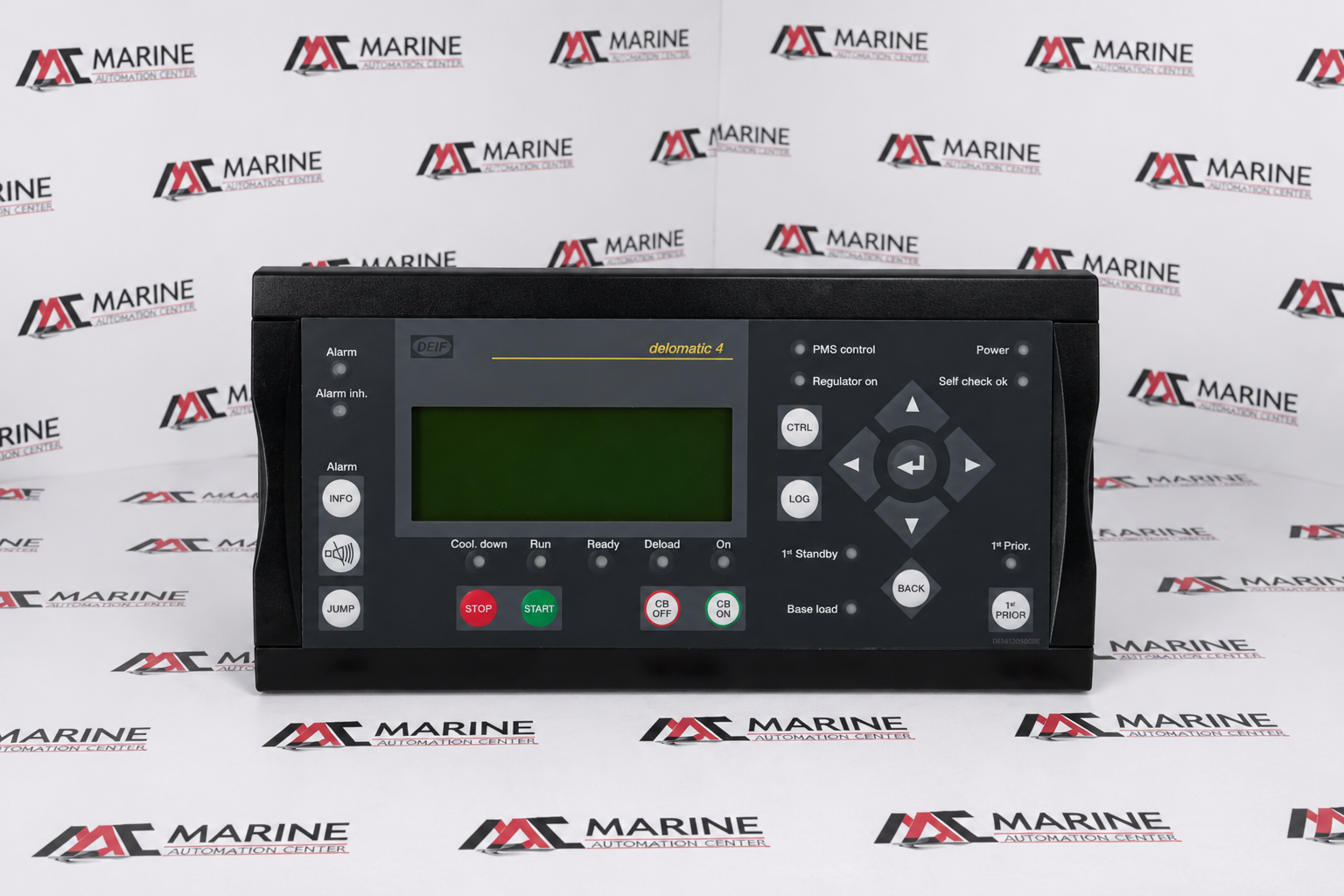

DEIF Delomatic 4 DU2.1 DGU-3 Display Unit
DEIF Delomatic 4 DU2.1 DGU-3 Display Unit is a display and operator interface designed for the DEIF Delomatic 4 generator control system. It provides real-time monitoring, status indication, parameter display, alarms, and user interaction for efficient control and supervision of generator sets in marine and industrial power management applications
BRAND
DEIF
TYPE
Display Unit (Delomatic 4 System)

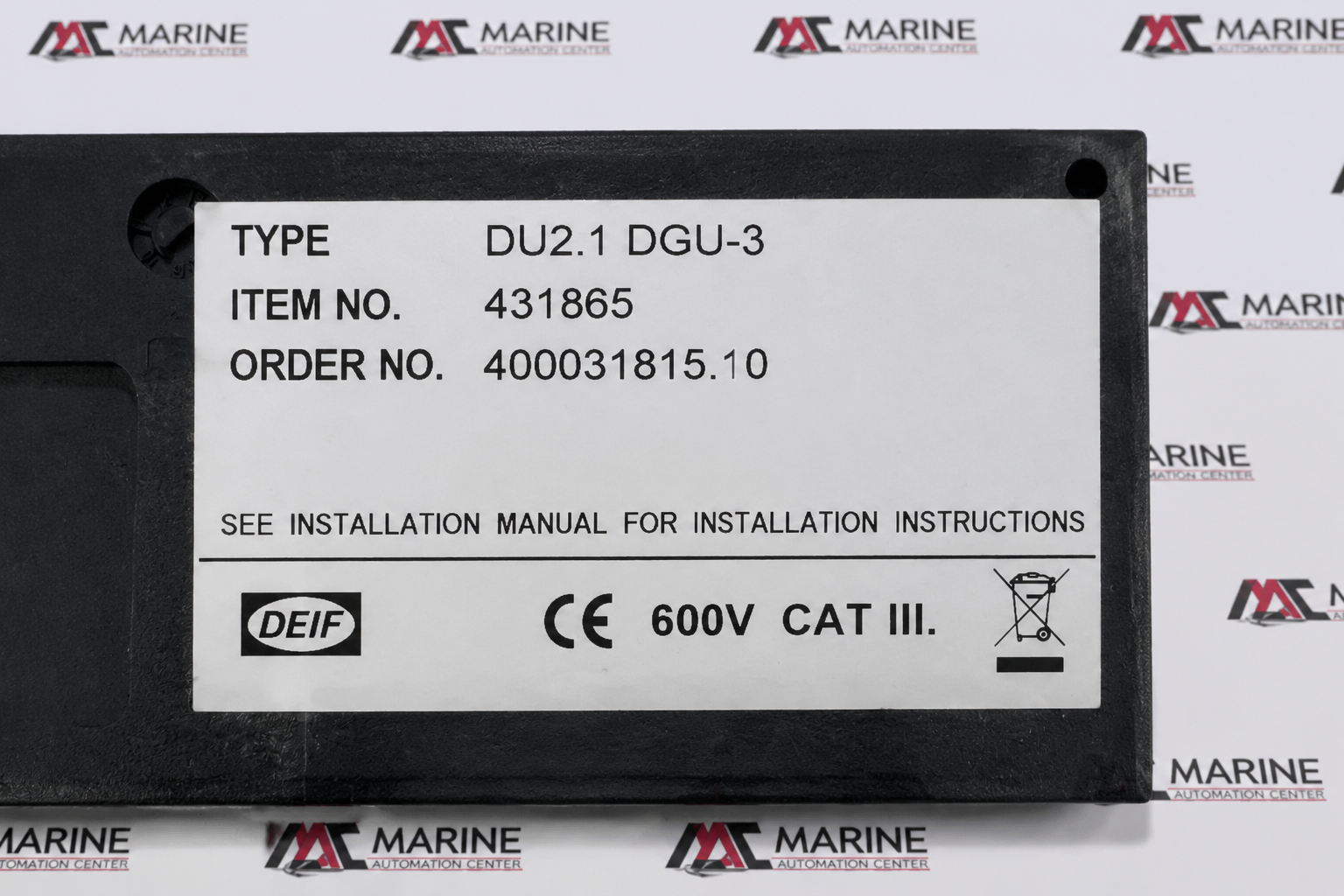

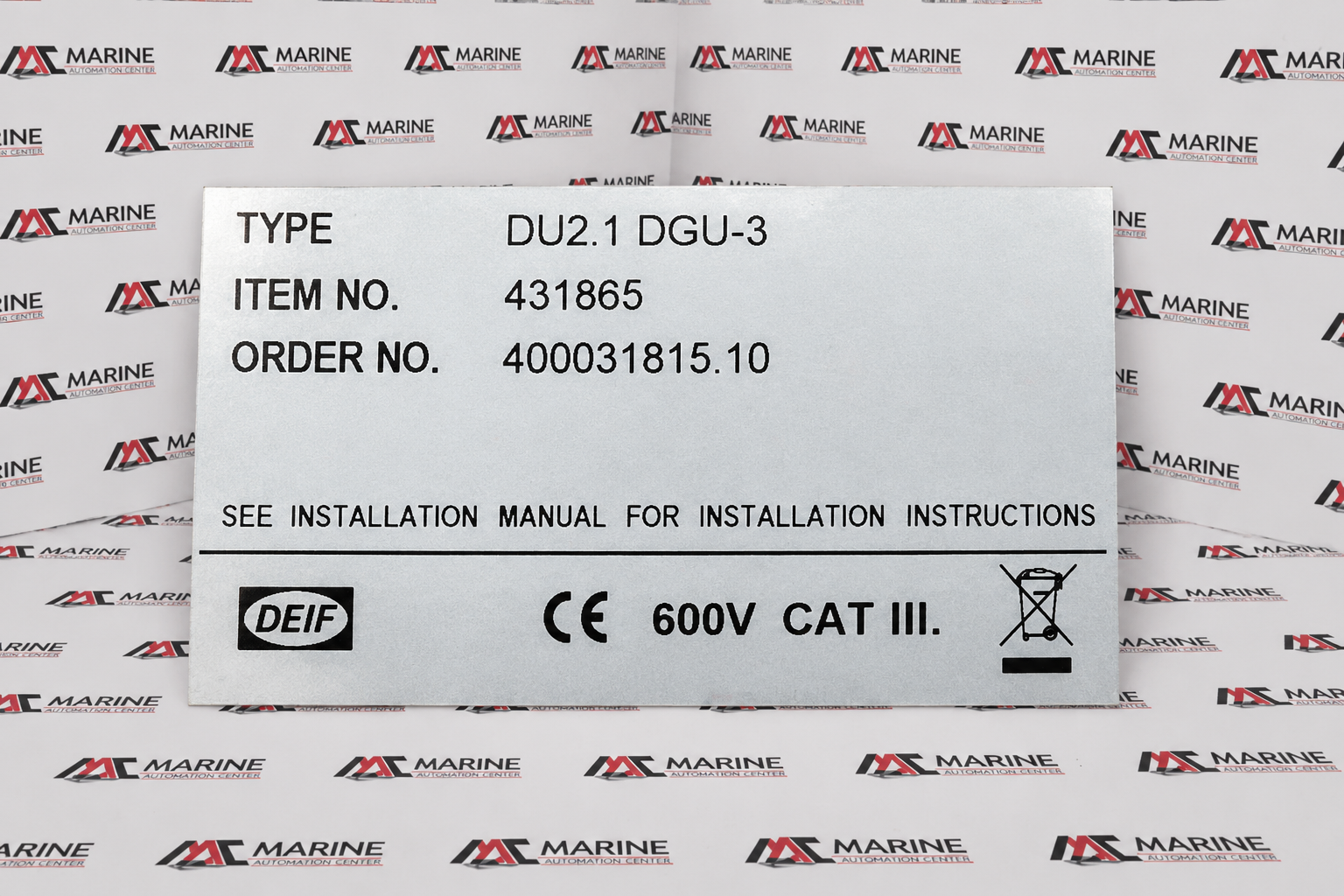

PART NO.
400031815.10
MODEL
DU2.1 DGU-3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Display Unit (Delomatic 4 System) |
| PART NO. | 400031815.10 |
| MODEL | DU2.1 DGU-3 |
| Voltage Rating | 24 V DC Operational Input |
| Application | Graphical user interface, real-time value parameter visualization, and diagnostic handling for DEIF Delomatic 4 Power Management Systems (PMS) on commercial vessels and power generation plants. |
| IEC | CE Marked; features full electrical safety separation up to 600V Overvoltage Category III (CAT III). |
| System Integration Capability | Acts as a specialized interactive screen hub linking up to 3 individual display panels directly to a single central Delomatic 4 automation controller rack |

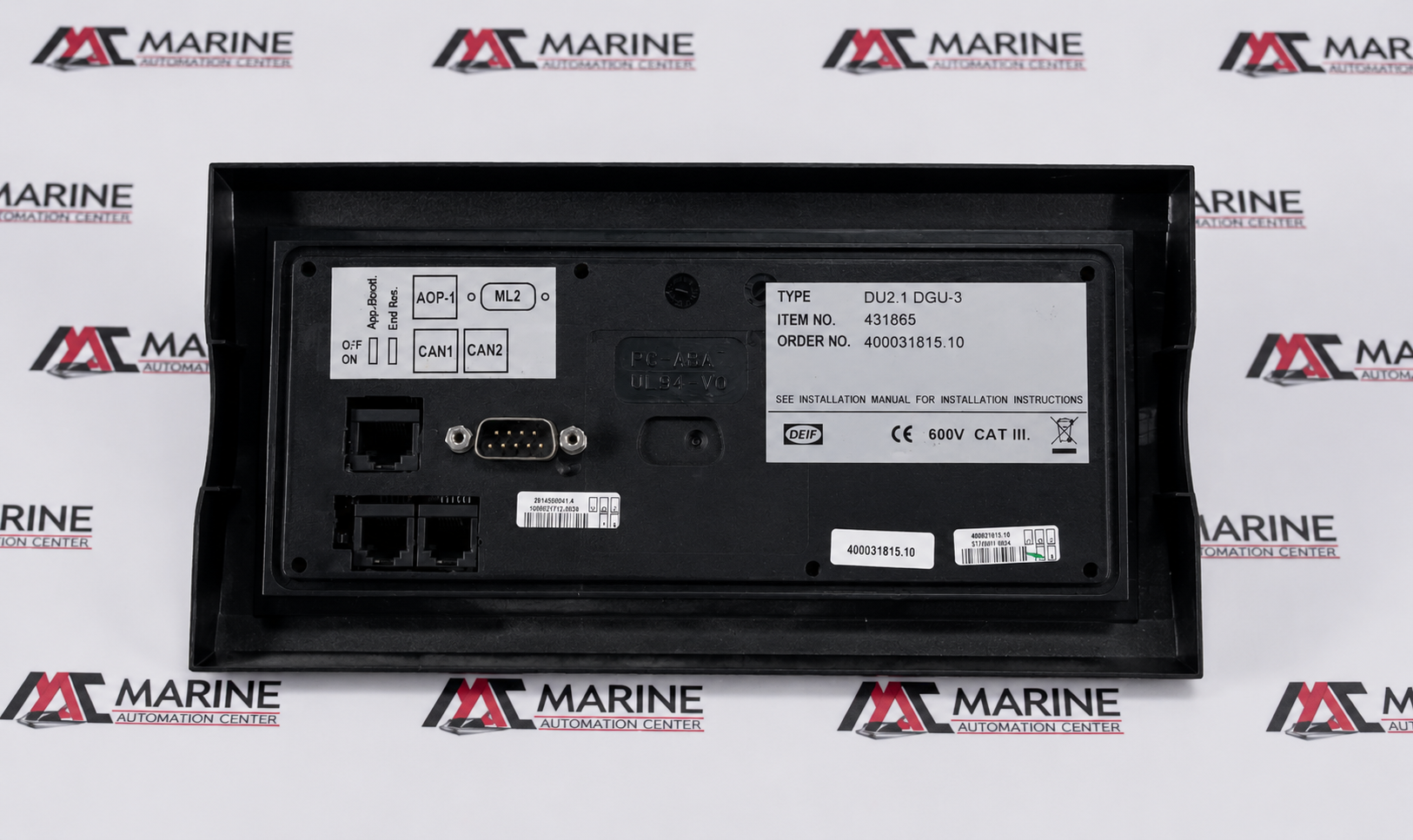

| Interface Communication Ports | Equipped with a 9-pin Sub-D male connection port for direct master processor communication and integrated RJ45 data lanes to support external operator panels |
| Ingress Sealing Protection | Reaches an IP52 rating in compliance with IEC 60529 and EN 60529 benchmarks |
| Operating Ambient Climate | -25°C to +70°C |
| Vibration and Noise Dampening | Fully compliant with EN 61000-6 industrial noise standards to avoid distortion near high-vibration engine bays and heavy alternators |
| Made In | Denmark |
| REF NO | 342 |
