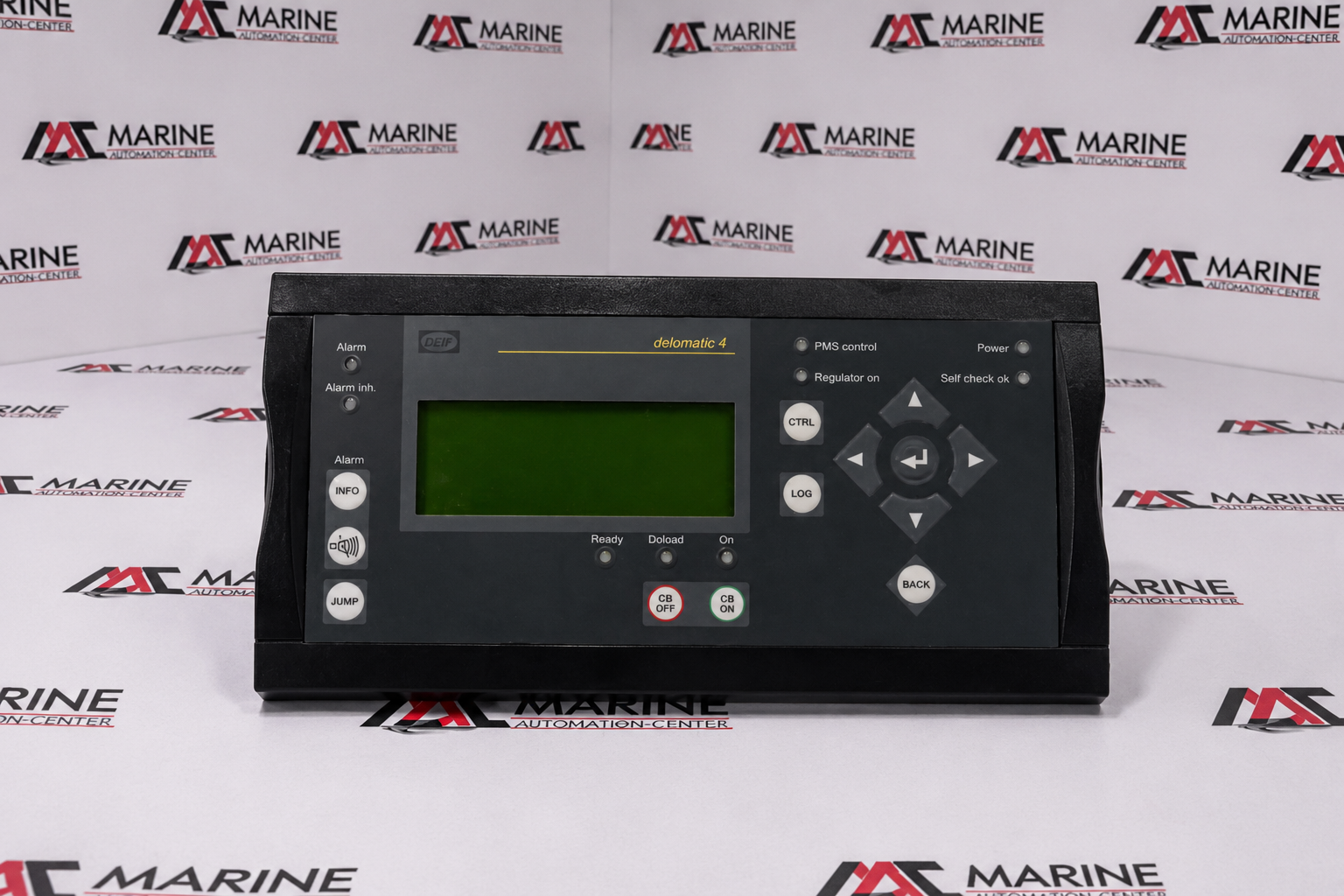

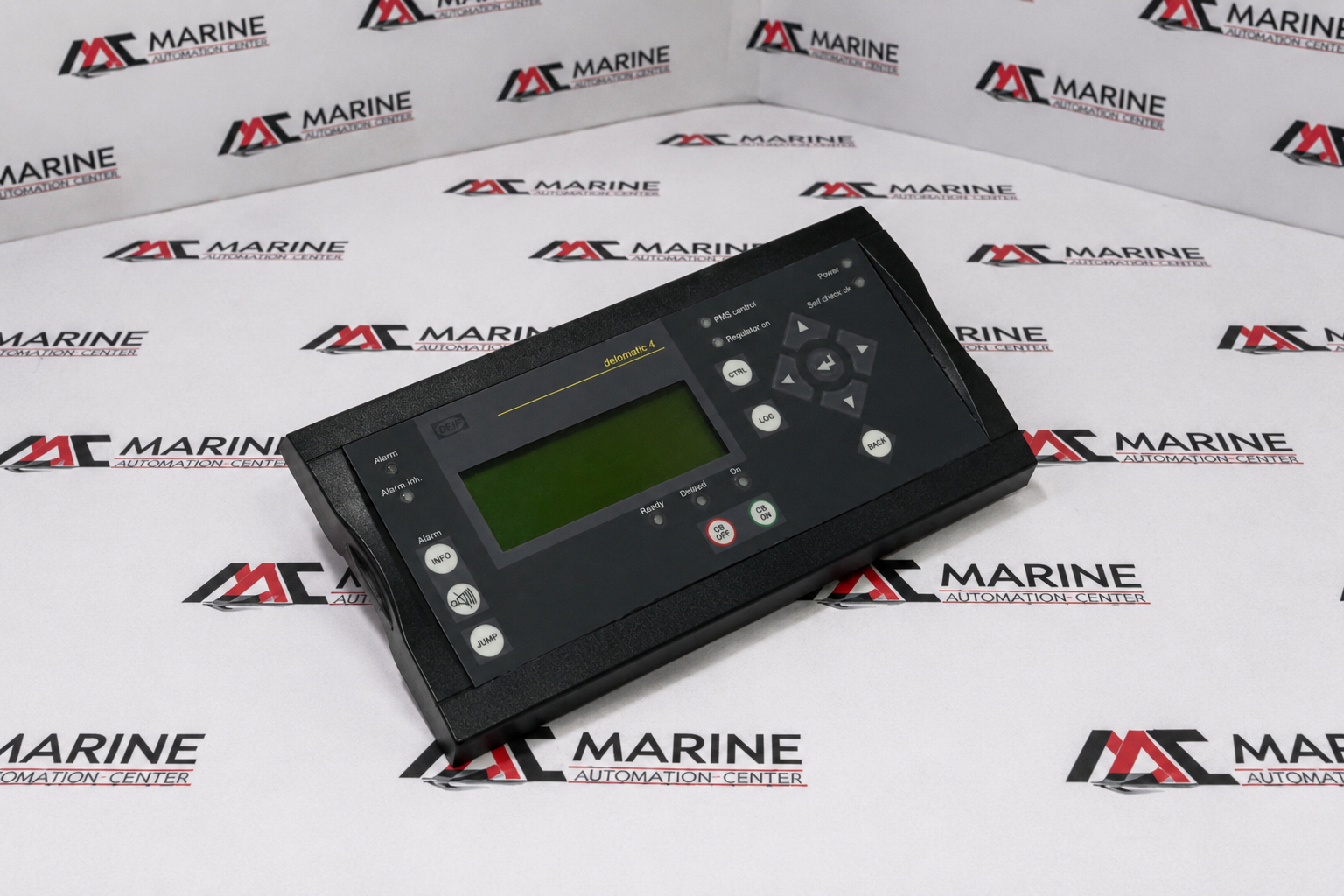

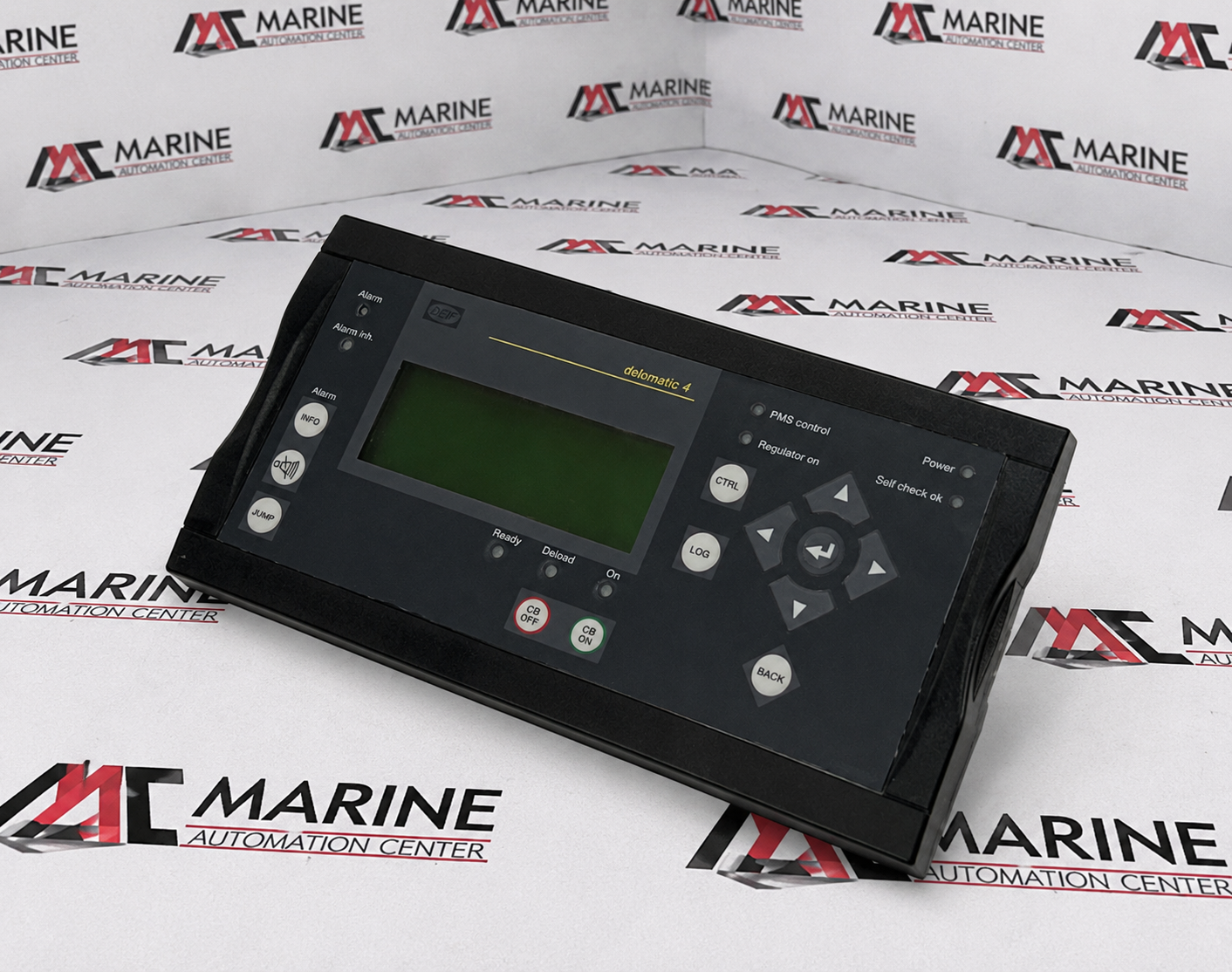

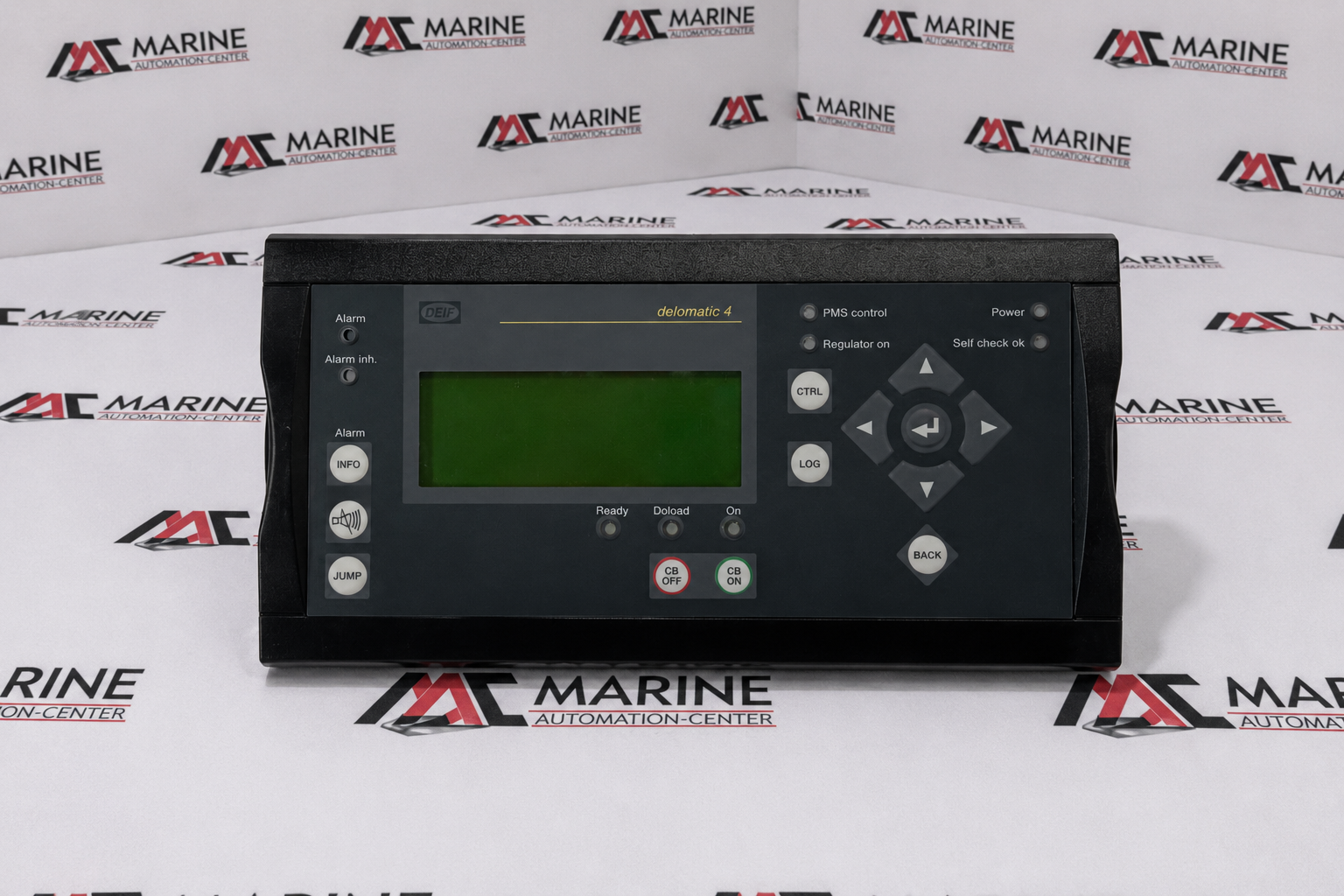

DEIF Delomatic 4 DU2.0 DGU-7 Display Unit
DEIF Delomatic 4 DU2.0 DGU-7 Display Unit is a display and operator interface designed for the DEIF Delomatic 4 generator control system. It provides real-time monitoring, status indication, alarm display, and operator control of generator sets, supporting reliable power management in marine and industrial applications
BRAND
DEIF
TYPE
Display Unit
PART NO.
400031815.10
MODEL
DU2.0 DGU-7
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Display Unit |
| PART NO. | 400031815.10 |
| MODEL | DU2.0 DGU-7 |
| Voltage Rating | 24 V DC Operational Input |
| Application | Human-machine interface, parameter visualization, and diagnostic tracking for DEIF Delomatic 4 Power Management Systems (PMS) in marine fleets and power plant cabinets |
| IEC | CE Marked; features full electrical safety separation up to 600V Overvoltage Category III (CAT III). |
| CAN1 / CAN2 | Dedicated communication ports for dual-channel network setups |
| AOP-1 | Dedicated configuration linkage port for an Additional Operator Panel |
| ML2 | Marine Line communication system channel |
| On-Board Hardware Selection Switches | Built-in dip switches for App.Select. and End Res |

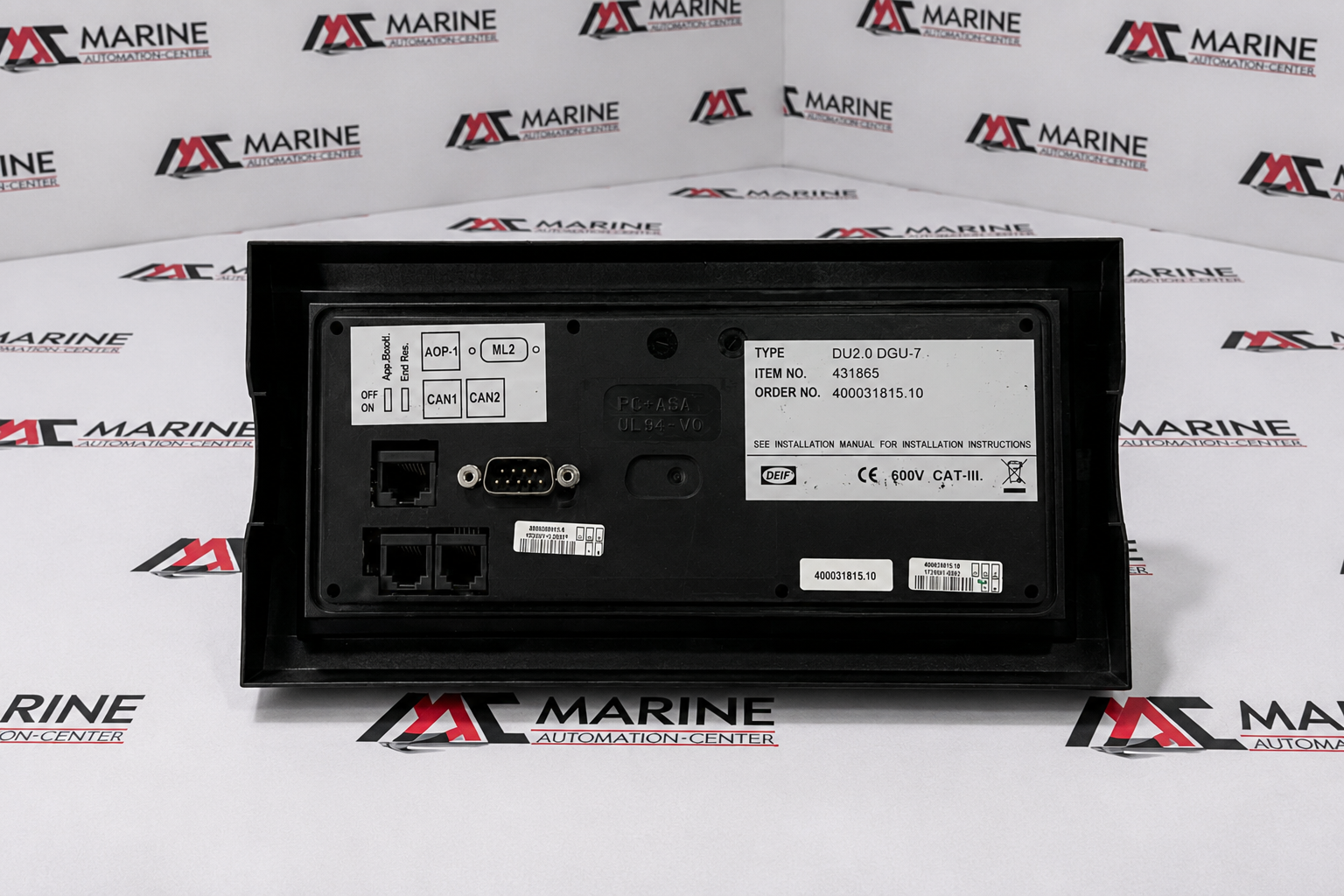

| Interface Communication Ports | 1 x 9-pin Sub-D female connection interface alongside 2 x RJ45 modular communication ports |
| Enclosure Sub-Structure Material | UL 94-V0 |
| Vibration and Noise Dampening | Fully compliant with EN 61000-6 industrial noise standards to avoid signal distortion near high-vibration engine bays and heavy alternators |
| Made In | Denmark |
| REF NO | 343 |
