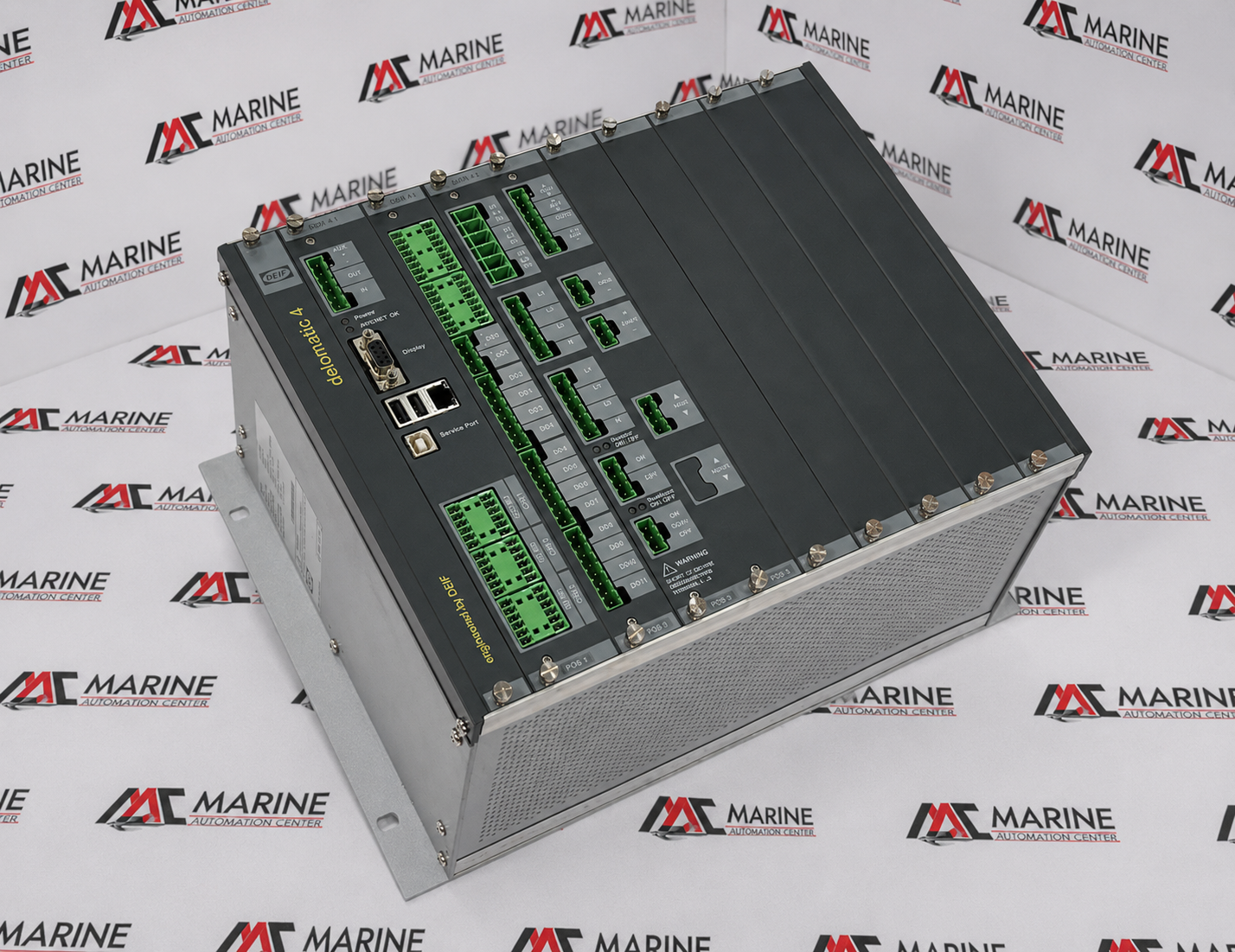

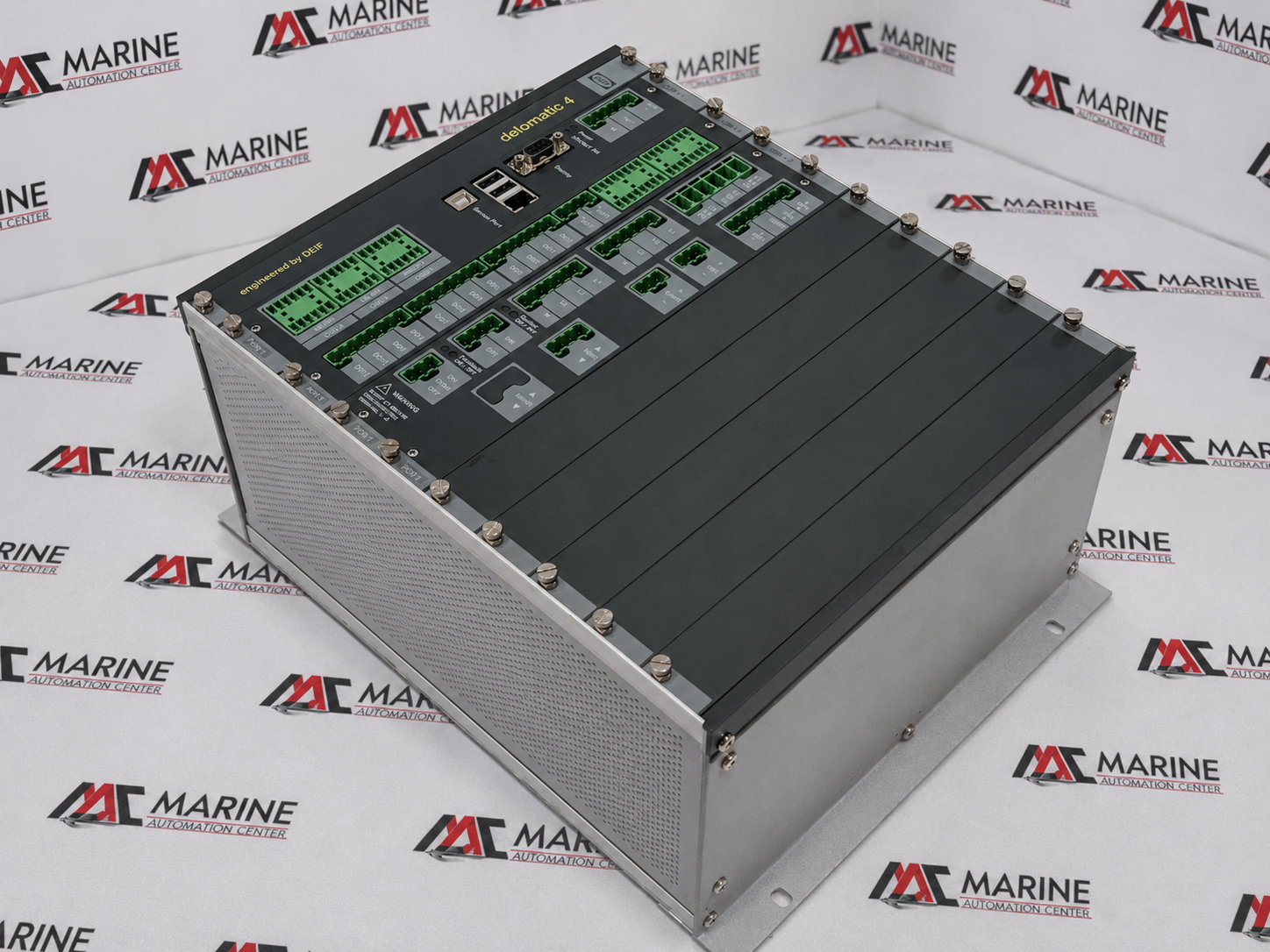

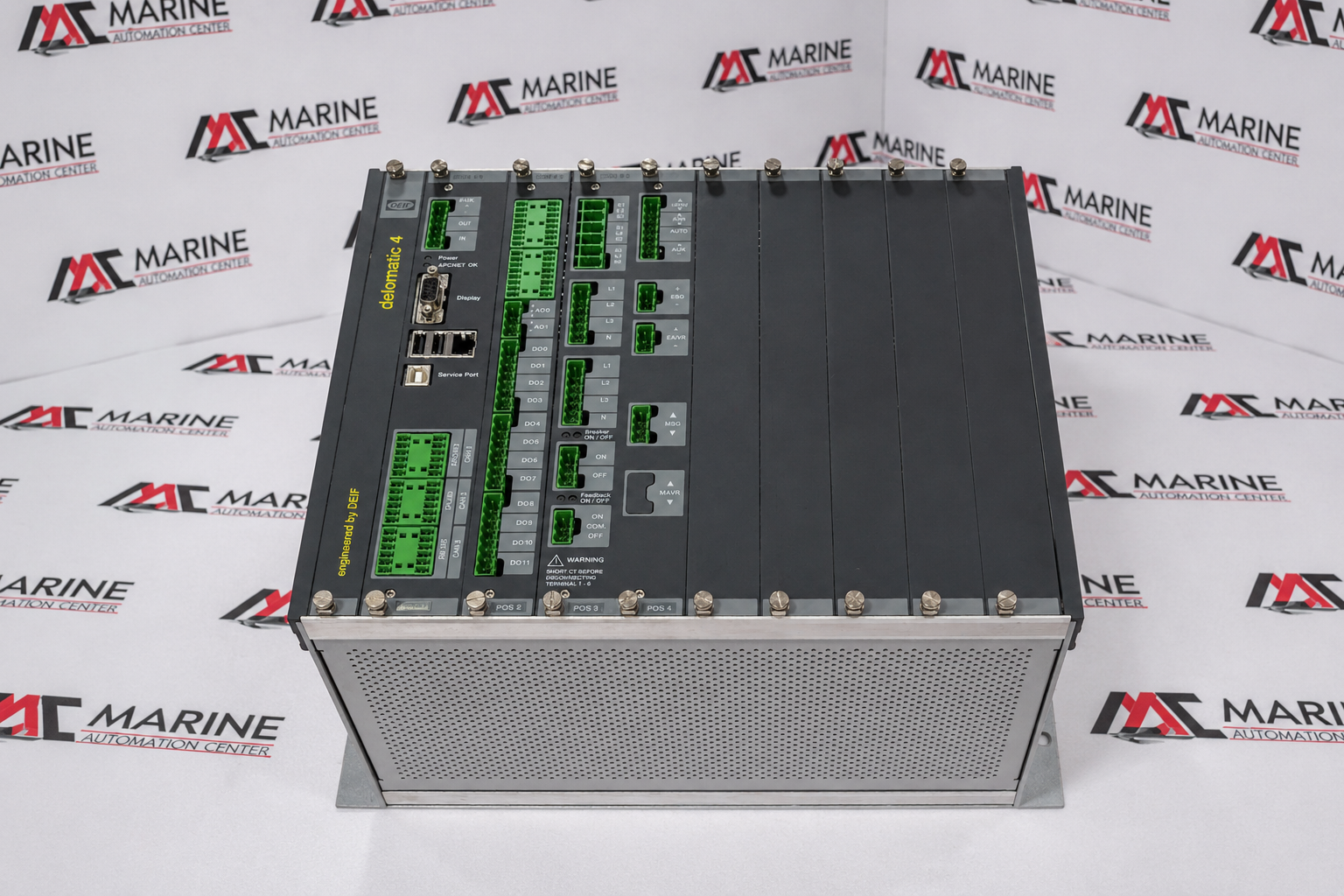

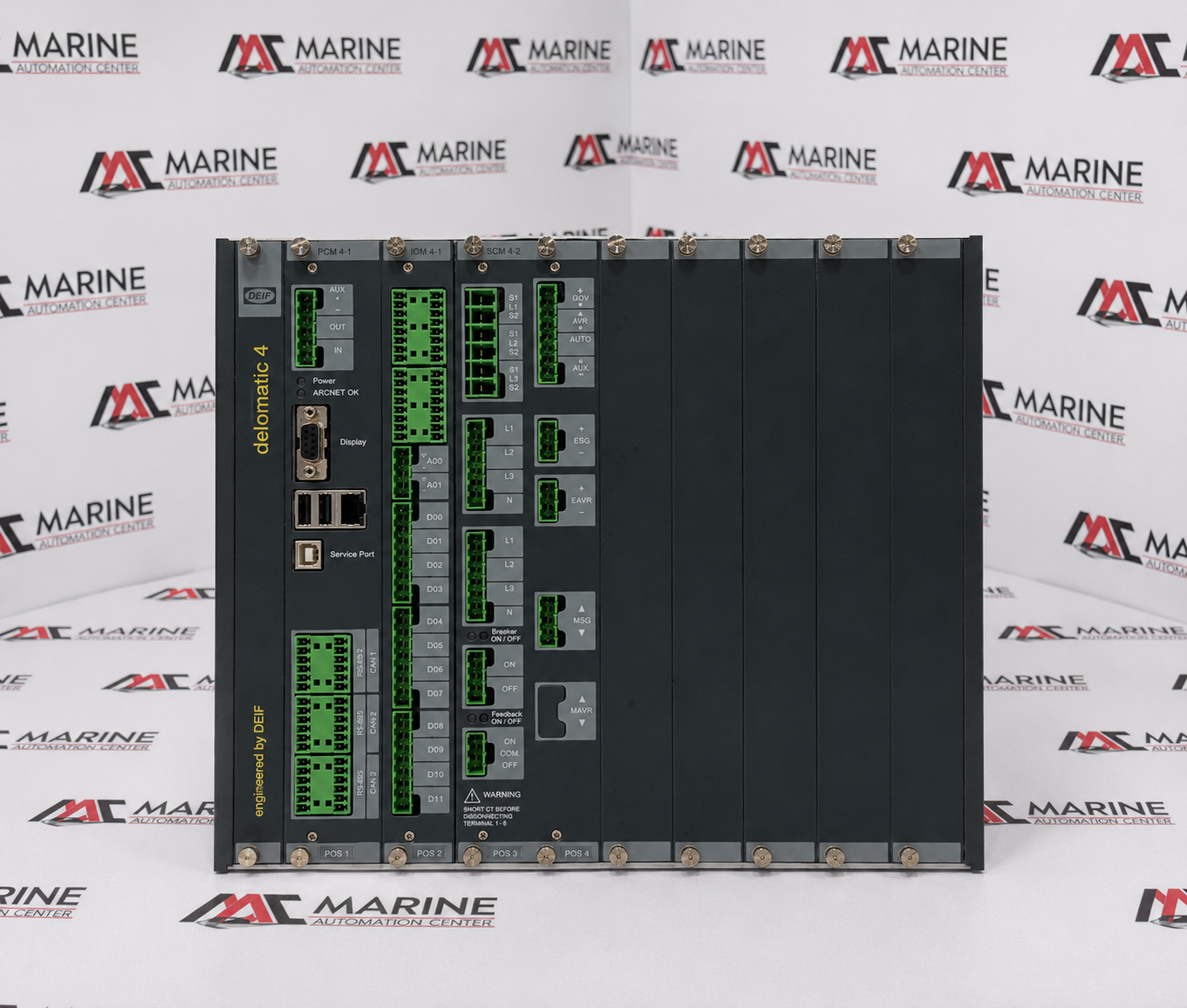

DEIF Delomatic 4 DGU 0002 Generator Control Unit
DEIF Delomatic 4 DGU 0002 Generator Control Unit is a microprocessor-based generator control module used in the DEIF Delomatic 4 power management system. It provides automatic generator control, synchronization, load sharing, protection, monitoring, and communication functions for diesel and gas generator sets in marine and industrial power applications
BRAND
DEIF
TYPE
Delomatic 4 (Generator Control System)
PART NO.
400031815.10
MODEL
DGU 0002
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Delomatic 4 (Generator Control System) |
| PART NO. | 400031815.10 |
| MODEL | DGU 0002 |

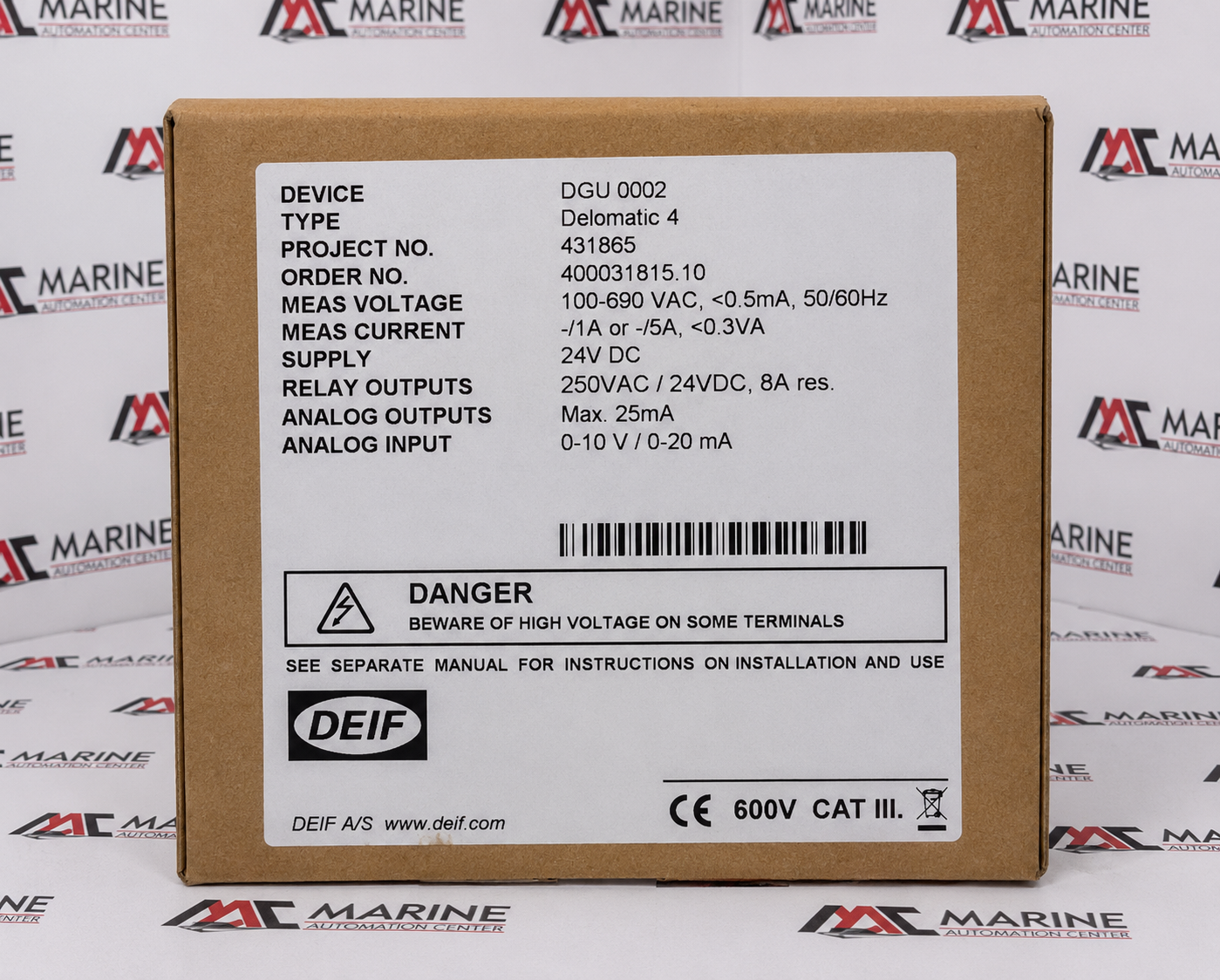

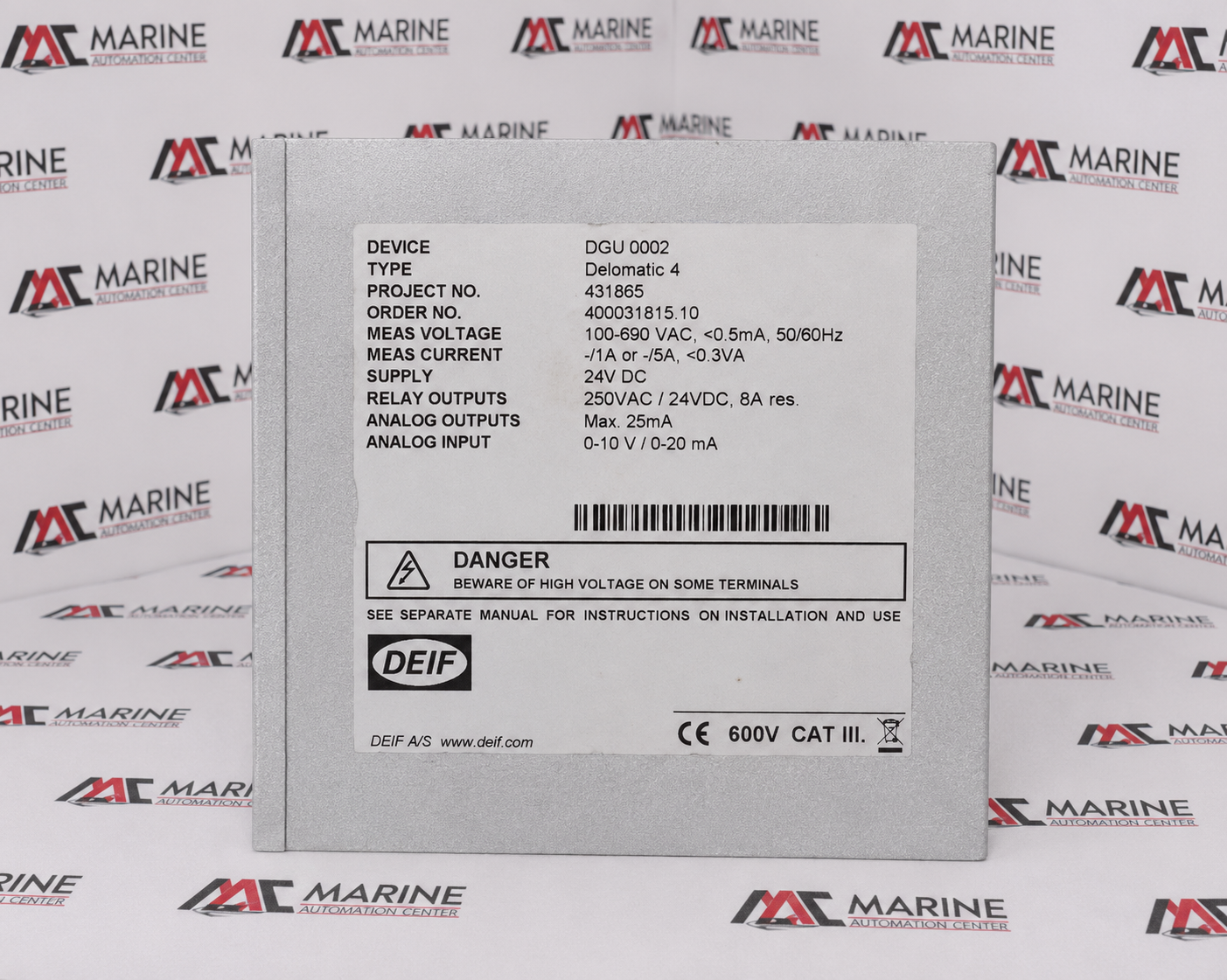

| Voltage Rating | Supply: 24V DC Measurement Voltage: 100-690V AC (<0.5mA, 50/60Hz) |
| Application | Advanced marine and land-based power management systems (PMS), multiple diesel generators paralleling changeovers, load sharing, and automated engine protection. |
| IEC | CE Marked; meets 600V CAT III safety protection standards. |
| Measurement Current Rating | -/1A or -/5A configuration limits |
| Relay Output Capacity | 250V AC / 24V DC, 8A resistive load switching thresholds |
| Analog Output Current | Maximum 25 mA loop tracking line capability |
| Analog Input Compatibility | Scaled for 0-10 V or 0-20 mA hardware industrial transmitter loop feeds |
| Network Communication Backbone | Communicates with standard operator control units via an ARCNET coaxial framework or optional serial buses |
| Made In | Denmark |
| REF NO | 333 |
