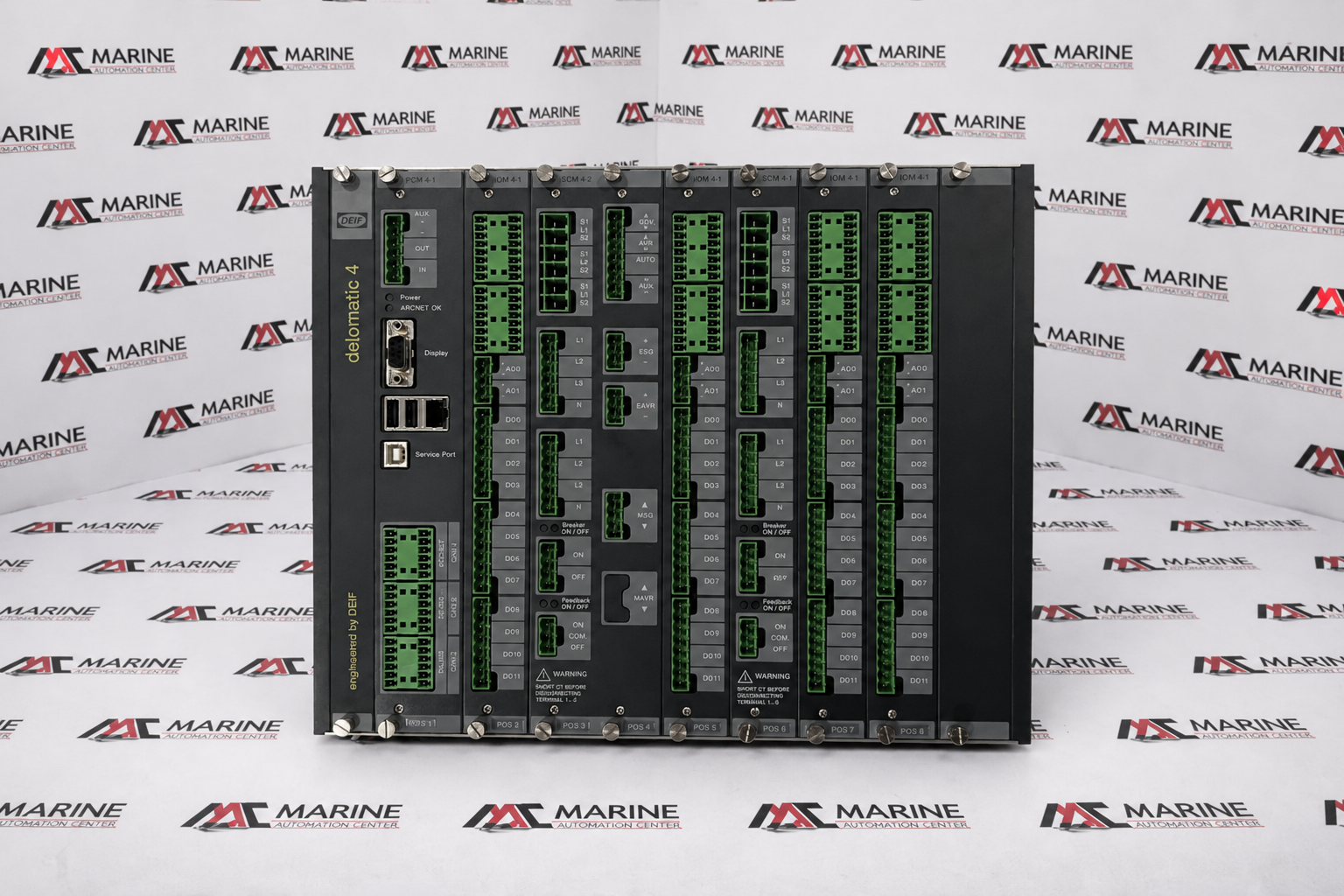

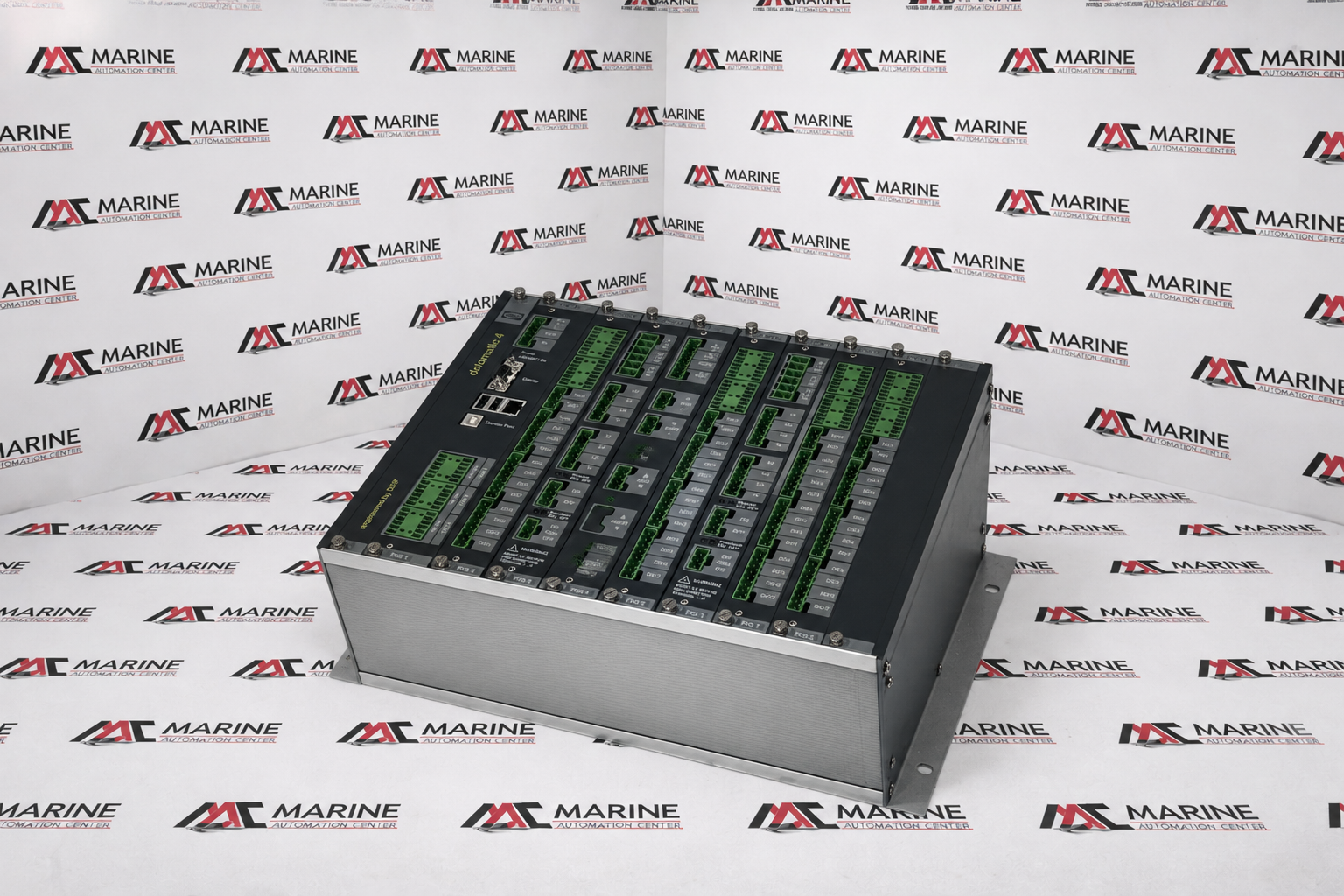

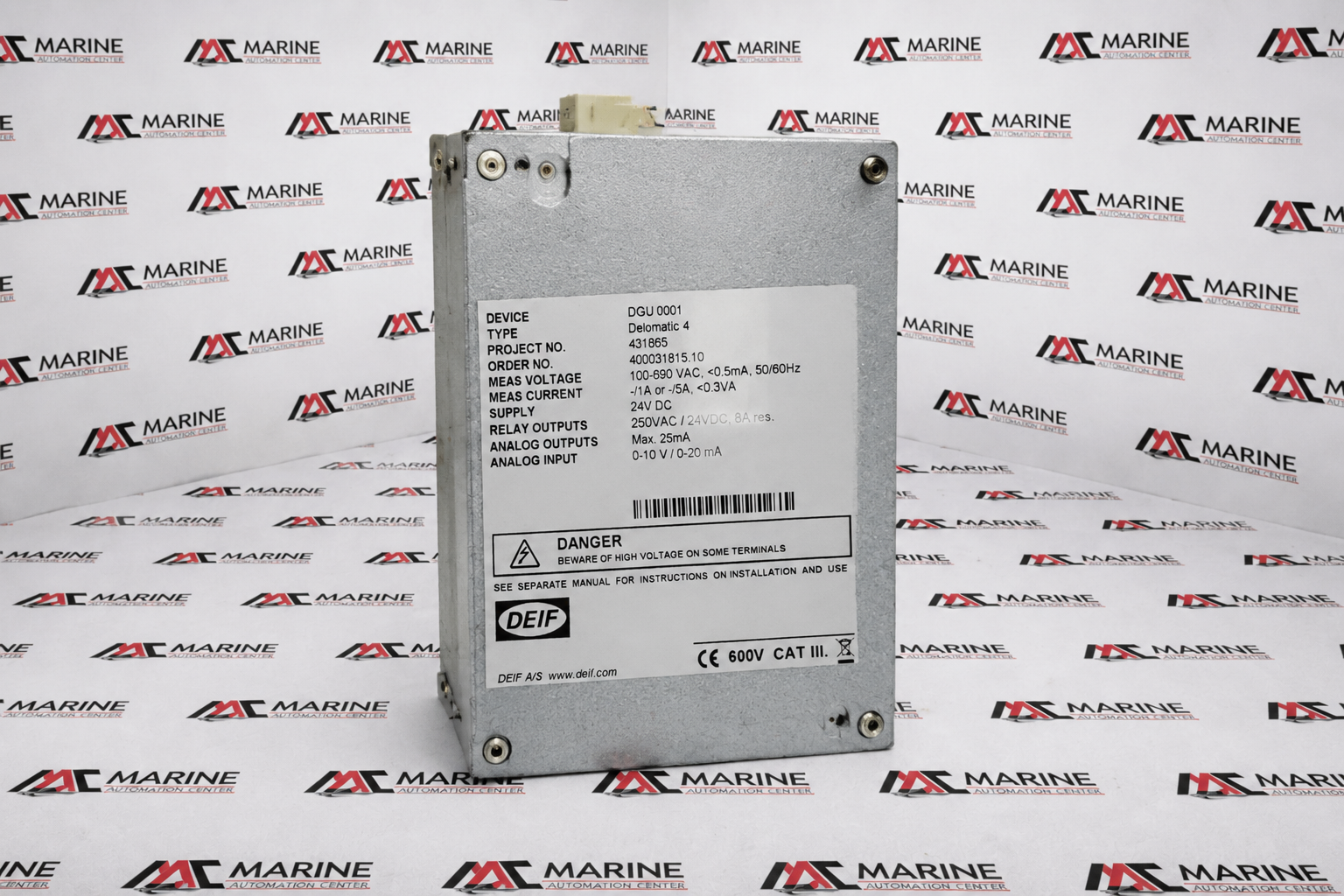

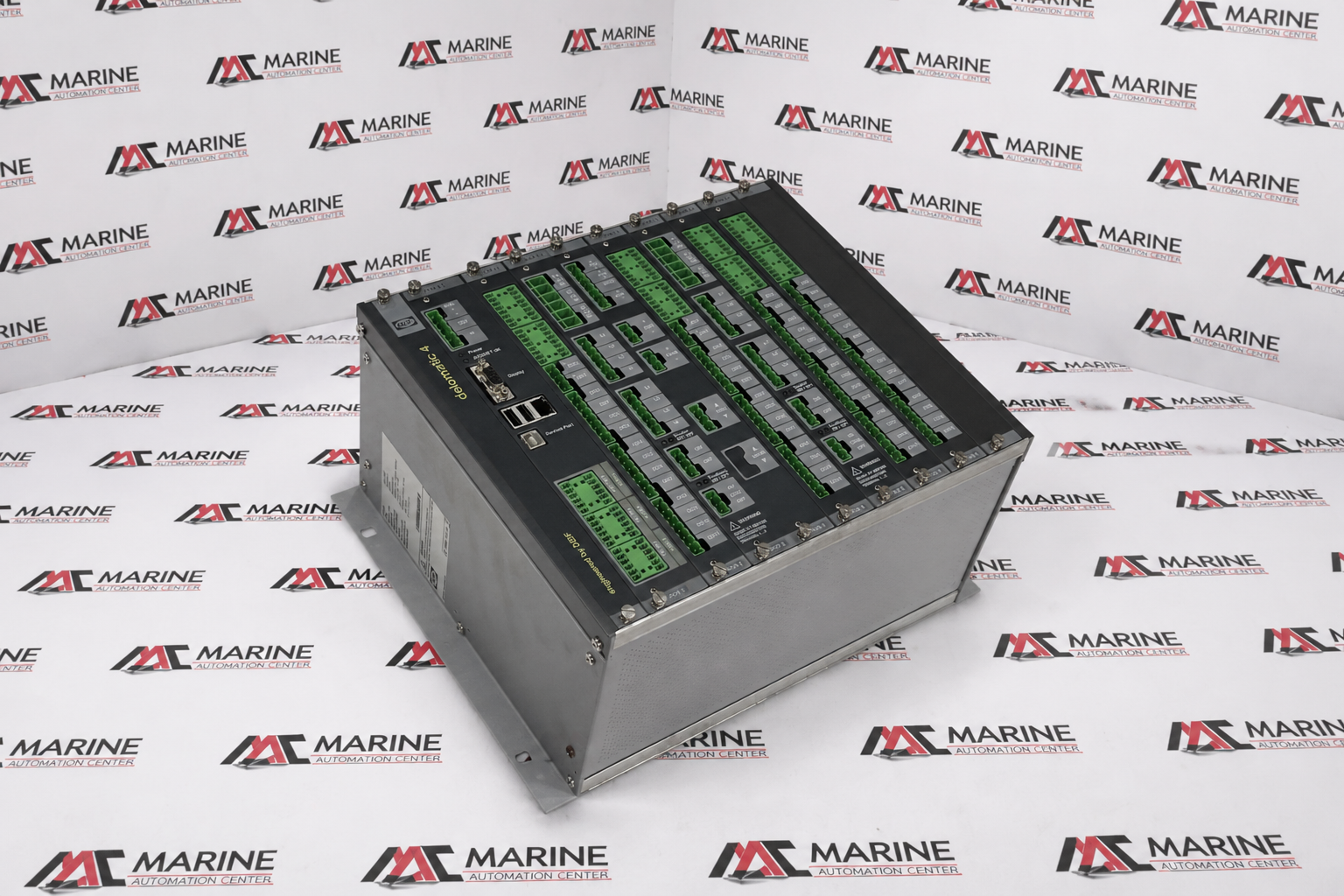

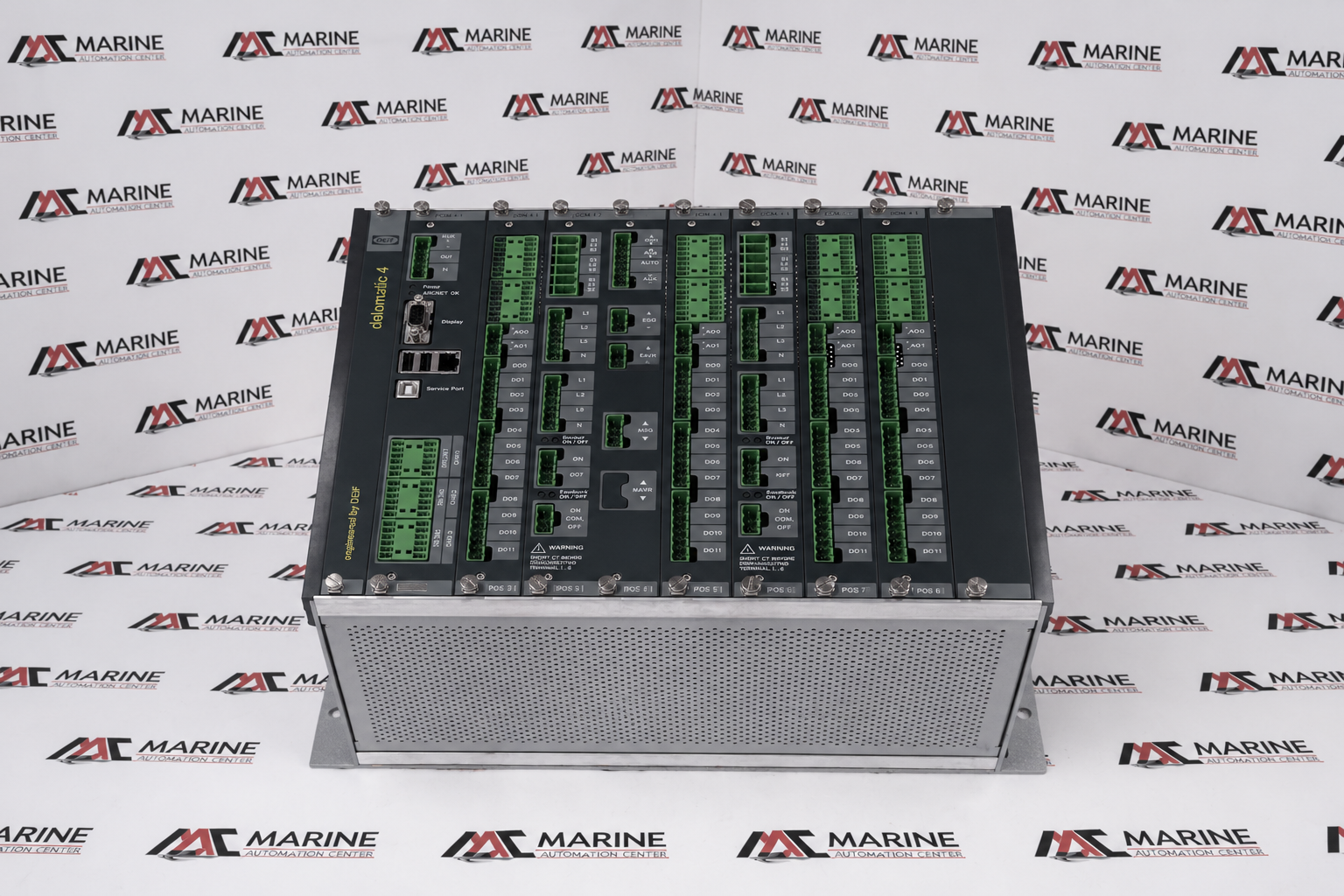

DEIF Delomatic 4 DGU 0001 Generator Control Unit
DEIF Delomatic 4 DGU 0001 Generator Control Unit is a microprocessor-based generator control module designed for the DEIF Delomatic 4 power management system. It provides automatic generator control, synchronization, load sharing, engine and generator protection, monitoring, and communication for reliable operation of diesel and gas generator sets in marine and industrial power applications
BRAND
DEIF
TYPE
Delomatic 4 (Generator Control System)
PART NO.
400031815.10
MODEL
DGU 0001
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | Delomatic 4 (Generator Control System) |
| PART NO. | 400031815.10 |
| MODEL | DGU 0001 |

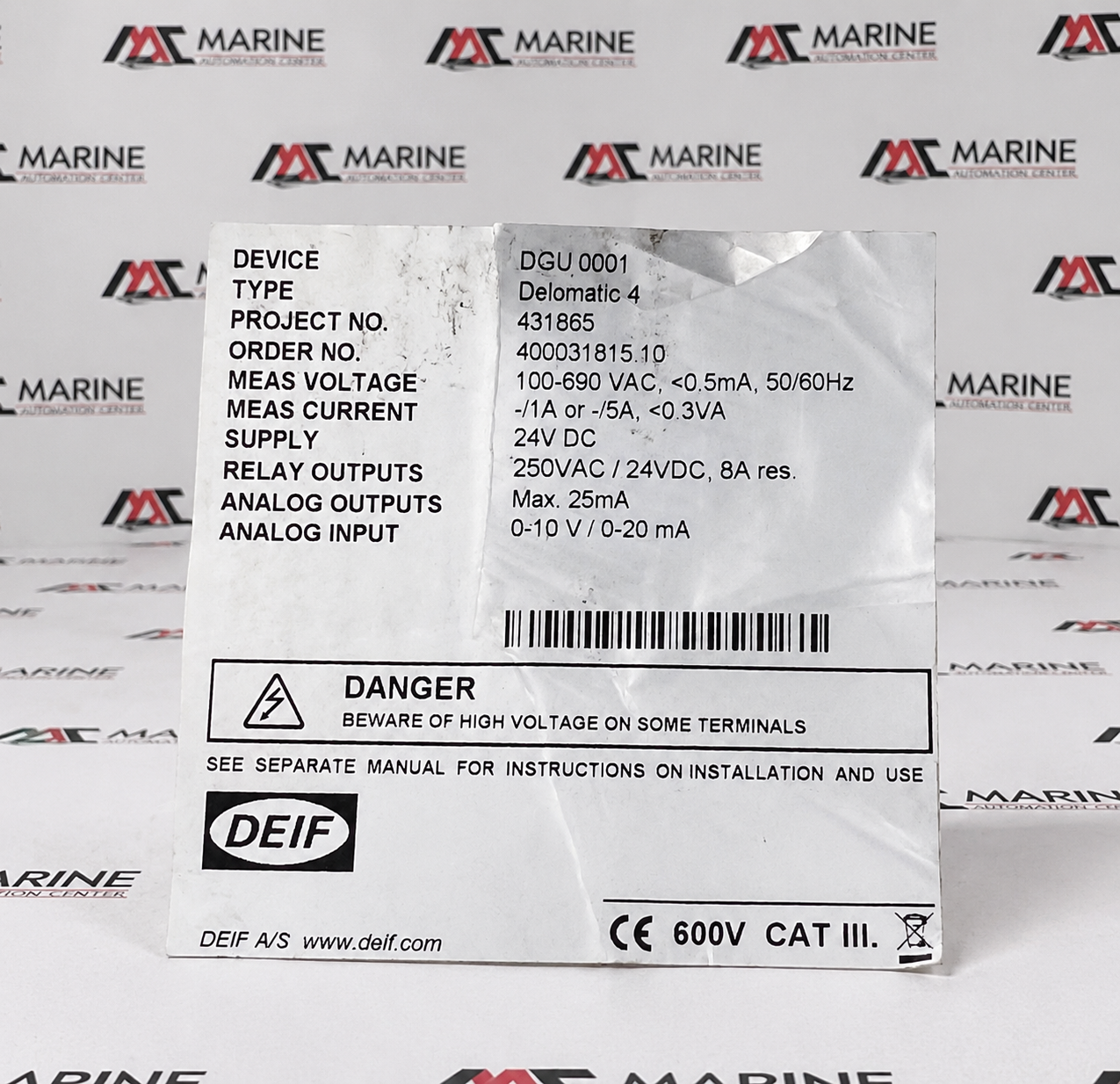

| Voltage Rating | Supply: 24V DC Measurement Voltage: 100-690V AC (<0.5mA, 50/60Hz) |
| Application | Marine and land-based plant automation management, automated diesel generator configuration adjustments, sync handling, and load-sharing systems |
| IEC | CE Marked; fully complies with 600V CAT III classification safety protection standards |
| Measurement Current Rating | -/1A or -/5A configuration limits |
| Relay Output Capacity | 50V AC / 24V DC, 8A resistive load switching thresholds |
| Analog Output Current | Maximum 25 mA loop tracking line capability |
| Analog Input Compatibility | Scaled for 0-10 V or 0-20 mA hardware industrial transmitter loop feeds |
| Network Communication Backbone | Communicates with standard operator control units via an ARCNET coaxial framework or optional serial buses |
| Integrated Safety Diagnostics | High-voltage boundary separation labeled explicitly with danger parameters for installation and handling precautions |
| Made In | Denmark |
| REF NO | 334 |
