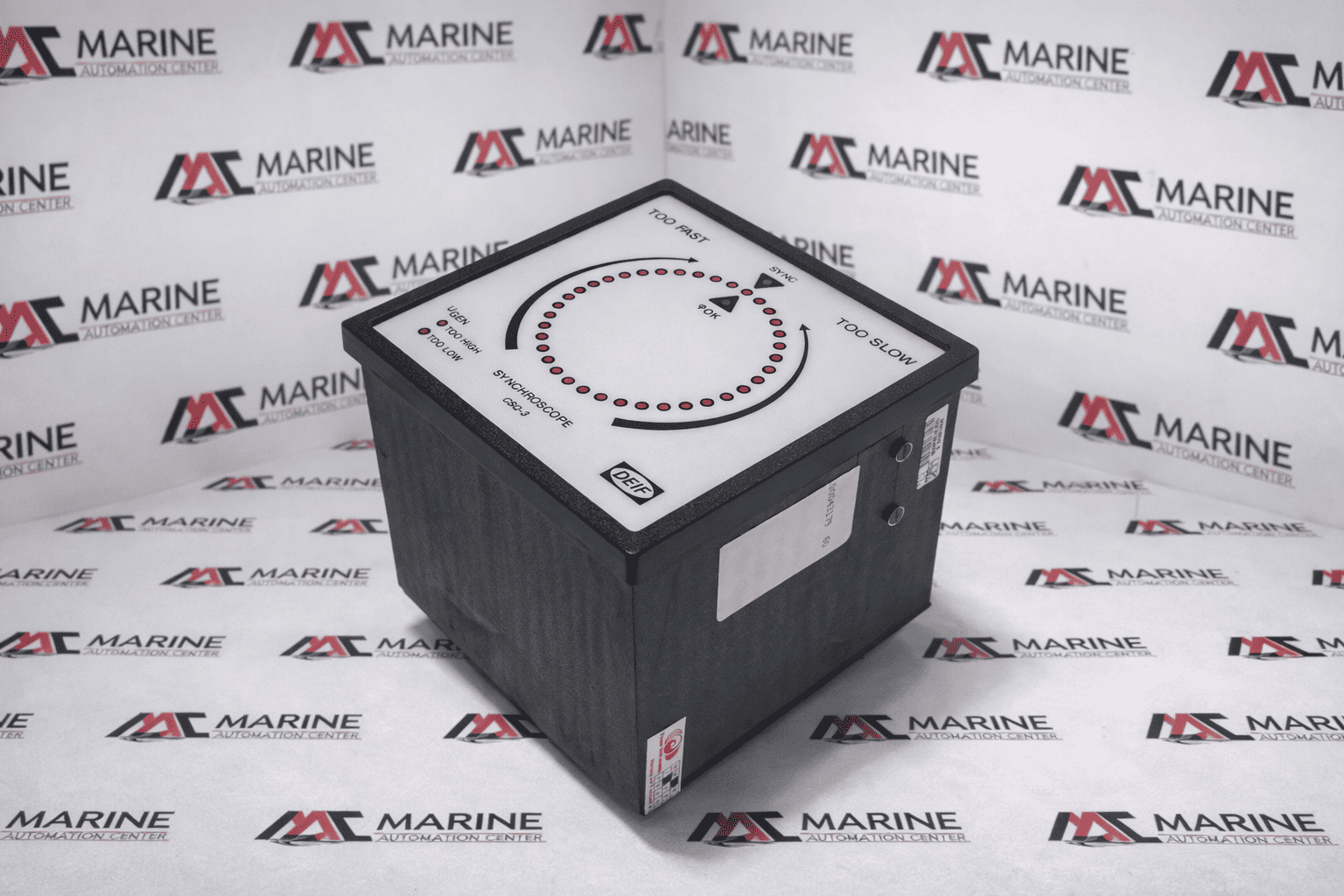

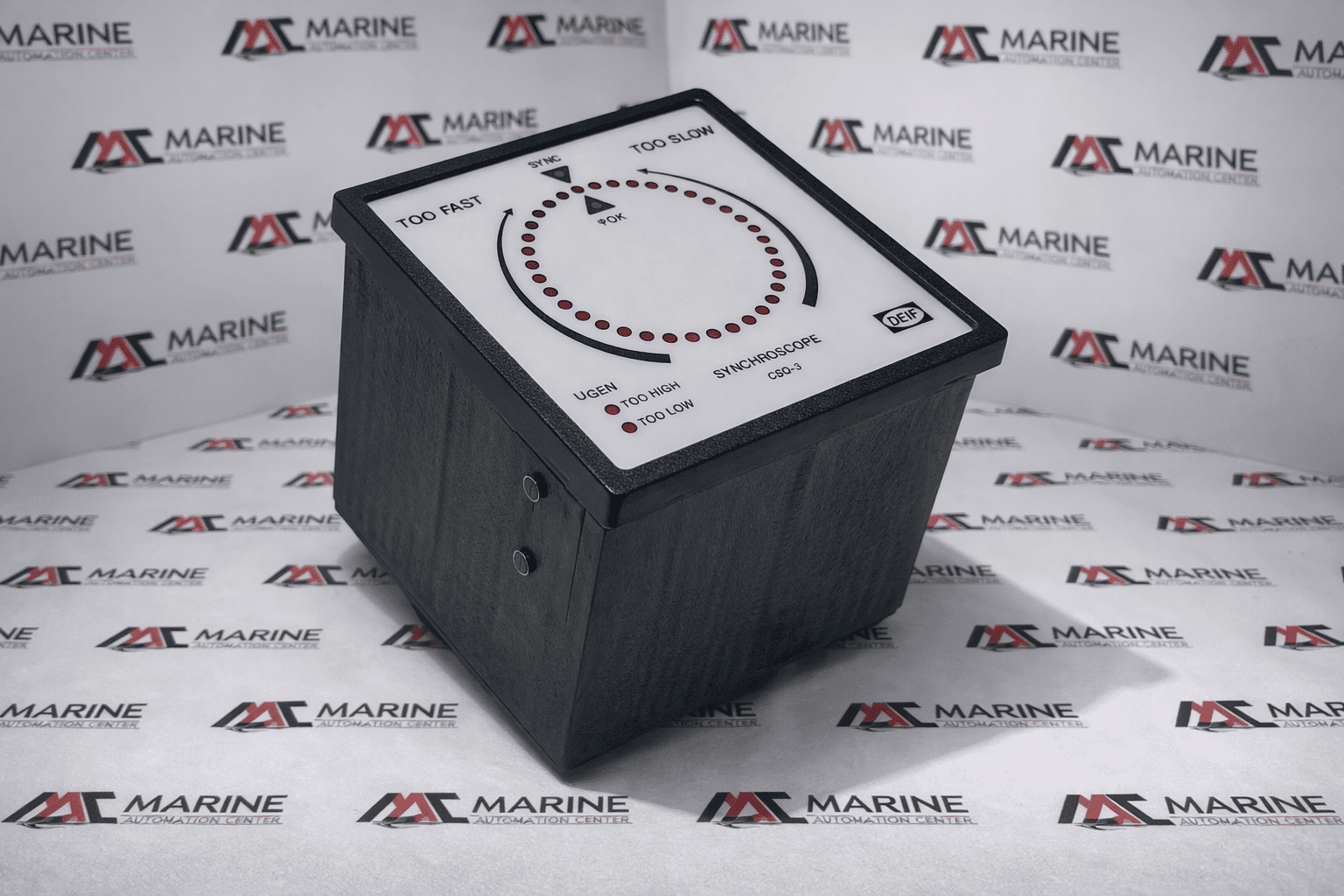

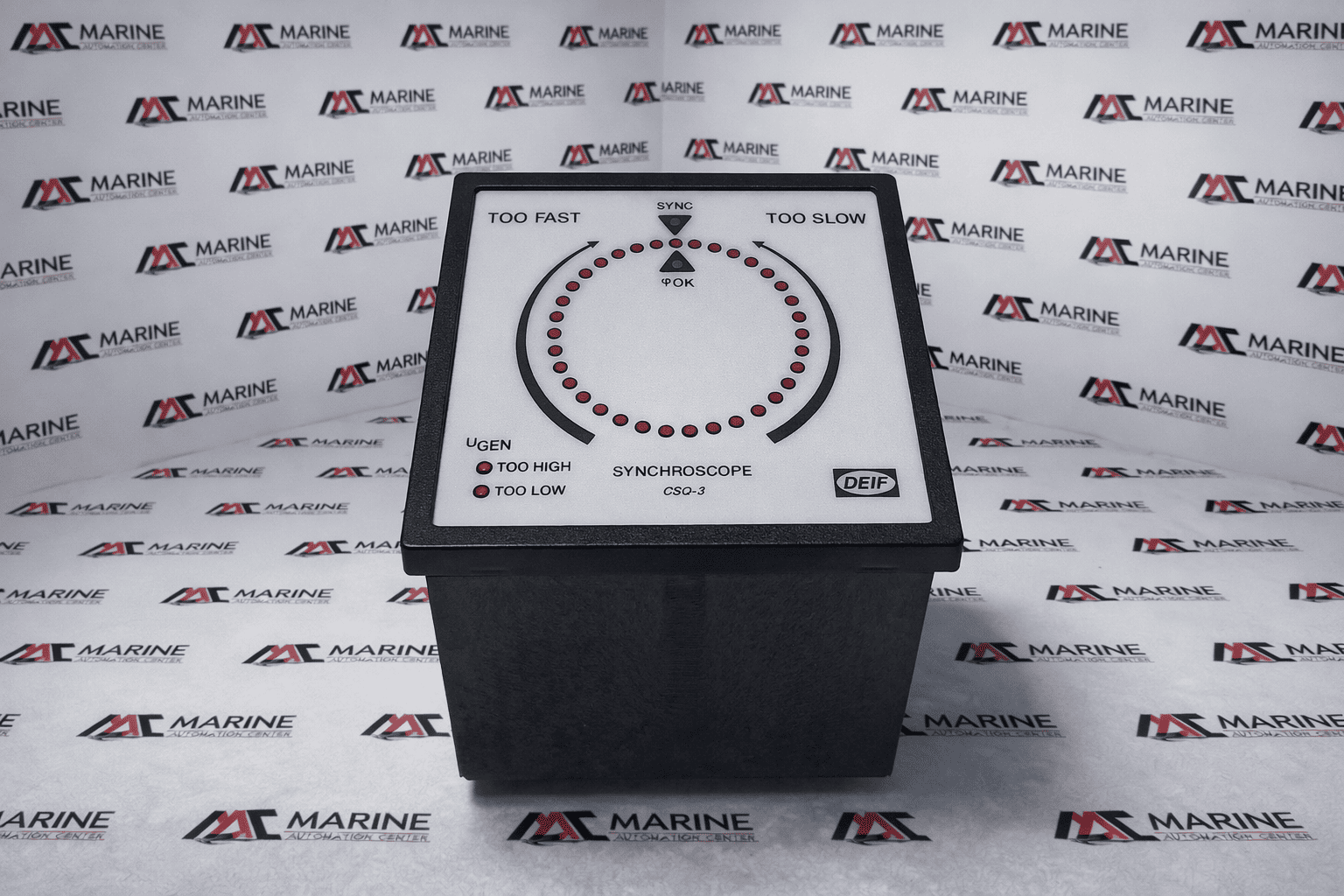

Deif Csq-3 Marine Synchronising Relay
Buy the Deif CSQ-3 Marine Synchronizing Relay (440-480V AC) for seamless voltage synchronization in marine systems. With a 450V AC busbar input, it provides reliable outputs of 250VAC/24VDC, 8A resistive. Designed for optimal performance and safety in marine environments, it’s the ideal solution for efficient synchronization.
BRAND
Deif Csq-3 Marine Synchronising Relay
TYPE
Relay
PART NO.
Deif Csq-3 Marine Synchronising Relay
MODEL
Csq-3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Deif Csq-3 Marine Synchronising Relay |
| TYPE | Relay |
| PART NO. | Deif Csq-3 Marine Synchronising Relay |
| MODEL | Csq-3 |

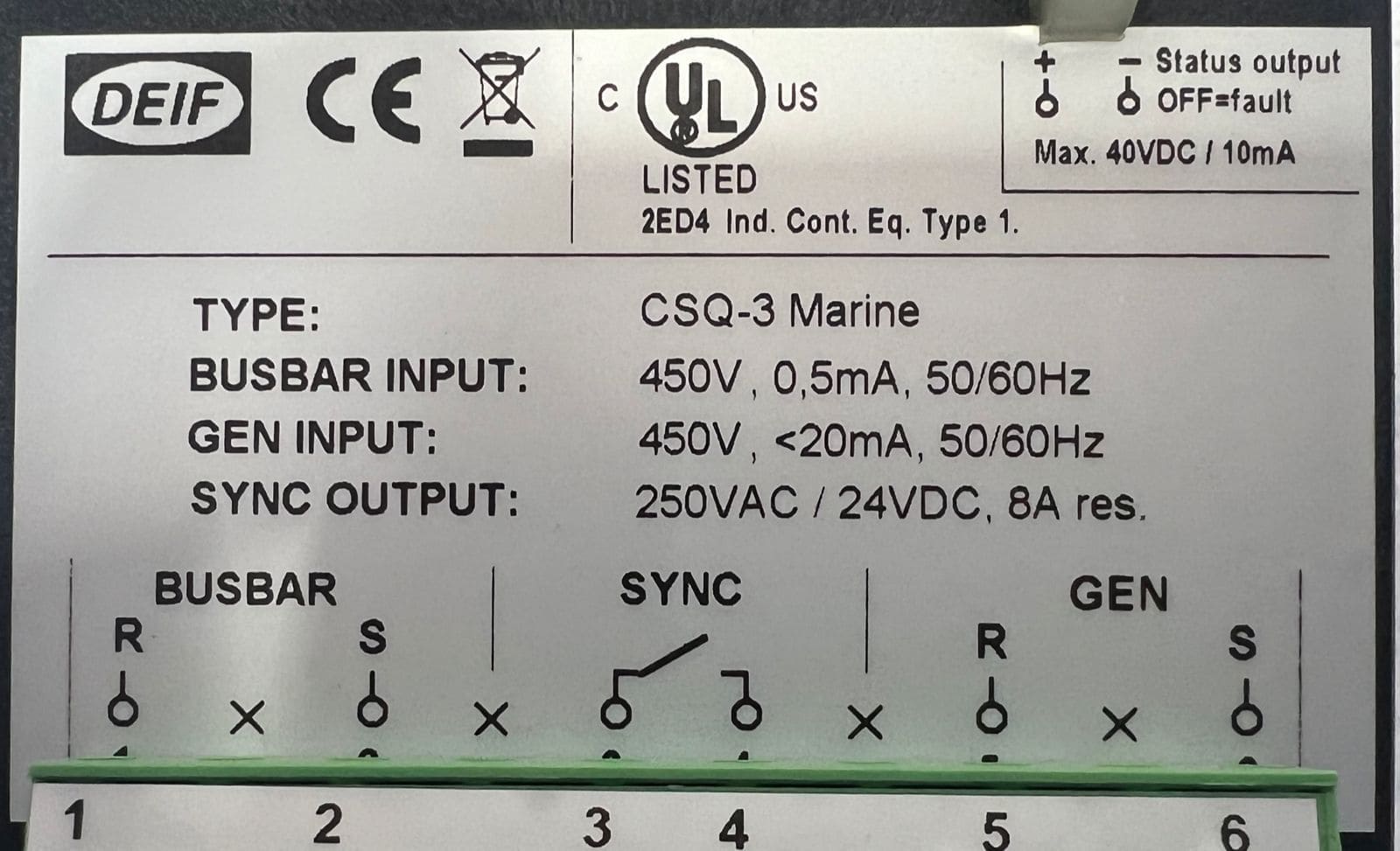

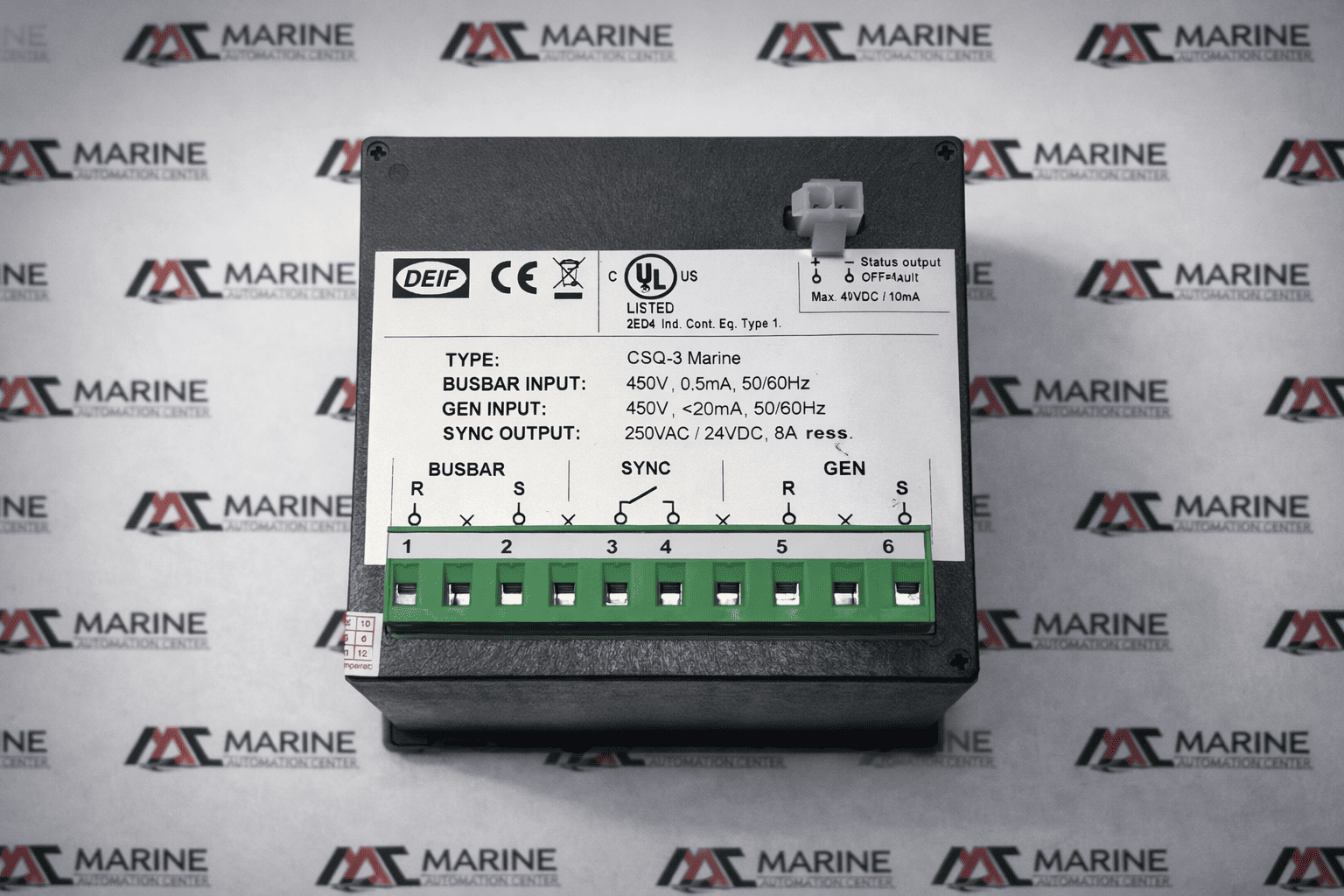

| Busbar Input | 450v, 0,5ma, 50/60hz |
| Gen Input | 450v, <20ma, 50/60hz |
| Sync Output | 250vac/ 24vdc, 8a Res. |
| Max | 40vdc/10ma |

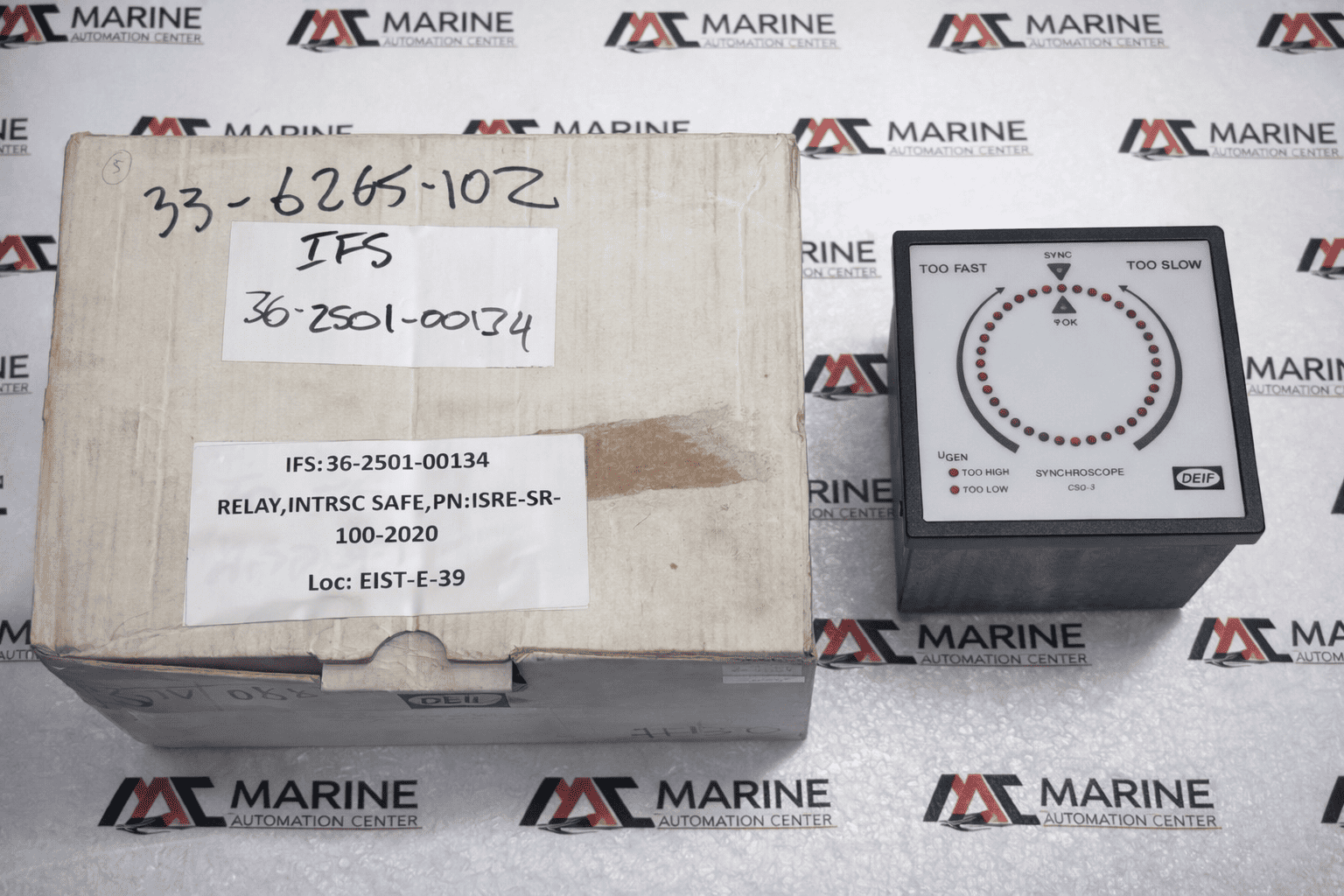

| Ifs | 36-2501-00134 |
| Relay | Intesc Safe |
| Pn | Isre-sr-100-2020 |
| Loc | Eist-e-39 |

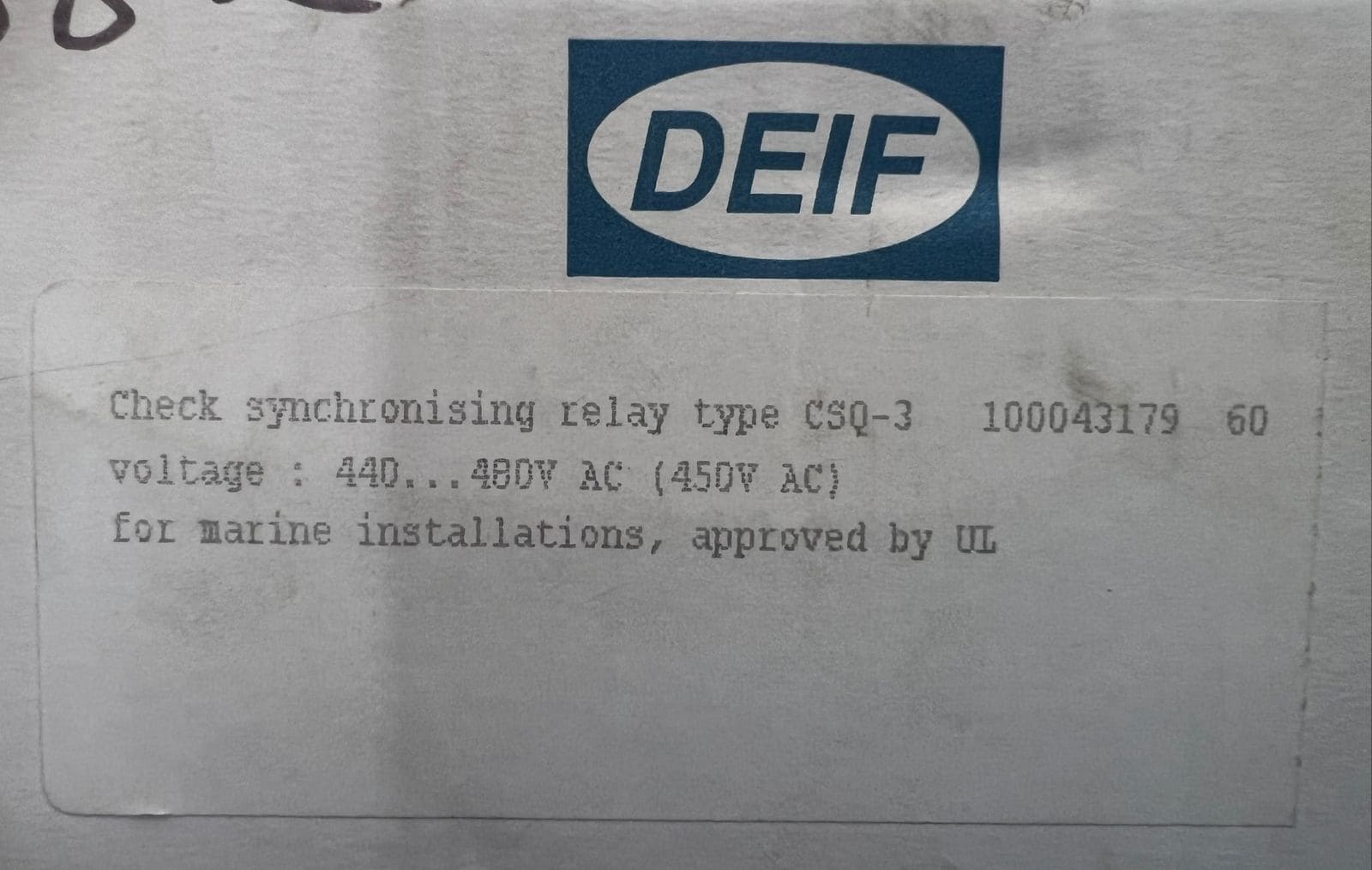

| Voltage | 440...480v Ac (450v Ac) |
| Check Synchronising | Relay |
| : | 100043179 60 |
| : | 33-6265-102 |
| Reference No | 606 |
