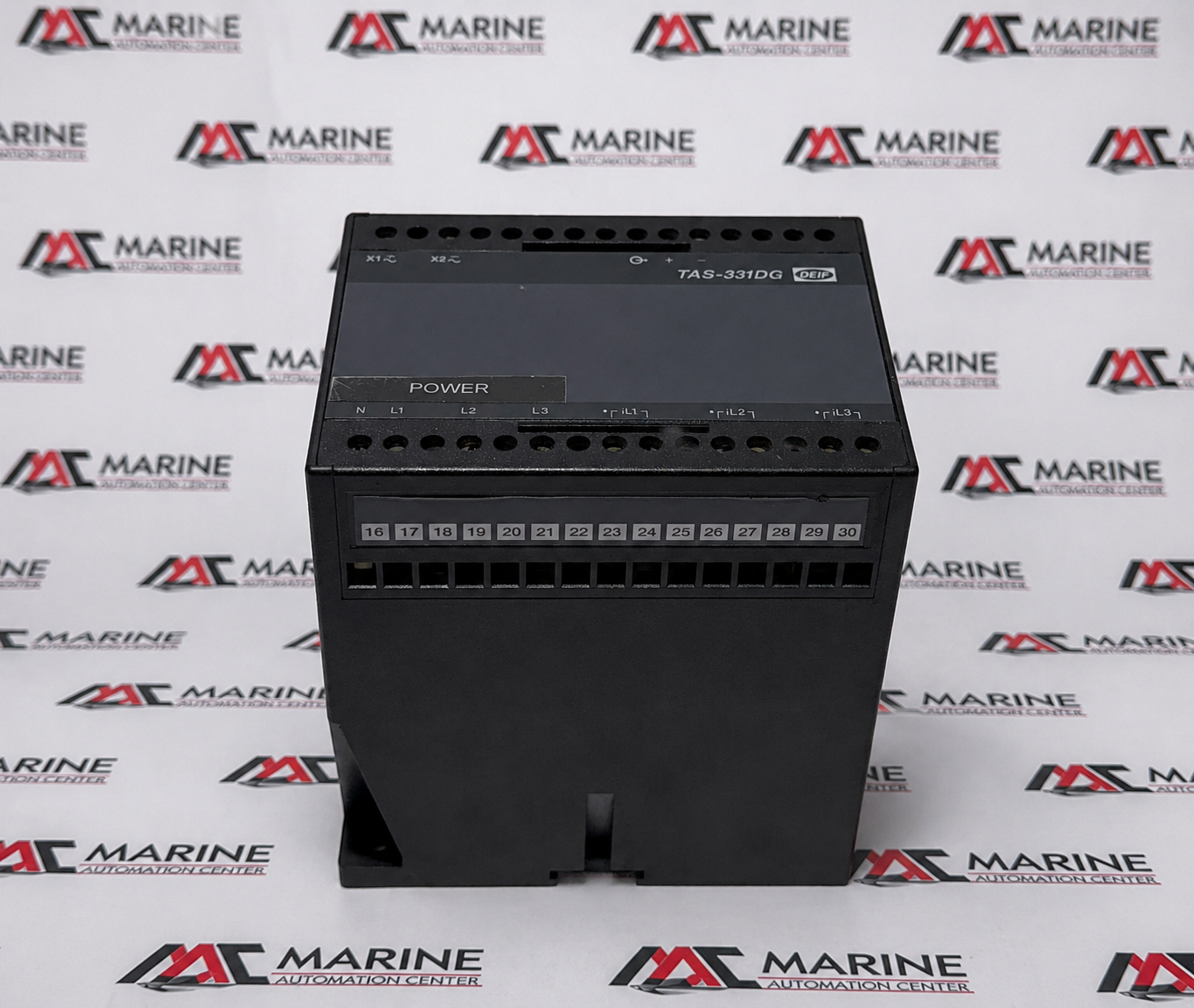

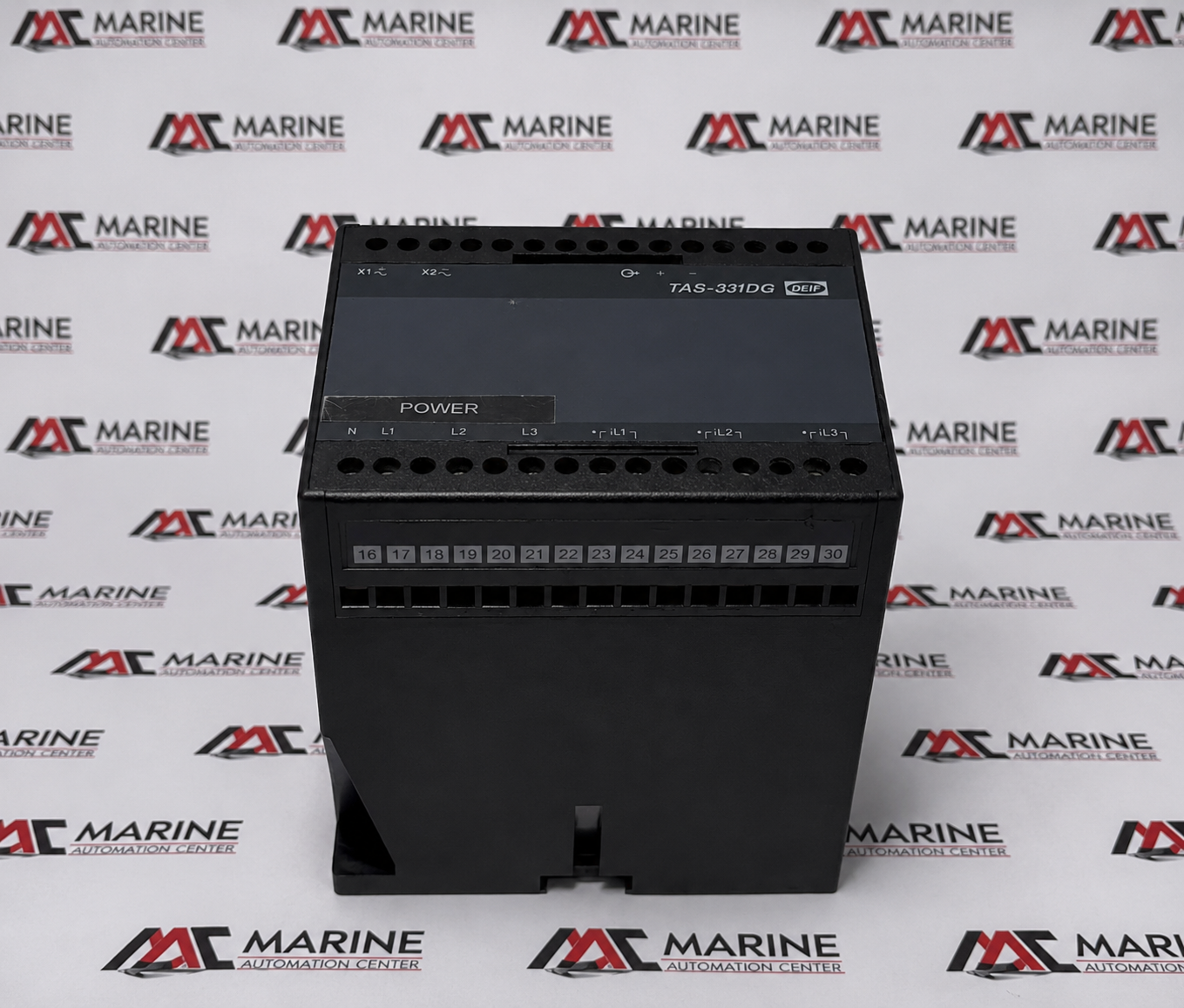

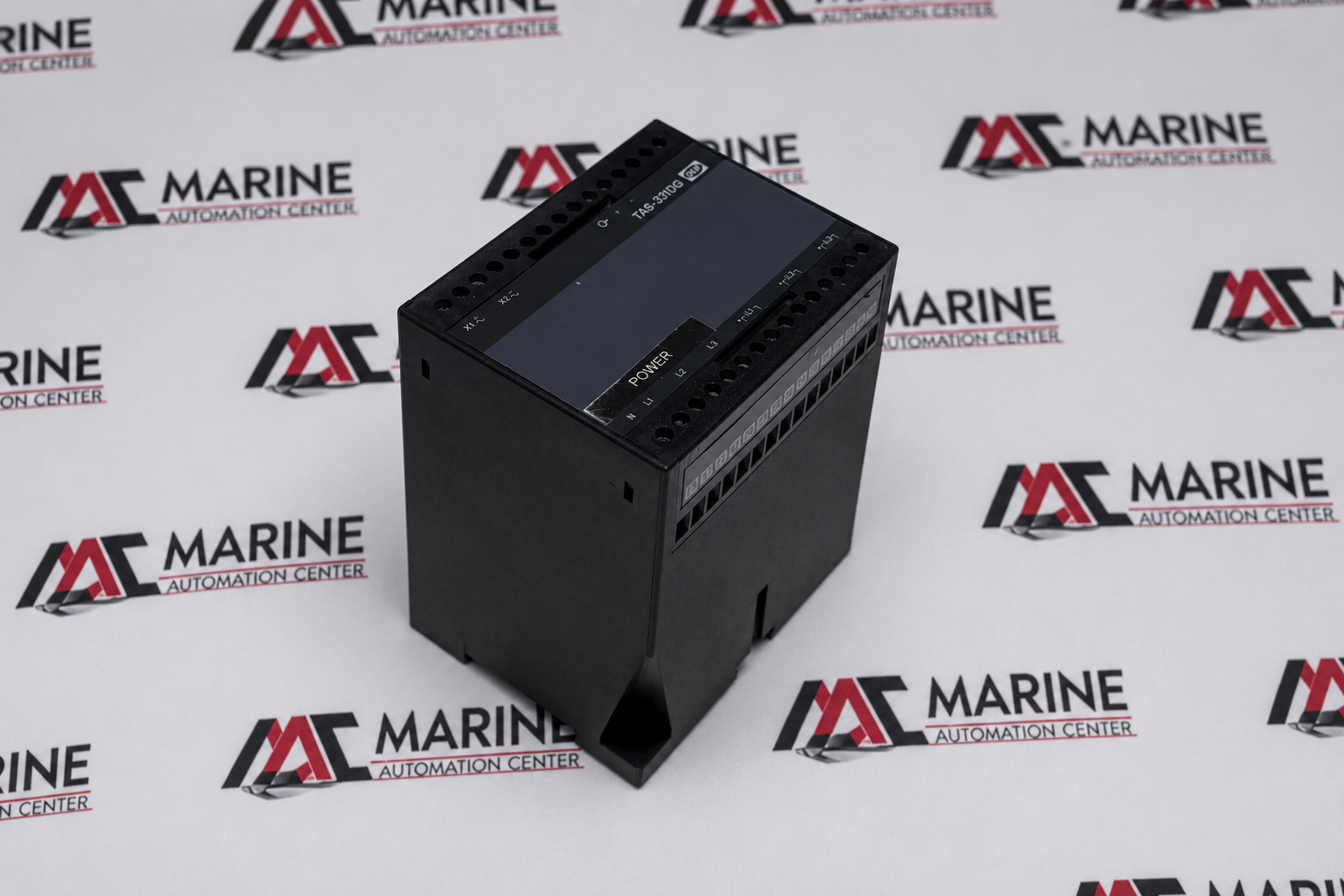

DEIF Active Power Transducer TAS-331DG
The DEIF TAS-331DG (P/N 600010521.10) is an active power measuring transducer designed to accurately convert three-phase AC active power measurements into a proportional analog output signal for monitoring and control systems. It is widely used in marine generator management, power distribution, and industrial automation applications requiring reliable real-time power measurement and load monitoring.
BRAND
DEIF
TYPE
AC Power Measuring Transducer
PART NO.
600010521.10
MODEL
TAS-331DG
Full Technical Specifications ▶

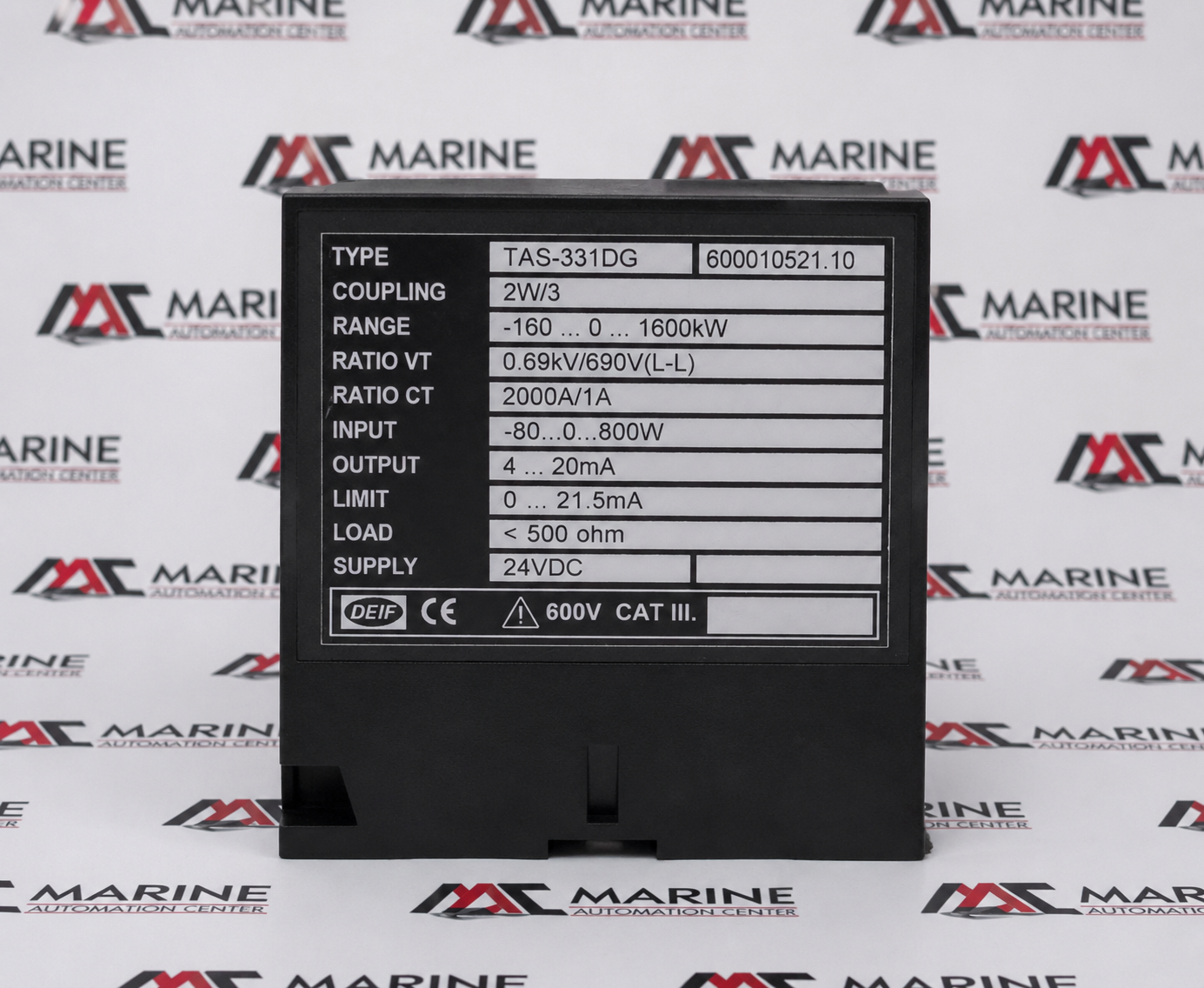

| Parameter | Value / Description |
|---|---|
| BRAND | DEIF |
| TYPE | AC Power Measuring Transducer |
| PART NO. | 600010521.10 |
| MODEL | TAS-331DG |
| MANUFACTURER | DEIF A/S |
| Voltage Rating | Measuring Voltage: 0.69 kV / 690 V AC (L-L); Supply Voltage: 24 VDC |
| Application | Measures active power on 3-phase AC networks and converts the measured value into a proportional analog output (4–20 mA) for PLCs, SCADA systems, power management systems, switchboards, engine monitoring, marine automation, and industrial power monitoring |
| IEC | Class 0.5 Measurement, CE Marked, 600 V CAT III |
| Power Measuring Range | -160 ... 0 ... 1600 kW |
| Voltage Transformer Ratio (VT) | 0.69 kV / 690 V (L-L) |
| Current Transformer Ratio (CT) | 2000 A / 1 A |
| Input Range | -80 ... 0 ... 800 W |
| Analog Output | 4–20 mA DC |
| Maximum Load | < 500 Ω |
| Auxiliary Supply | 24 VDC |
| Configuration | Factory configured or configurable using DEIF PC configuration software |
| Made In | Denmark |
| Ref no. | 1432 |
