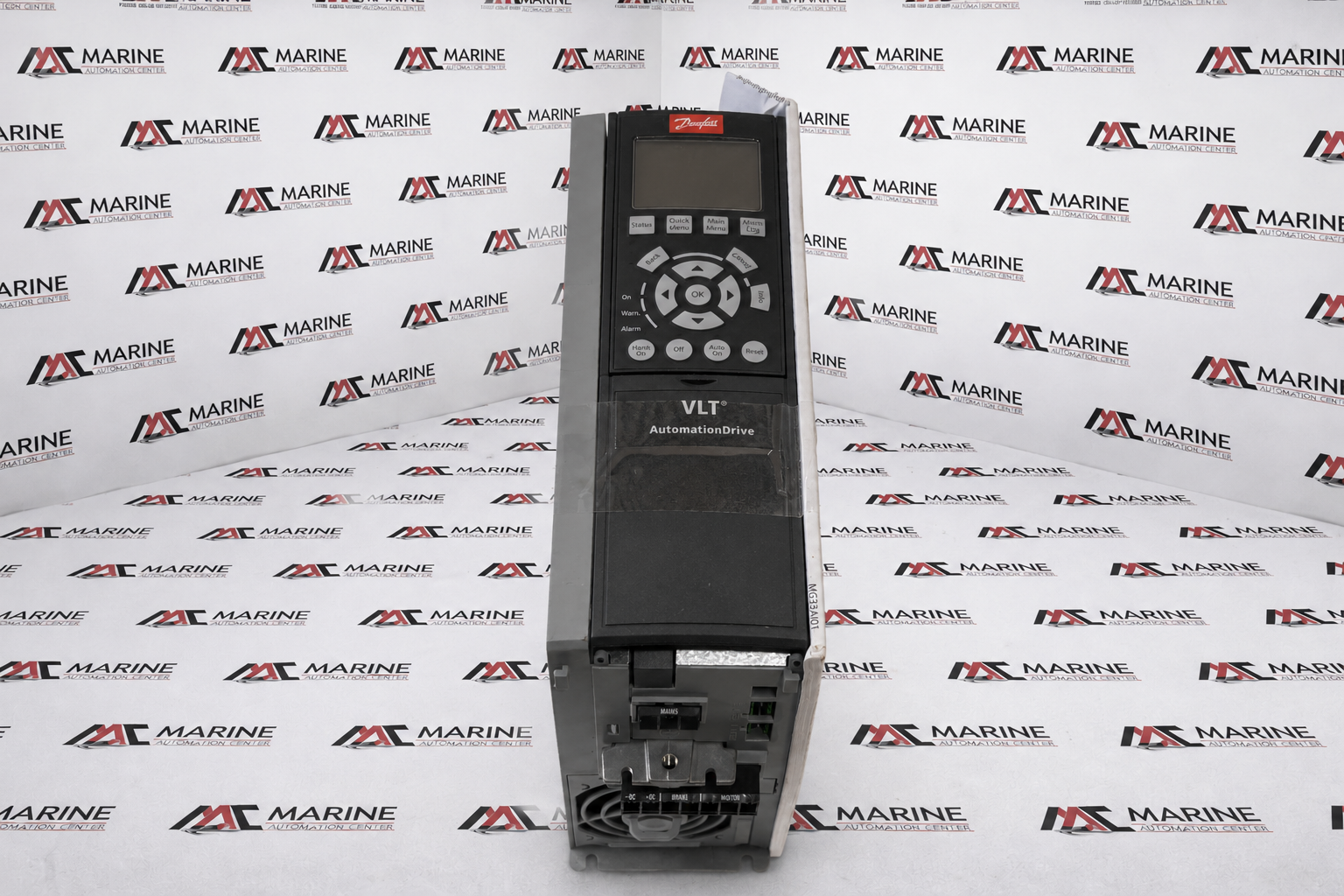

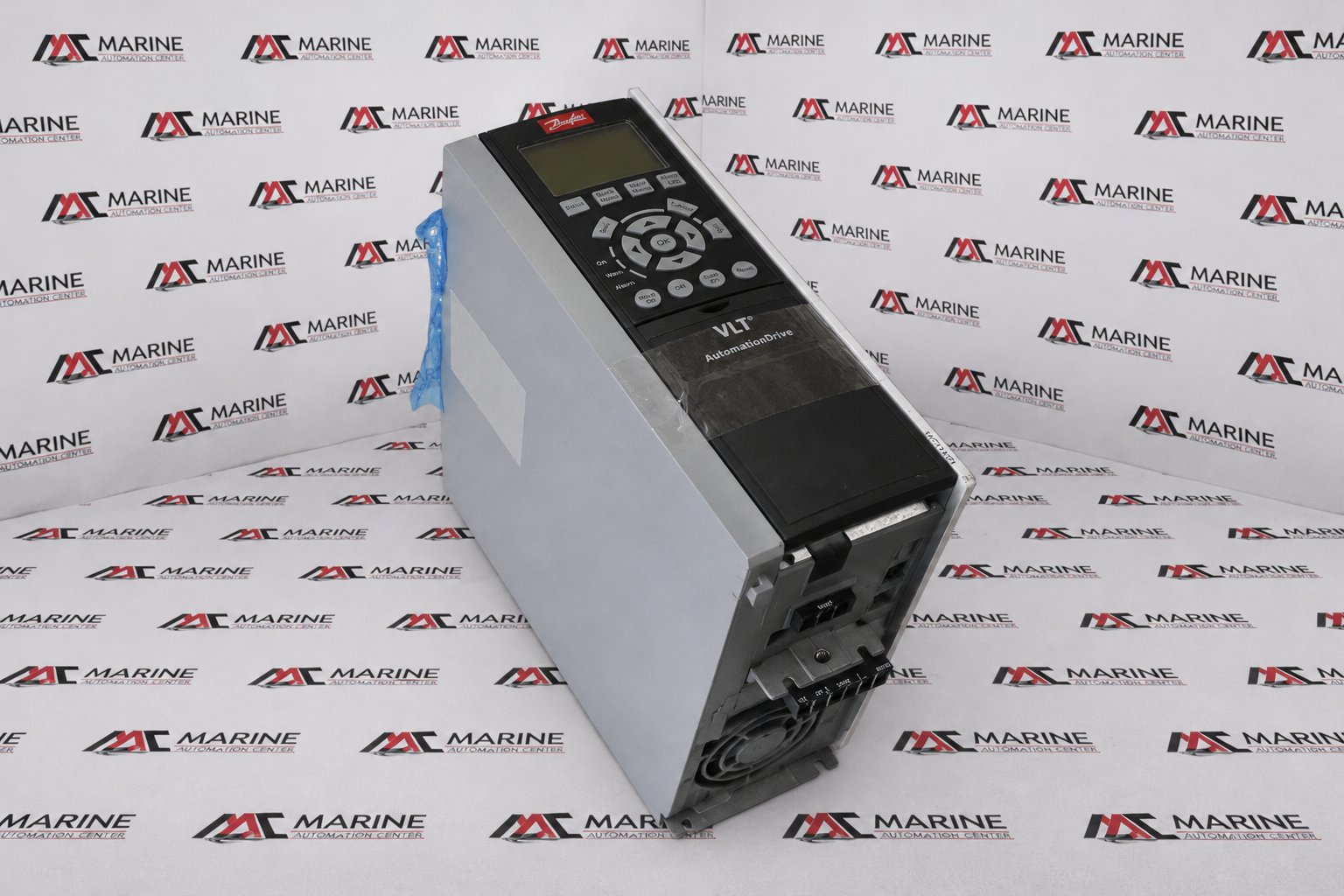

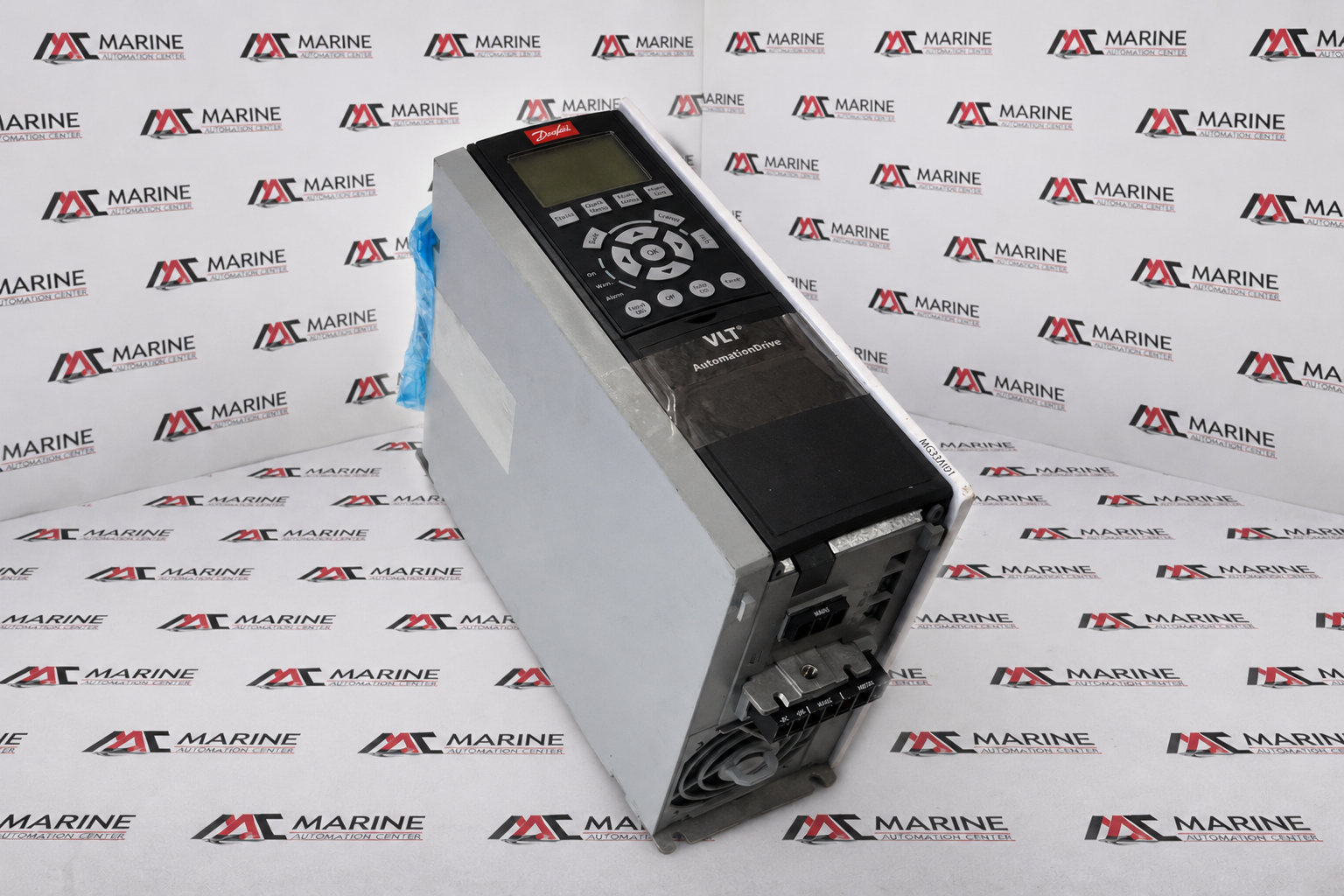

Danfoss VLT® AutomationDrive FC-302
Danfoss VLT® AutomationDrive FC-302 (131B0080) is a high-performance variable frequency drive (VFD) designed for precise motor control in demanding industrial applications. It delivers efficient speed regulation, advanced automation features, and reliable operation, making it ideal for pumps, fans, conveyors, compressors, and other heavy-duty industrial systems
BRAND
Danfoss
TYPE
Frequency Inverter / Variable Frequency Drive (VFD)
PART NO.
131B0080
MODEL
VLT® AutomationDrive FC-302
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Frequency Inverter / Variable Frequency Drive (VFD) |
| PART NO. | 131B0080 |
| MODEL | VLT® AutomationDrive FC-302 |

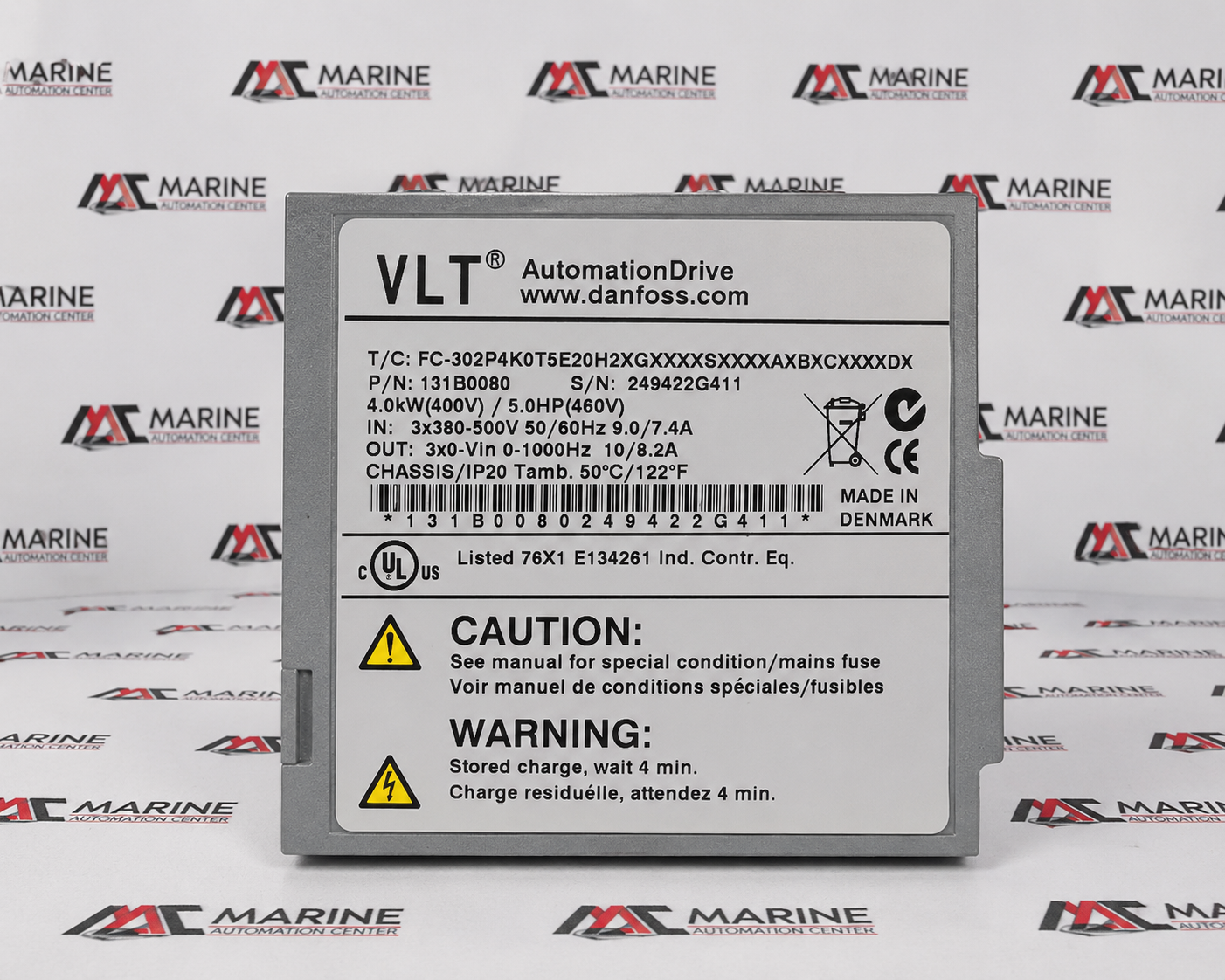

| Power Rating | 4.0 kW (400 V) / 5.0 HP (460 V) |
| Series | FC-302 AutomationDrive |
| Input Voltage | 3 × 380–500 V AC |
| Input Frequency | 50/60 Hz |
| Input Current | 9.0 / 7.4 A |
| Output Voltage | 3 × 0 V to Input Voltage |
| Output Frequency | 0–1000 Hz |
| Output Current | 10 / 8.2 A |
| Enclosure | IP20 / Chassis |
| Cooling Method | Forced Air Cooling |
| Ambient Temperature | Up to 50°C (122°F) |
| Control Interface | Graphical Local Control Panel (LCP) |
| Communication | Integrated RS-485, Modbus RTU / FC Protocol compatible |
| Protection Features | Overload, Overcurrent, Overvoltage, Undervoltage, Overtemperature, Motor Protection, Short Circuit Protection |
| Supply Phase | Three Phase |
| Serial Number | 249422G411 |
| Certifications | CE, cULus Listed (76X1 E134261), WEEE Compliant |
| Application | Designed for precise variable-speed control of AC induction and permanent magnet motors in pumps, fans, conveyors, compressors, marine machinery, HVAC systems, cranes, process automation, and other demanding industrial applications. The FC-302 series is e |
| Warehouse / Package Label Information | MFG P/N: FC-302-P4K0T5; Converter, Frequency VFD, PT FC301 ST G 4 kW; 380–480 V, 5 HP, 7.4 Amps; Stock Item – Last Received: 09-Jan-2012 (1598.50); Last FR: 177-005233; Warehouse Model: SACK CUTTER; Warehouse Manufacturer: AKER; Account No.: 7286000 |
| MADE IN | Denmark |
| REF NO | 501 |
